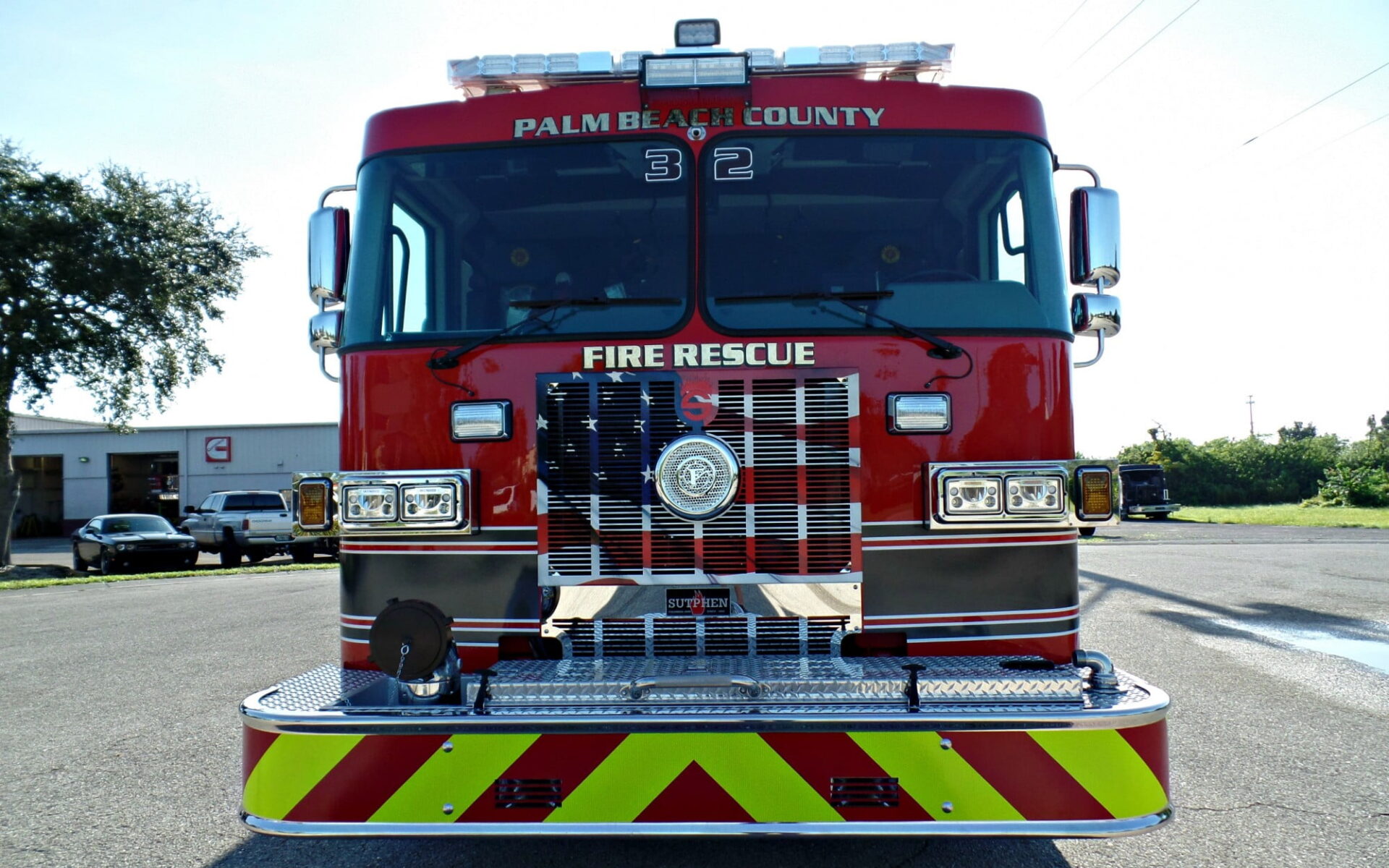

Custom Pumper – Palm Beach County Fire Rescue, FL

Specs

Cab
Four-door, five-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
18,000 lbs
Rear Axle and Suspension
24,000 lbs
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS 3000

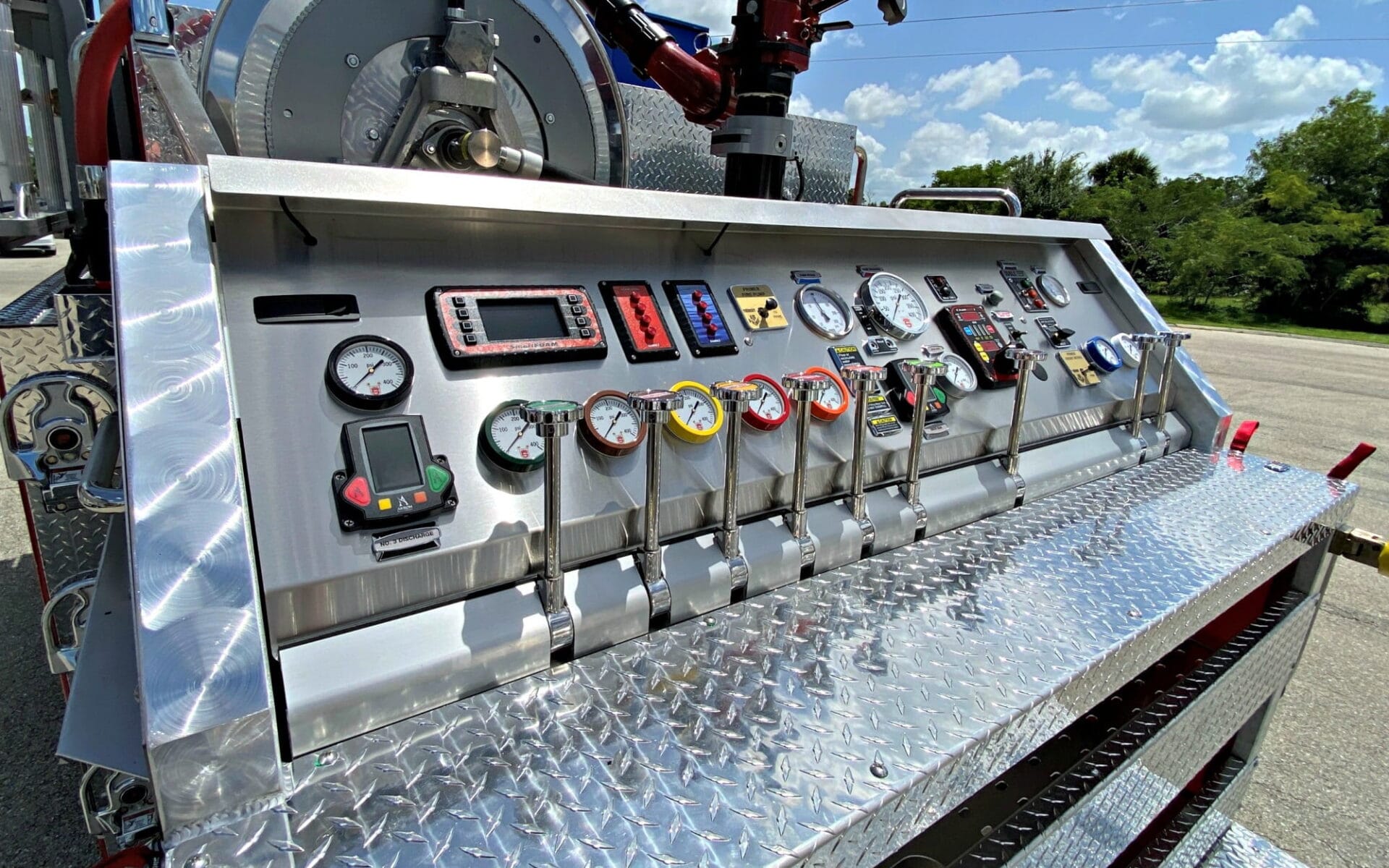

Water Pump
Qmax-1500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper Discharge, (1) 3” Deck Gun
Speedlay
(2) 2” w/ 1 ½” Swivel
Water Tank
750 -gallon
Water Tank
30-gallon foam tank
Foam System
Hale Smartfoam 5.0
Construction
3/16” extruded aluminum

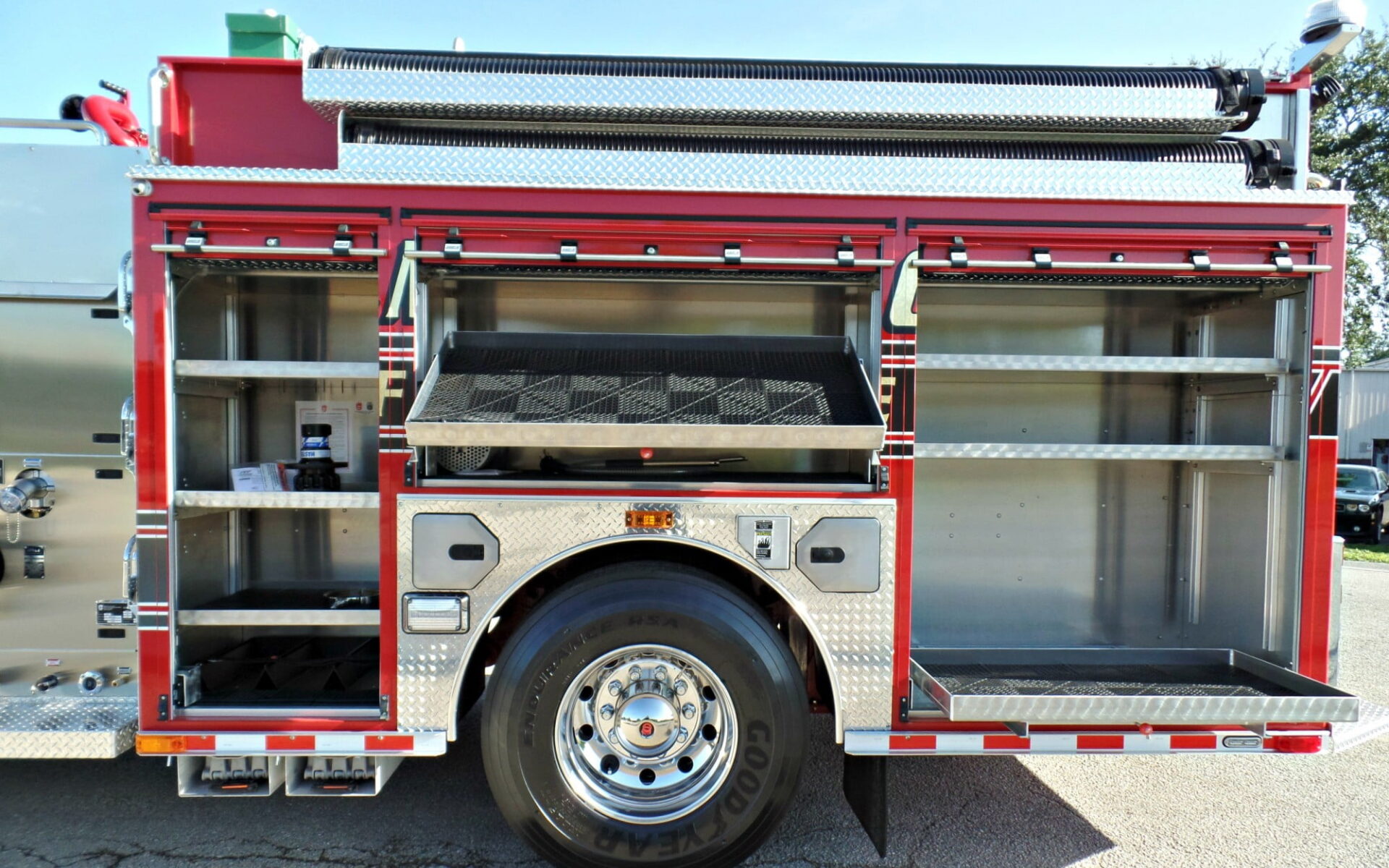

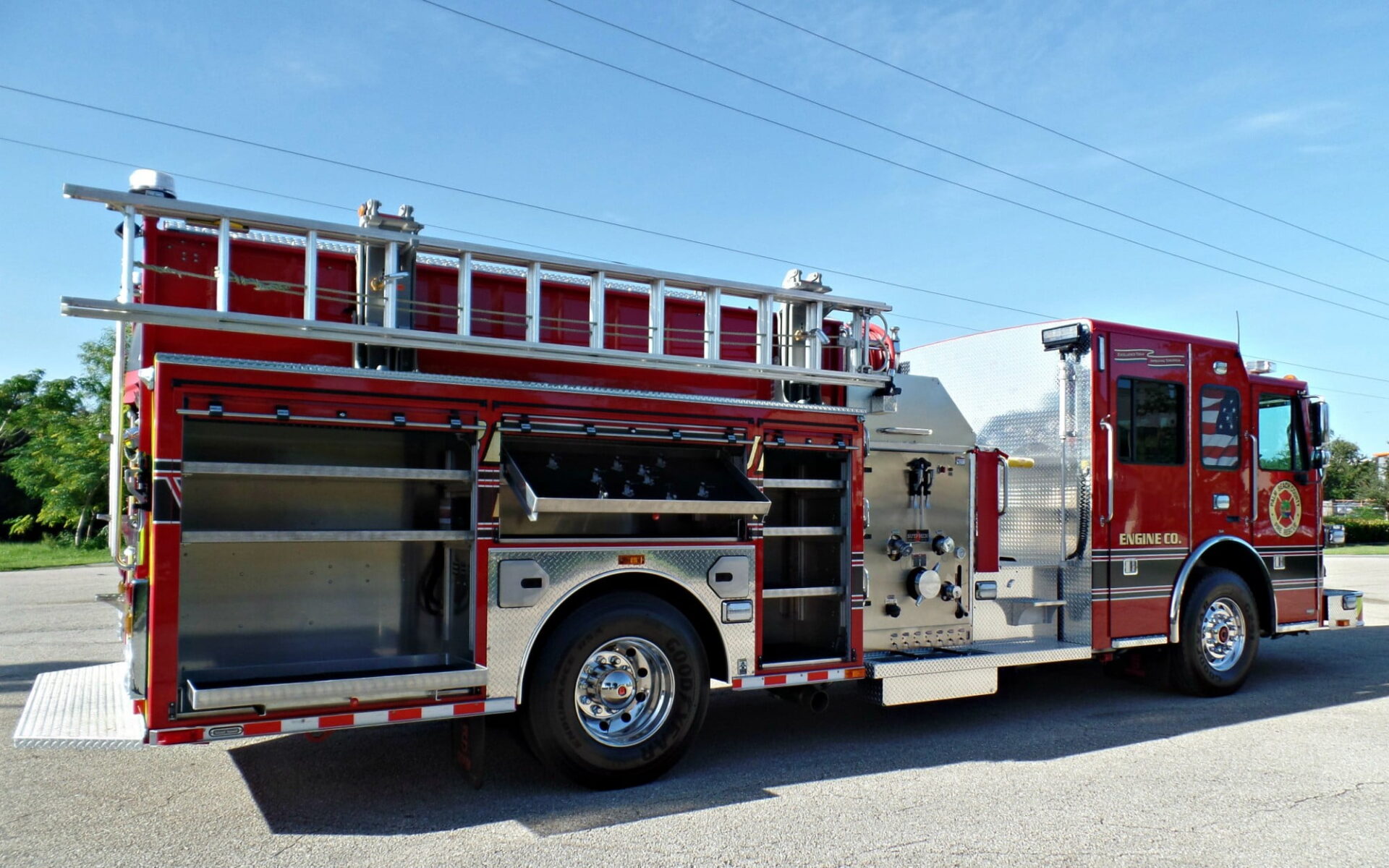

Doors
Amdor roll-up compartment
Total Compartment Space
Over 240 cu. ft.
Ladder Compliment
Alco-lite ladder package (pel-24 24’ 2-section & prl-14 14’ roof & 10’ folding)
Body
S4-Alum 61/53 Elec. Ladder Rack

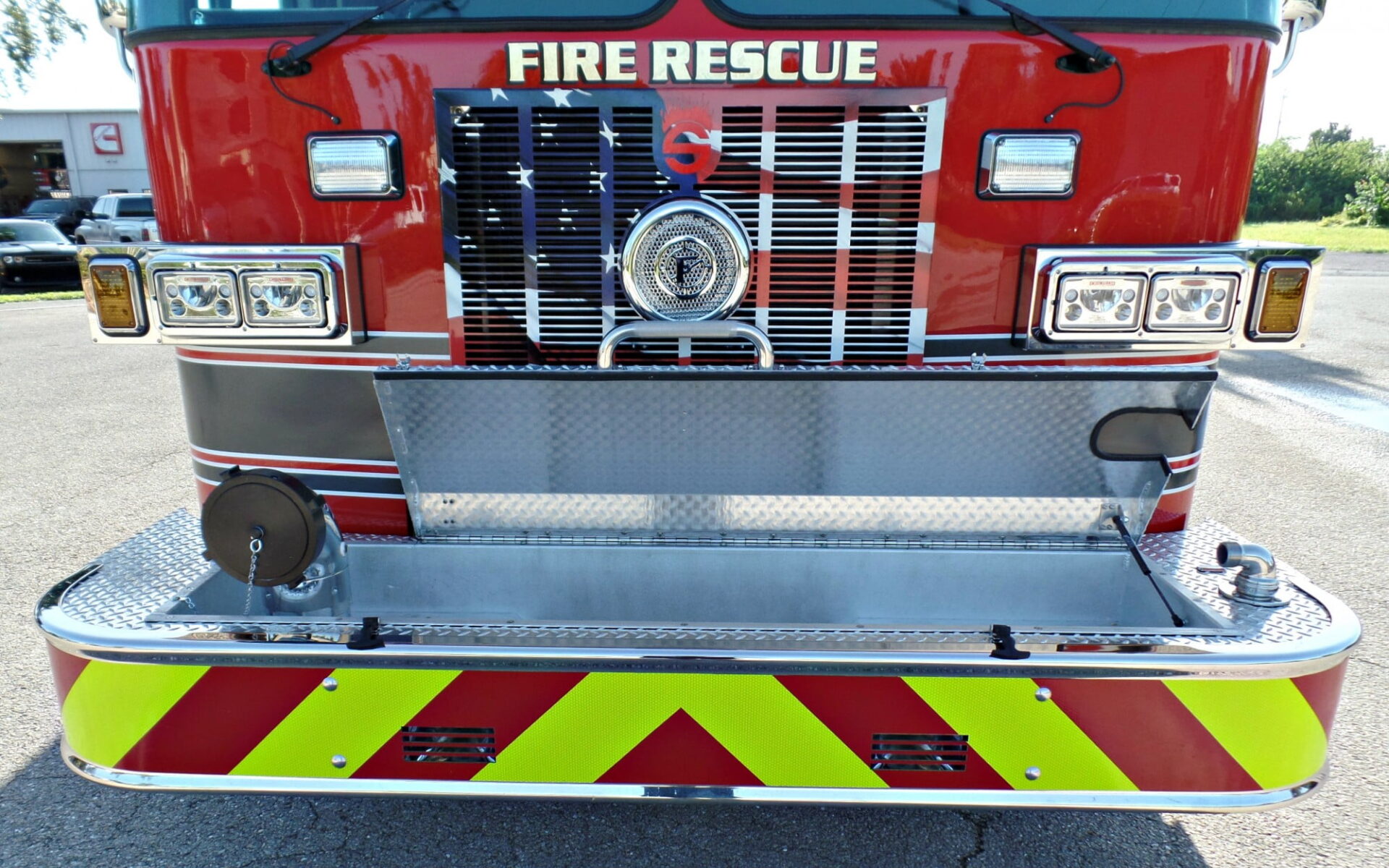

Bumper Extension
24” polished stainless steel
Siren
Federal q2b , grille mount
Wheel Chocks
Ziamatic quic-lift electric ladder rack
Fusion 1500 Watt
Power invertor
Hale EZ Fill
System
Ladder Compliment
Folding ladder/3 pike pole storage compartments
Whelen Freedom IV
(12) led lightbar
Whelen PFH2 12V
Led brow
Whelen PFH2 12V
Led teles
