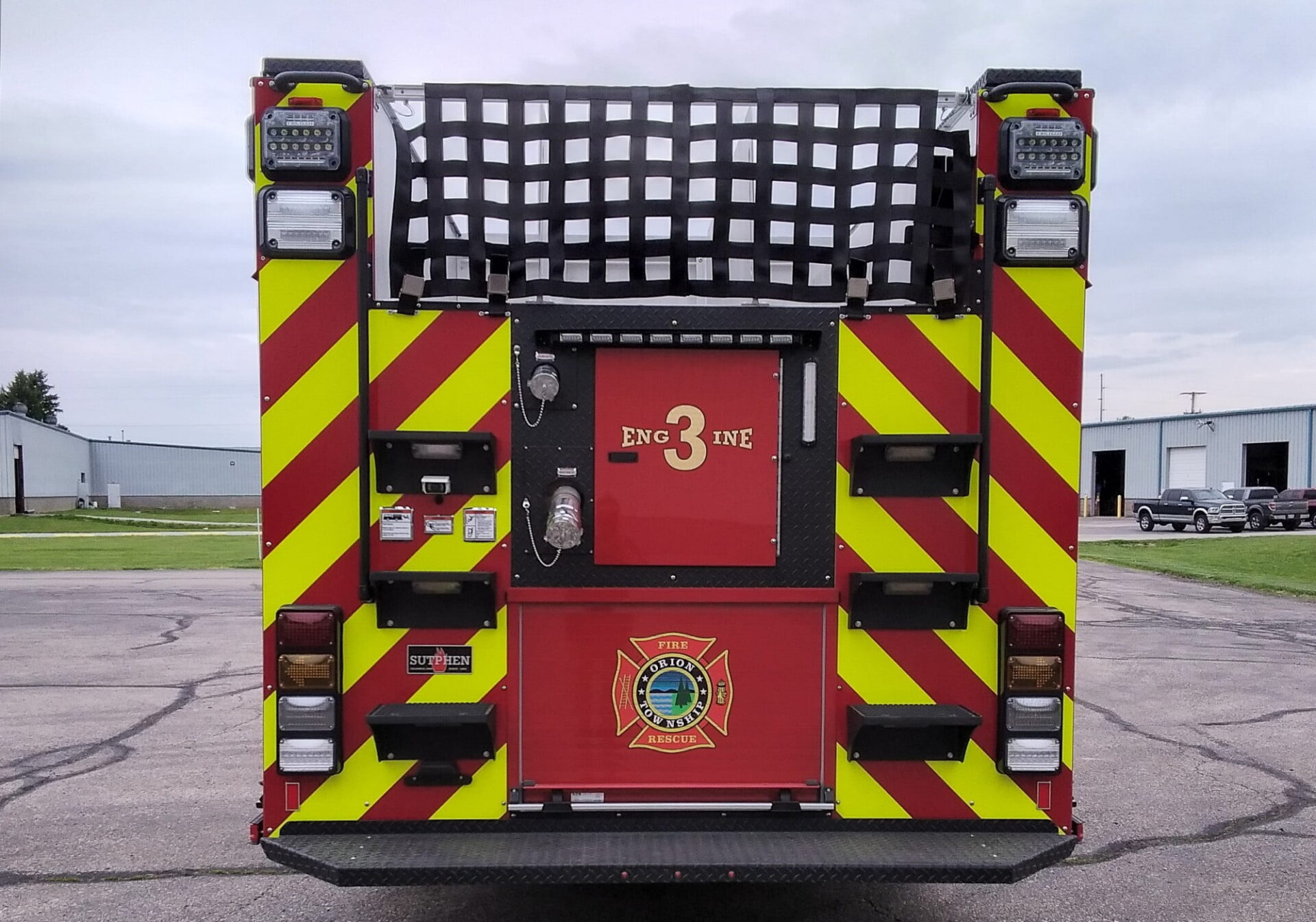

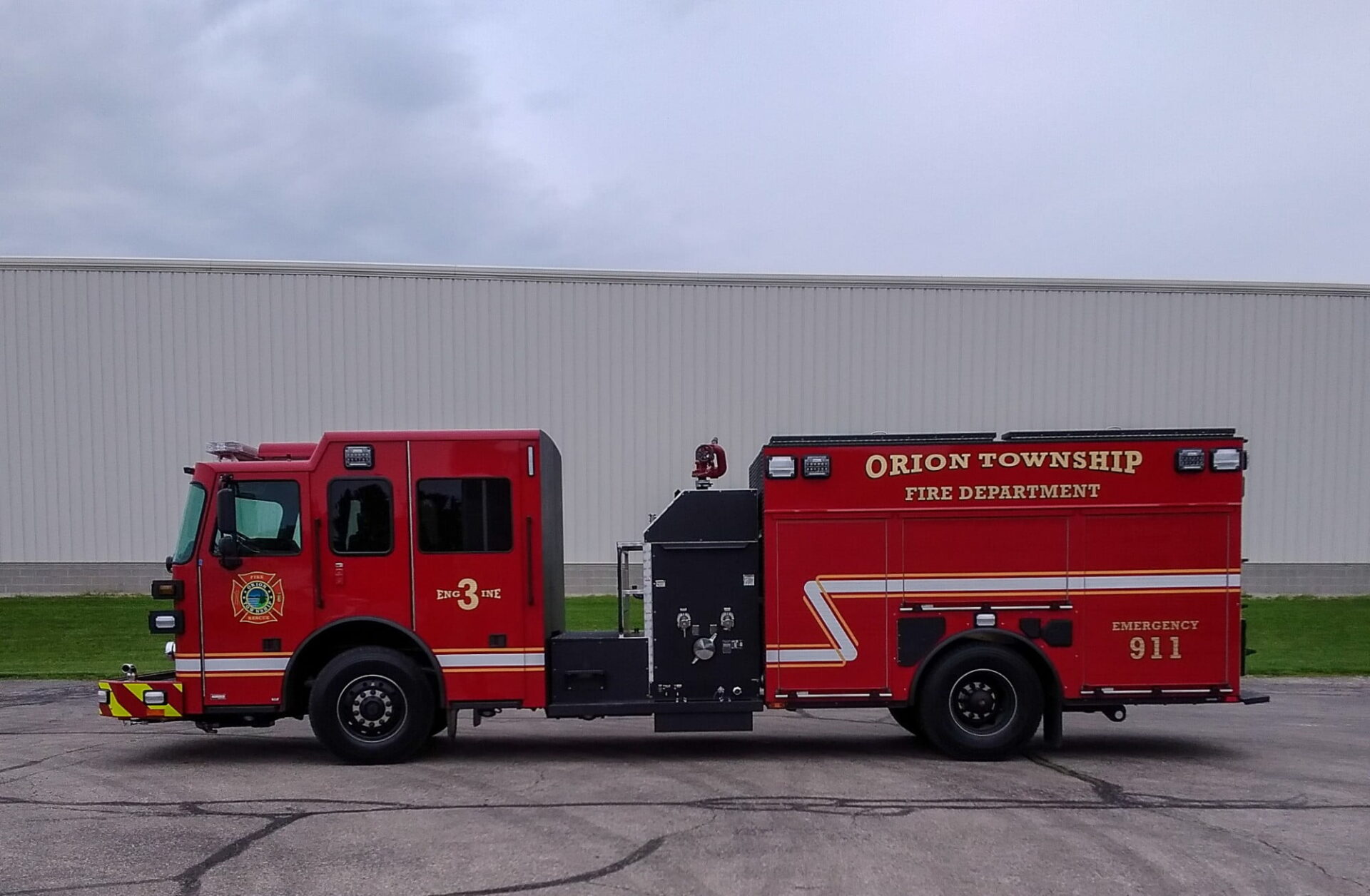

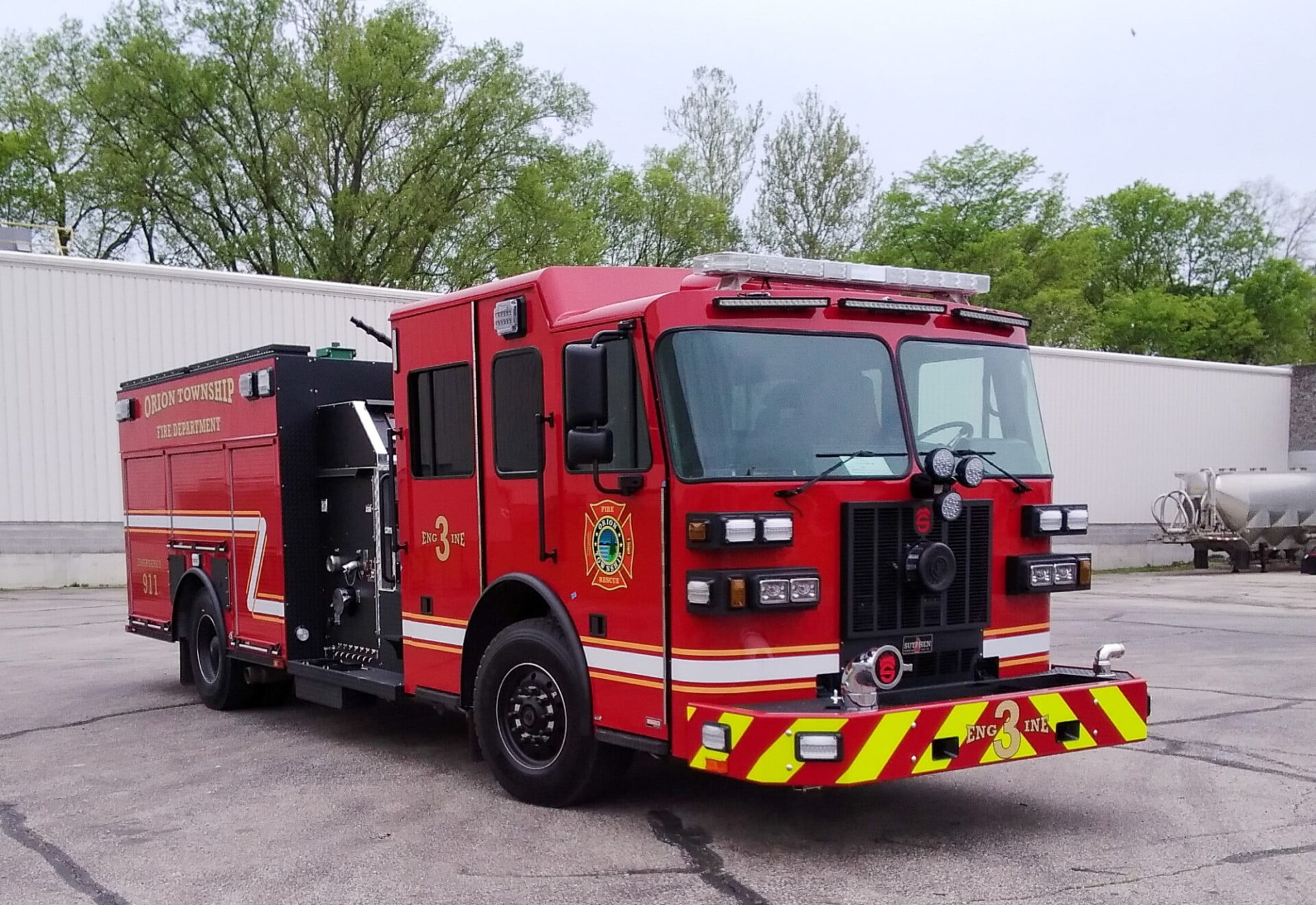

Custom Pumper – Orion Township Fire Department, MI

Specs

Cab
Four-door, four-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins L 9, 450HP
Alternator
Leece Neville 320 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Qmax-2000 gpm single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
Speedlay
(2) 2” w/ 1 ½” Swivels
Water Tank
1,000-gallon
Water Tank
20-gallon foam tank
Foam System
Hale Smartfoam 2.1A
Construction
3/16” extruded aluminum
Doors
Rom roll-up compartment
Total Compartment Space
294 cu. ft.
Alco-Lite Ladder Package
PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
Body
G9 – Aluminum 40/51 Ladders through Tank
Bumper Extension
24” formed steel channel, painted
Siren
Federal q2b , grille mount
Camera System
Safety Vision SV-CLCD0-70
Intercom System
Firecom 5100D, Single Radio, 5-Position
Whelen Freedom LED
Lightbar
Hi-Viz 72” Brow
Light
FireTech FT-MB2.36
Included
Whelen LED Traffic
Advisor
