Custom Pumper – North Warren VF&R, VA
Truck Type:
Dealer:
Sutphen
Location:
Front Royal, VA
Department:
North Warren Volunteer Fire and RescueSpecs
Cab
Four-door, five-person
10” Single Frame
Rails (50k psi)
Front Axle and Suspension
19,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins L 9 450HP
Alternator
Leece Neville 420 AMP
Transmission
Allison Gen 5, EVS3000R w/ Retarder
Water Pump
Xs qmax-1500 gpm, single stage pump
Discharges
(1) 2 ½” Right, (1) 3” Right, (1) 2 ½” Front/Left of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Crosslay
(1) 2 ½”
Speedlay
(2) 2” w/ Swivels & Poly Lift-Out Trays
Water Tank
750-gallon
Water Tank
20-gallon foam tank
Foam System
Elkhart
Construction
3/16” extruded aluminum
Doors
Mixed amdor roll-up and hinged compartment
Total Compartment Space
222 cu. ft.
Duo-Safety Ladder Package
900A 24’ 2-Section & 775A 14’ & 585A 10’ Folding
Ladder Compliment
Ladder chute w/ backboard storage
Body
G2 – Aluminum 40/51 Ladder Chute
Bumper Extension
24” formed steel channel, painted bumper
Siren
Federal q2b , grille mount
Inverter
Kussmaul 1500 Auto
Hi-Viz 72” Brow
Light
Whelen Freedom LED
Lightbar
Whelen LED Traffic
Advisor
FireTech Guardian Elite
Included
FireTech LED Work
Lights

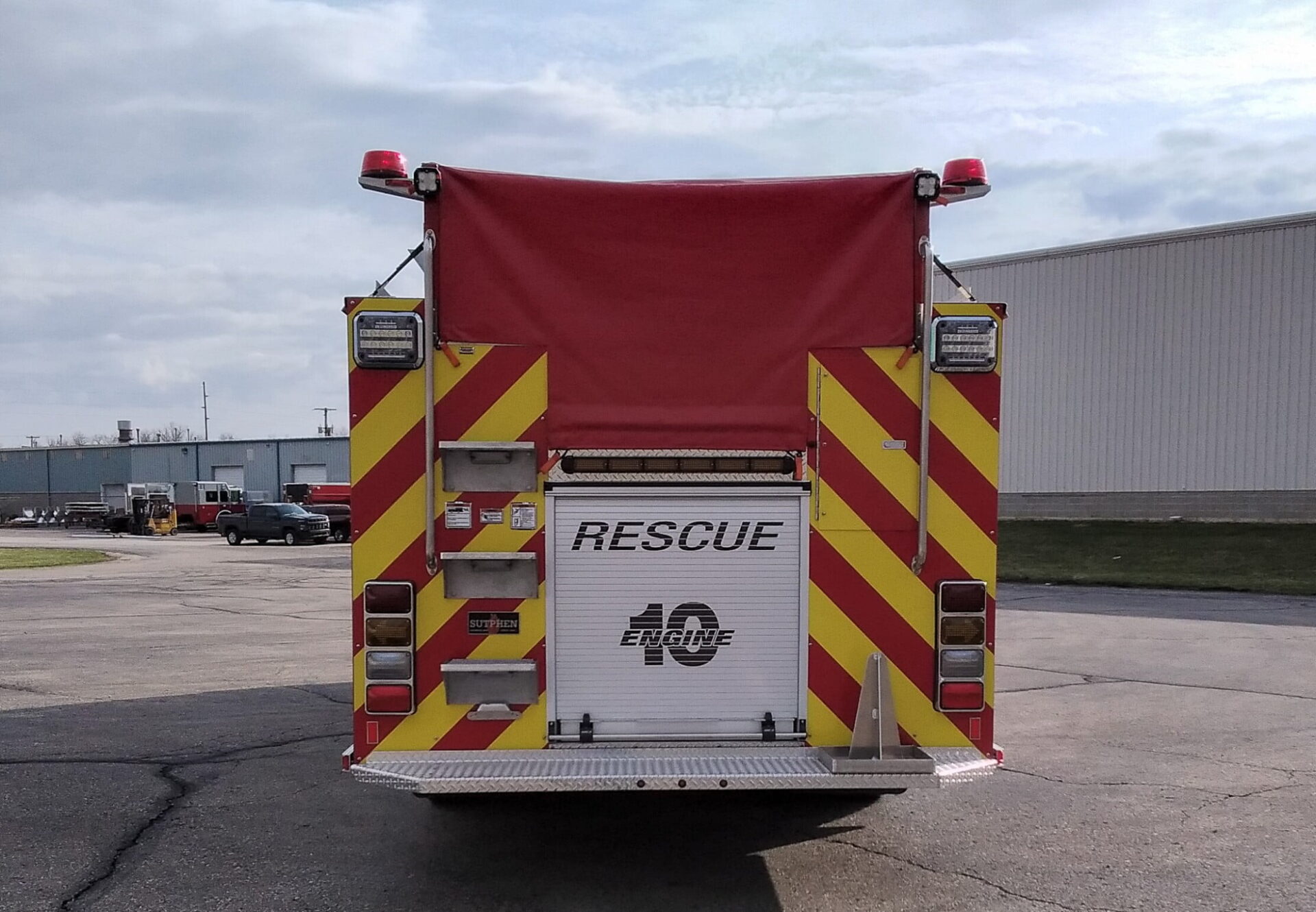

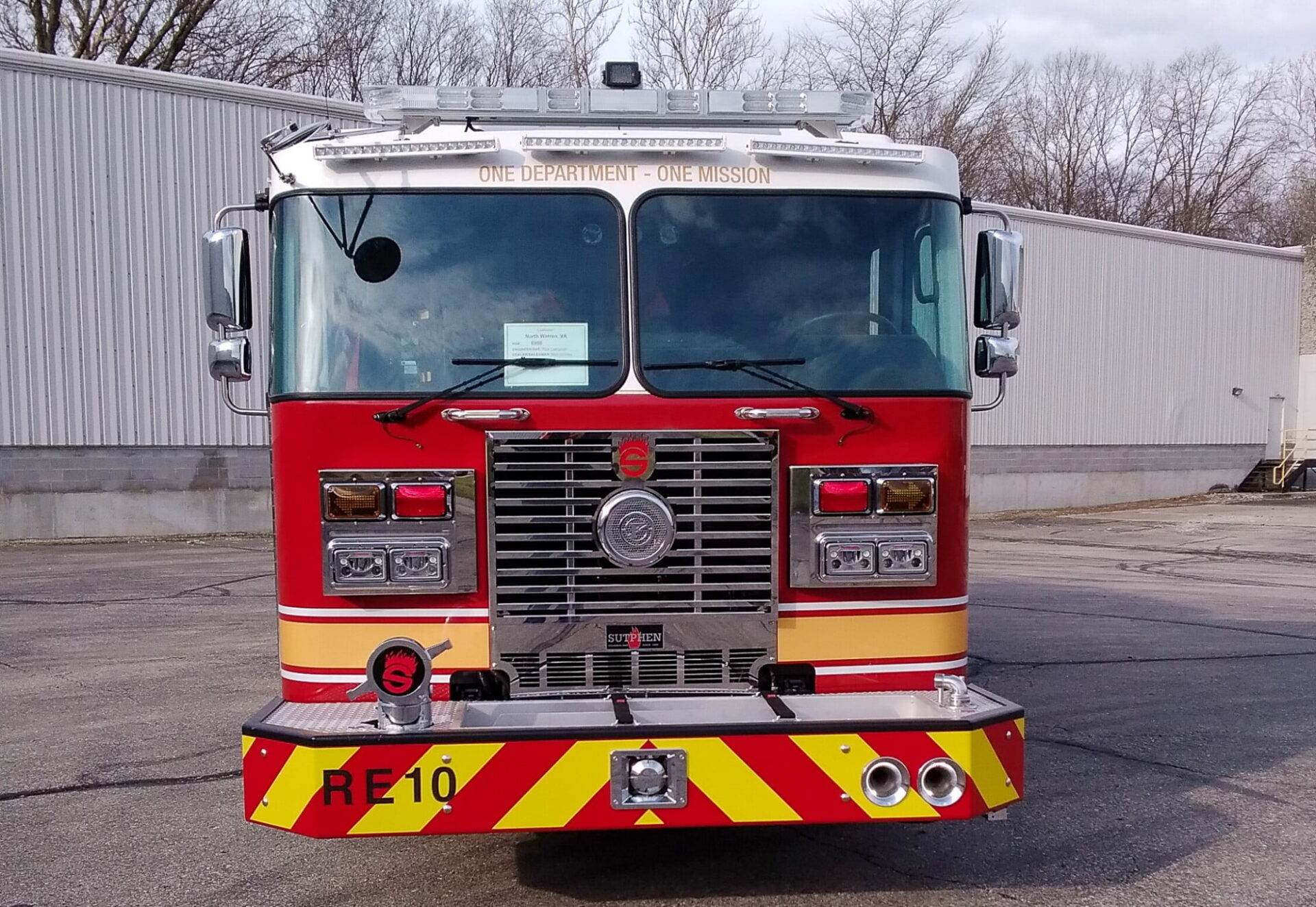

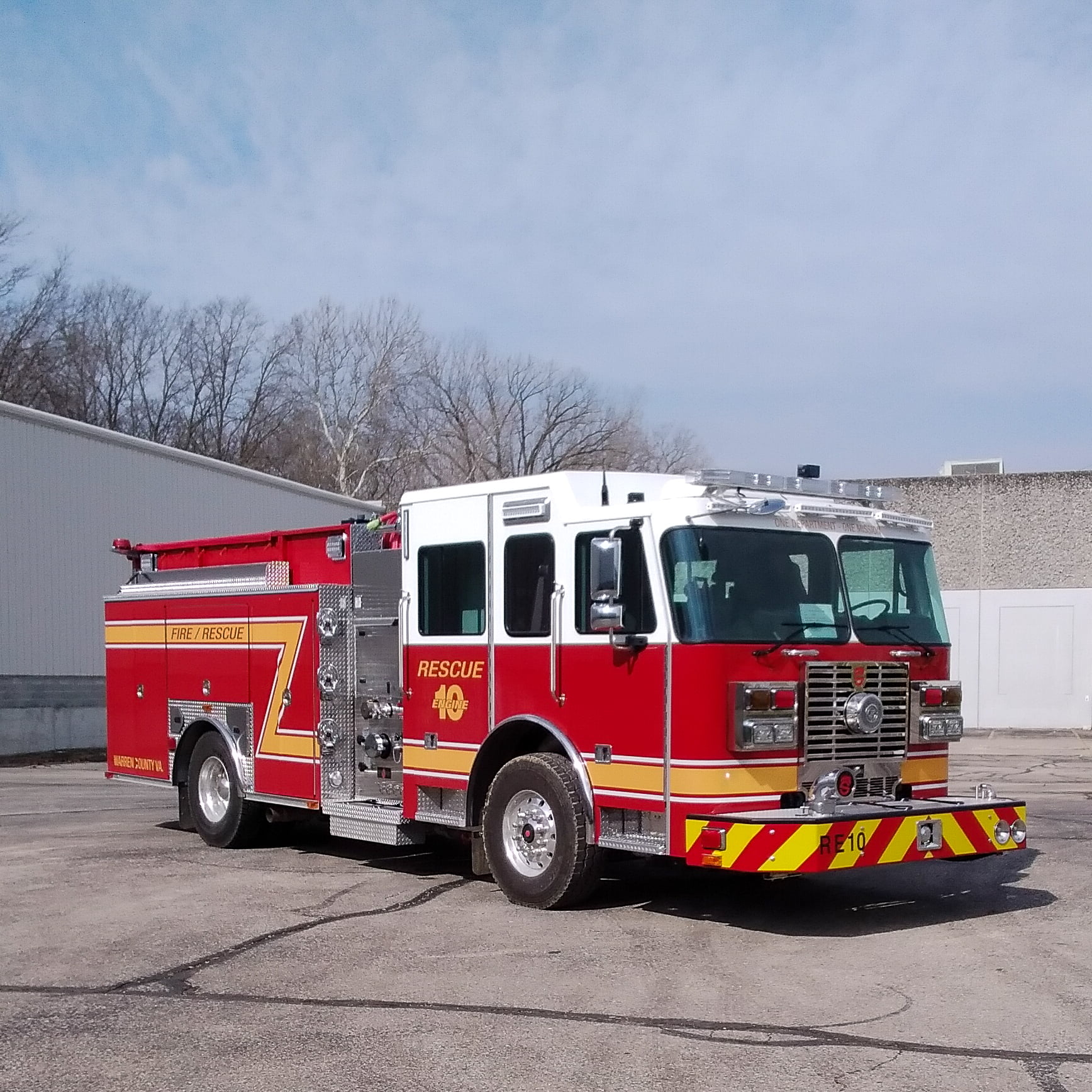

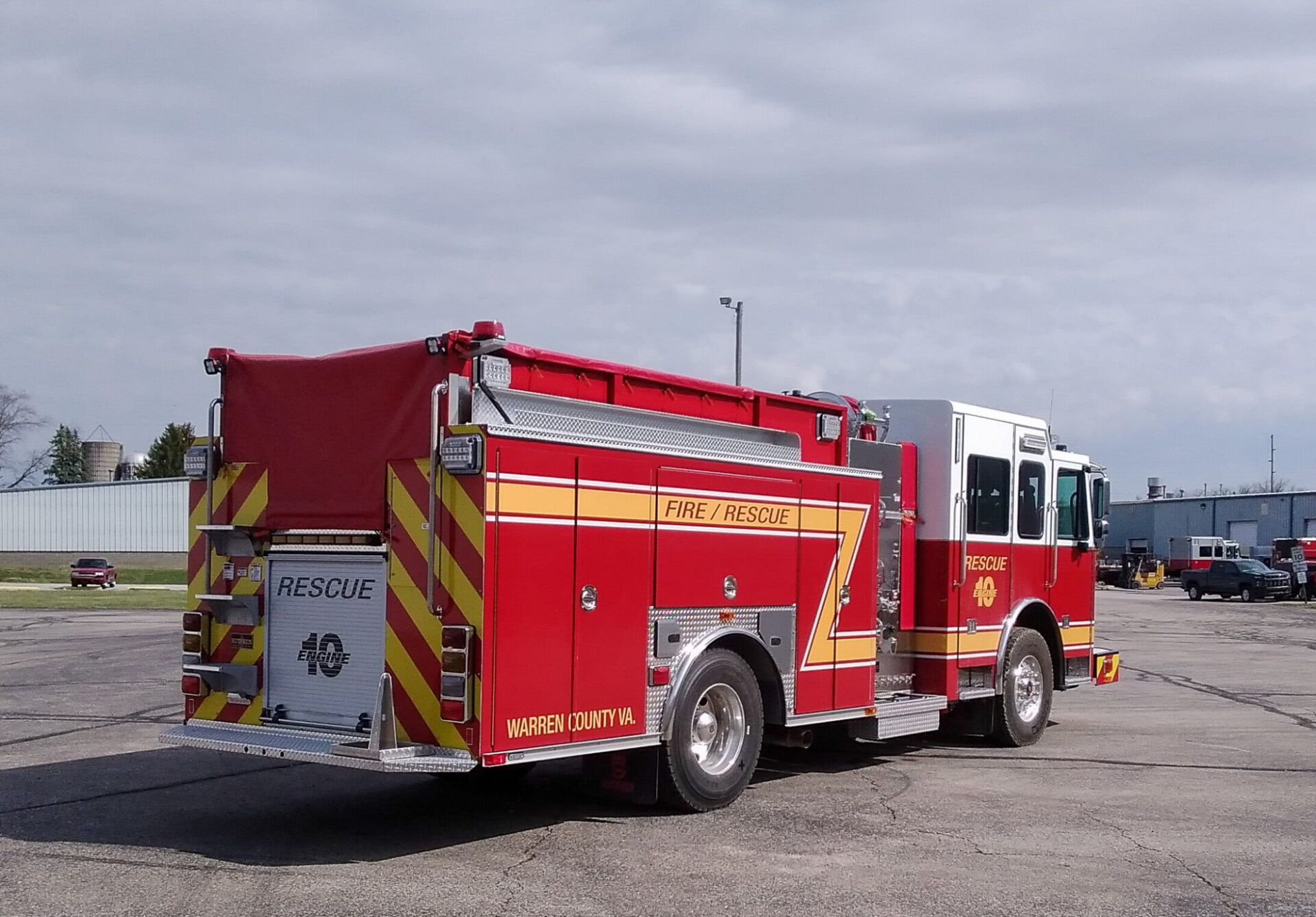

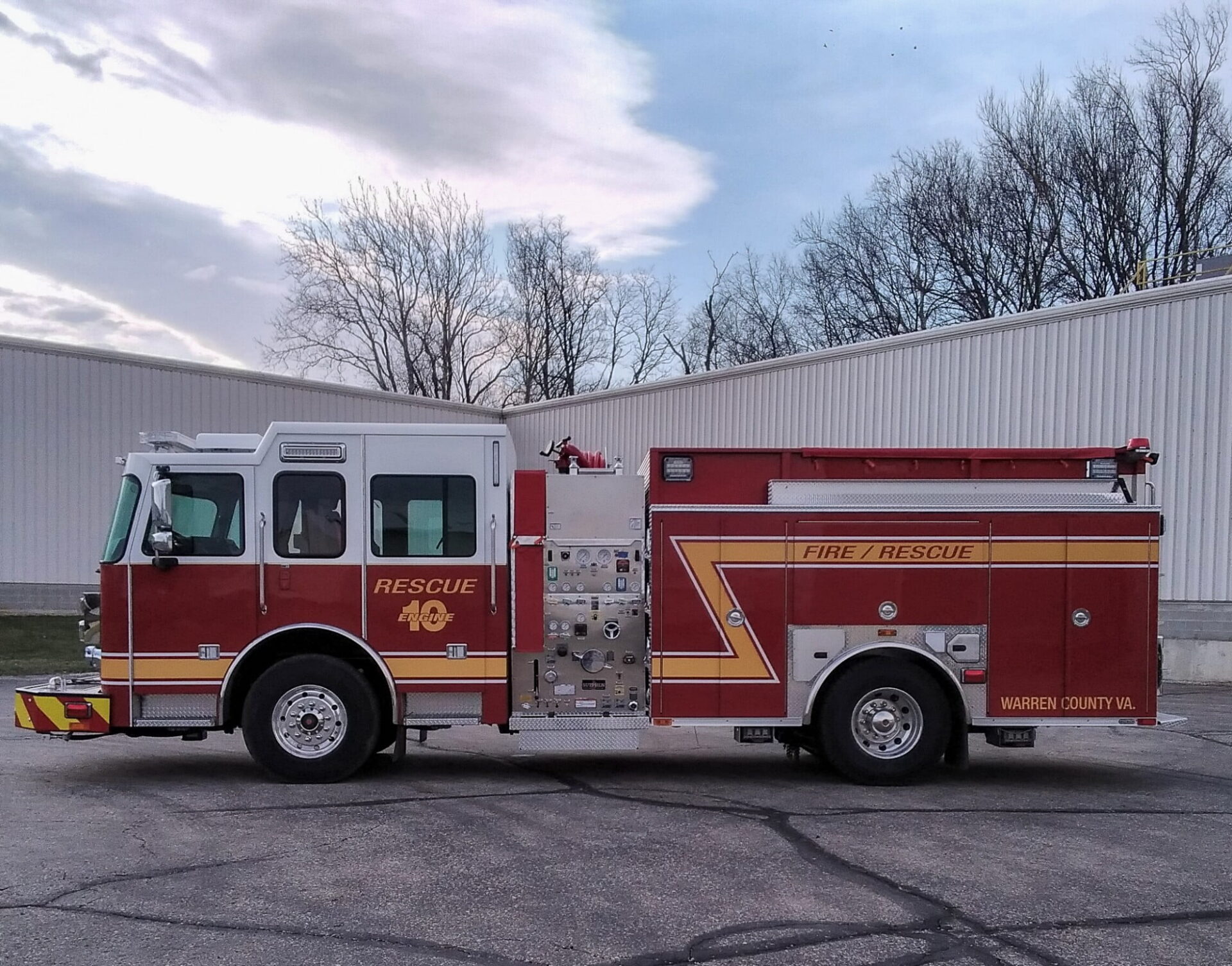

Gallery
