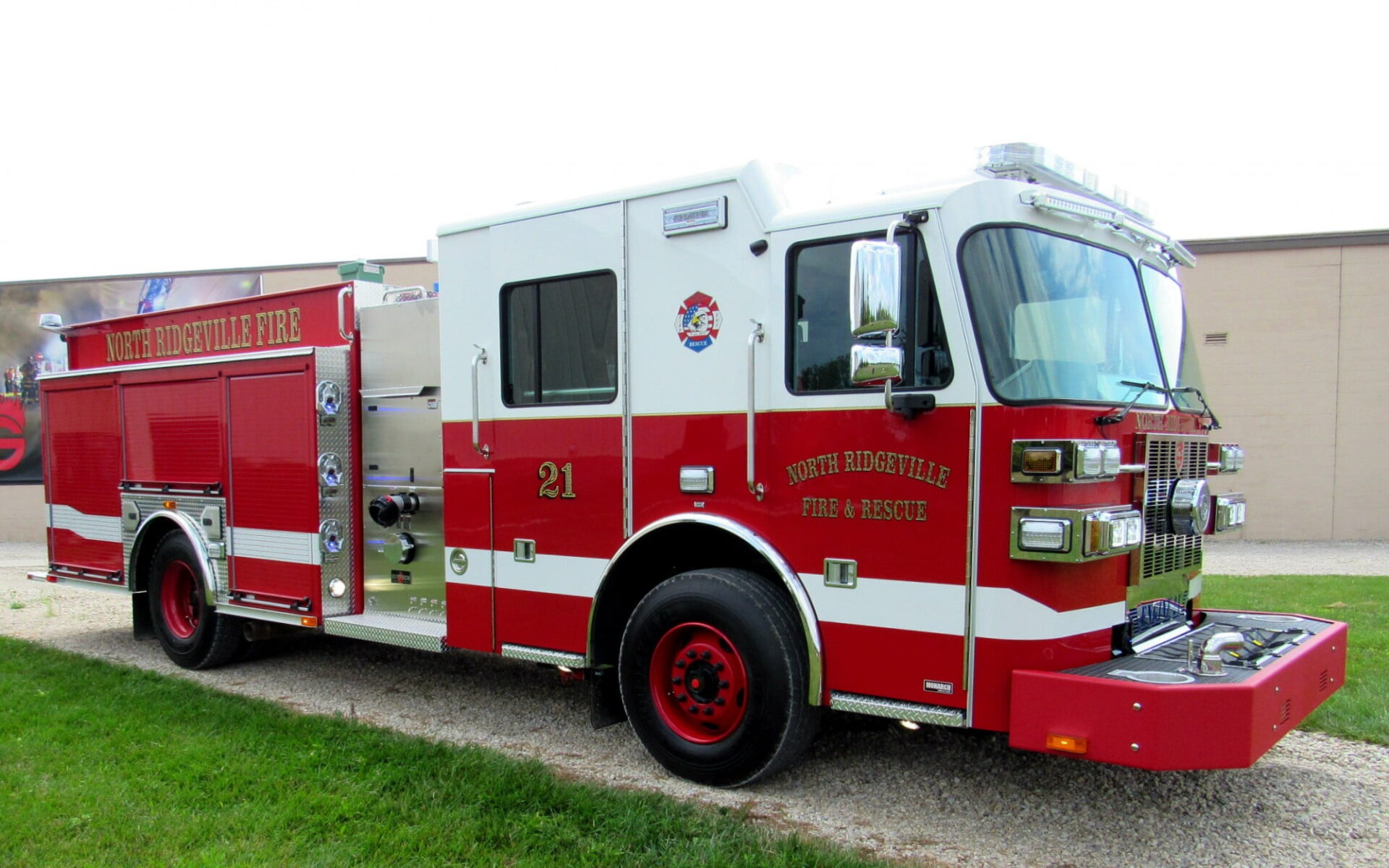

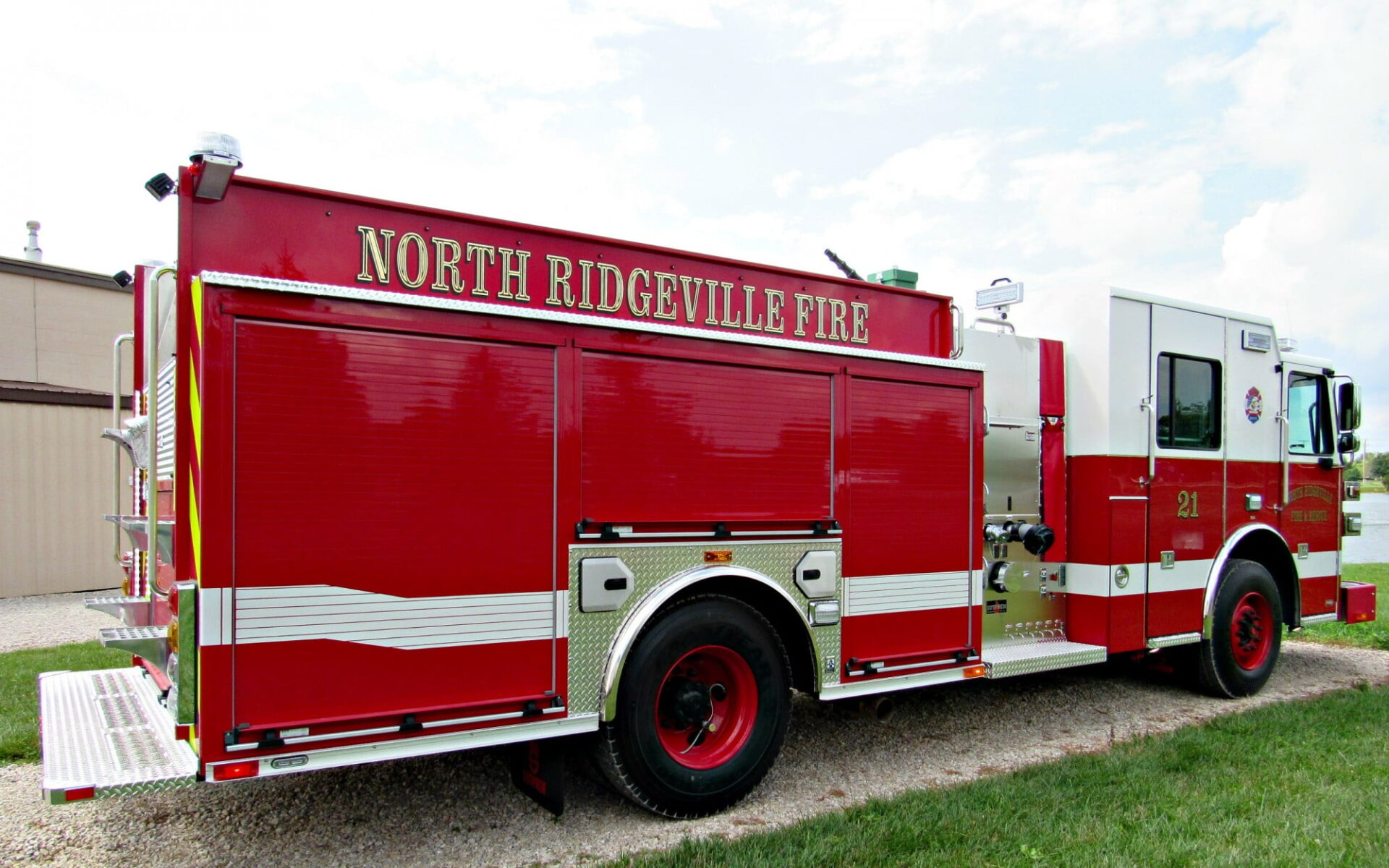

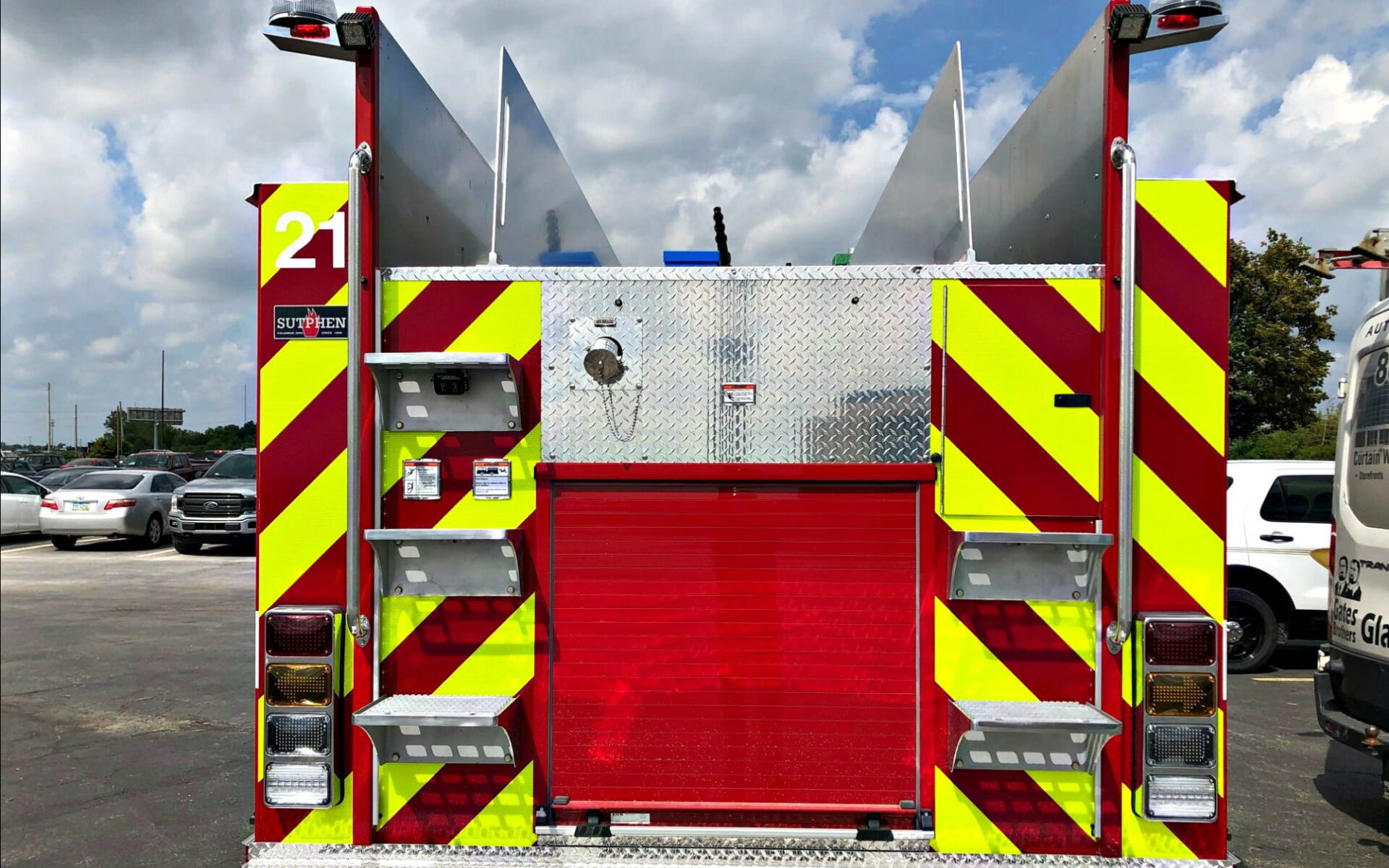

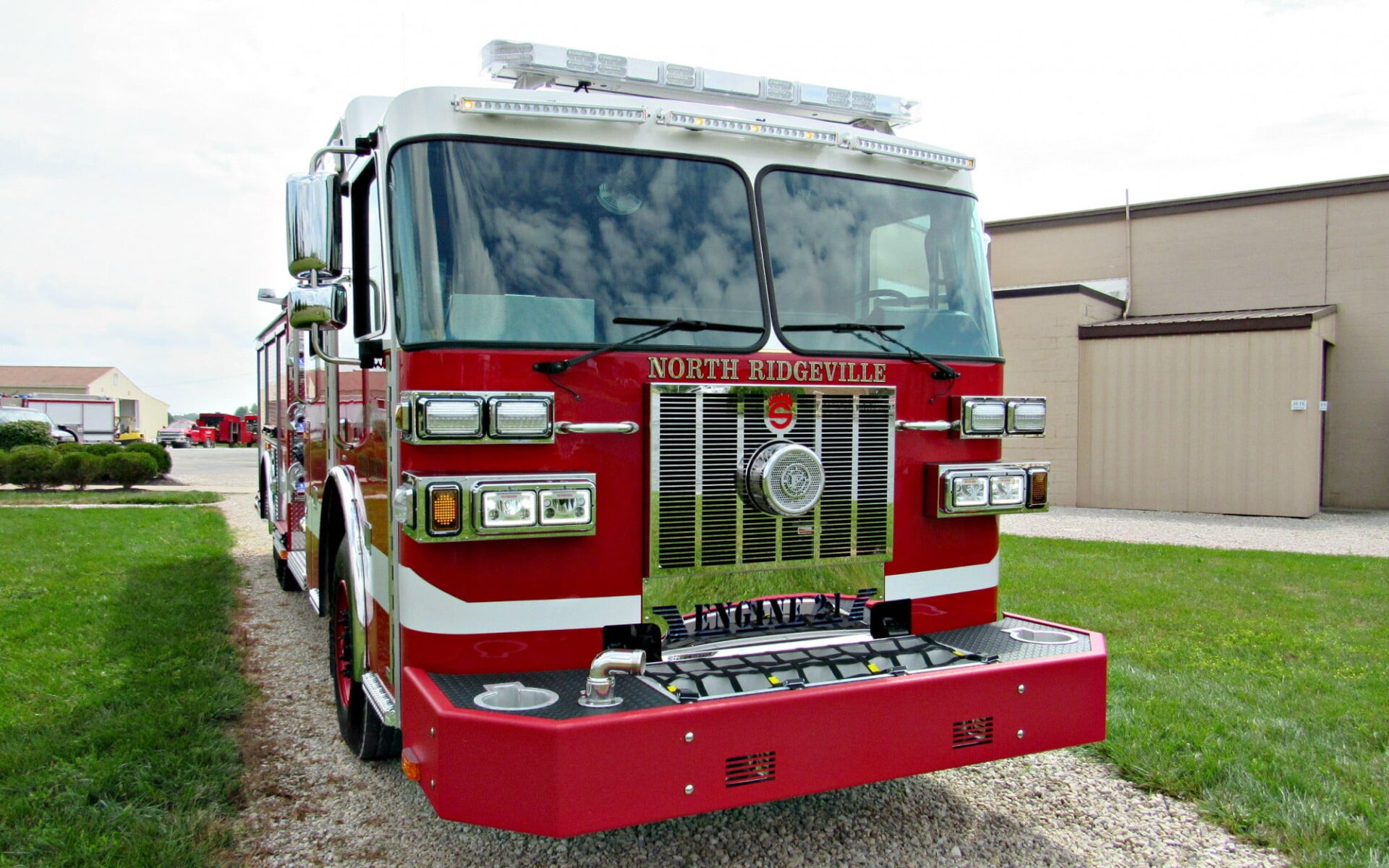

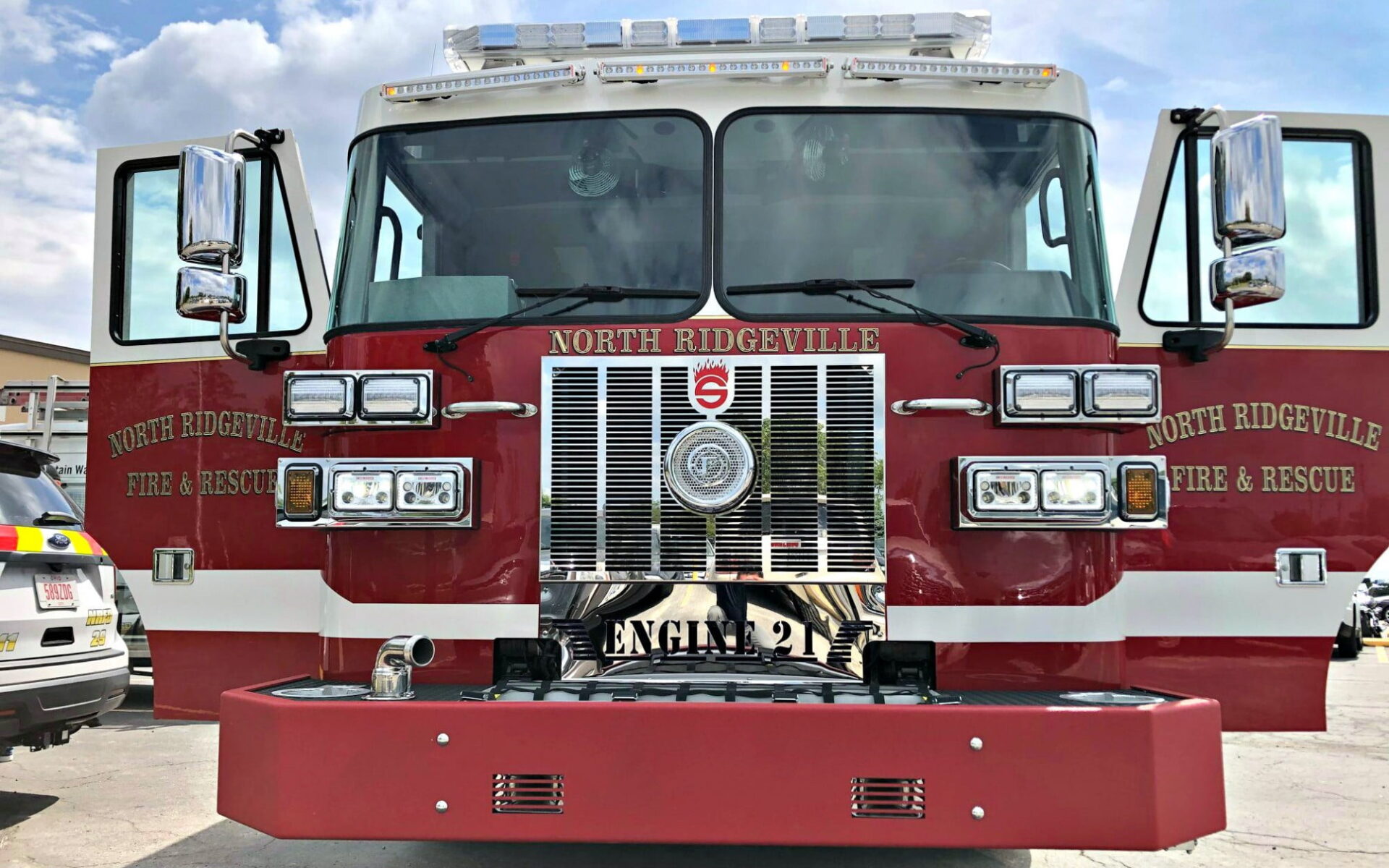

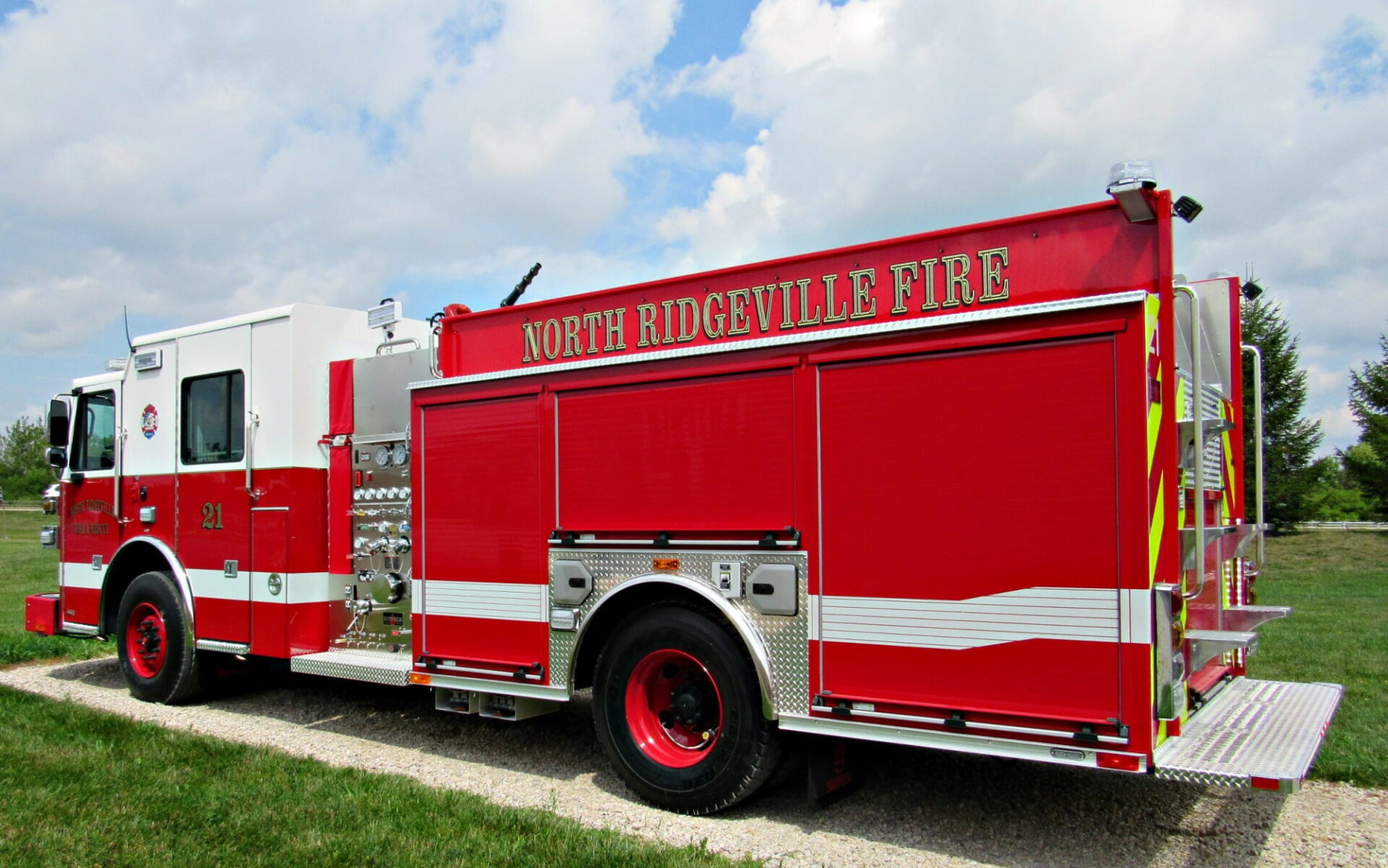

Custom Pumper – North Ridgeville Fire Department, OH

Location:
North Ridgeville, OH
Department:
North Ridgeville Fire Department

Specs

Cab
Four-door, five-person
10” Single Rails
Domex, single axle (110k psi)
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
24,000 lbs
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS 3000
Water Pump
Xs qmax-1500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Front Bumper Discharge, (1) 3” Deck Gun
Crosslay
(1) 2 ½”
Speedlay
(2) 2” w/ Swivels and Poly Lift-Out Trays
Water Tank
750 -gallon
Water Tank
20-gallon foam tank
Foam Suppply System
Akron with flush
Construction
3/16” extruded aluminum
Doors
Rom roll-up compartment
Total Compartment Space
Over 230 cu. ft.
Ladder Compliment
Alco-lite ladder package (pel-24 24’ 2-section & prl-14 14’ roof & 10’ folding)
Ladder Compliment
Ladder chute w/ backboard storage
Body
S2-Alum 43/53 Ladder Chute
Bumper Extension
24” formed steel channel
Siren
Federal q2b , grille mount
Camera System
FRC, Inview Trueview, Two Cameras
Whelen Freedom IV
72” lightbar
Whelen 600 Red
Led
Firetech 72” 3-Piece
Brow
FR Spectra 12V
Tele led
FR Spectra 12V
Led
Rigid D2 Work
Lights
