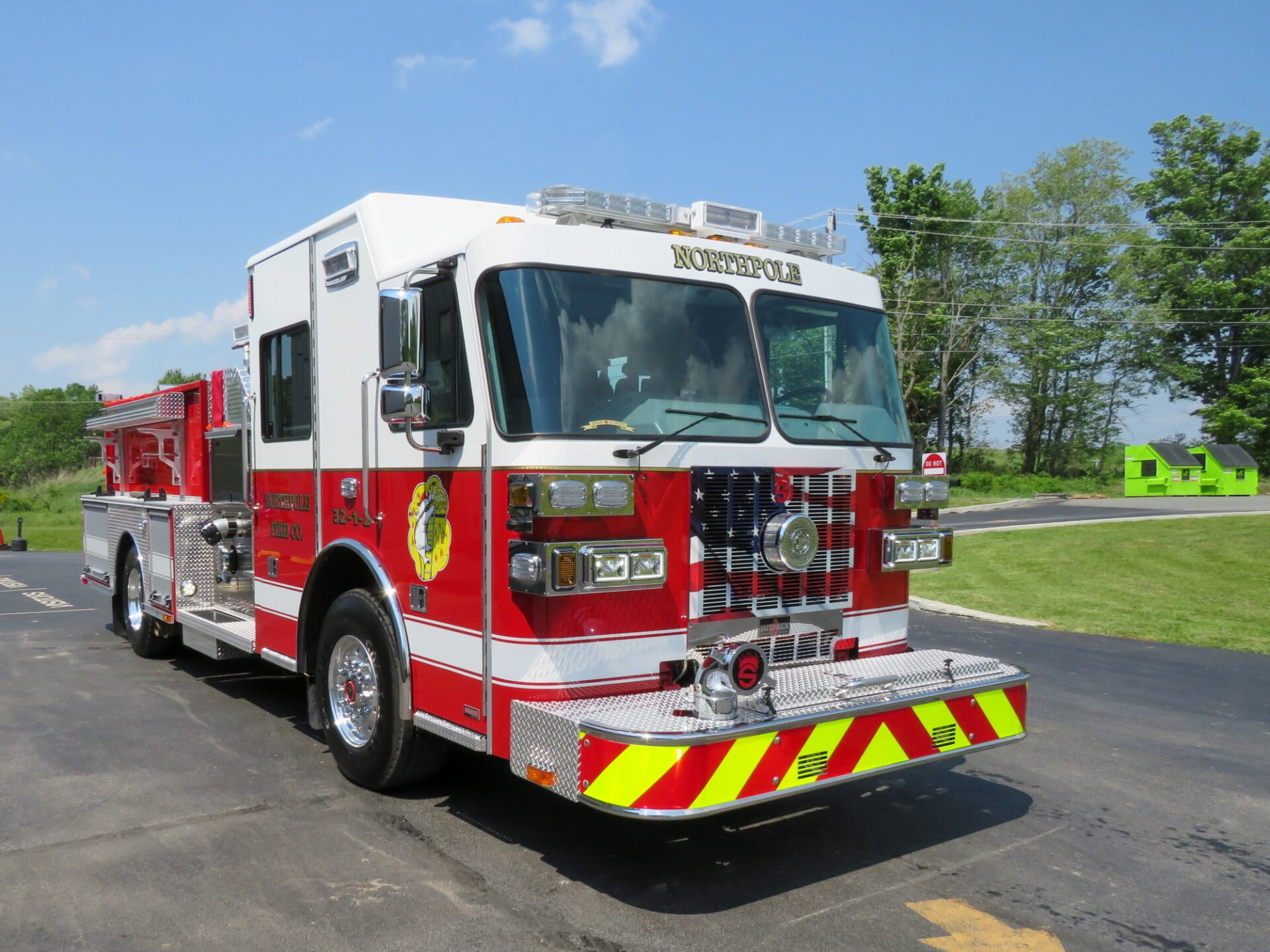

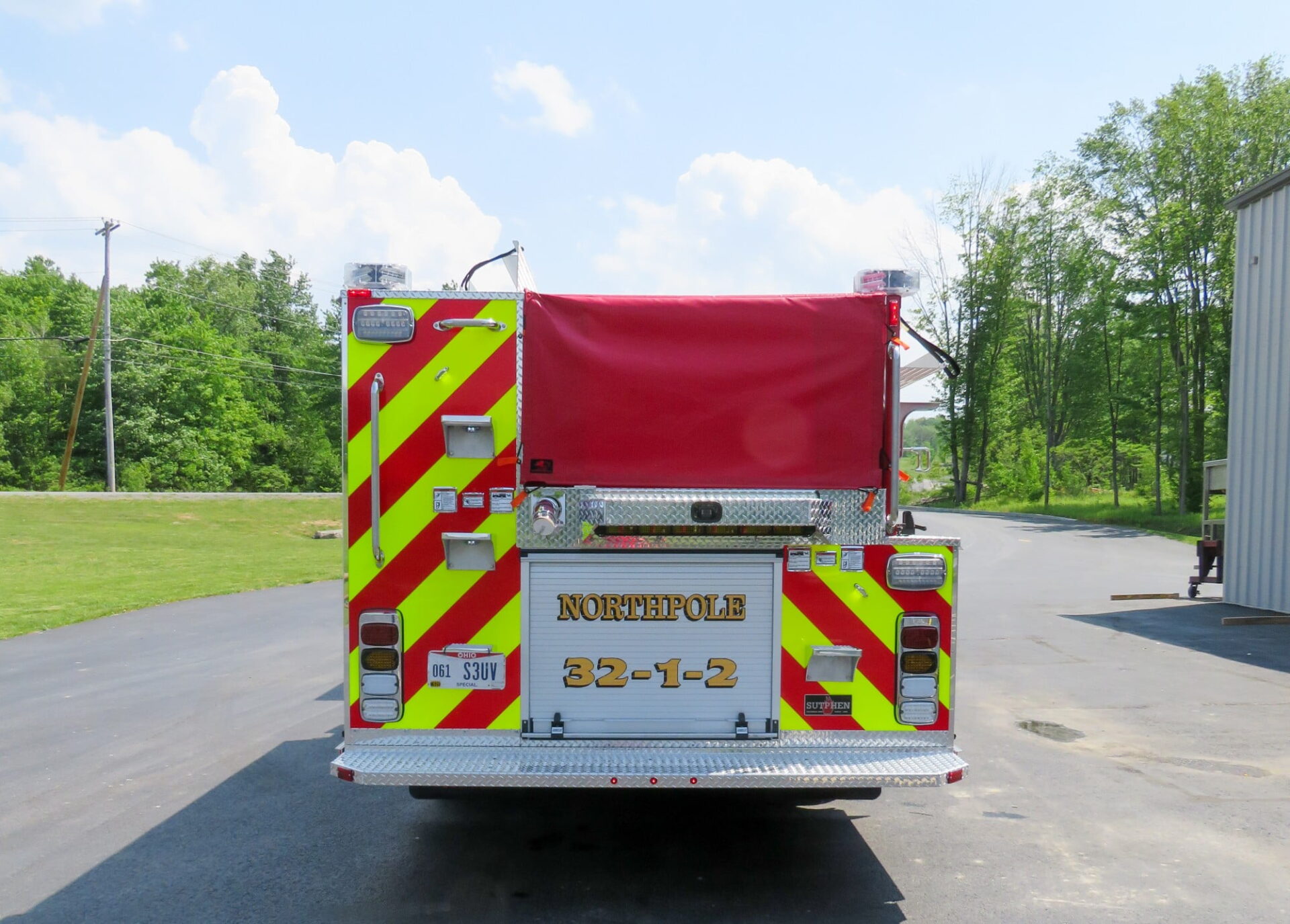

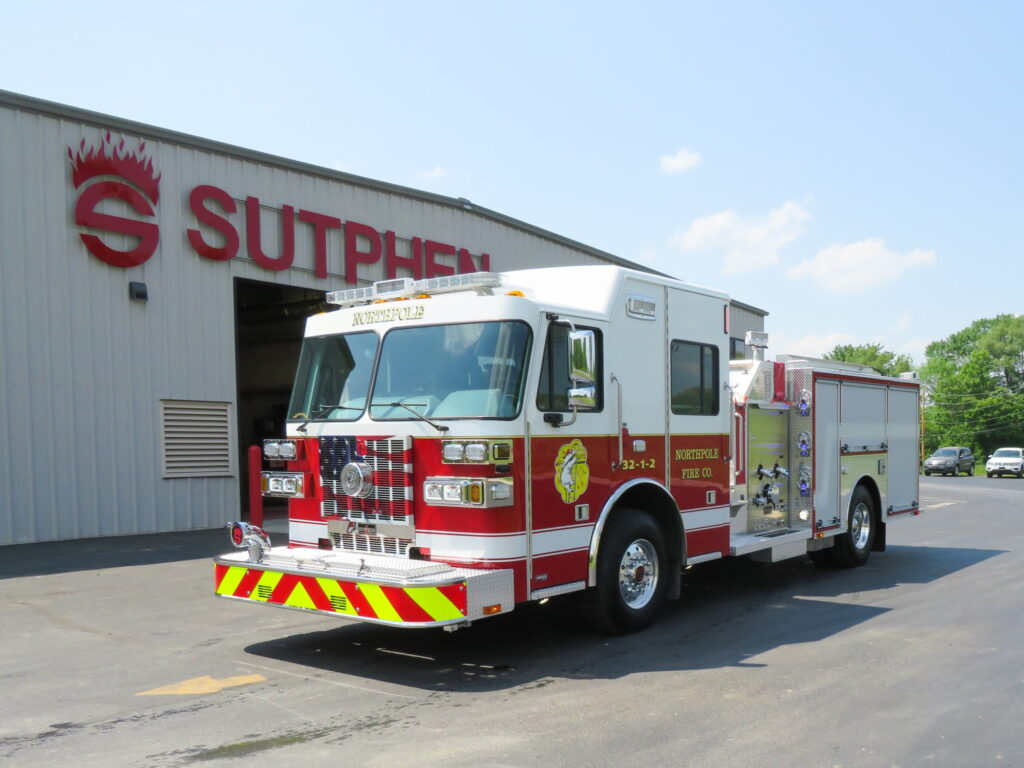

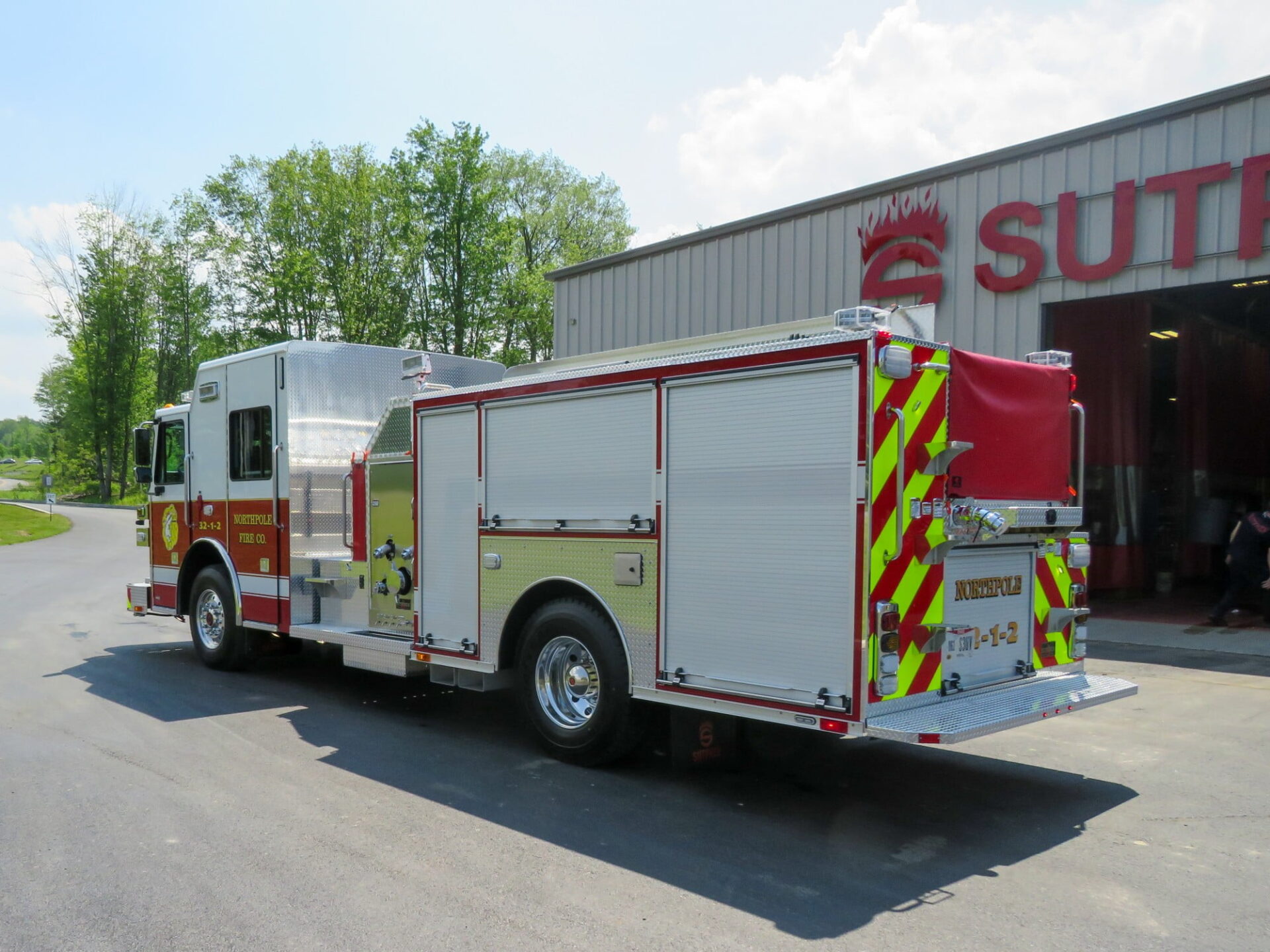

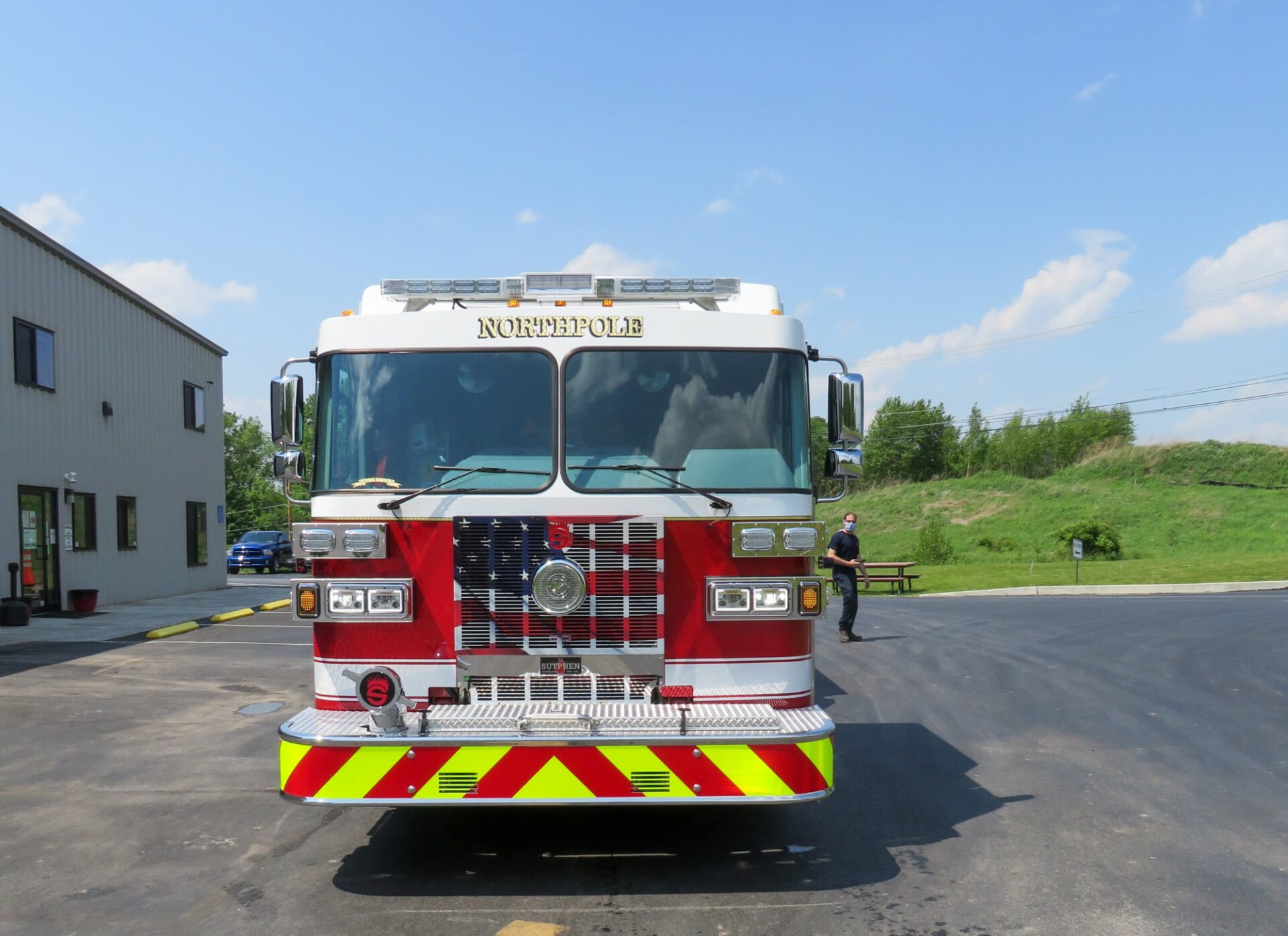

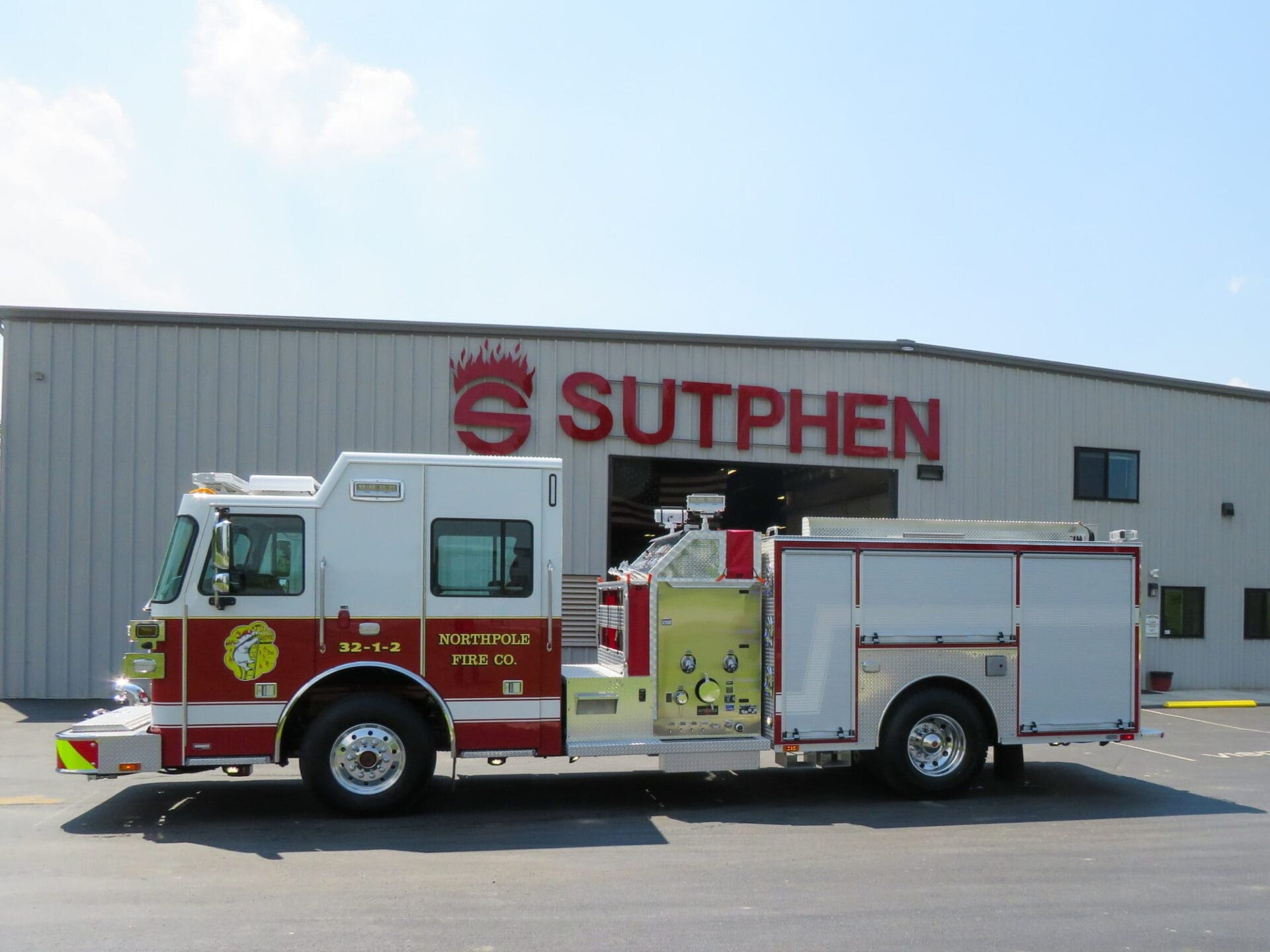

Custom Pumper – North Pole Fire Co., NY

Specs

Cab
Four-door, six-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
24,000 lbs
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville, 420 AMP
Transmission
Allison Gen 5, EVS 3000
Water Pump
Qmax-1500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Speedlay
(2) 2” w/ 1 ½” Swivel
Crosslay
(1) 2 ½” w/ 2 ½” Swivel
Water Tank
750-gallon
Water Tank
20-gallon foam tank
Construction
3/16” extruded aluminum
Doors
Amdor roll-up compartment
Total Compartment Space
Nearly 200 cu. ft.
Ladder Compliment
Alco-lite ladder package (pel-24 24’ 2-section & prl-14 14’ roof)
Body
S1 – Alum 31/53 Right Low Ladder Bracket
Bumper Extension
24” polished stainless steel
Siren
Federal q2b , grille mount
Camera System
Brigade, Three Camera
Whelen Freedom 72”
Lightbar
Whelen Traffic Advisor
Included
Whelen Scene Light
Pfh2, 12v
