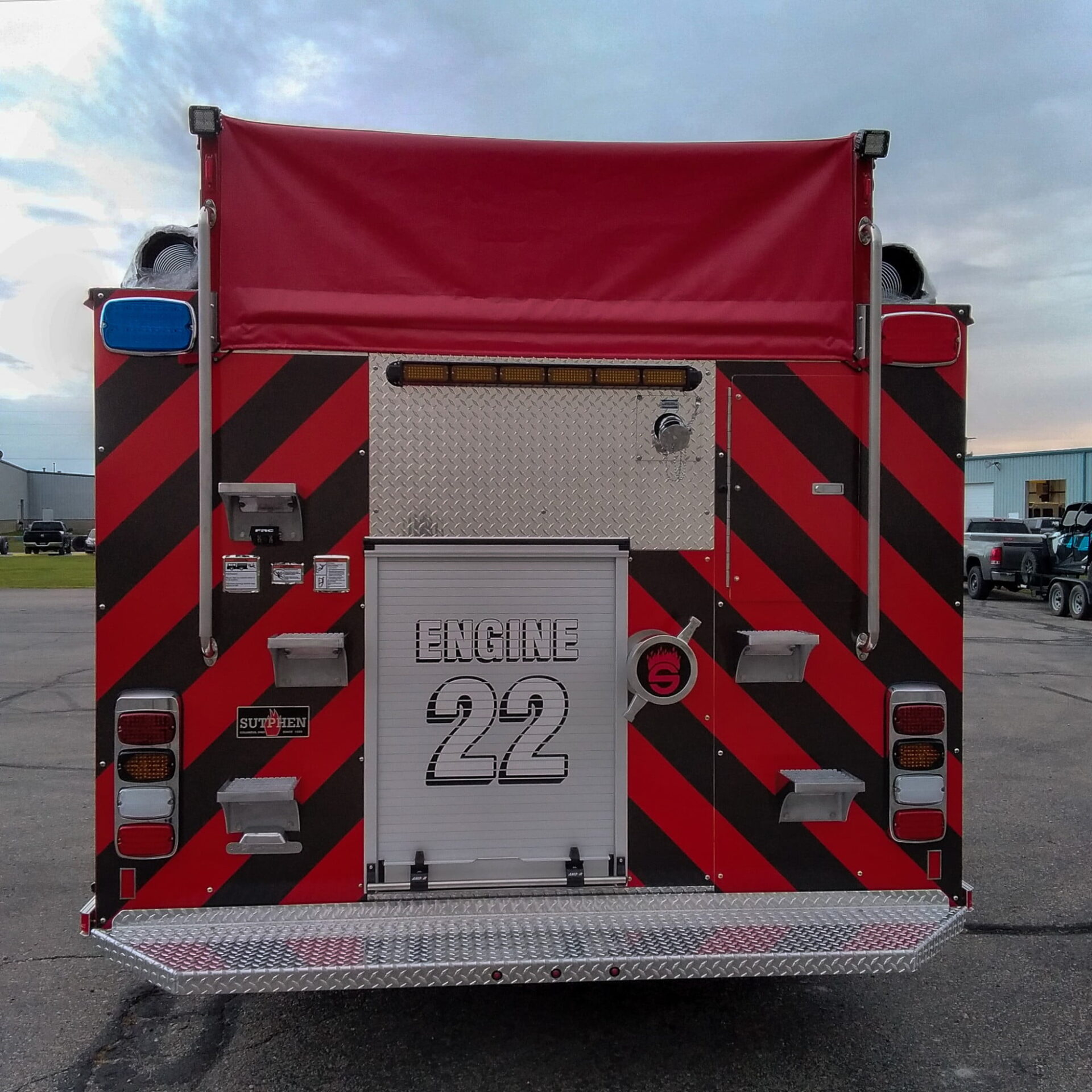

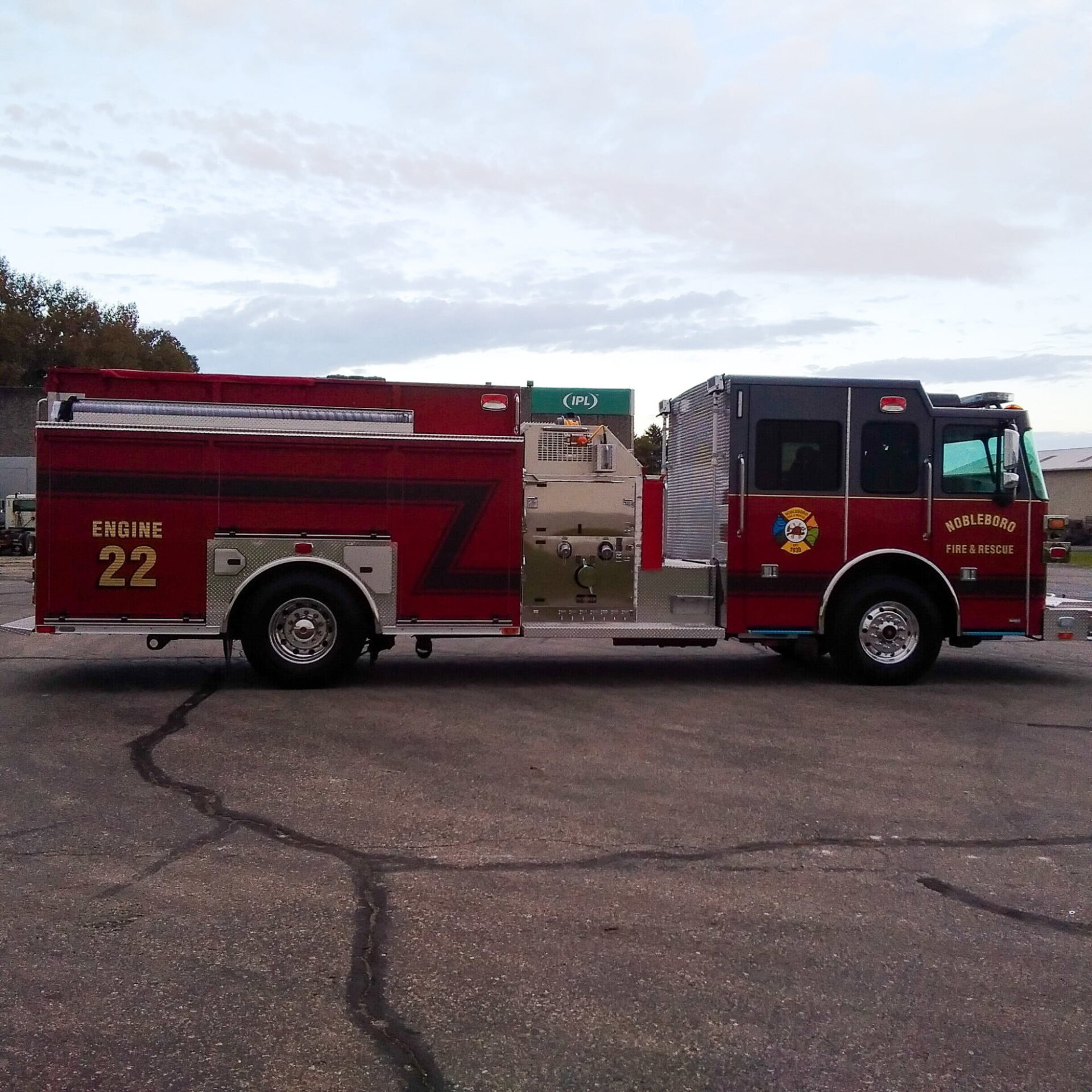

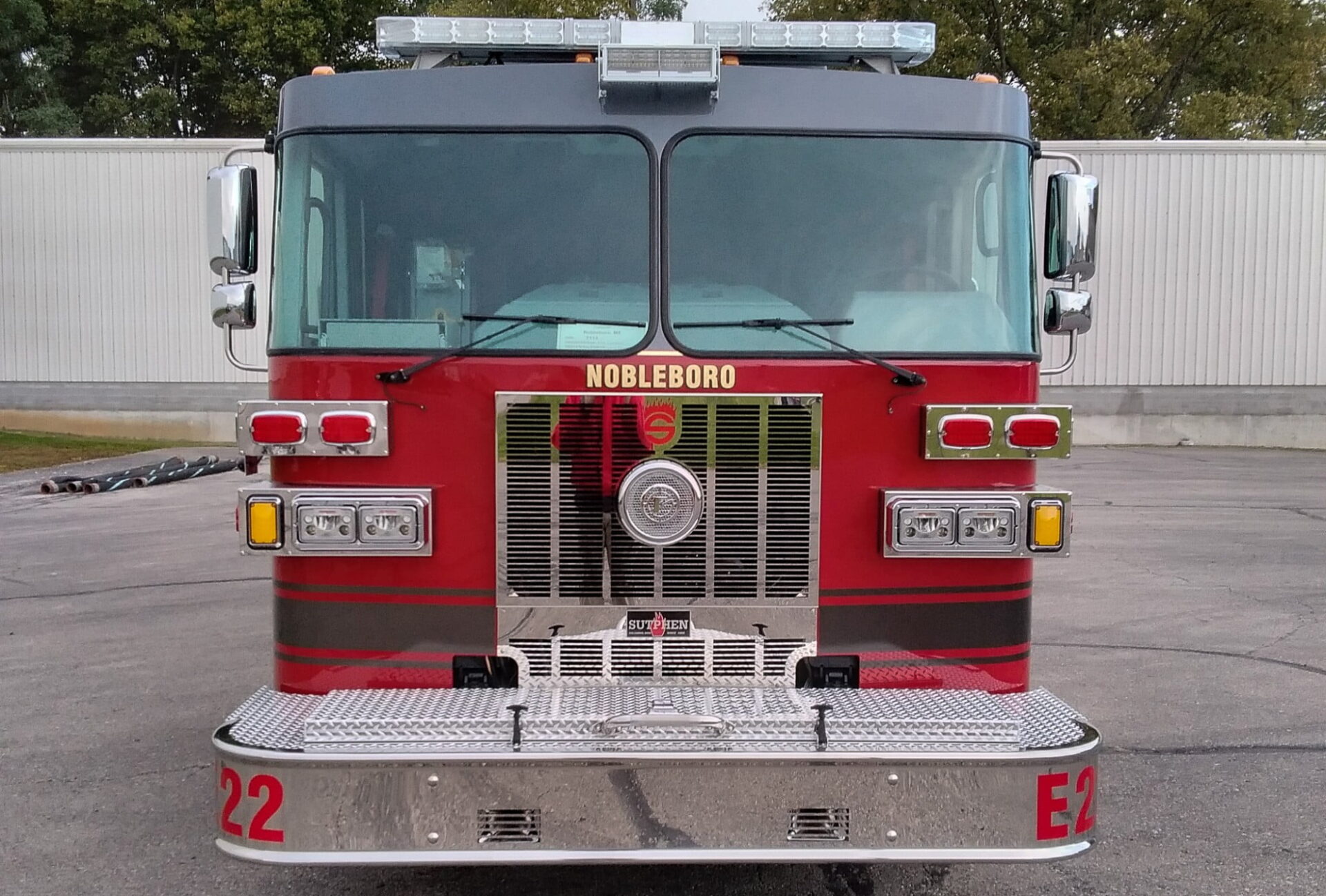

Custom Pumper – Nobleboro Fire and Rescue, ME

Location:
Nobleboro, ME
Department:
Nobleboro Fire Department

Specs

Cab
Four-door, six-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
19,000 lbs.
Rear Axle and Suspension
27,000 lbs.
Engine
Cummins L 9, 450HP
Alternator
Leece Neville 270 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Qmax-1500 gpm, single stage pump
Discharge
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Front Left of Main Hosebed, (1) 2 ½” Front Right of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Speedlay
(2) 2” w/ 1 ½” Swivel
Water Tank
1,000 -gallon
Water Tank
30-gallon foam tank
Construction
3/16” extruded aluminum
Doors
Amdor roll-up compartment
Total Compartment Space
217 cu. ft.
Alco Lite Ladder Package
PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
Body
G2 – Alum 40/51 Ladder Chute
Bumper Extension
24” polished stainless steel bumper
Siren
Federal q2b , grille mount
Camera System
FRC, Inview Trueview, Two Camera
Power
Hannay electric cord reel, 150’ (1)
Generator
8KW Smart Power
Whelen PFH2 LED
Brow light
Whelen Freedom LED
Lightbar
Whelen M9V2 RED/Scene
Light
Whelen PFH2 12V
Telescopic lights
Whelen LED Traffic
Advisor
