Custom Pumper – Nichols Hills Fire Department, OK

Location:
Nichols Hills, OK
Department:
Nichols Hills Fire Department

Specs

Cab
Four-door, six-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins L 9, 450HP
Alternator
Leece Neville, 420 AMP
Transmission
Allison Gen 5, EVS3000

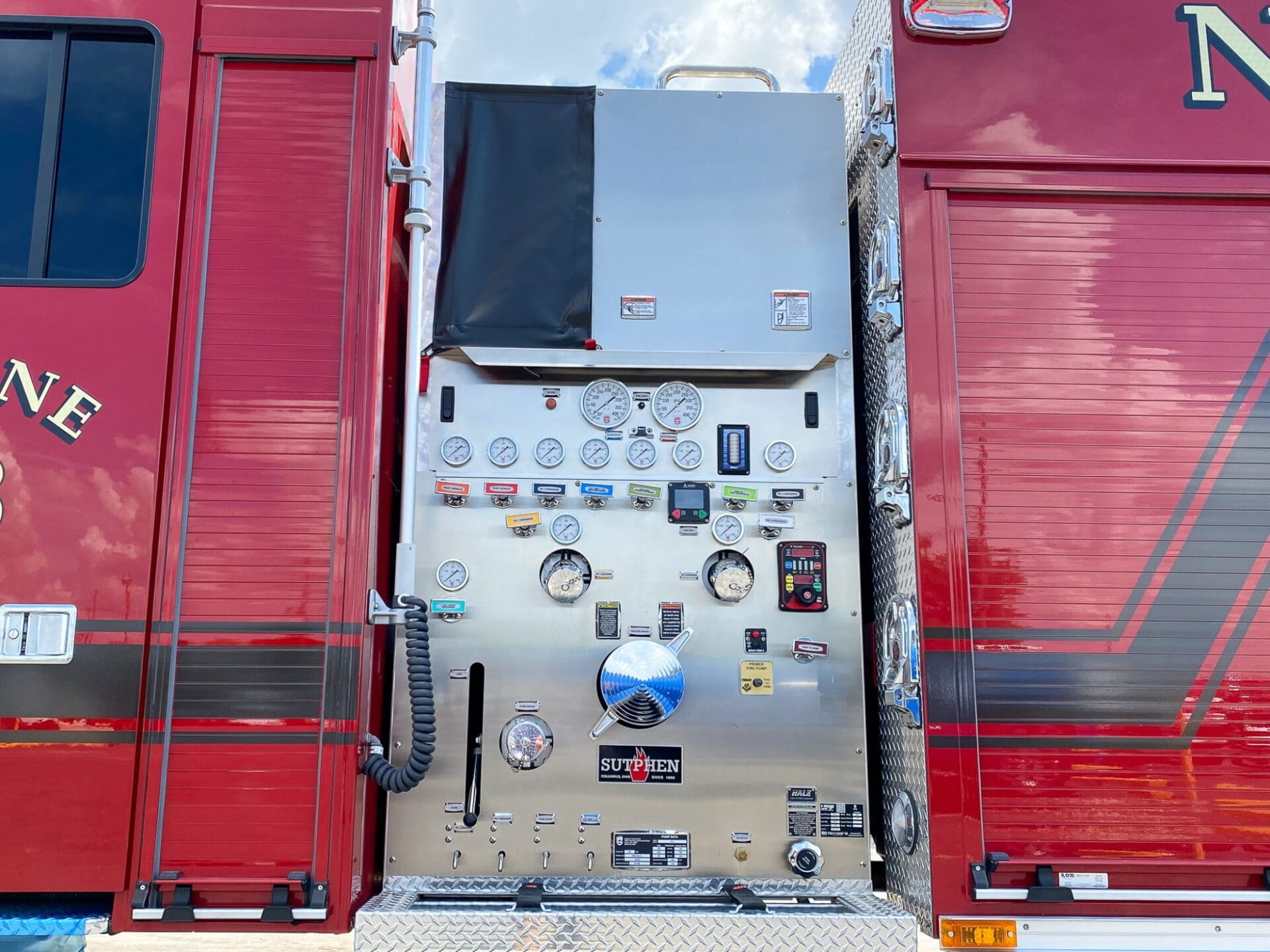

Water Pump
Qmax - 1500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Front/Right of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Crosslays
(2) 2” w/ 1 ½” Swivel
Water Tank
1000-gallon
Water Tank
30-gallon foam tank
Construction
3/16” extruded aluminum
Doors
Rom roll-up compartment , painted

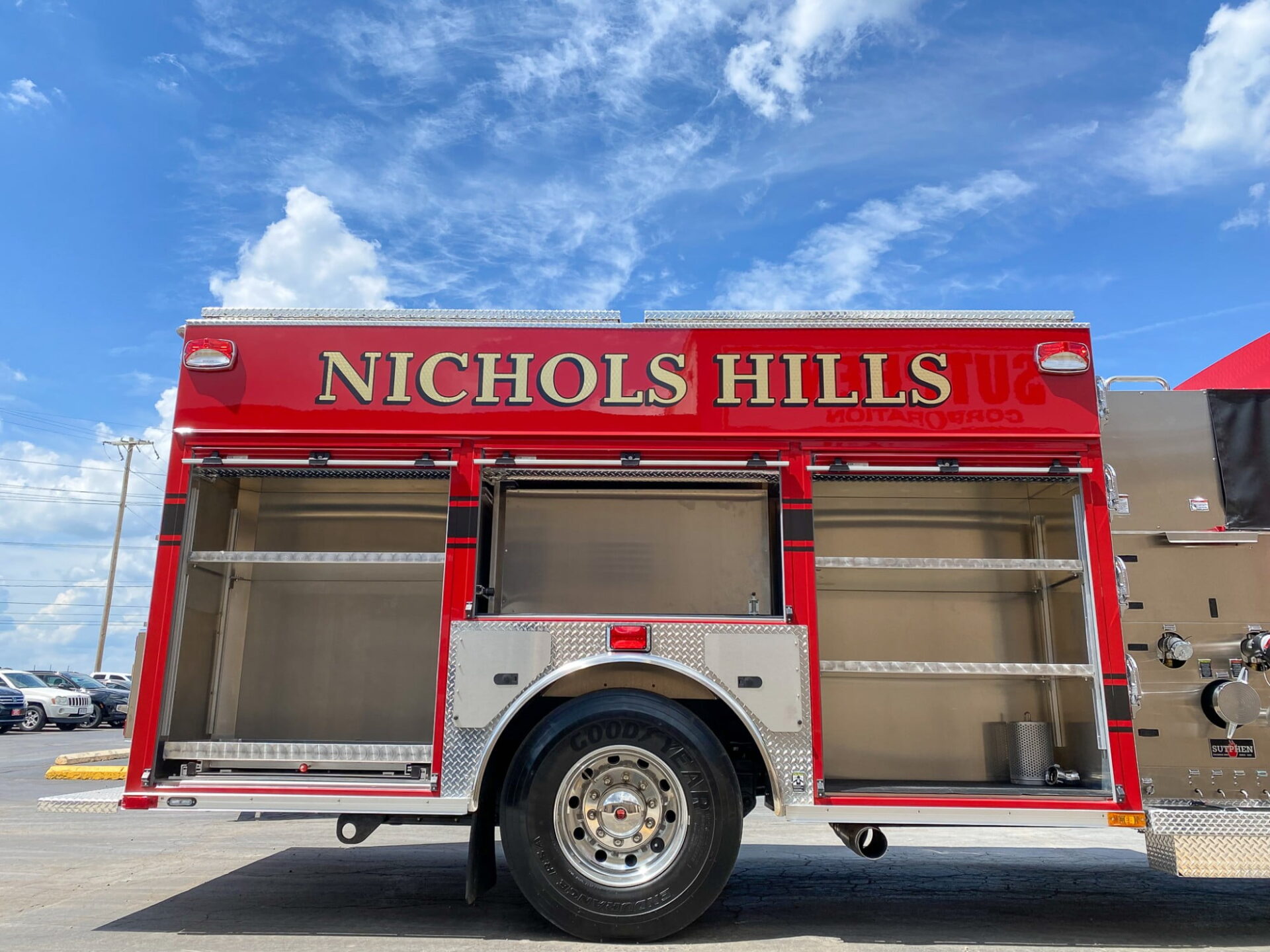

Total Compartment Space
Over 314 cu ft.
Alco-Lite Ladder Package
(1) PEL-24 24’ 2-section & (1) PRL-14 14’ Roof & (1) 10’ Folding
Body
G9 – Alum 40/51 Ladders Through Tank
Bumper Extension
24” formed steel channel,
Siren
Federal q2b , grille mount
Camera System
Brigade, Two Camera (Wired)
FRC Spectra Brow
Light
Whelen Freedom LED
Lightbar
Whelen M9V Red/Scene
Included
FRC Spectra Telescopic
Lights
