Custom Pumper – Newton County Fire Department, GA

Specs

Cab
Four-door, five-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins X 12, 500HP
Alternator
Leece Neville 320 AMP
Transmission
Allison Gen 5, EVS4000

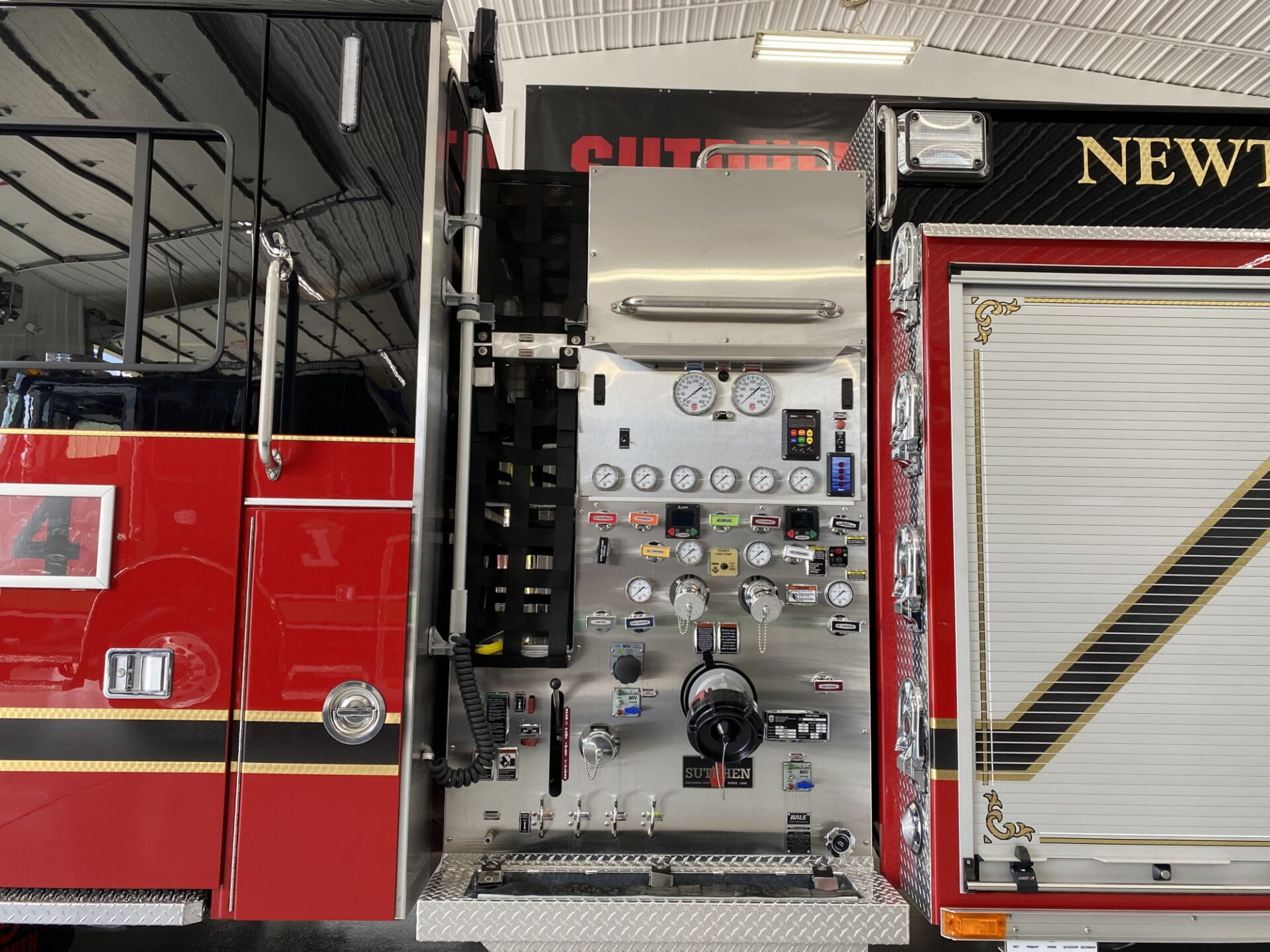

Water Pump
Qmax-1500 gpm single stage pump (xs)
Discharges
(2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Speedlays
(2) 1 ½” w/ Liftout Poly Trays & (1) 2 ½ Crosslay
Water Tank
750-gallon
Construction
3/16” extruded aluminum
Doors
Amdor roll-up compartment , satin finish
Total Compartment Space
Over 210 cu. ft.
Alco-Lite Ladder Package
Pel-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
Body
PA-12 Res 43/53 Ladder Chute
18” Formed Steel
Channel, painted
Siren
Federal q2b , grille mount
Camera System
FRC. Inview Trueview, Two cameras (Wired)
Whelen Freedom IV
(12) 44 ½” led lightbar
Whelen TIR6 LED
Traffic advisor
FR Spectra 12V
Brow
FR Spetra 900
12v scene
(5) Whelen 2G
Led hosebed lights
