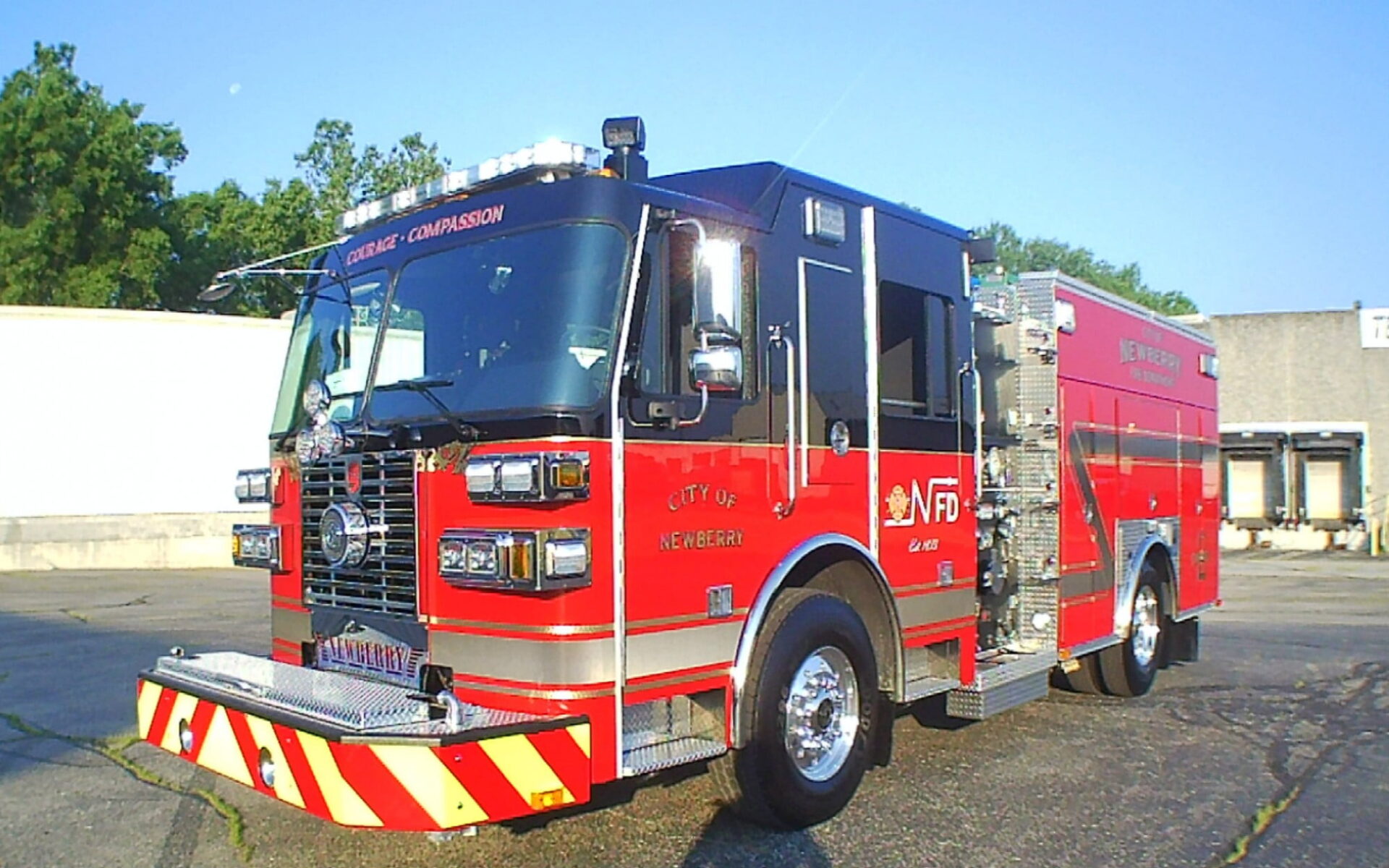

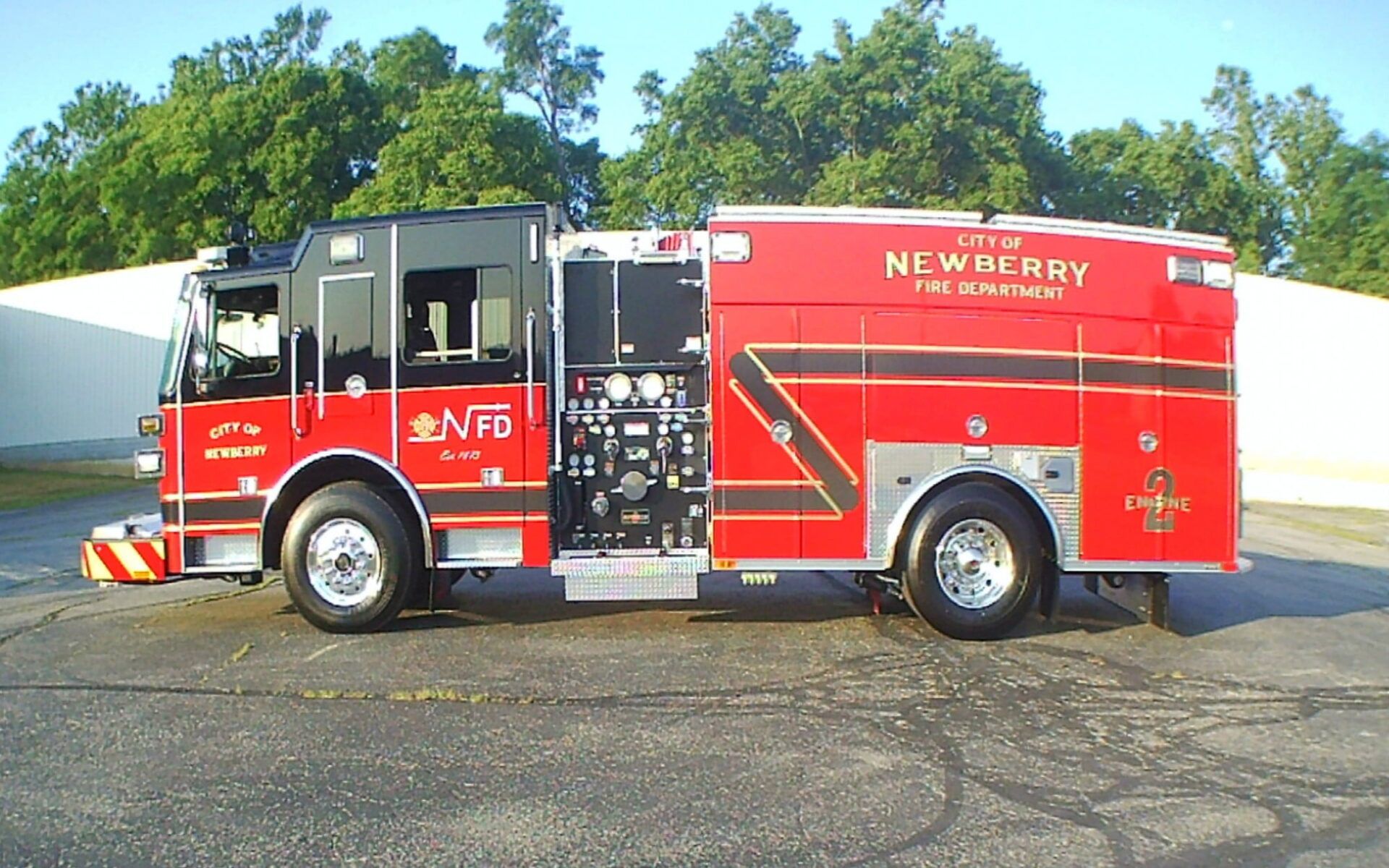

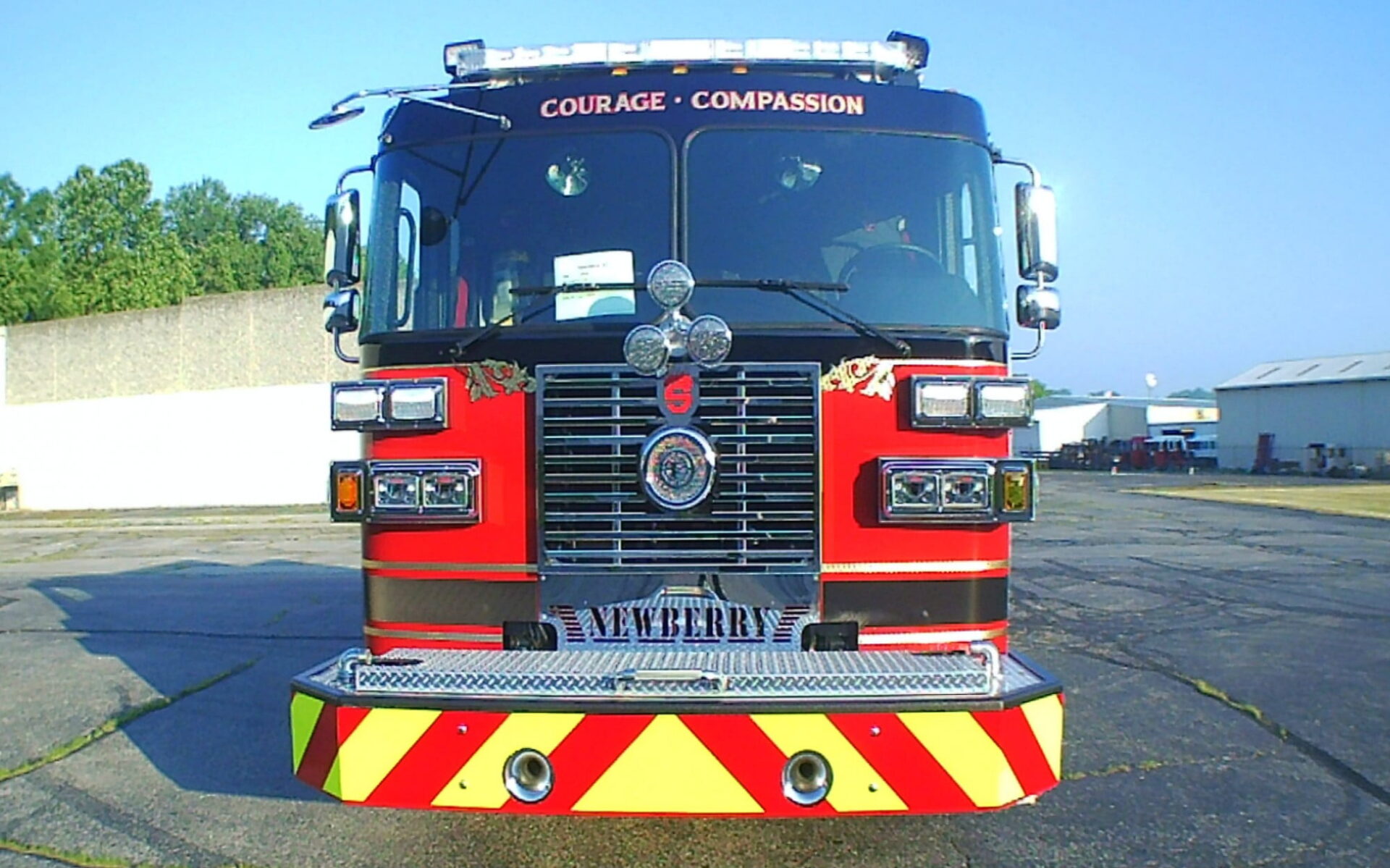

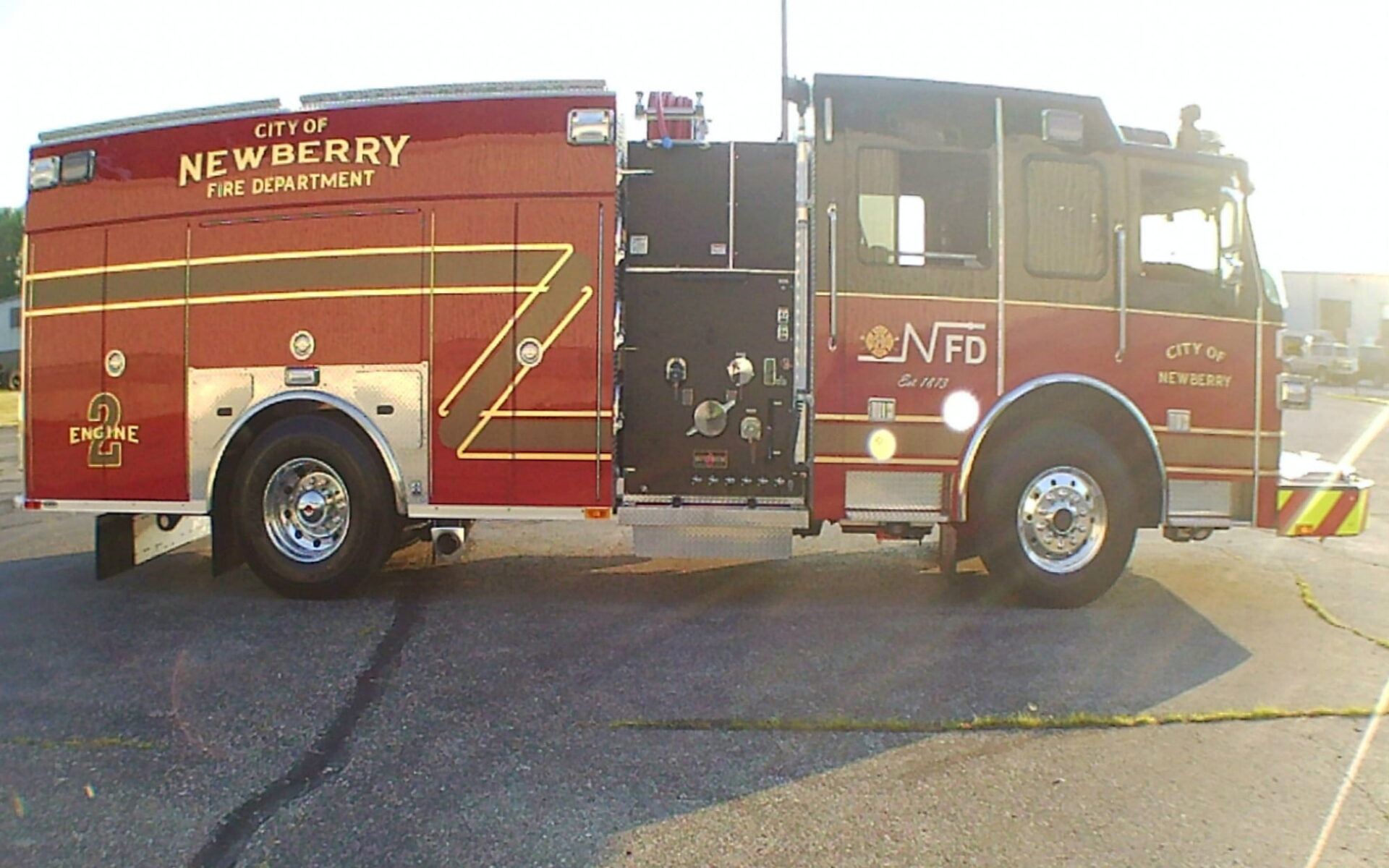

Custom Pumper – Newberry City Fire, SC

Specs

Cab
Four-door, five-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Qmax-2,000 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front Right, (1) 2 ½” Front Left, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Water Tank
1,000-gallon
Water Tank
30-gallon foam tank
Akron Foam System
Included
Doors
Rom roll-up and hinged compartment
Total Compartment Space
246 cu. ft. base compartment space
Ladder Compliment
Ladder package (24’ 2-section, 14’ roof and 10’ folding)
Ladder Compliment
Enclosed ladder chute
Body
G9-Alum 40/51
Bumper Extension
30” formed steel channel bumper
Siren
Federal q2b , grille mount
Camera System
FRC, Inview Trueview
3 Bottle Compartments
Included
Whelen Freedom IV
72” led lightbar
Whelen 900 LED
Scene light
Whelen 900 LED
Warning lights
Whelen 700 LED
Red lights
FRC Spectra Telelights
Included
Whelen Ion LED
Red lights
