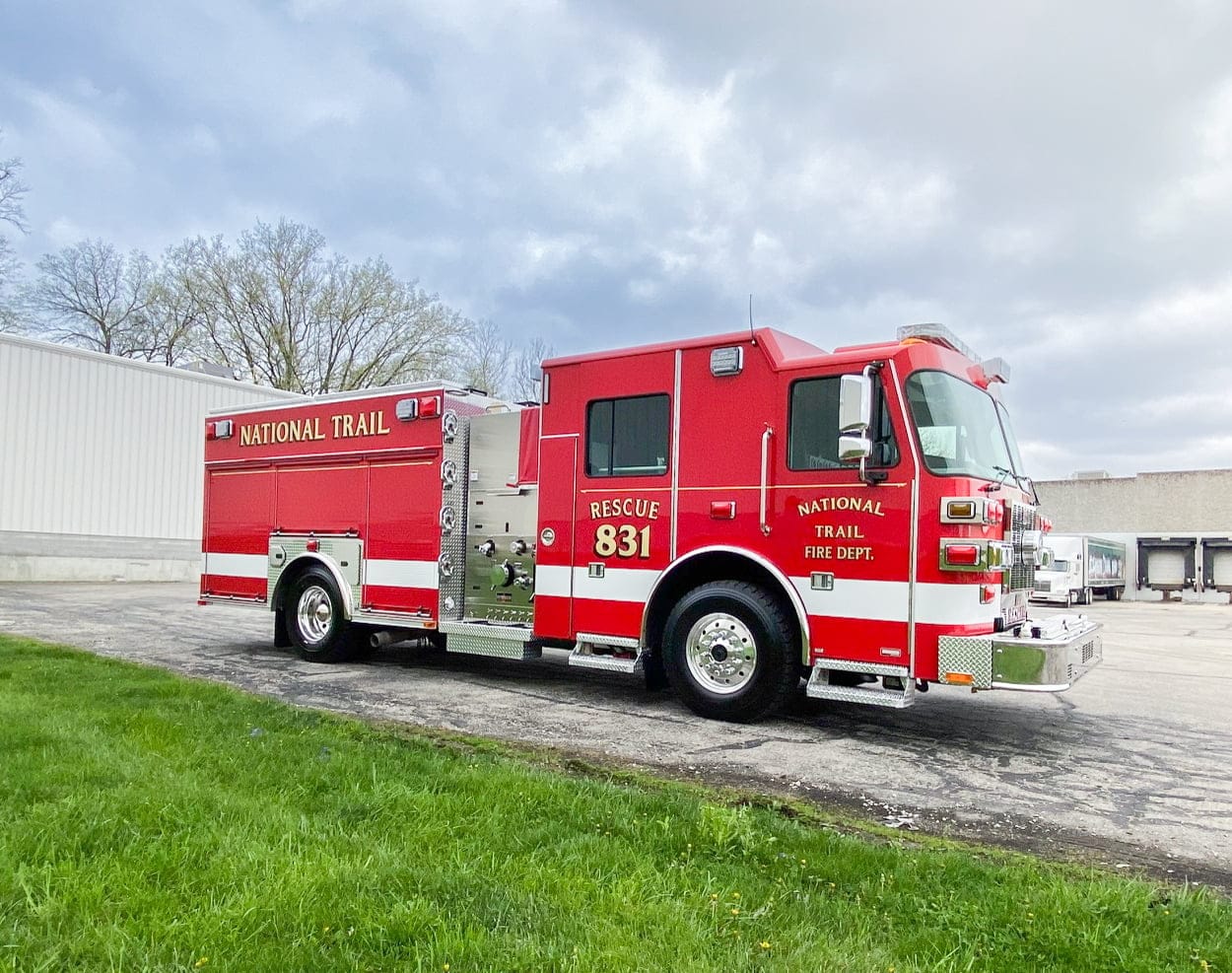

Custom Pumper – National Trail Fire Department, OH

Specs

Cab
Four-door, six-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins L 9 450HP
Alternator
Leece Neville 420 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Xs qmax-1500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 2 ½” Right, (1) 3” Right, (1) 2 ½” Left/Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Water Tank
1,000-gallon
Water Tank
20-gallon foam tank
Foam System
Hale SmartFoam 5.0

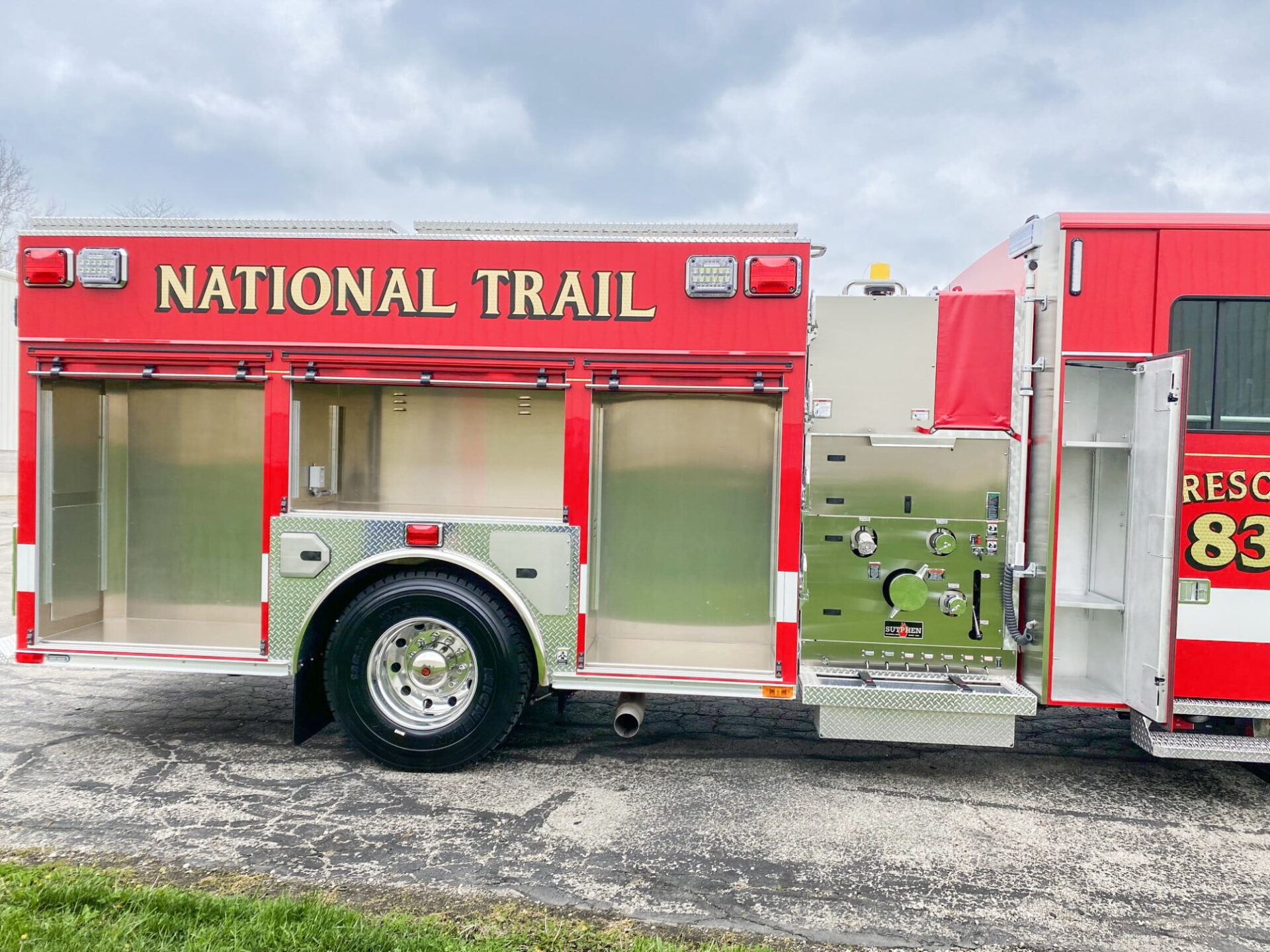

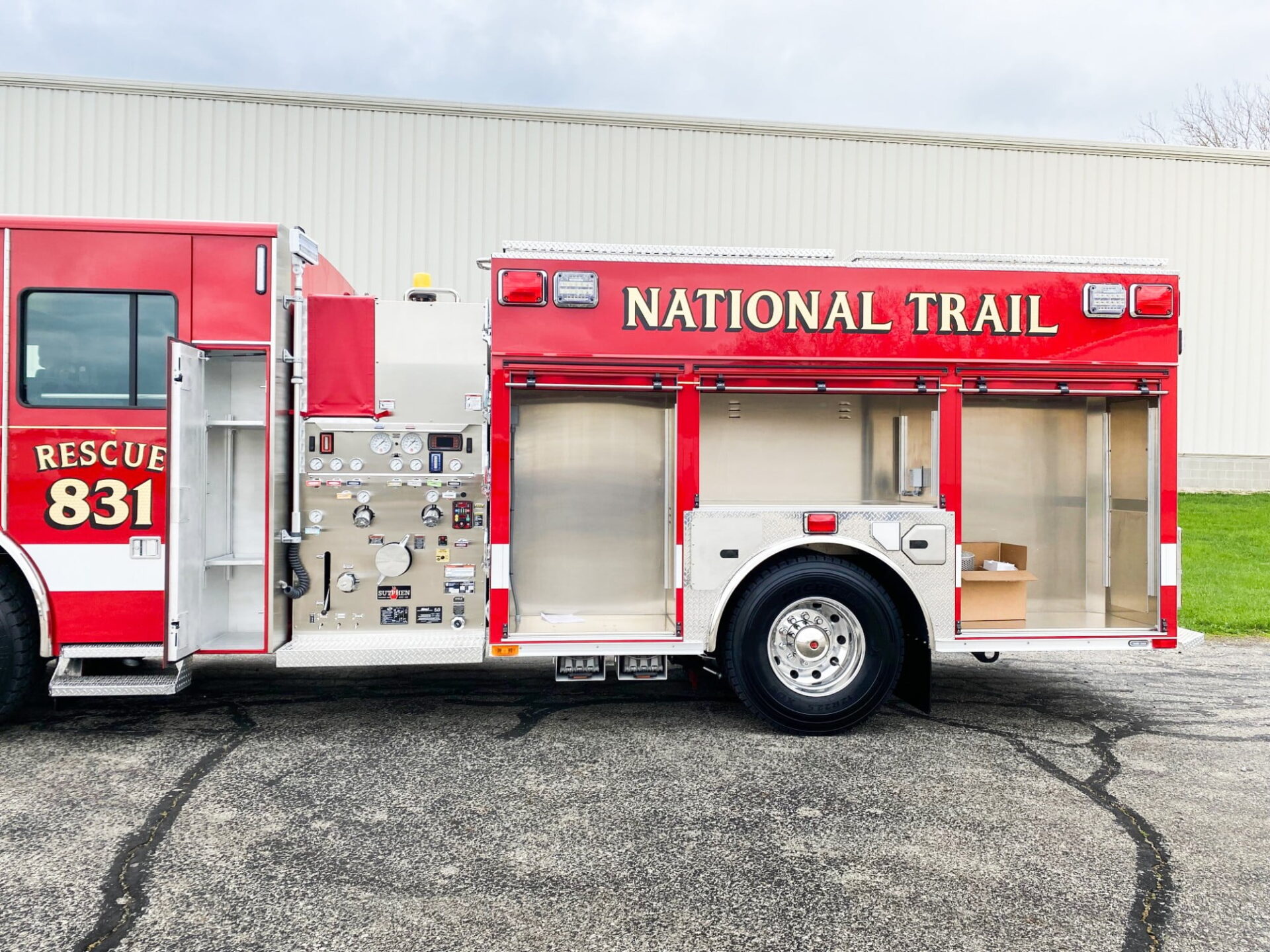

Construction
3/16” extruded aluminum
Doors
Amdor roll-up compartment
Total Compartment Space
294 cu. ft.
Duo Safety Ladder Package
900A 24’ 2 Section & 775A 14’ Roof & 10’ Folding
Body
G9 Alum 40/51 Ladders Through Tank
Bumper Extension
18” polished stainless steel bumper
Siren
Federal q2b , grille mount
Camera System
FRC, Inview Trueview, Two Cameras
Intercom System
Firecom Six Position
Whelen Freedom 72”
Led lightbar
FR Spectra Brow
12v led light
FR Spectra 12V
Led scene lights
