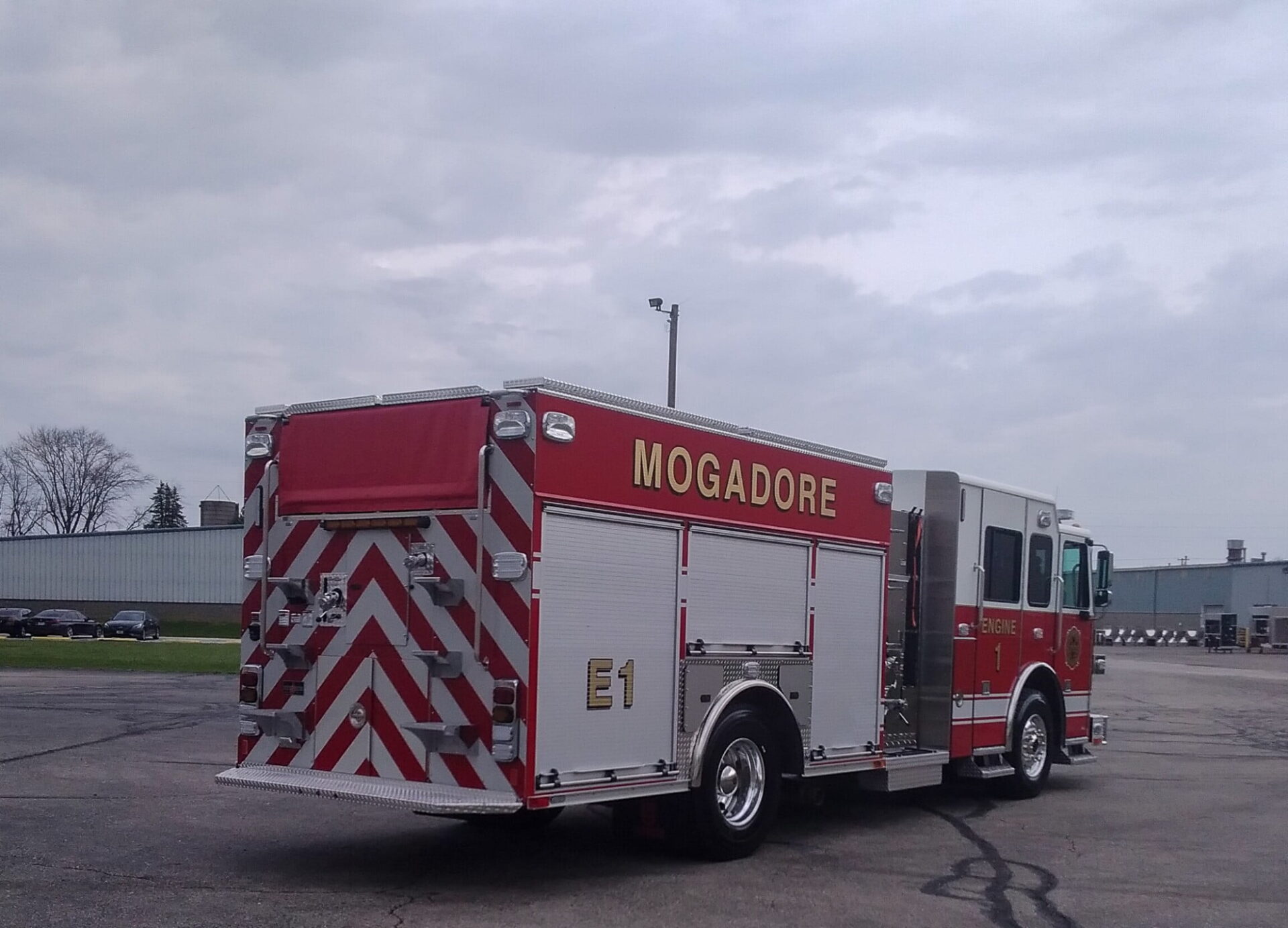

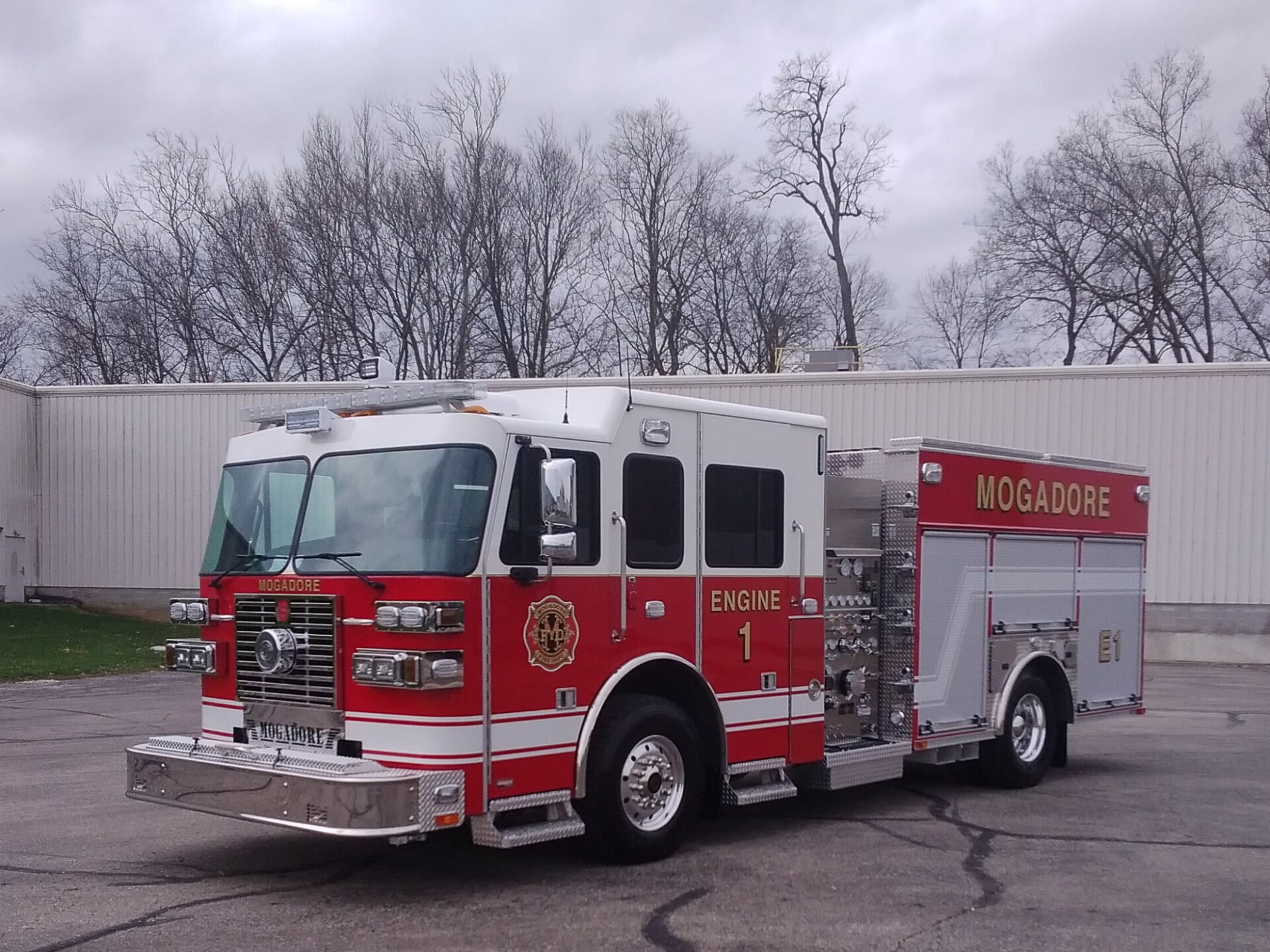

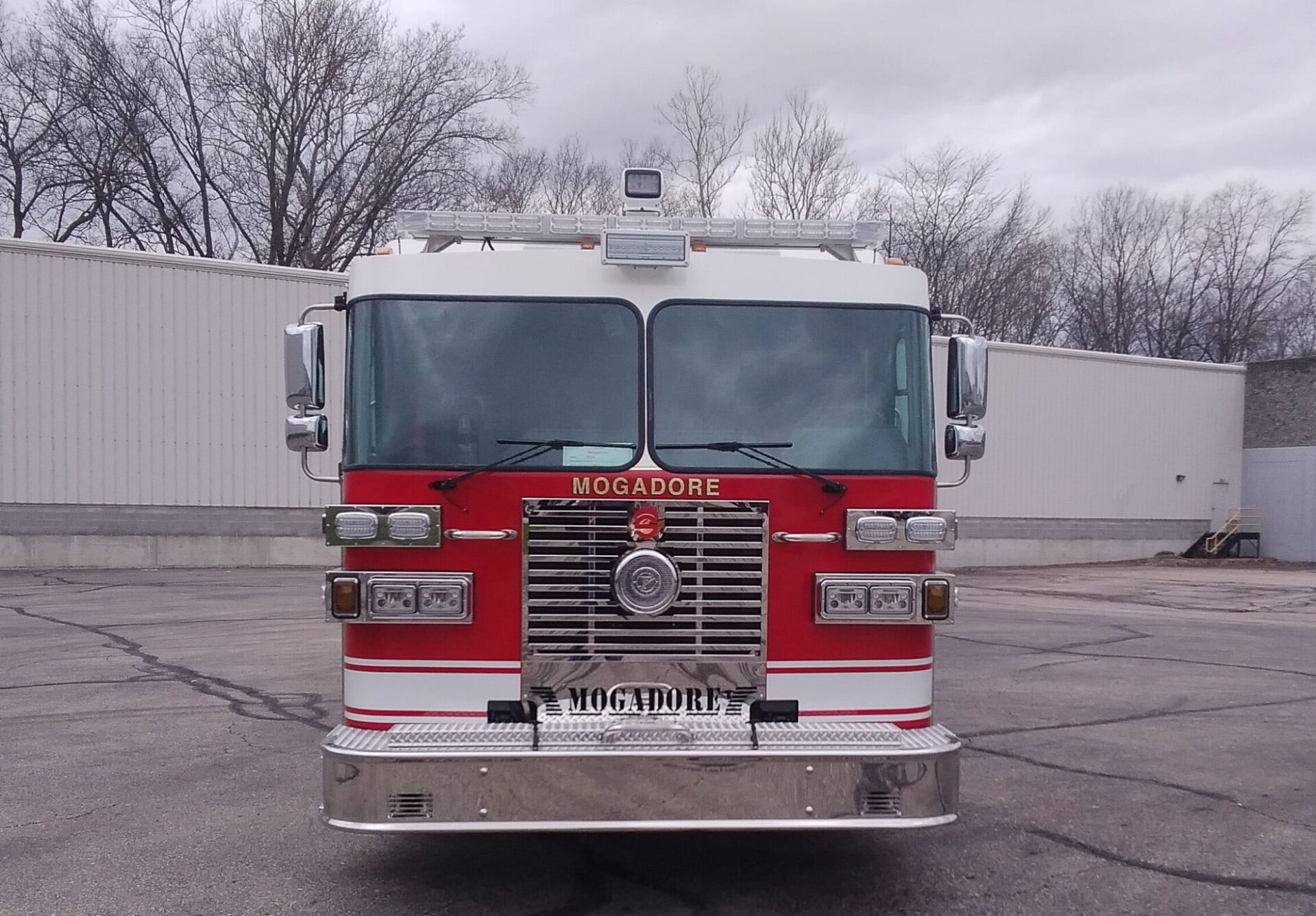

Custom Pumper – Mogadore Fire Department, OH

Location:
Mogadore, OH
Department:
Mogadore Fire Department

Specs

Cab
Four-door, four-person
10” Single Frame
Rails (110k psi)
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins L 9 450HP
Alternator
Leece Neville 420 AMP
Transmission
Allison Gen 5, EVS 3000

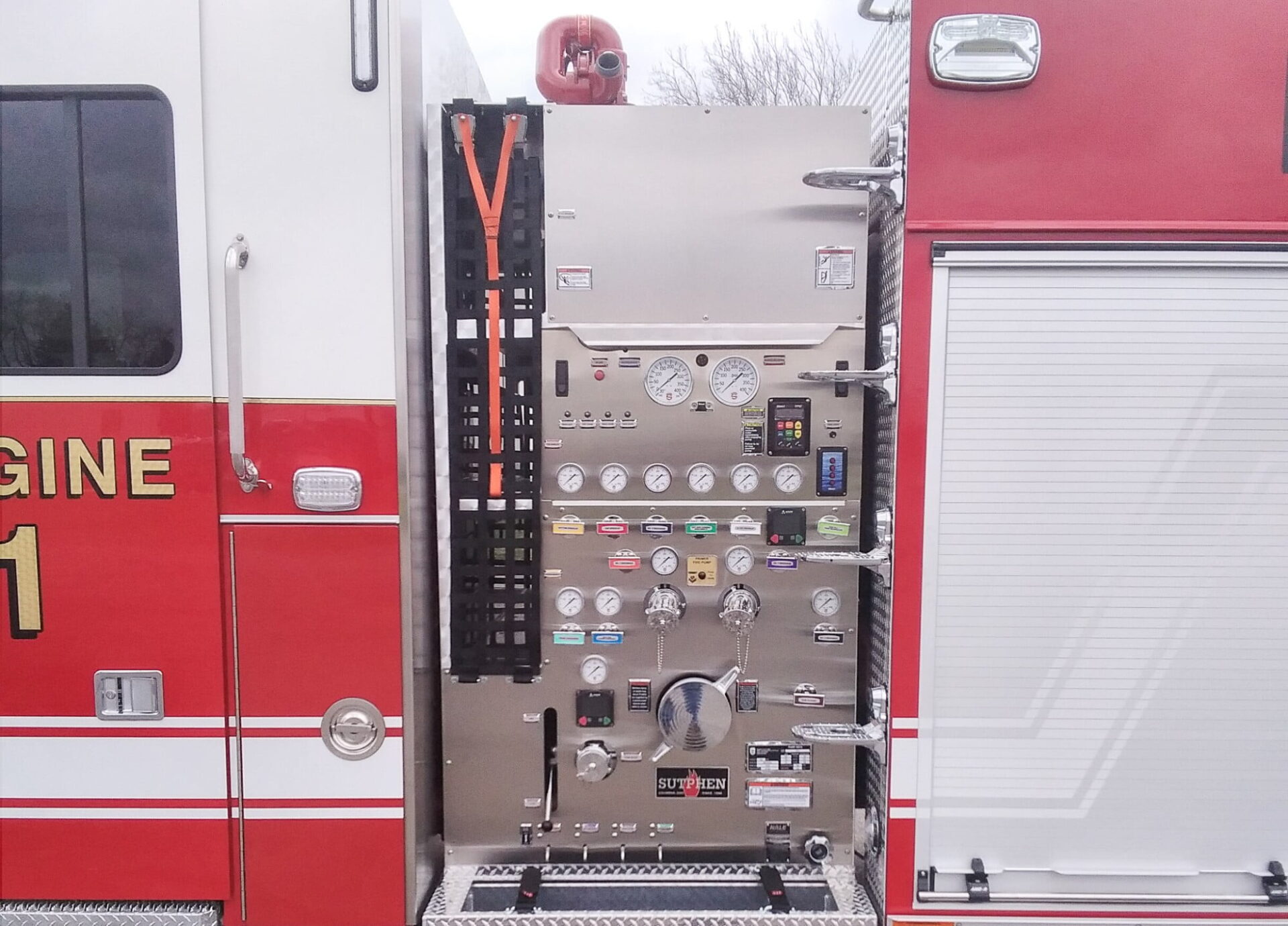

Water Pump
Qmax-1500 gpm single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Right Rear, (1) 2 ½” Front/Right of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Crosslay
(1) 2 ½”
Speedlay
(2) 2” w/ Swivels and Poly Lift-Out Trays
Water Tank
750-gallon
Construction
3/16” extruded aluminum
Doors
Amdor roll-up compartment
Total Compartment Space
294 cu. ft.
Alco-Lite Ladder Package
PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
Ladder Compliment
Ladder chute w/ backboard storage
Body
G9 – Aluminum 40/51 Ladders through the Tank
Bumper Extension
18” polished stainless steel bumper
Siren
Federal q2b , grille mount
Camera System
FRC, Inview Trueview, Single Camera
Whelen Freedom LED
Lightbar
FRC Spectra Brow
Light
Remote Control Go-Light
Included
Whelen M9V Red/Scene
Included
Whelen LED Traffic
Advisor
