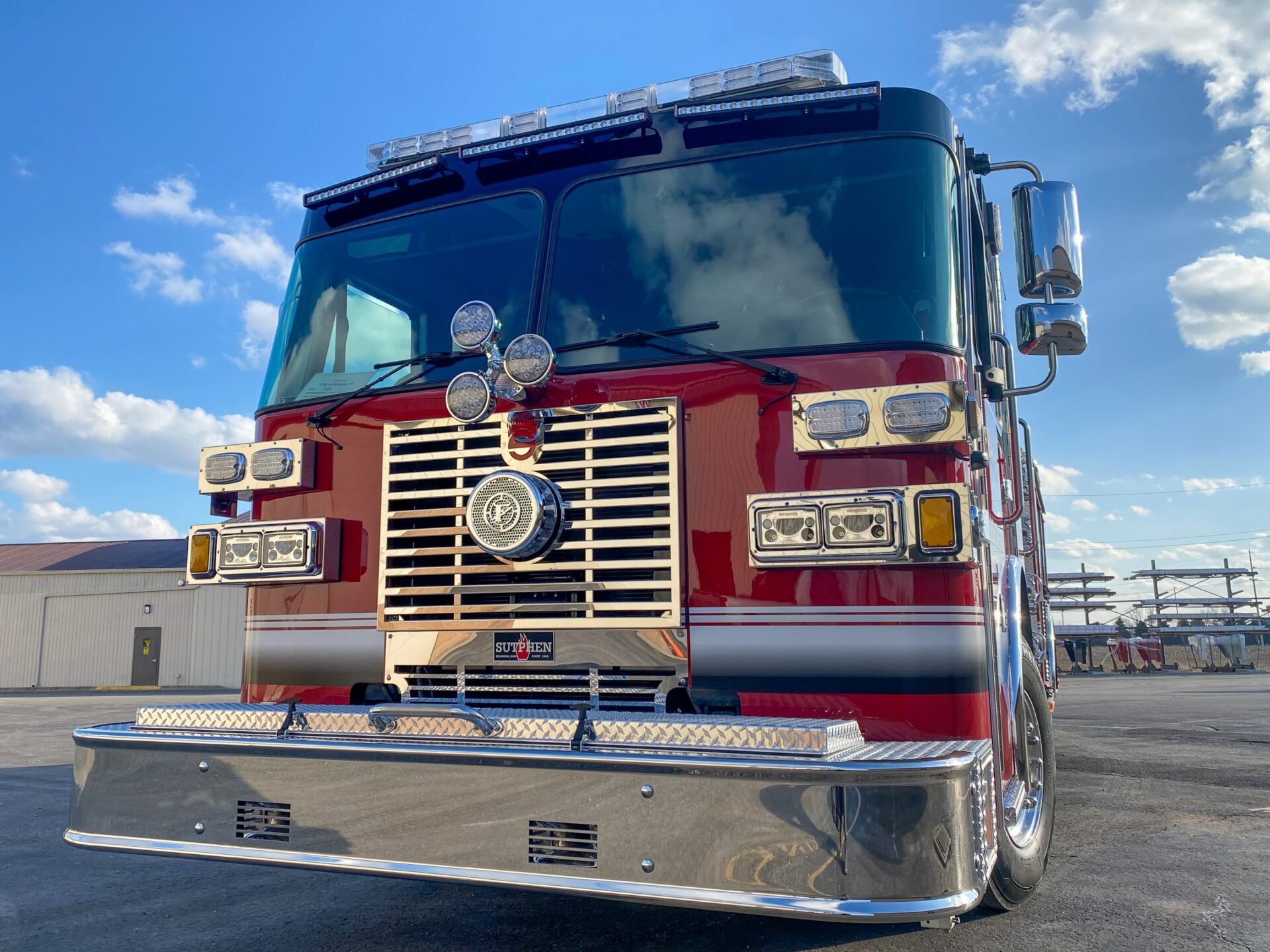

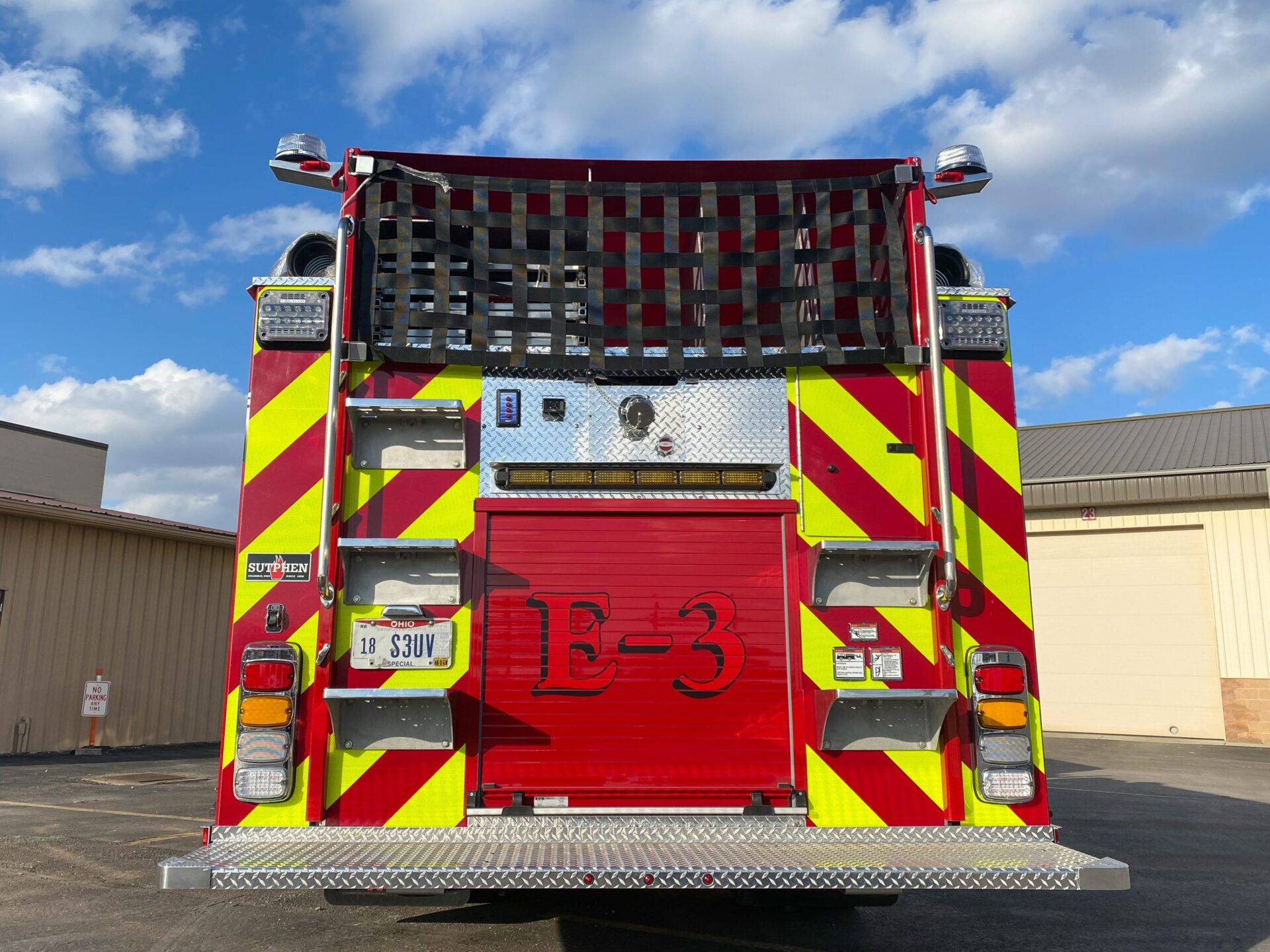

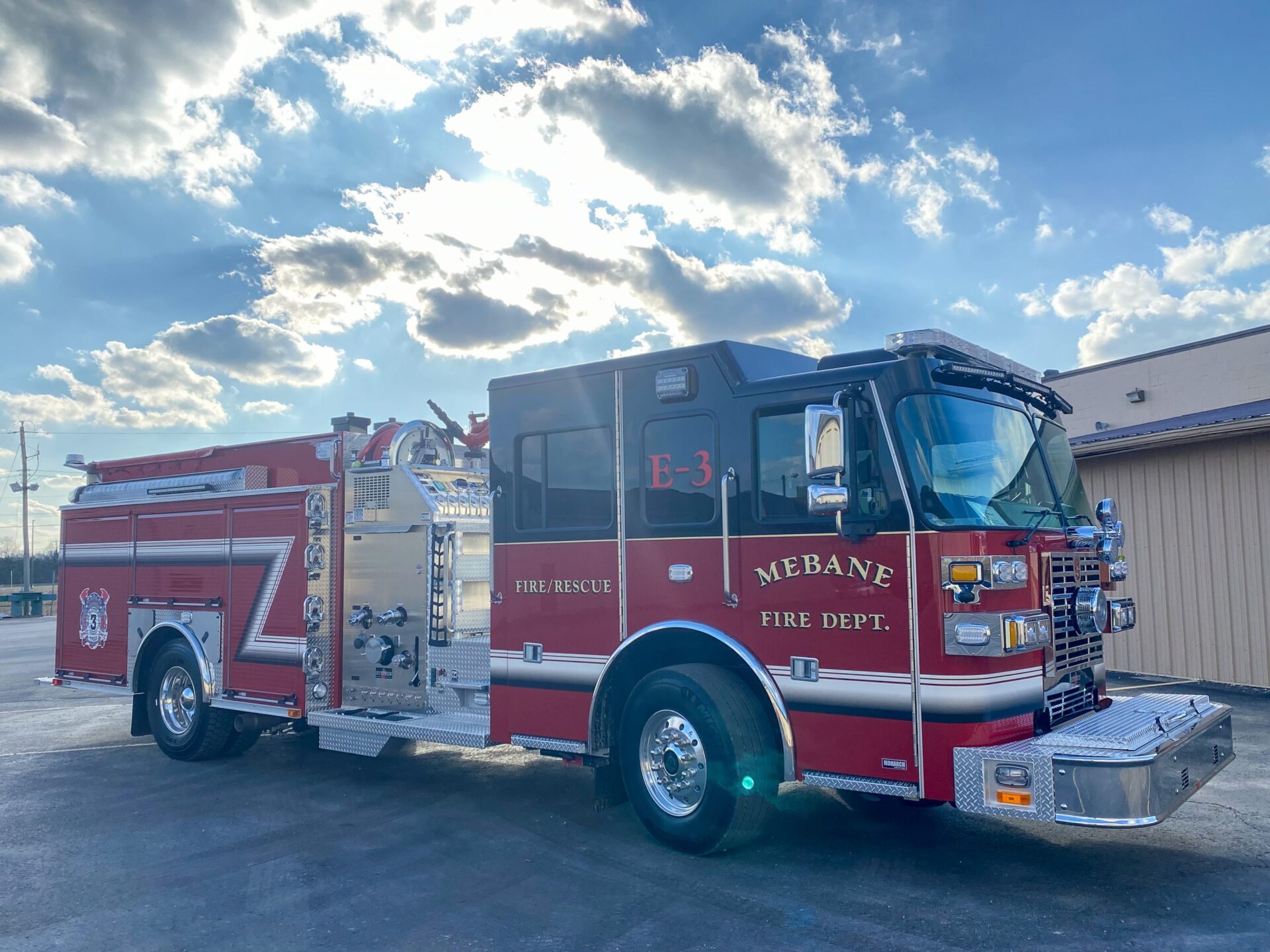

Custom Pumper – Mebane Fire Department, NC

Specs

Cab
Four-door, four-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
20,000 lbs.
Rear Axle and Suspension
27,000 lbs.
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville 420 AMP
Transmission
Allison Gen 5, EVS3000

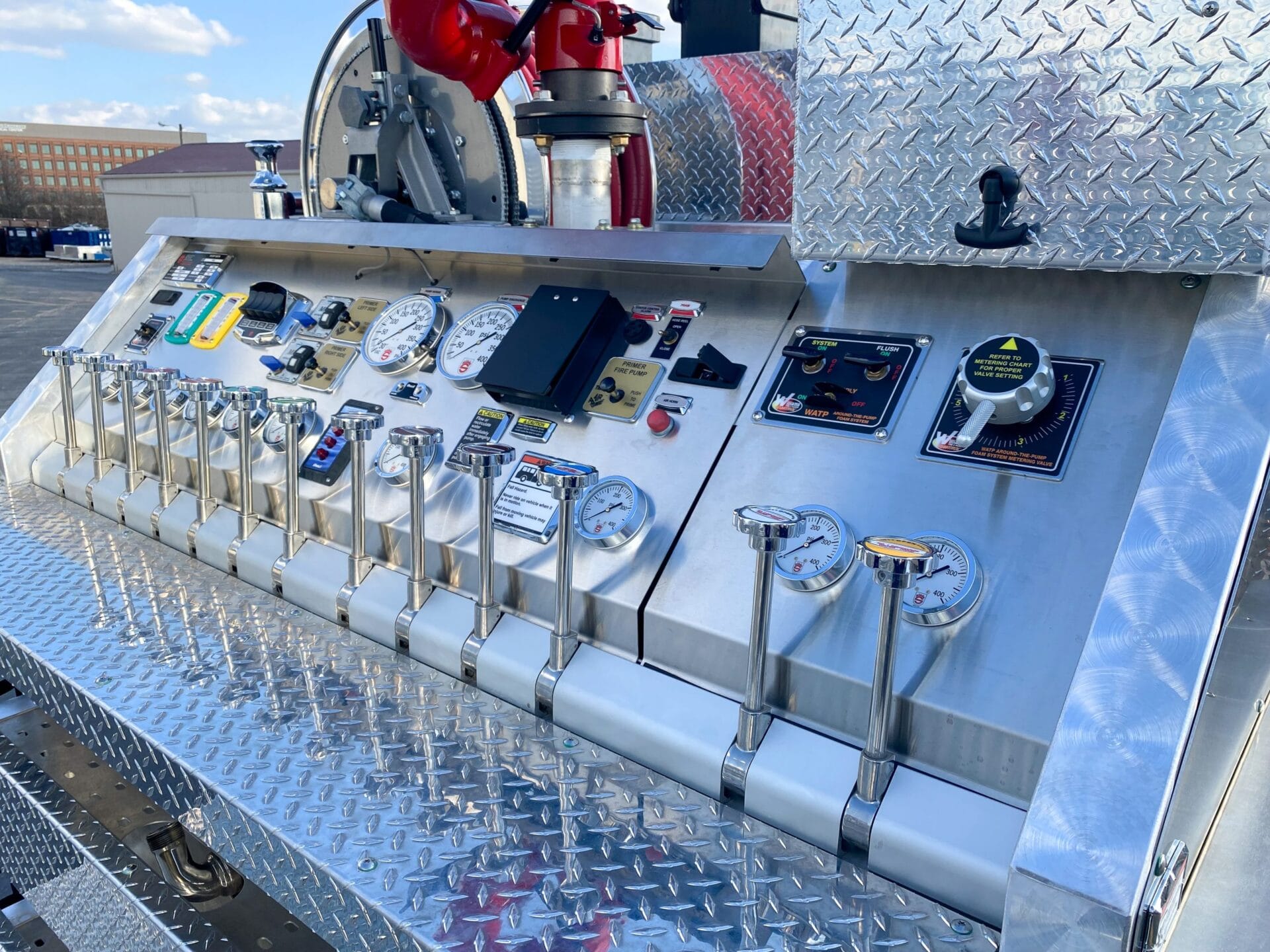

Water Pump
Qmax-1500 gpm, single stage pump
Discharge
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Front/Right of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Speedlay
(2) 2” w/ 1 ½” Swivel
Water Tank
1,000-gallon
Water Tank
30-gallon foam tank
Foam System
Williams ATP 500 – Class A & B, Air Selector
Construction
3/16” extruded aluminum
Doors
Rom roll-up compartment
Total Compartment Space
230 cu. ft.
Alco-Lite Ladder Package
PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
Body
S2 – Alum 43/53 Ladder Chute
Bumper Extension
24” polished stainless steel,
Siren
Federal q2b , grille mount
Camera System
Brigade, Three Camera
Power
Hannay electric cord reel, 150’ (1)
Whelen Freedom LED
Lightbar
FireTech 3-Piece 12V
Brow light
FireTech 12V Scene
Lights
