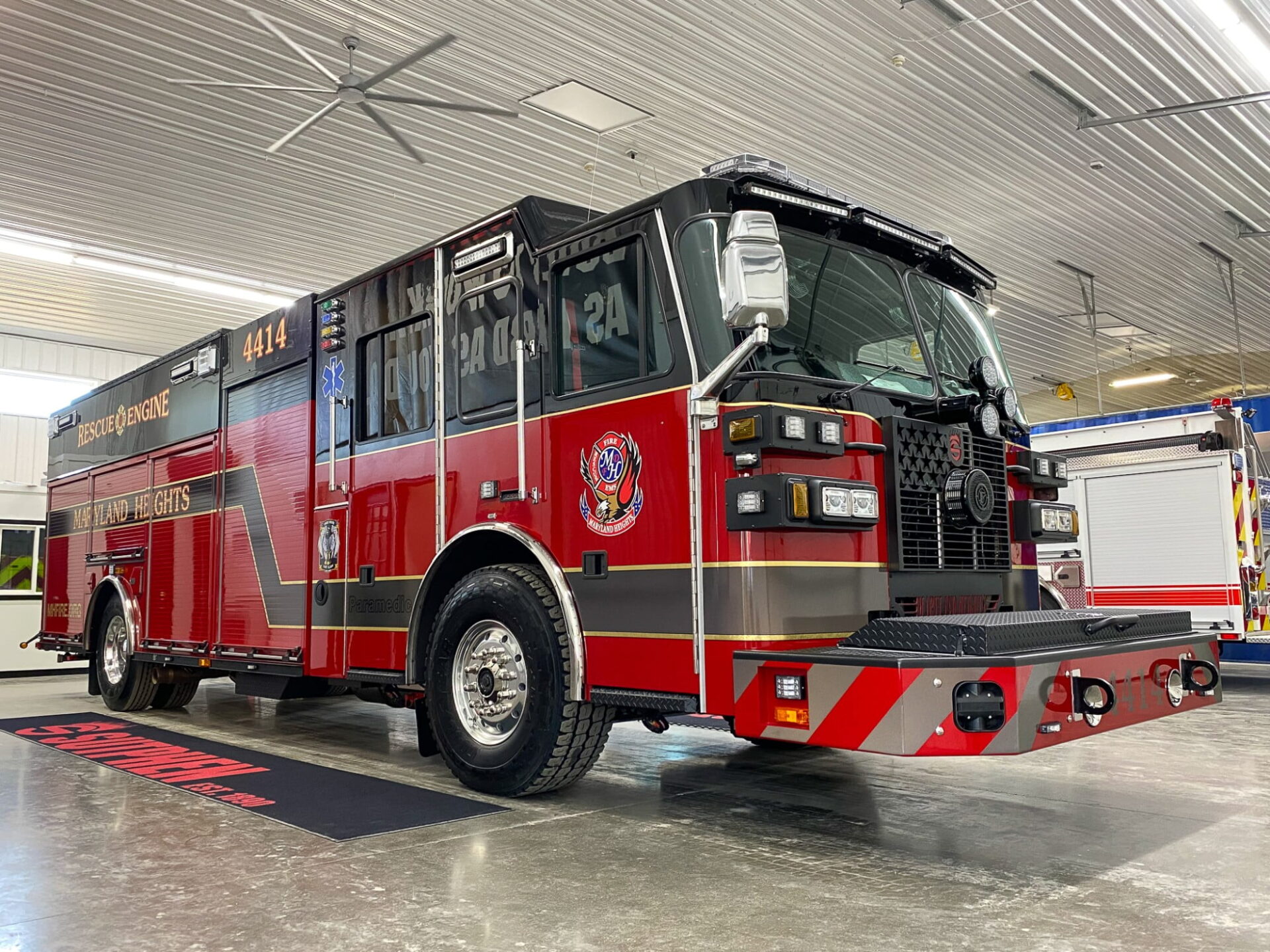

Custom Pumper – Maryland Heights Fire Protection District, MO

Specs

Cab
Four-door, five-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
21,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins X 12 500 HP
Alternator
Leece Neville 420 AMP
Transmission
Allison Gen 5, EVS4000

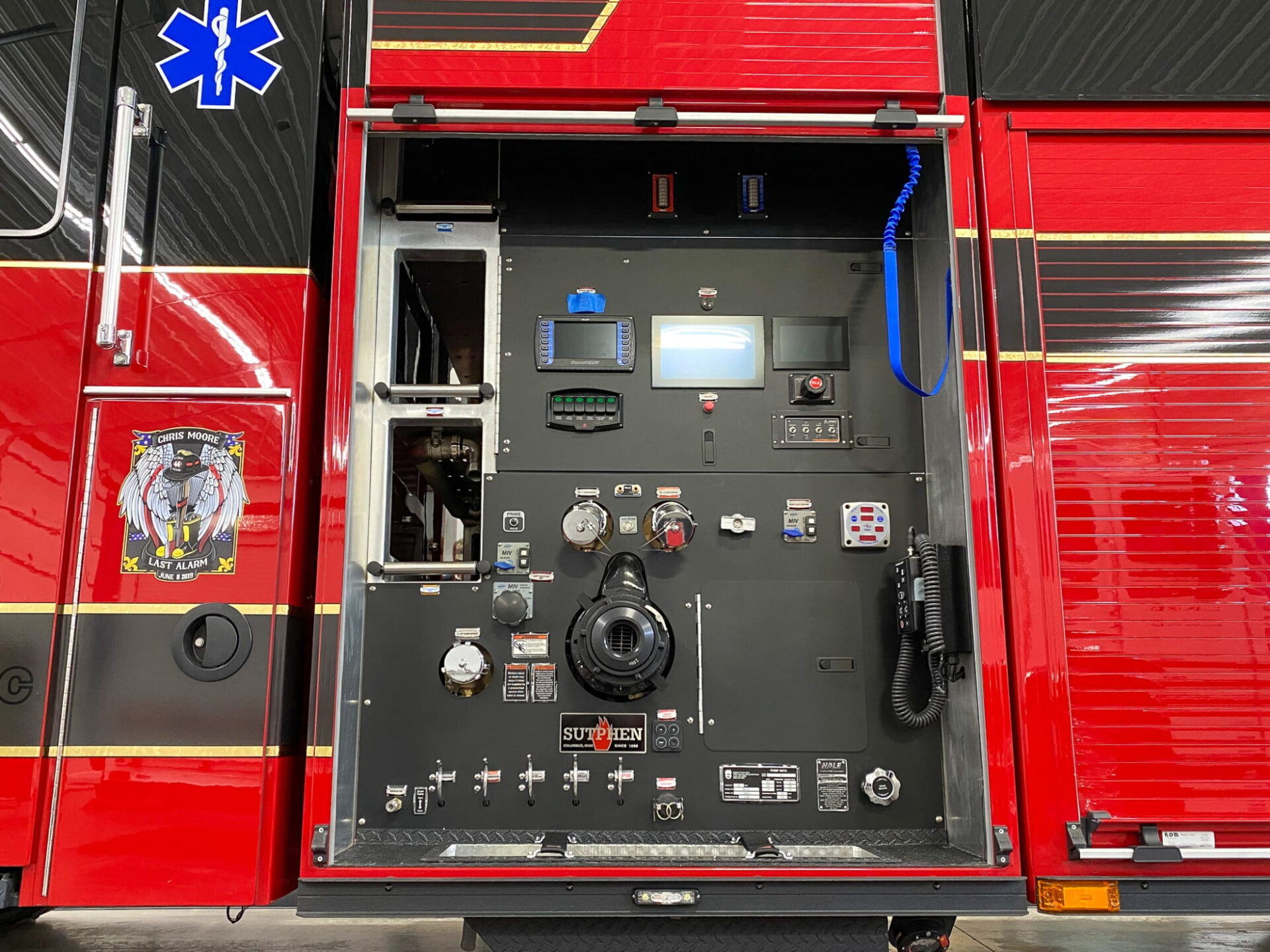

Water Pump
Qmax-2000 gpm, single stage pump
Water Discharges
(2) 2 ½” Left, (1) 2 ½” Right, (1) 4” Right, (1) 2 ½” Pipe Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Foam Discharges
(5) Positions
Water Tank
600-gallon
Water Tank
30-gallon foam tank
Construction
3/16” extruded aluminum
Doors
Rom roll-up compartment
Total Compartment Space
Over 420 cu. ft.
Duo-Safety Ladder Compliment
900A 24’ 2-Section & 775A 14’ Roof & 10’ Ladder, Fresno 701
Body
PA-15 Res 56/53 Ladder Chute and Double Hatch
Bumper Extension
30” formed steel channel bumper
Siren
Federal q2b , grille mount
Camera System
FRC Camera System for Class 1
Power
Hannay electric cord reel, 175’ (1)
Generator
8KW Smart Power
FireTech 3-Piece 72”
12v brow
FireTech 12V Scene
Included
Code 3 PRIZM
Ii red and blue led
Code 3 Pursuit
Led lightbar 71”
Code 3 Traffic
Advisor
Roto-Ray Warning Light
Included
Command Light 115V
Kl409a-h4
