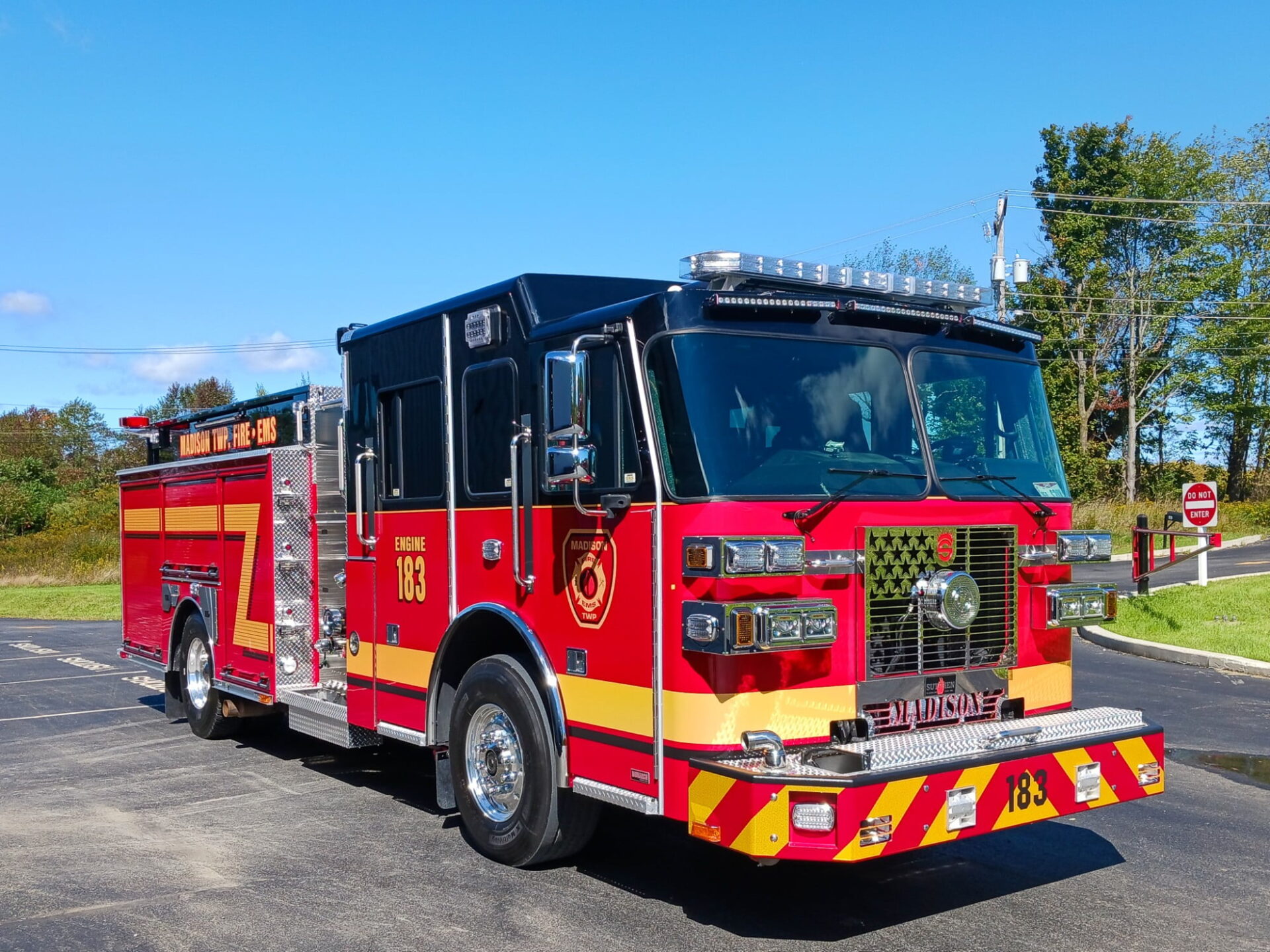

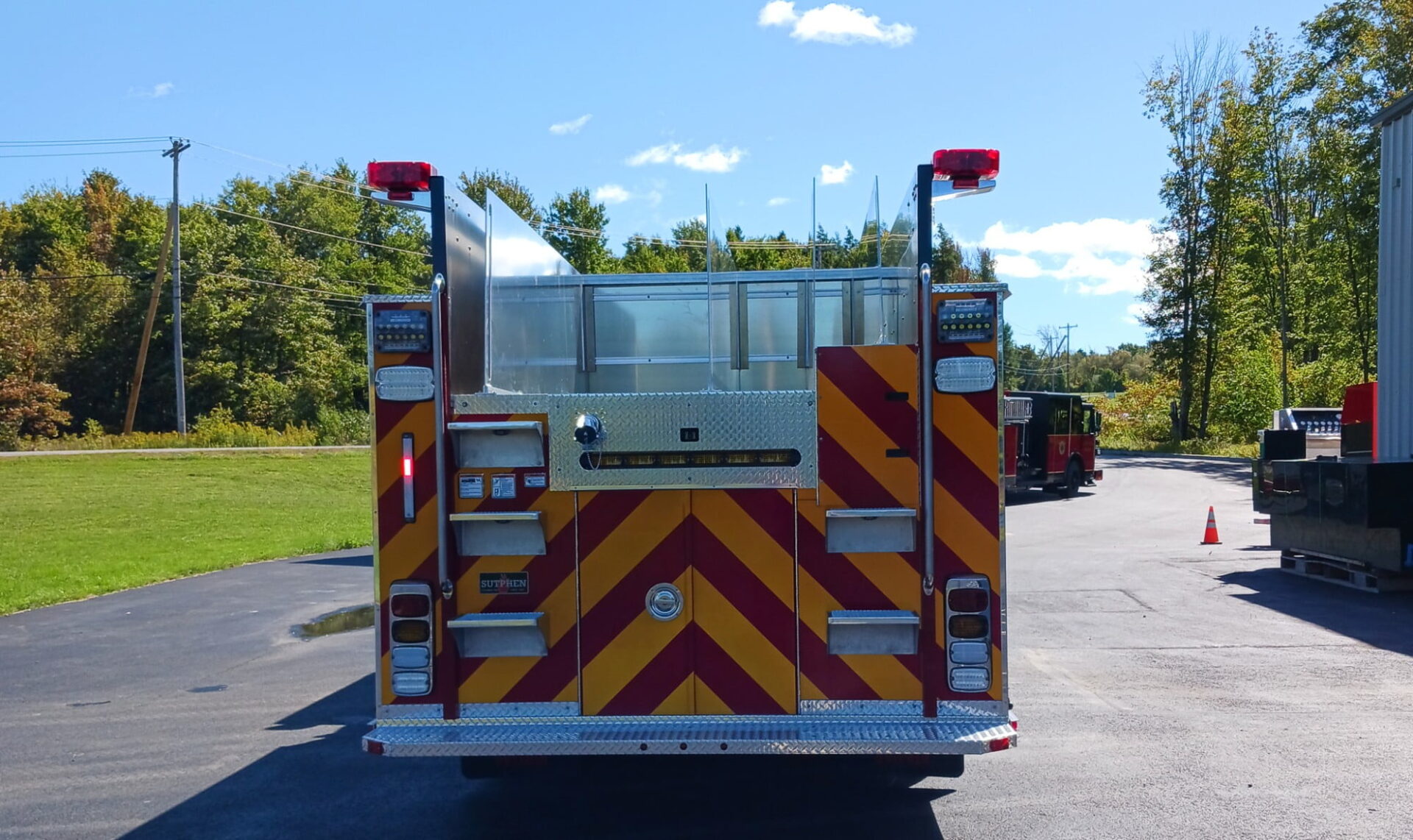

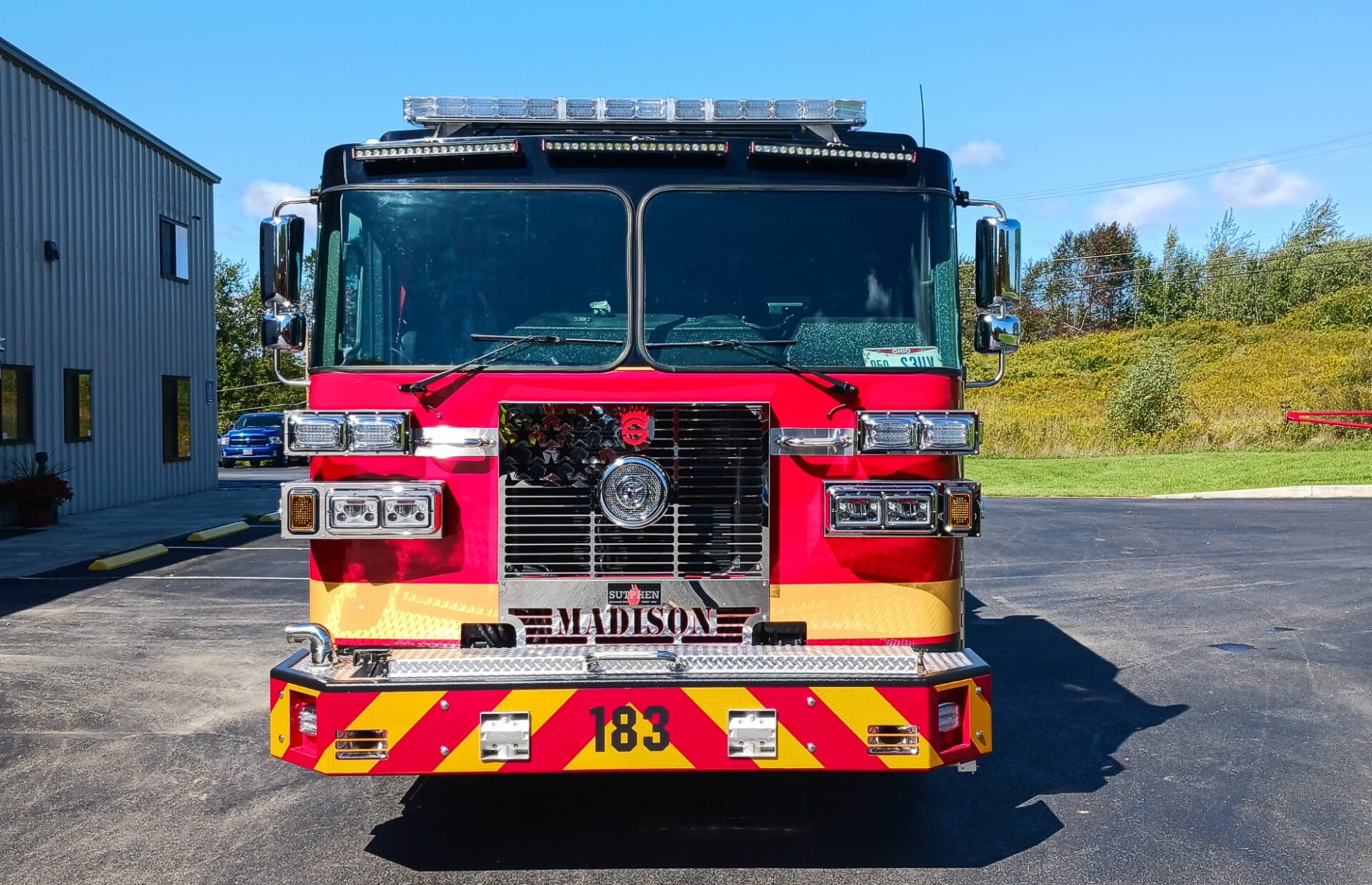

Custom Pumper – Madison Township Fire Department, Ohio

Location:
Madison Township, Ohio
Department:
Madison Township Fire Department

Specs

Cab
Four-door, five-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
20,000 lbs.
Rear Axle and Suspension
24,000 lbs.
Engine
Cummins X 12, 500HP
Alternator
Leece Neville 420 AMP
Transmission
Allison Gen 5, EVS4000
Water Pump
Csu-1500 gpm, single stage pump
Discharge
(2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Front/Right of Main Hosebed, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
Crosslays
(2) 2” w/ 1 ½” Swivel
Water Tank
750 -gallon
Construction
3/16” extruded aluminum
Doors
Amdor roll-up compartment
Total Compartment Space
216 cu. ft.
Body
S2 – Alum 43/53 Ladder Chute
Bumper Extension
18” formed steel channel
Siren
Federal q2b , grille mount
Camera System
FRC Inview Trueview
Intercom System
David Clark 5-Position
Whelen Freedom IV
72” led light bar
Whelen M6 Warning
Lights
FireTech 3-Piece 72”
Led brow light
FireTech Guardian Elite
Scene lights
FireTech Tele Lights
Included
FireTech 33” Mini
Brow light
