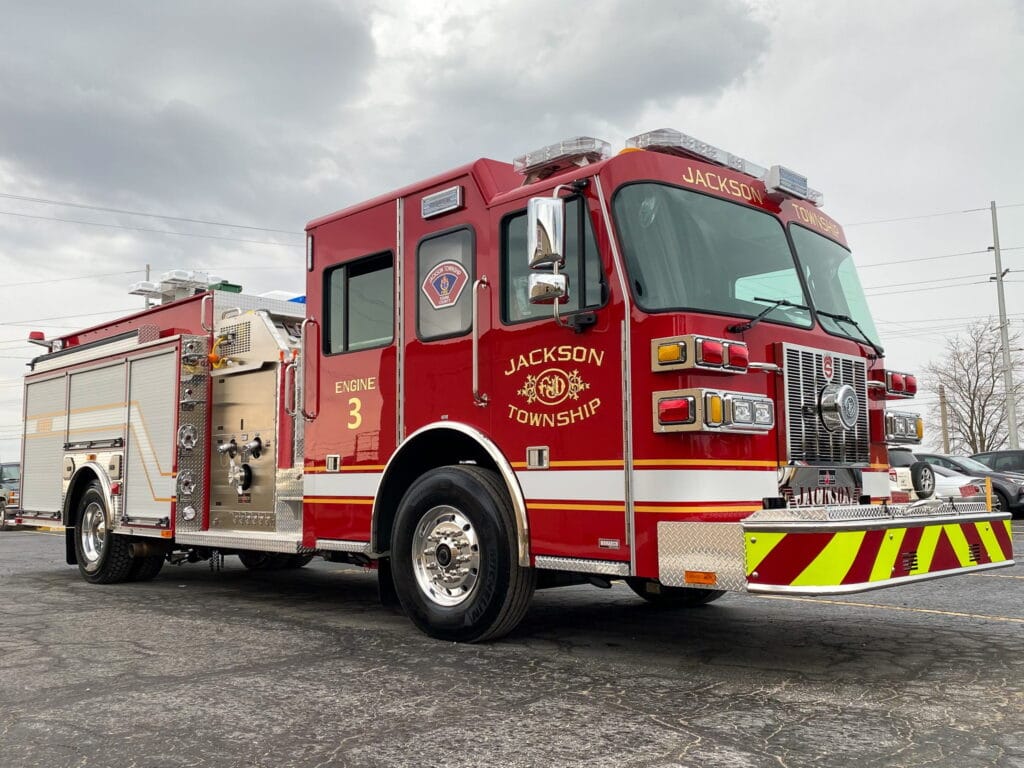

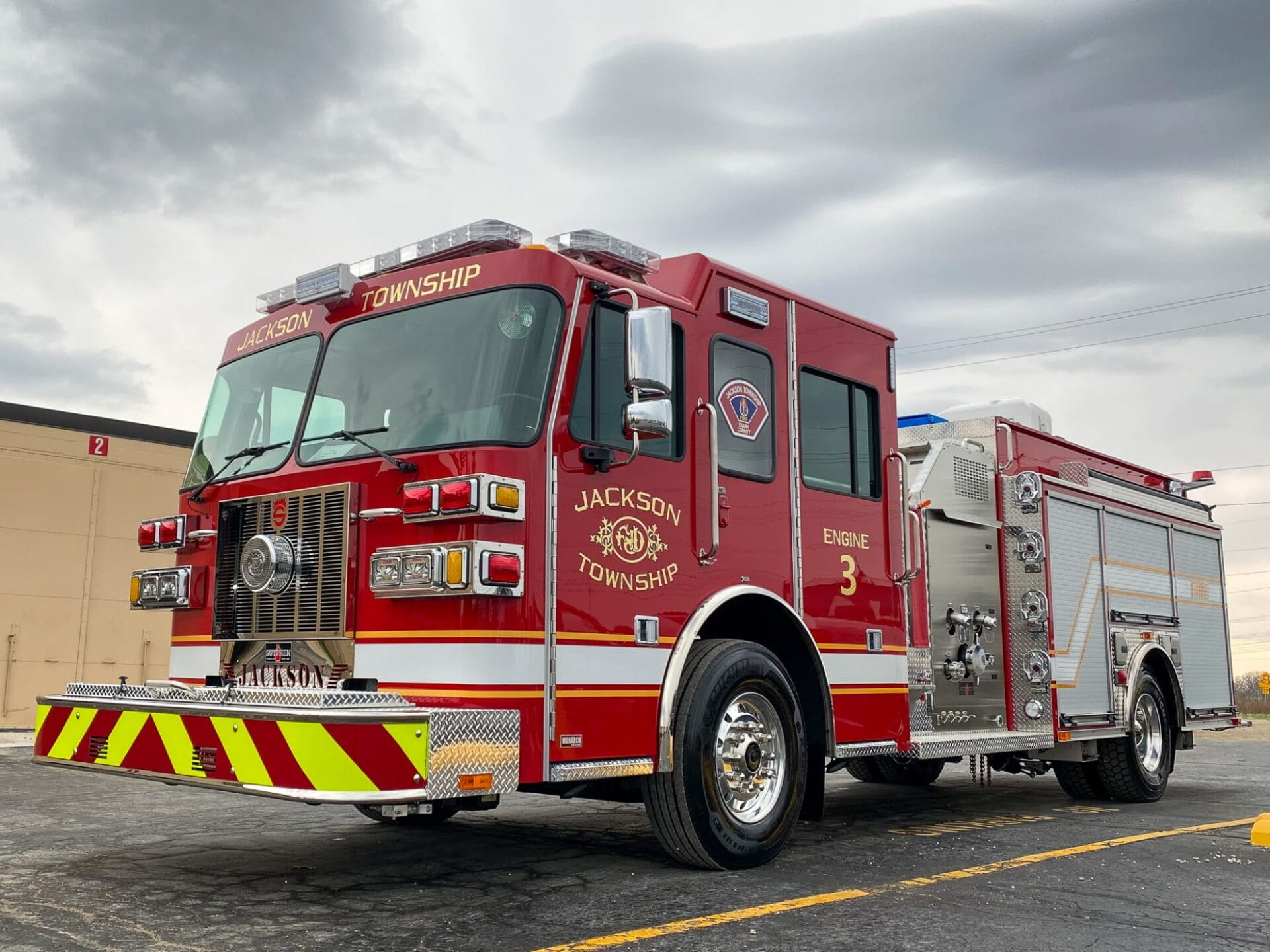

Custom Pumper – Jackson Township Fire Department, OH

Specs

Cab
Four-door, four-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
18,000 lbs.
Rear Axle and Suspension
27,000 lbs.
Engine
Cummins L 9, 450HP
Alternator
Delco Remy 320 AMP
Transmission
Allison Gen 5, EVS3000

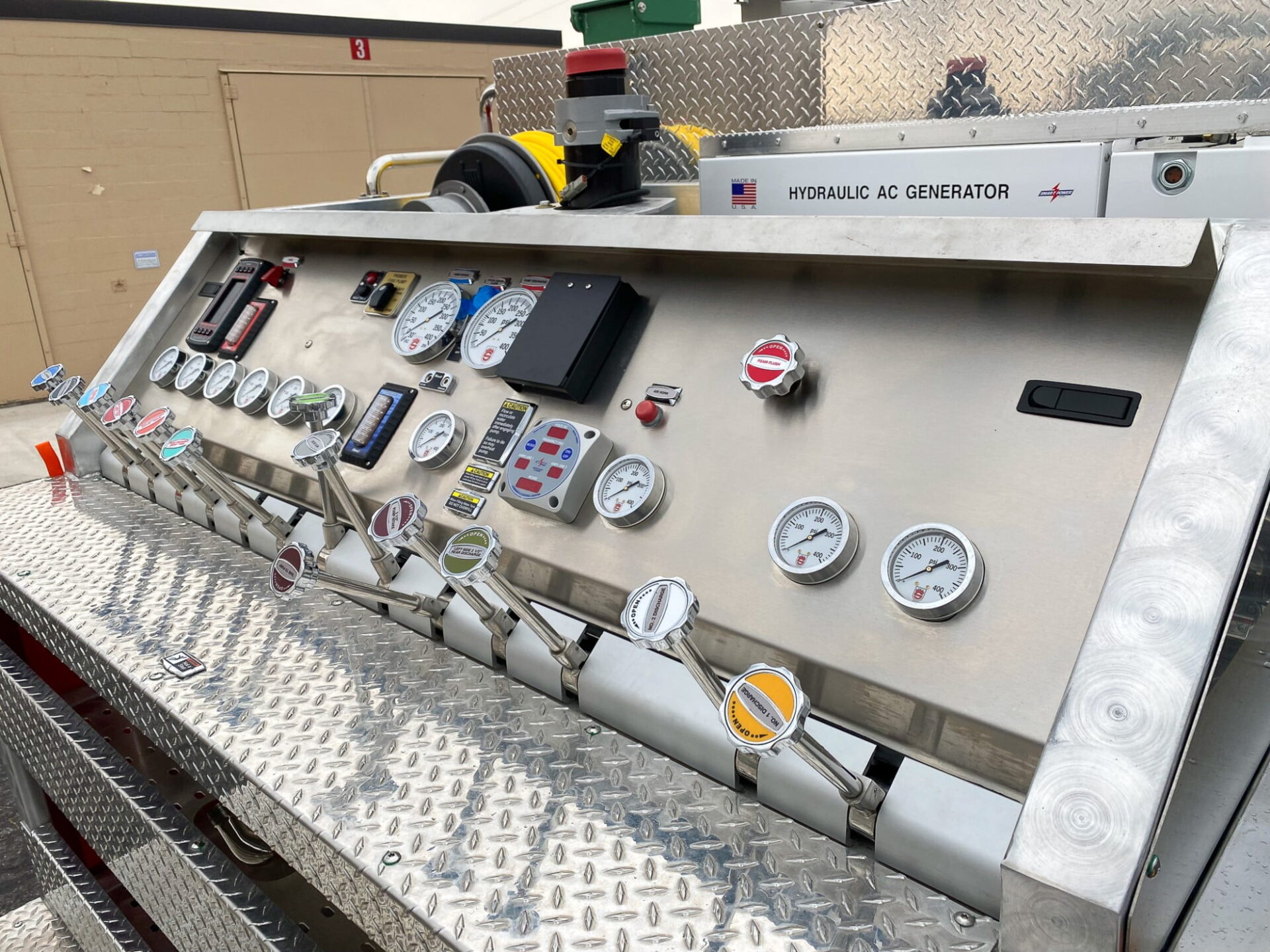

Water Pump
Qmax-1500 gpm, single stage pump
Discharge
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Speedlays
(2) 2” w/ 1 ½” Swivel
Water Tank
1,000-gallon
Water Tank
50-gallon foam tank
Foam System
Hale Smartfoam 2.1A
Construction
3/16” extruded aluminum
Doors
Rom roll-up compartment
Alco-Lite Ladder Package
PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
Total Compartment Space
Over 230 cu. ft.
Body
S2 – Alum 43/53 Ladder Chute
Bumper Extension
24” polished stainless steel,
Siren
Federal q2b , grille mount
Power
Hannay electric cord reel, 100’ (1)
Generator
10KW Smart Power
Whelen Freedom IV
(12) led lightbar
Whelen Freedom Mini
21” led lightbar
FR Spectra Brow
Light 12v
FRC Spectra 12V
Led scene
