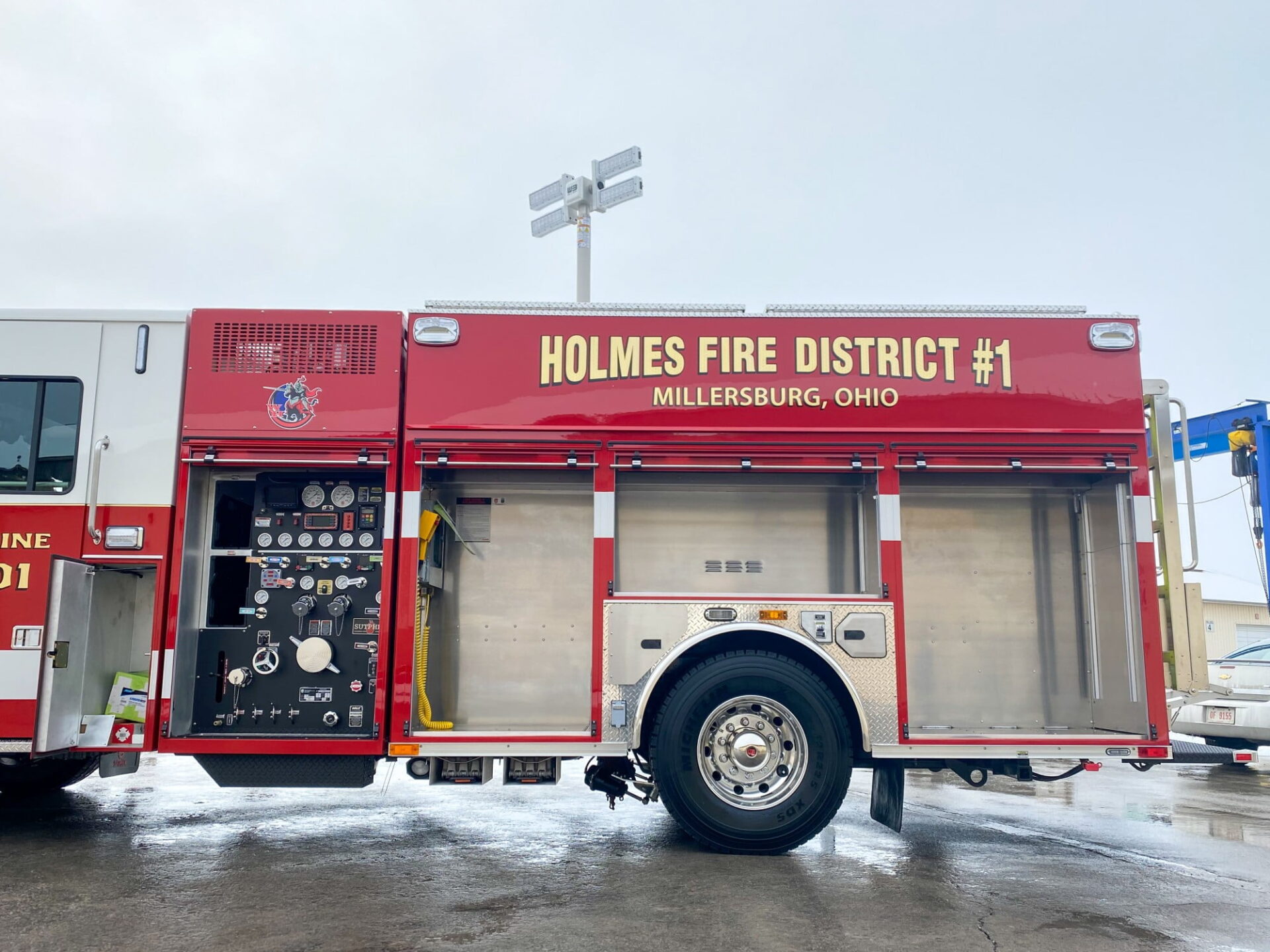

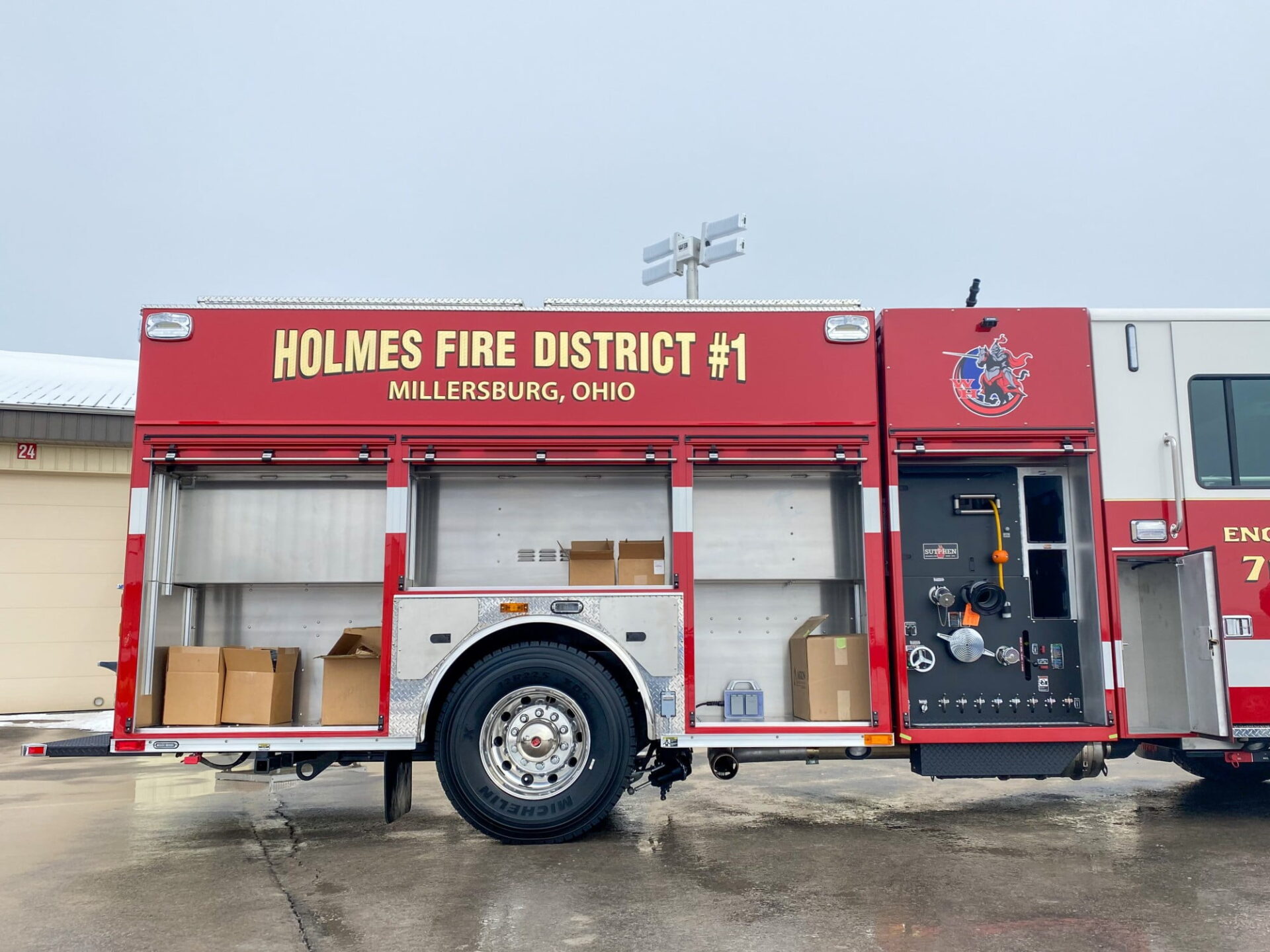

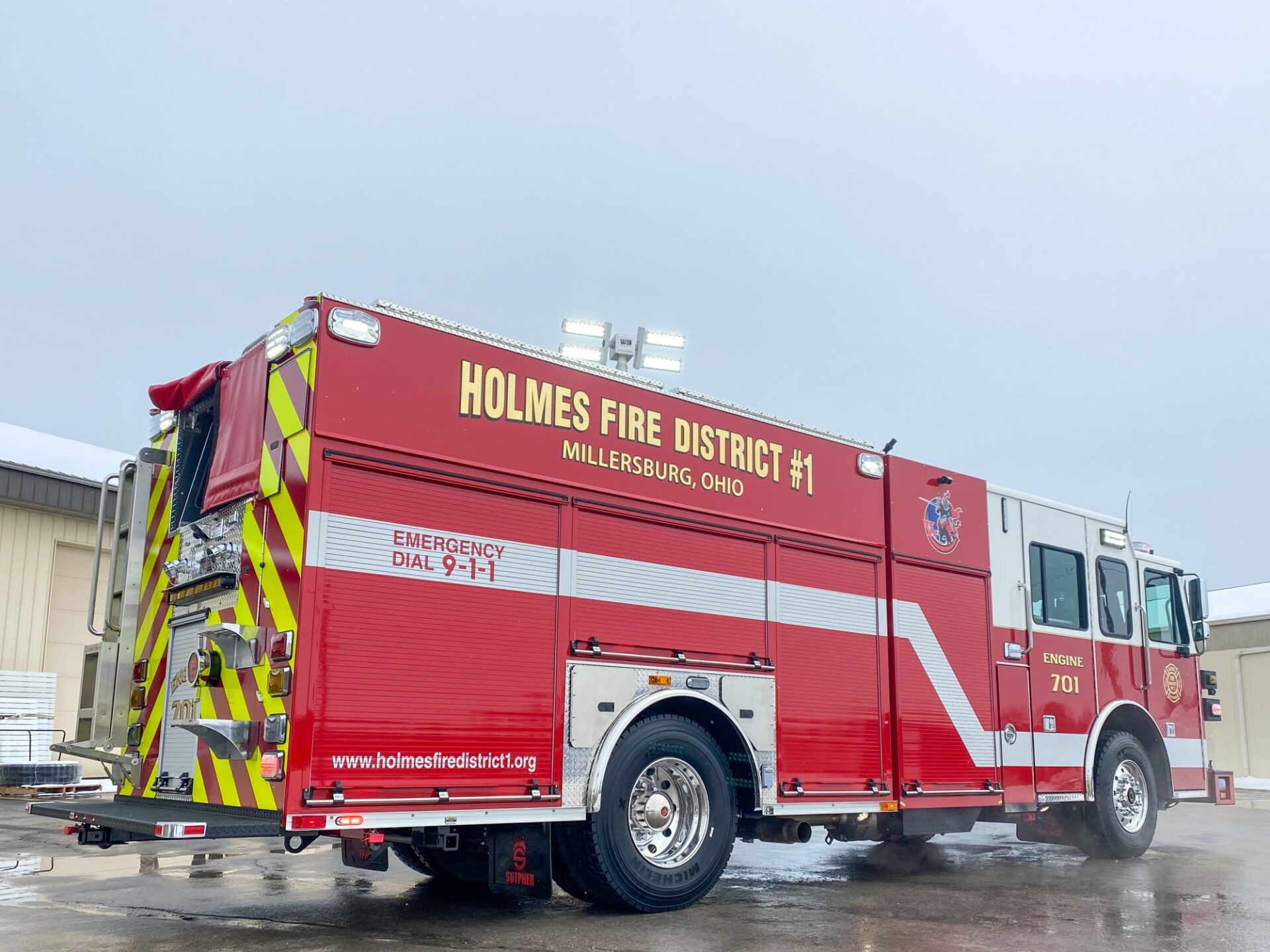

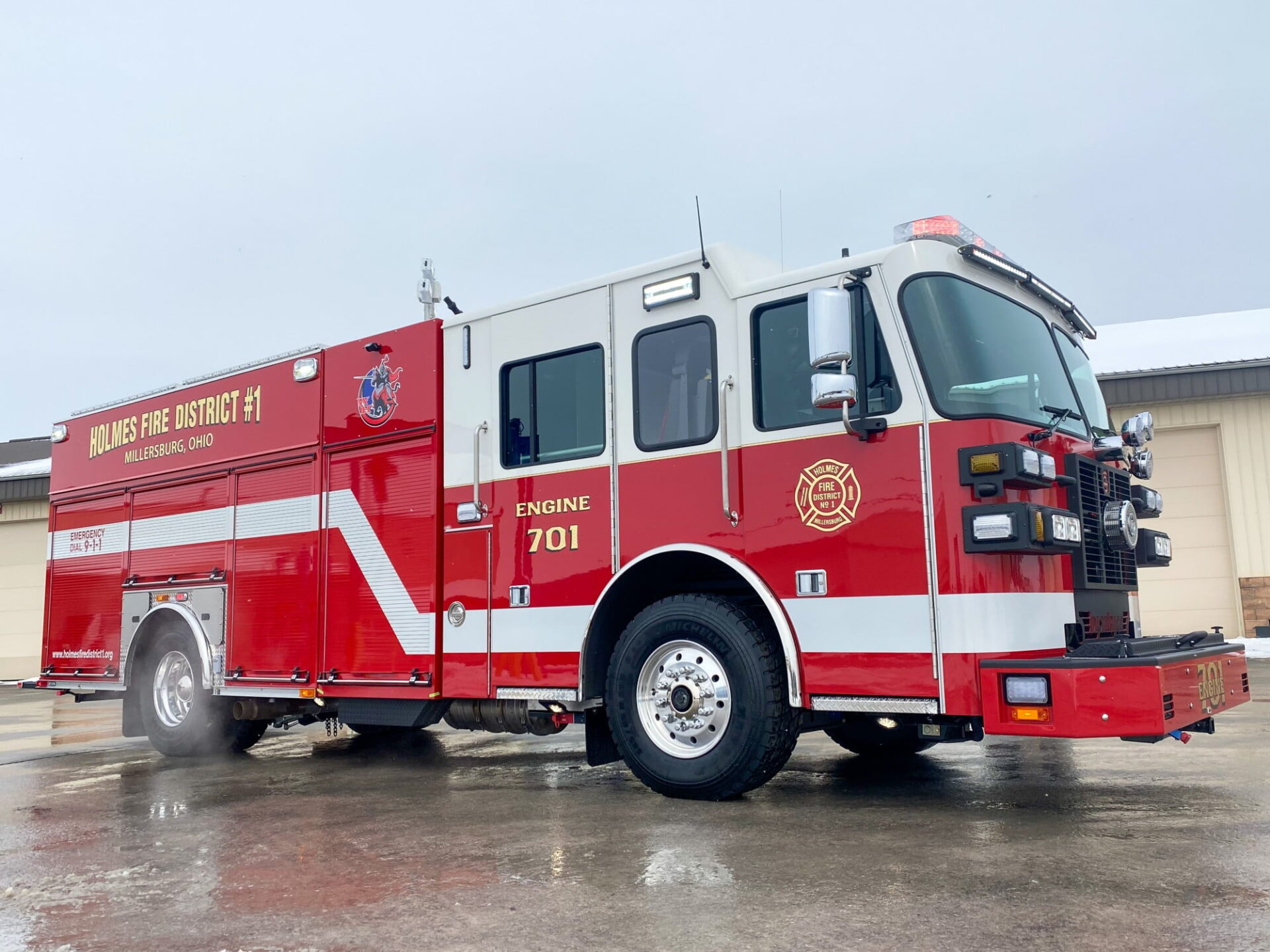

Custom Pumper – Holmes Fire District #1, OH

Location:
Millersburg, Ohio
Department:
Holmes Fire Department

Specs

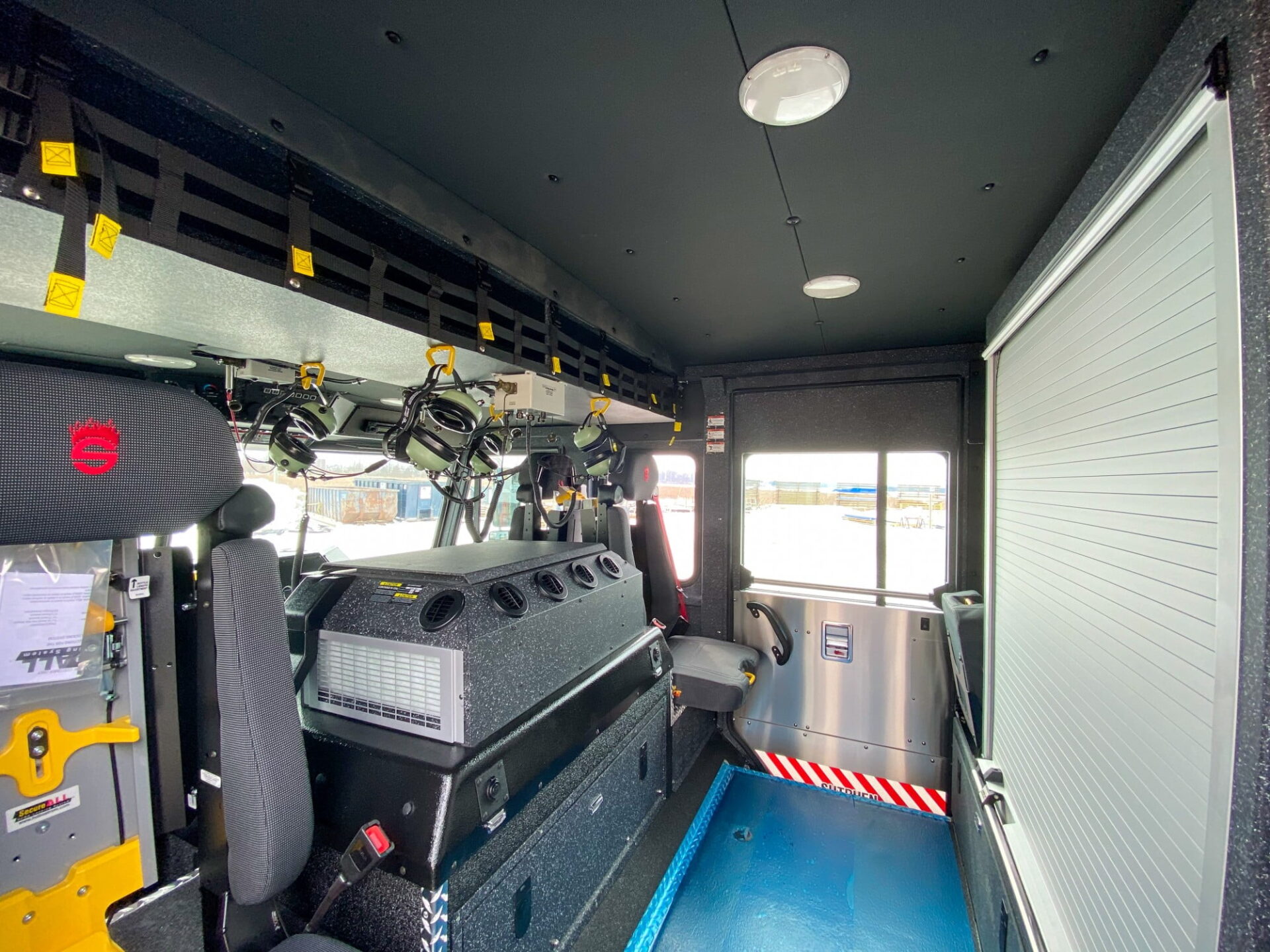

Cab
Four-door, six-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins X 12, 500HP
Alternator
Leece Neville 420 AMP
Transmission
Allison Gen 5, EVS4000

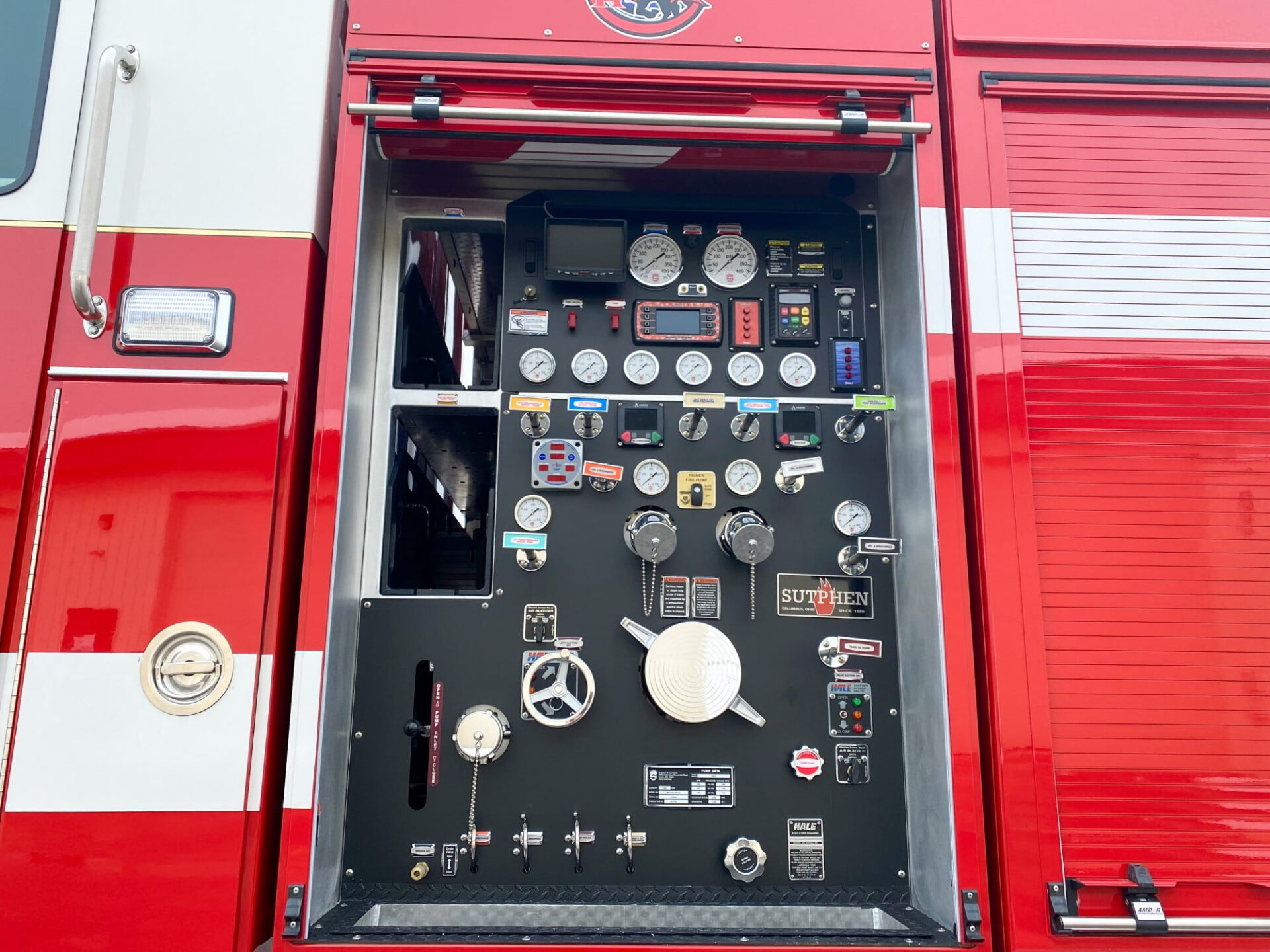

Water Pump
Qmax-1500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Speedlays
(2) 2” w/ 1 ½” Swivels and Poly Lift-Out Trays
Water Tank
25-gallon foam tank
Foam System
Hale SmartFoam 2.1A
Water Tank
1,000-gallon
Construction
3/16” extruded aluminum
Doors
Amdor roll-up compartment
Total Compartment Space
349 cu. ft.
Ladder Compliment
Alco-lite ladder package (pel-24 24’ 2-section & prl-14 14’ roof & 10’ folding)
Body
S6 – Alum 43/53 Ladder Chute and Double Hatch
Bumper Extension
18” formed steel channel bumper
Siren
Federal q2b , grille mount
Camera System
FRC, Inview Trueview, Two Cameras
Generator
Smart Power 10KW
Power
Hannay electric cord reel, 100’ (1)
Roto-Ray Warning Light
Included
Light Tower
Will-Burt Light Tower 12V
Whelen Freedom IV
72” led light bar
Whelen M9 LED
Warning lights
Whelen Traffic Advisor
Led tal65 36”
FireTech 3-Piece 72”
Led brow
