Custom Pumper – Hillsboro Fire Protection District, MO

Specs

Cab
Four-door, five-person
10” Double Rails
Single axle (50k psi)
Front Axle and Suspension
20,000 lbs, (4) 56” leafs
Suspension Rear Firemaax
27,000 lbs, air ride
Engine
Cummins L 9, 450 HP
Alternator
C.E. Niehoff 360 AMP
Transmission
Allison Gen 5, EVS3000

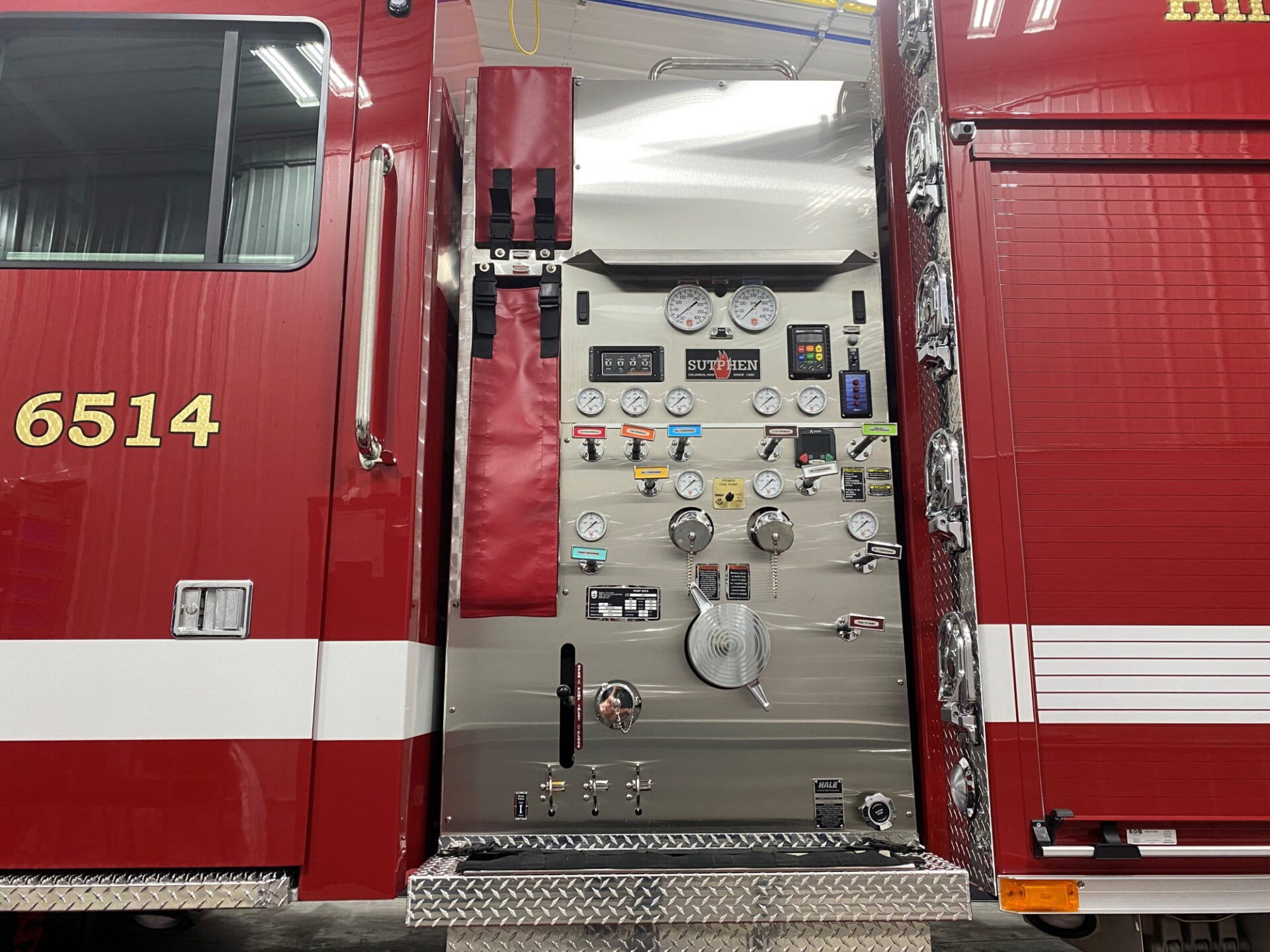

Water Pump
Qmax-1,500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper
Crosslay
(1) 2 ½”
Speedlays
(2) 2” w/Swivels & Poly lift-out trays
Water Tank
1000-gallon
Doors
Rom roll-up compartment

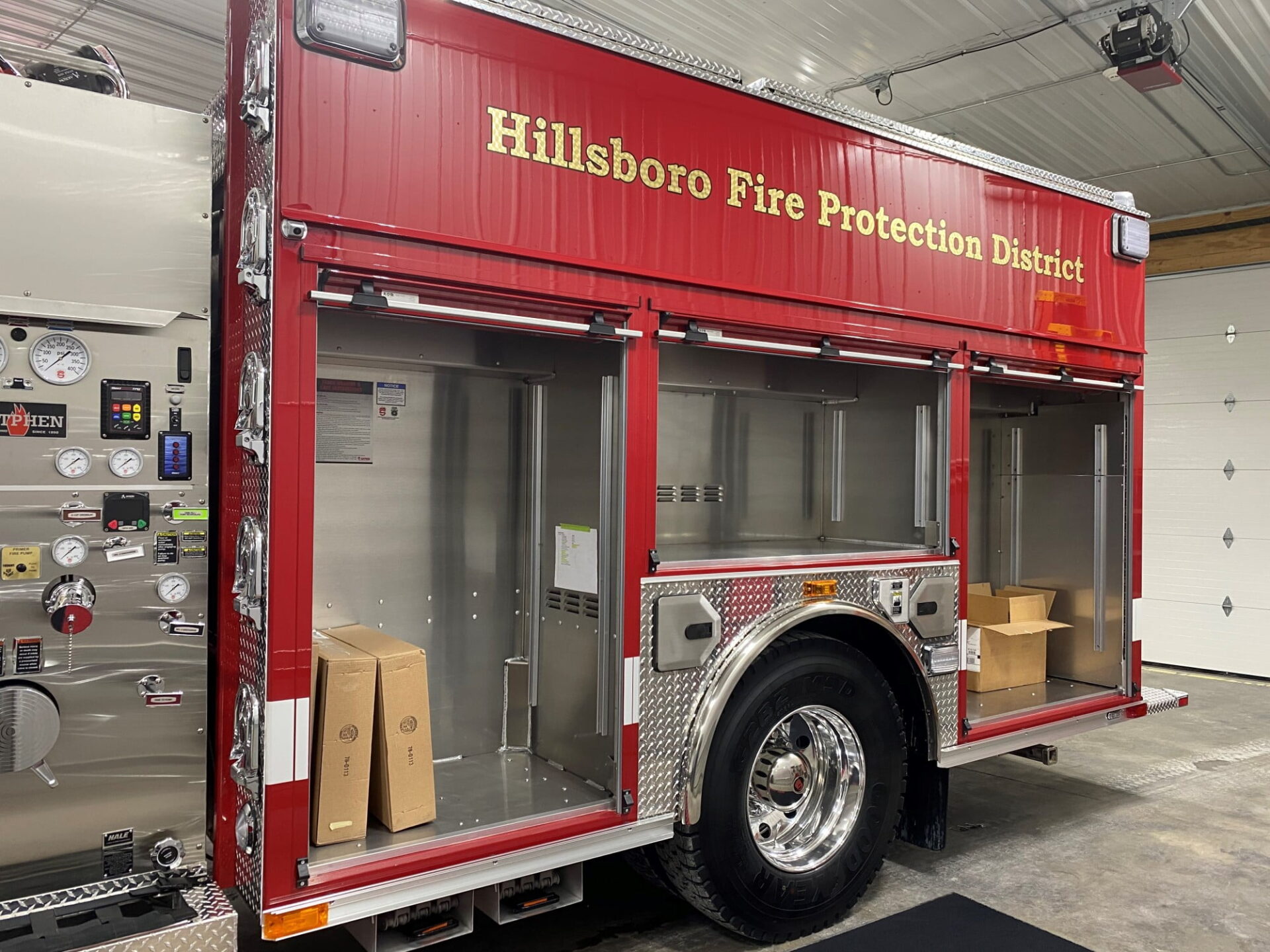

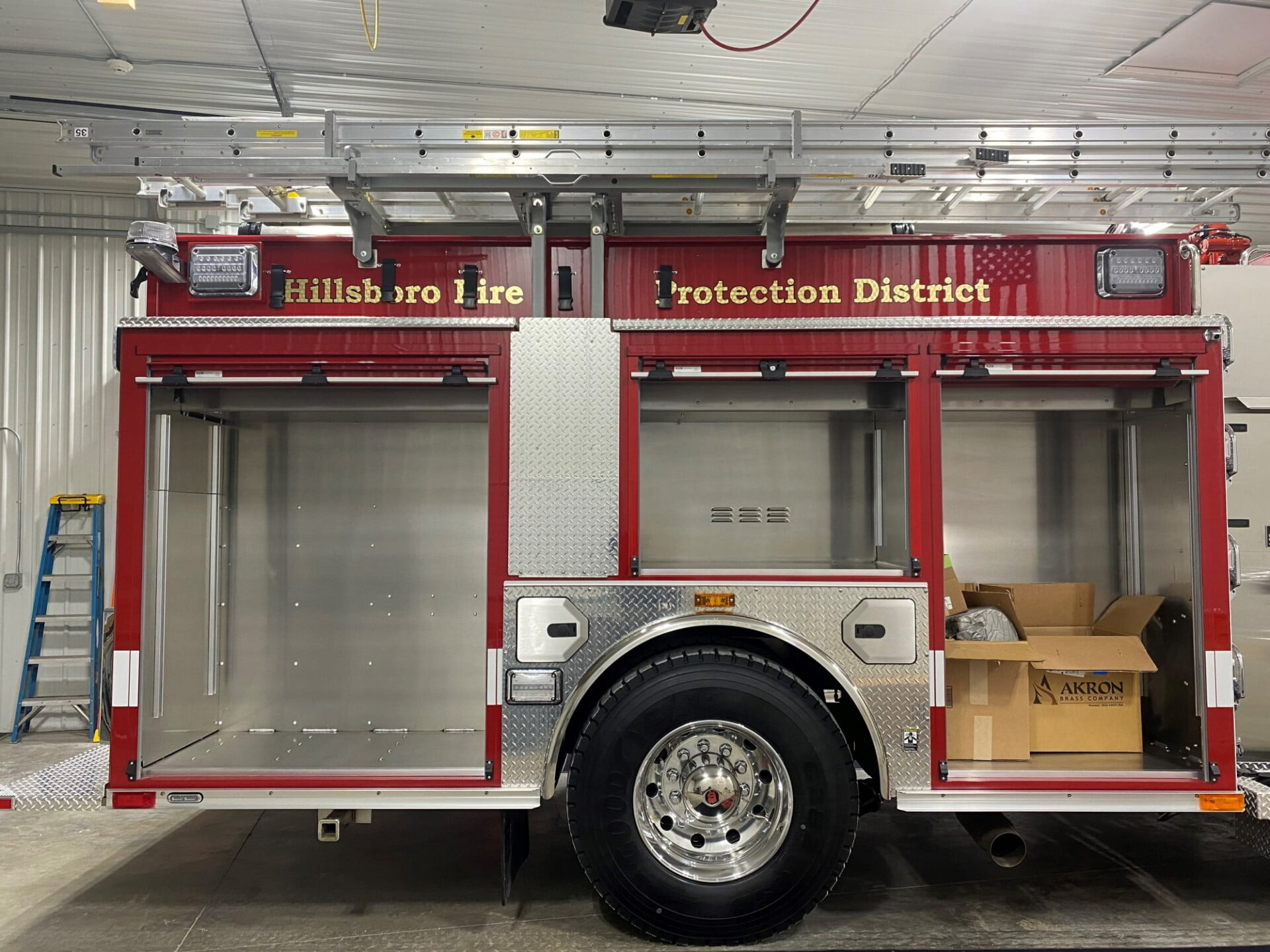

Total Compartment Space
Over 310 cu. ft.
Ladder Compliment
Alco-lite ladder (35’ 3-section, 14’ roof and 10’ folding)
Body
S3/S6 Body
Bumper Extension
18” polished stainless-steel bumper
Siren
Federal q2b , grille mount
Camera System
Brigade, Backeye 360
Whelen Freedom IV
72” led light bar
FRC Spectra LED
Brow light
Whelen 900 LED
Scene lights
Whelen L31 LED
Beacon
