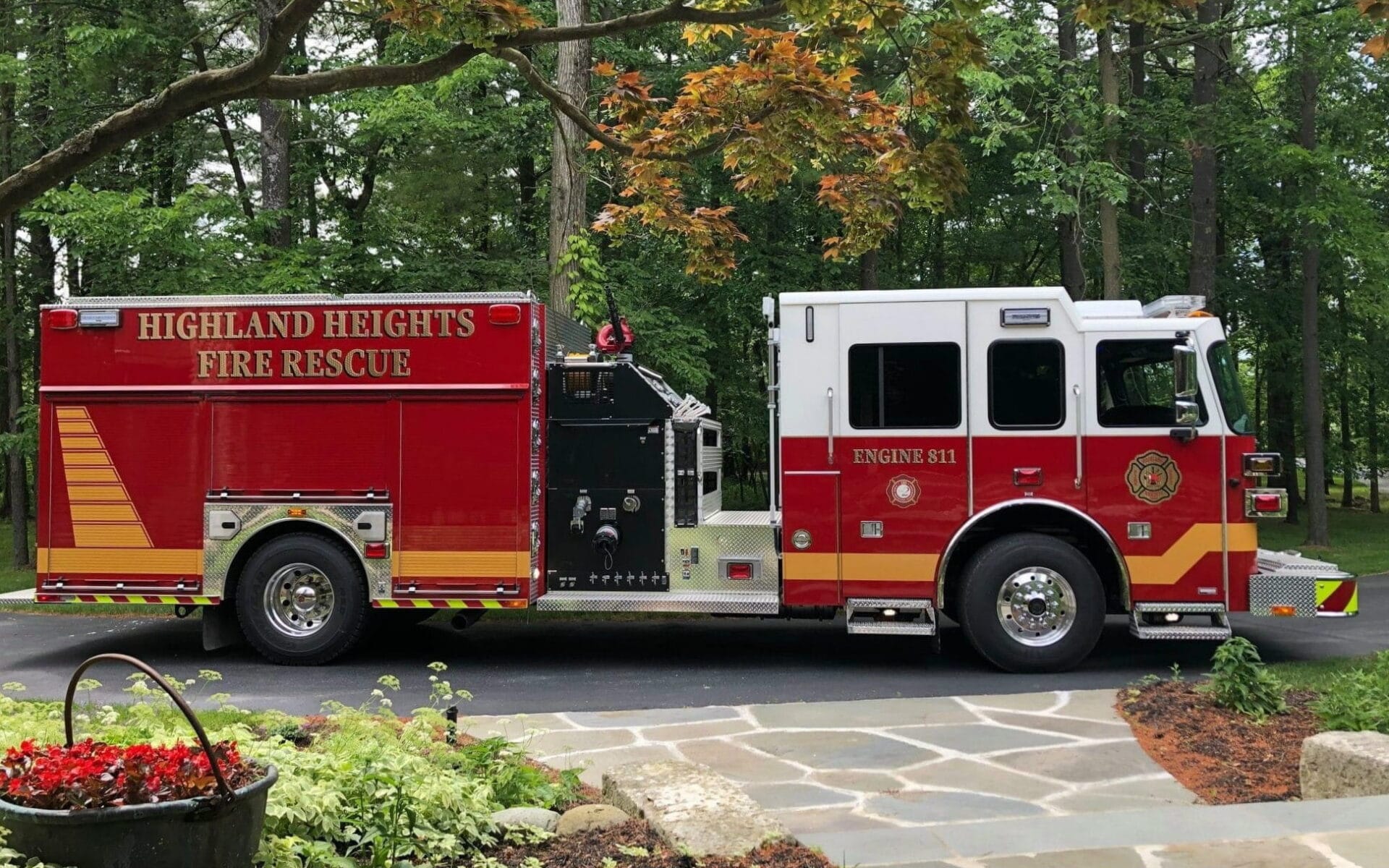

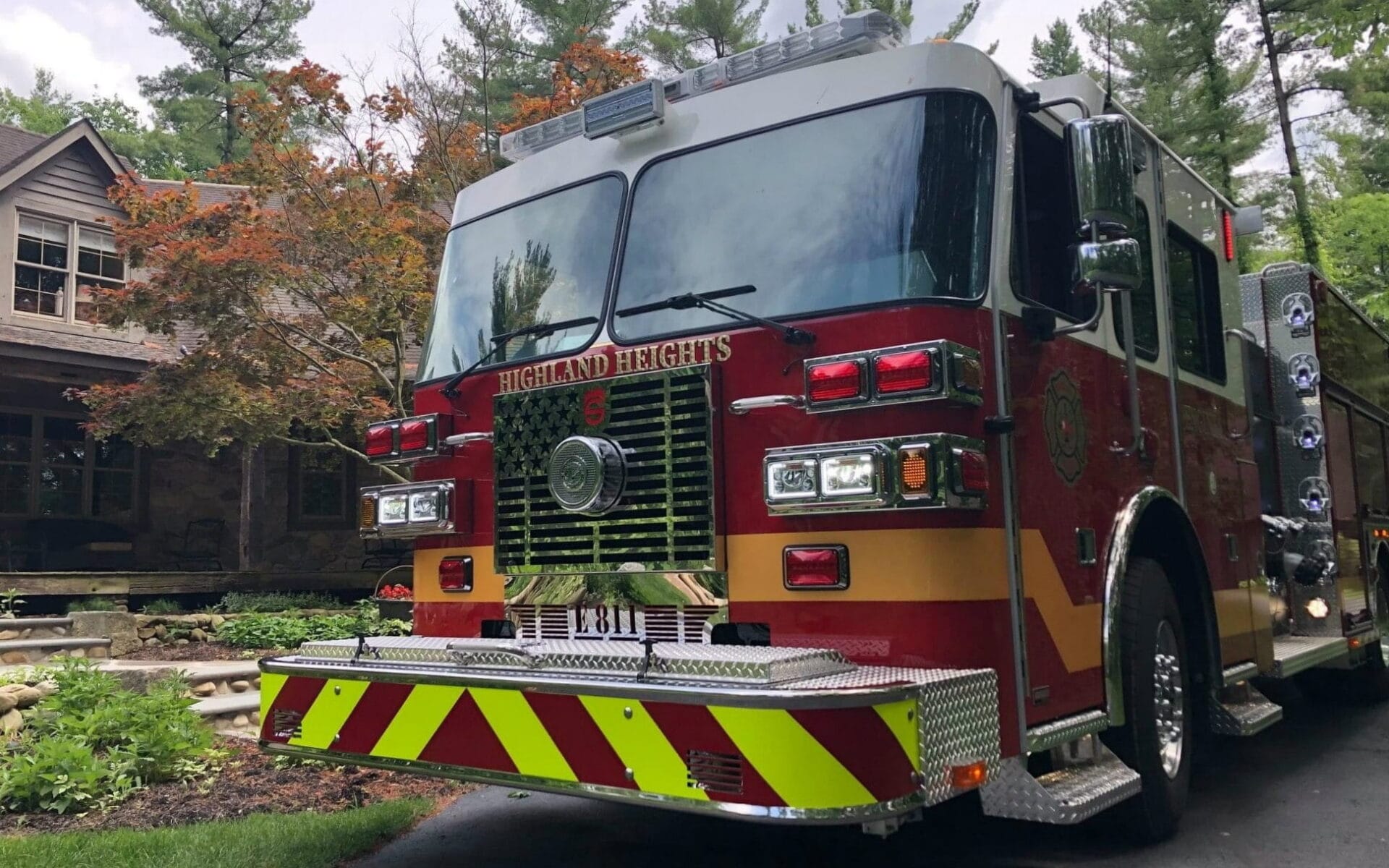

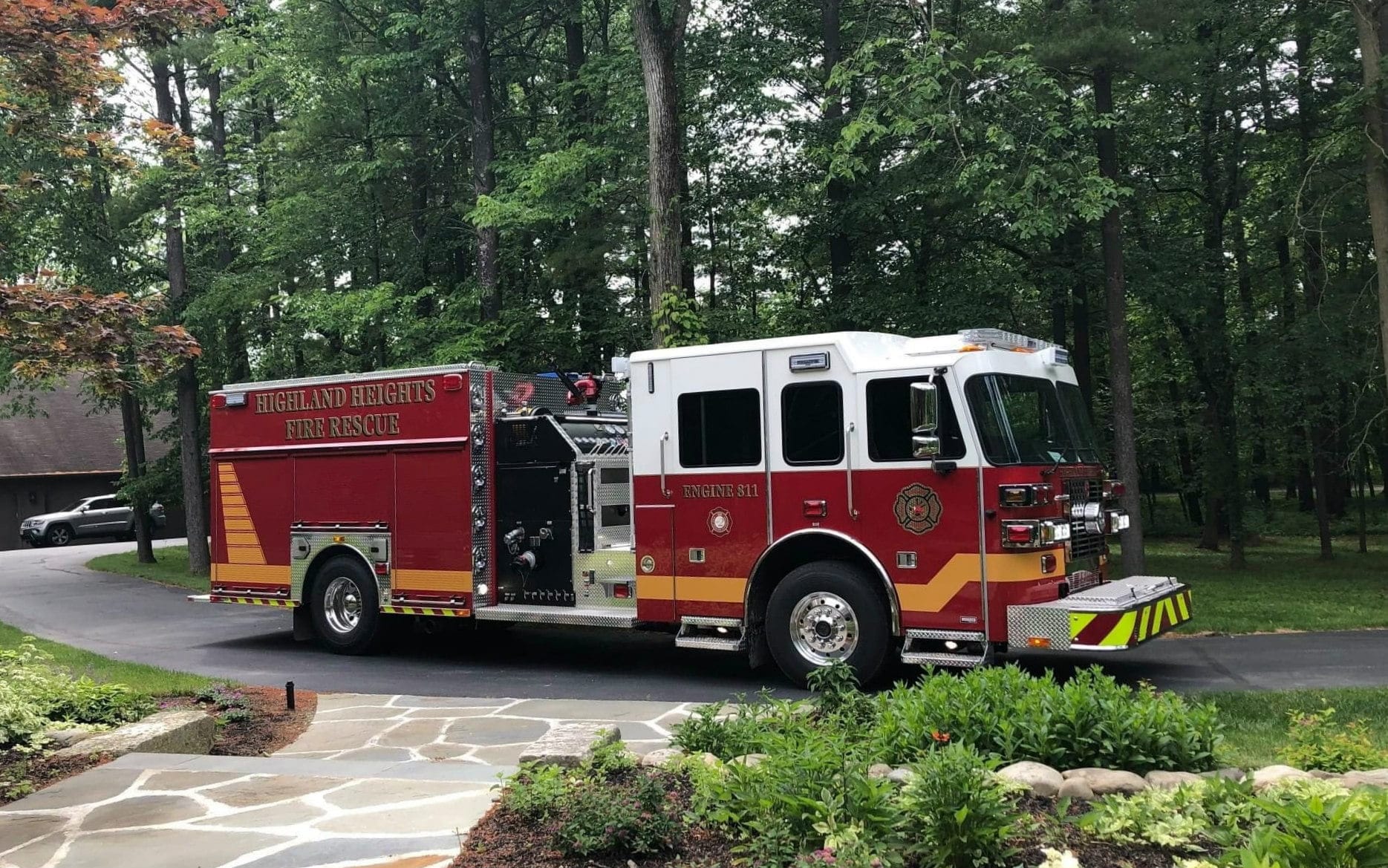

Custom Pumper – Highland Heights Fire Department, OH

Location:
Highland Heights, OH
Department:
Highland Heights Fire Department

Specs

Cab
Four-door, six-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Qmax-1500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Speedlay
(2) 2” w/ 1 ½” Swivel
Water Tank
1,000-gallon
Doors
Amdor roll-up compartment

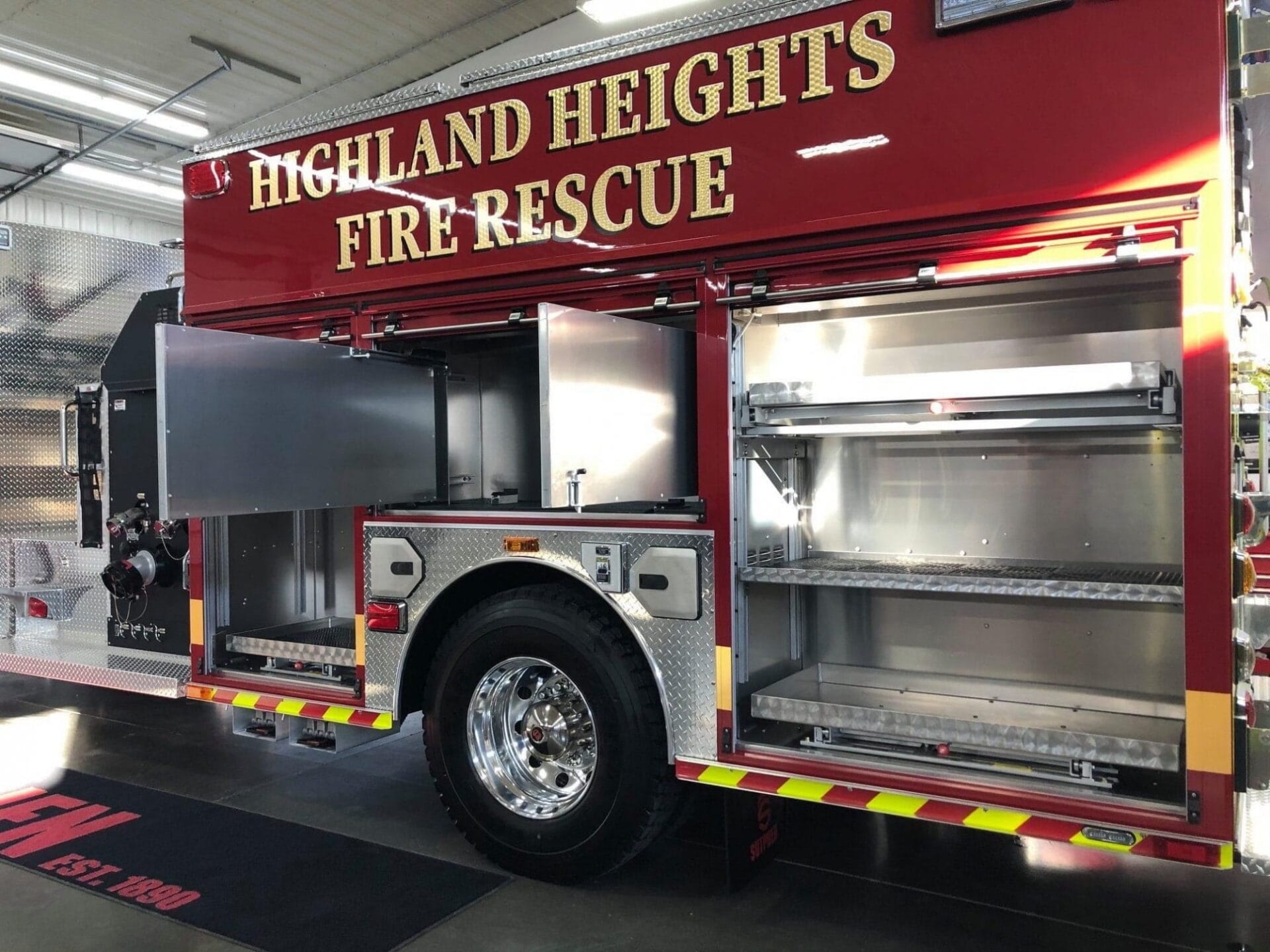

Total Compartment Space
349 cu. ft.
Ladder Compliment
Alco-lite ladder package (24’ 2-section & 14’ roof)
Ladder Compliment
Enclosed ladder chute
Body
S6 – Alum 43/53
Construction
24” polished stainless steel
Siren
Federal q2b , grille mount
4 Bottle Compartments
Included
Brigade Camera System
Included
Power
Smart 10kw generator
FR Spectra LED
Brow light
Whelen Freedom 72”
Led lightbar
Whelen M9 LED
Scene lights
Whelen M9 LED
Red lights
Whelen 600 LED
Red lights
FR Spectra 240V
Led telelights
