Custom Pumper – Hartford Township Fire Department, OH

Specs

Cab
Four-door, six-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins X 12, 455HP
Alternator
Leece Neville, 420 AMP
Transmission
Allison Gen 5, EVS4000

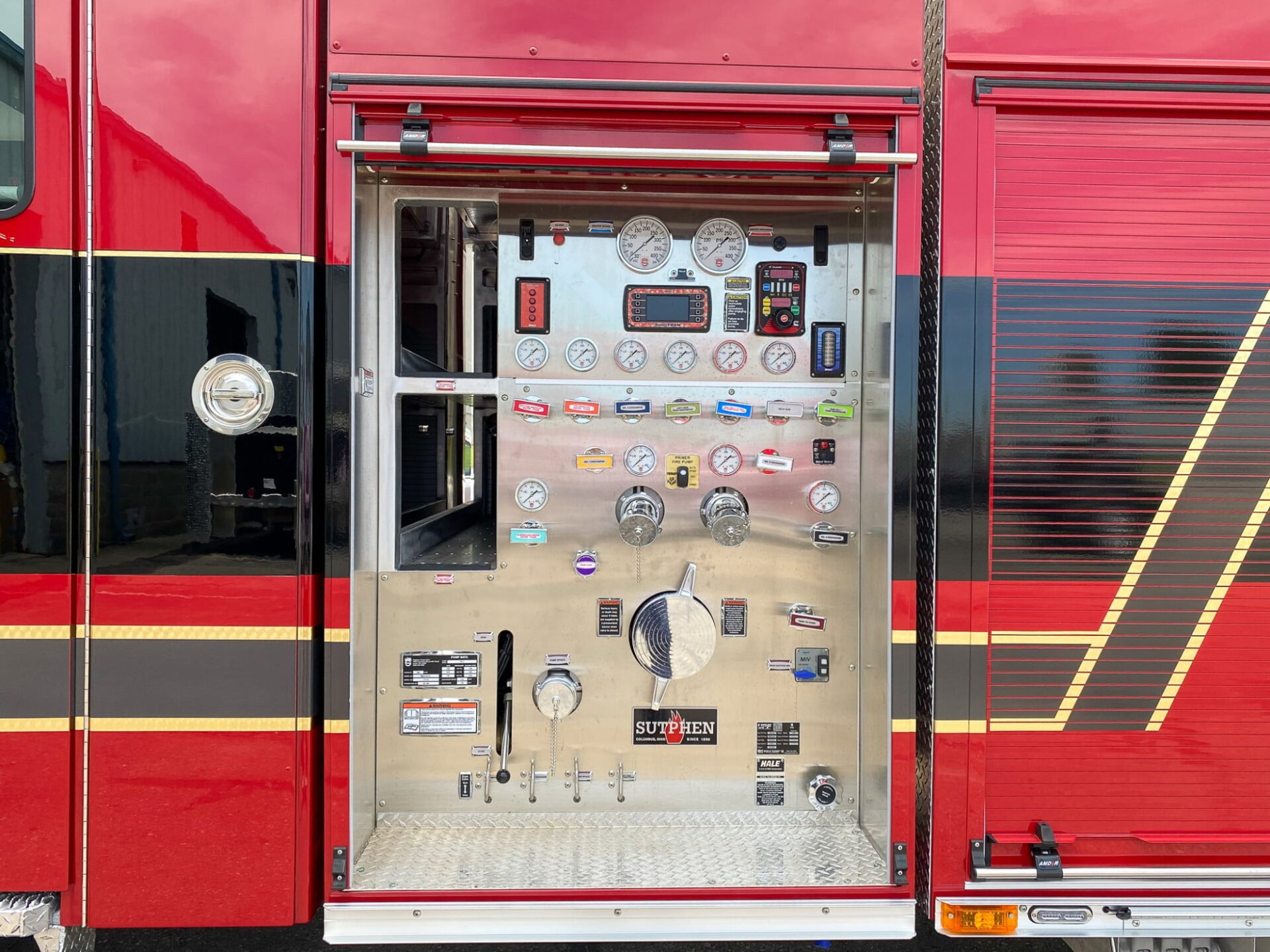

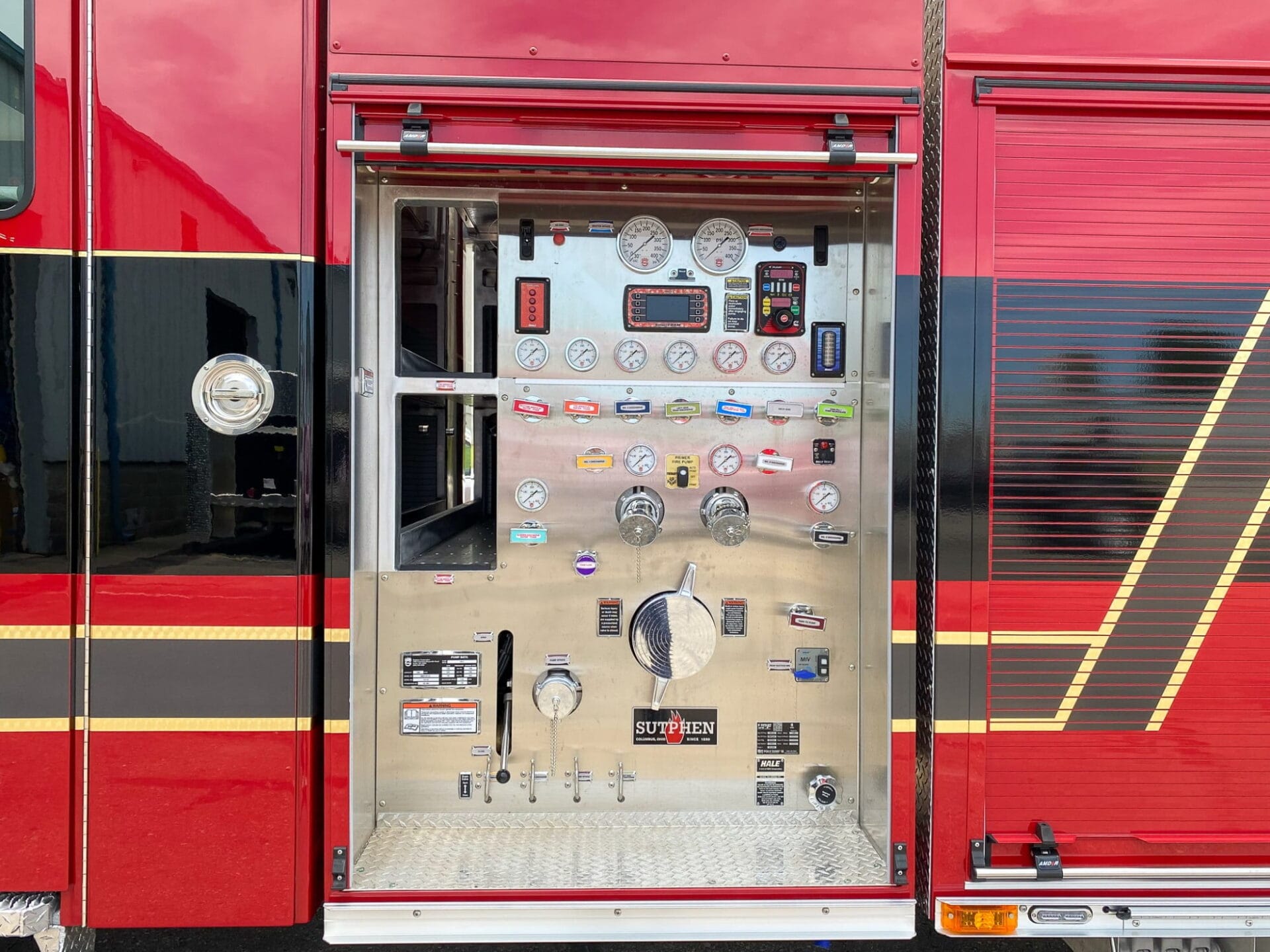

Water Pump
Xs qmax-1500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Speedlays
(2) 2” w/ 1 ½” Swivels & Poly Lift-Out Trays
Water Tank
1000-gallon
Water Tank
20-gallon foam tank
Foam System
Smartfoam 5.0 (PRG)
Construction
3/16” extruded aluminum
Doors
Amdor roll-up compartment , painted
Total Compartment Space
Over 294 cu ft.
Alco-Lite Pel-24 Ladder Package
24’ 2-section & PRL-14, 14’ Roof & 10’ Folding
Body
G9 – Alum 40/51 Ladders Thru Tank
Bumper Extension
18” polished stainless steel,
Siren
Federal q2b , grille mount
Inverter
Vanner VLT12-300
Whelen Freedom LED
Lightbar
HIVIZ 72” Brow
Light
Guardian Elite Scene
Light
FireTech LED Work
Lights
Whelen 600 LED
Quad tail lights
