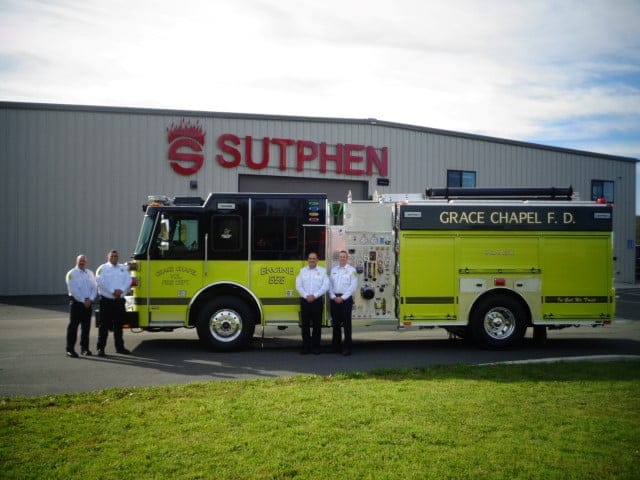

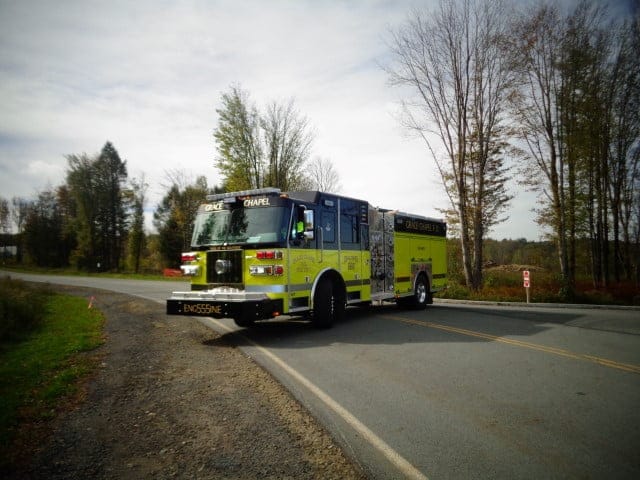

Custom Pumper – Grace Chapel Fire Department, NC

Location:
Grace Chapel, NC
Department:
Grace Chapel Fire Department

Specs

Cab
Four-door, six-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins L 9, 450 HP
Alternator
Niehoff, 360 AMP
Transmission
Allison Gen 5, EVS 3000
CSU-2000 GPM Single
Stage
Discharges
(2) 1 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 3” Pipe to Left Rear, (1) 2 ½” Pipe Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Speedlay
(3) 1 ½” with Lift Out Trays
Water Tank
1,000-gallon
Construction
3/16” extruded aluminum
Doors
Amdor roll up compartment
Duo-Safety (24’ 900A
14’ 775-dr, 10’ 585-a)
Wheel Chocks
Ziamatic hydraulic ladder rack
Bumper Extension
24”
Safety Vision SV-CLCD0-70
Camera system
Siren
Federal q2b
Whelen Freedom IV
72” led light bar
Whelen Warning Light
Included
FR Spectra LED
Brow 15k lumens, 12v
