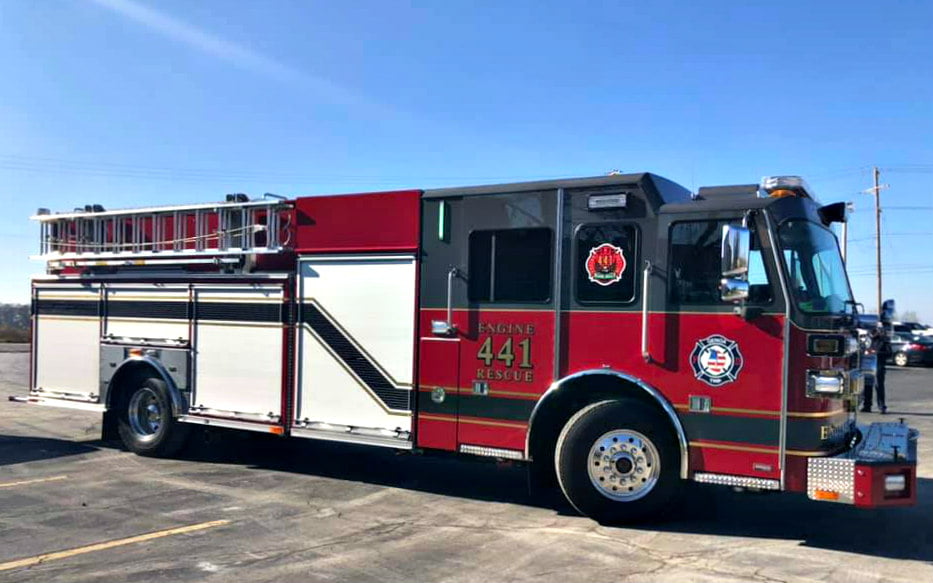

Custom Pumper – Genoa Township Fire Department, OH

Specs

Cab
Four-door, four-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins X 12, 500HP
Alternator
Leece Neville, 420 AMP
Transmission
Allison Gen 5, EVS4000
Water Pump
Qmax-1500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Pipe to Left Rear, (1) 2 ½” Front/Right of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Speedlays
(2) 1 ½” w/ Lift-Out Trays
Monitor, Akron 3416
Apollo
Water Tank
750-gallon
Water Tank
30-gallon foam tank
Water Tank
20-gallon foam tank
Hale Smartfoam 2.1A
Included

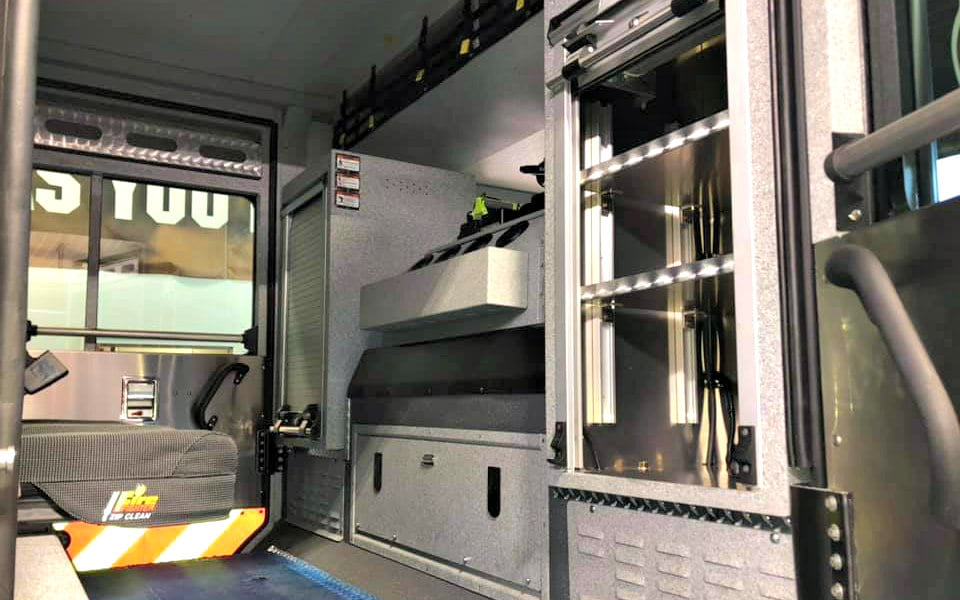

Construction
3/16” extruded aluminum
Doors
Amdor compartment
Total Compartment Space
Over 360 cu. ft.
Ladder Compliment
Alco-lite ladder package (pel-24 24’ 2-section & prl-14 14’ roof & 10’ folding)
Body
Modified PA-05 Res 56/53 Electric Ladder Rack – Alum 43/53 Ladder Chute and Double Hatch
Bumper Extension
18” formed steel channel bumper
Siren
Federal q2b , grille mount
Camera System
FRC, Inview Trueview, Single Camera
Wheel Chocks
Ziamatic quic-lift electric ladder rack
Whelen Freedom IV
72” led light bar
Whelen L31 Red
Beacon
Whelen M9V2 LED
Scene lights
FRC Spectra LED
Brow light
FireTech Scene Light
Included
(2) Triple &
(1) single scba compartment
(1) Oil Dry
Hopper
