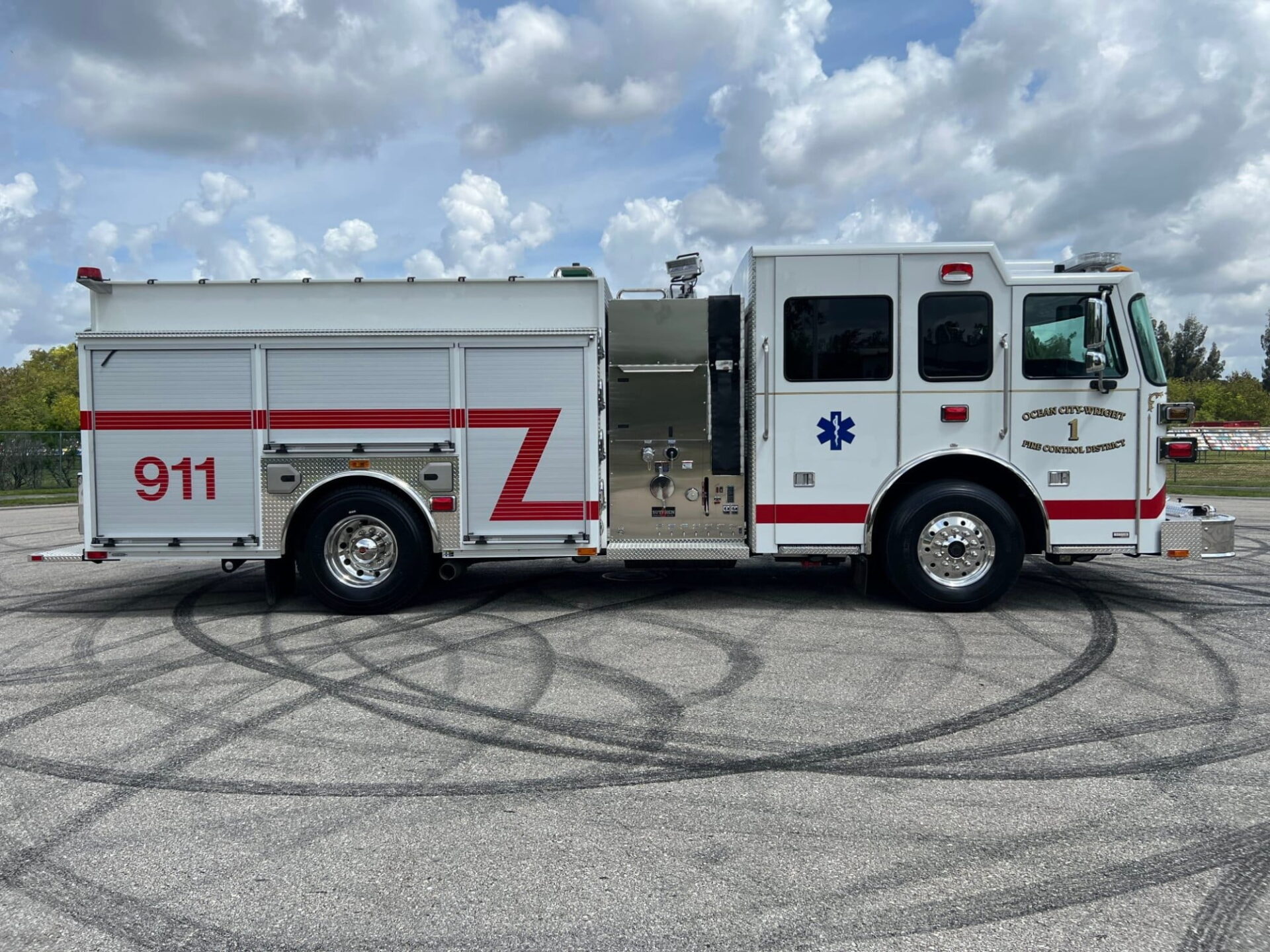

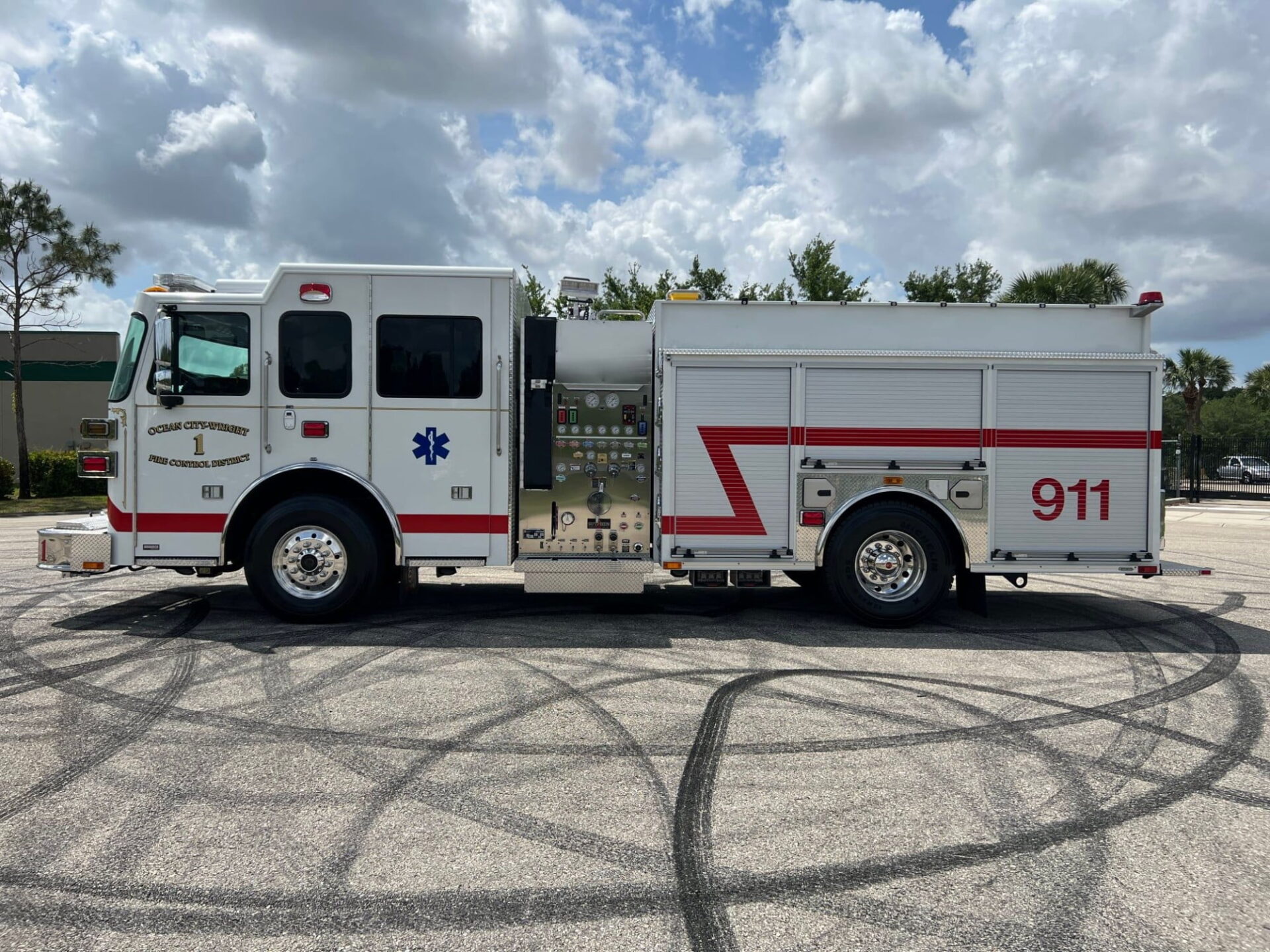

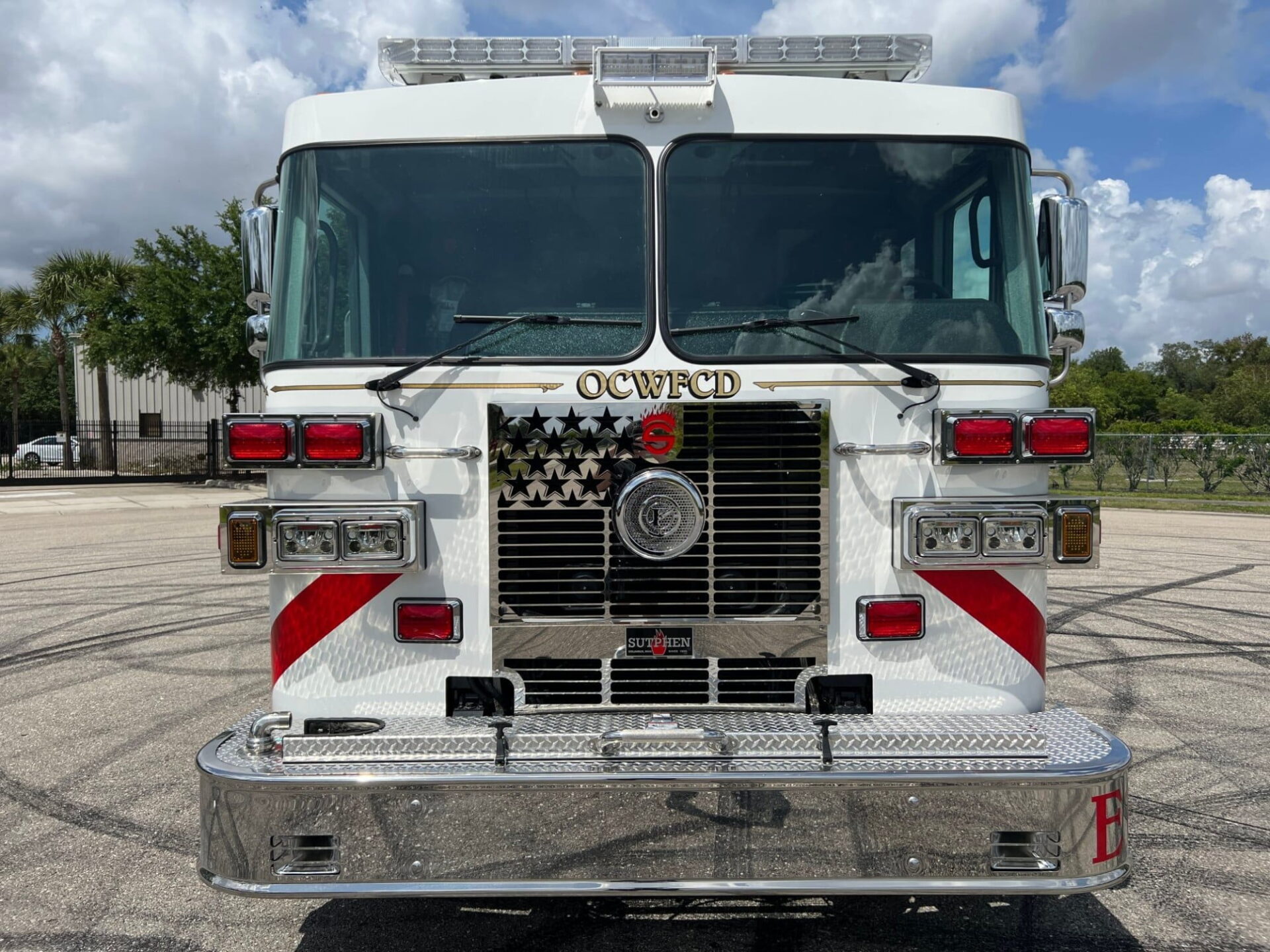

Custom Pumper – Fort Walton Beach, FL

Specs

Cab
Four-door, five-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
24,000 lbs
Engine
Cummins X 12, 500HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS4000
Water Pump
Xs qmax – 1500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Crosslays
(1) 2 ½” Crosslays & Speedlays, (2) 2” Crosslay w/ Swivels & Poly Lift-Out Trays
Water Tank
750-gallon
Water Tank
20-gallon class a foam tank
Water Tank
30-gallon class b foam tank
Foam System Class A
Elkhart w/ Flush
Foam System Class B
Elkhart Foam Supply with Flush
Construction
3/16” extruded aluminum
Doors
Rom roll-up compartment , satin finish
Total Compartment Space
Over 233 cu ft.
Alco-Lite Pel-24 Ladders
(1) 24’ 2-section, (1) PRL-14 14’ Roof, (1) 10’ Folding
Body
S2 – Alum 43/53 Ladder Chute
Bumper Extension
18” polished stainless steel,
Siren
Federal q2b , grille mount
Whelen Freedom IV
14 module 72” led lightbar
Whelen PFP2 12V
Led brow light
Whelen PFP2 12V
Led tele light
Camera System
Brigade 360
