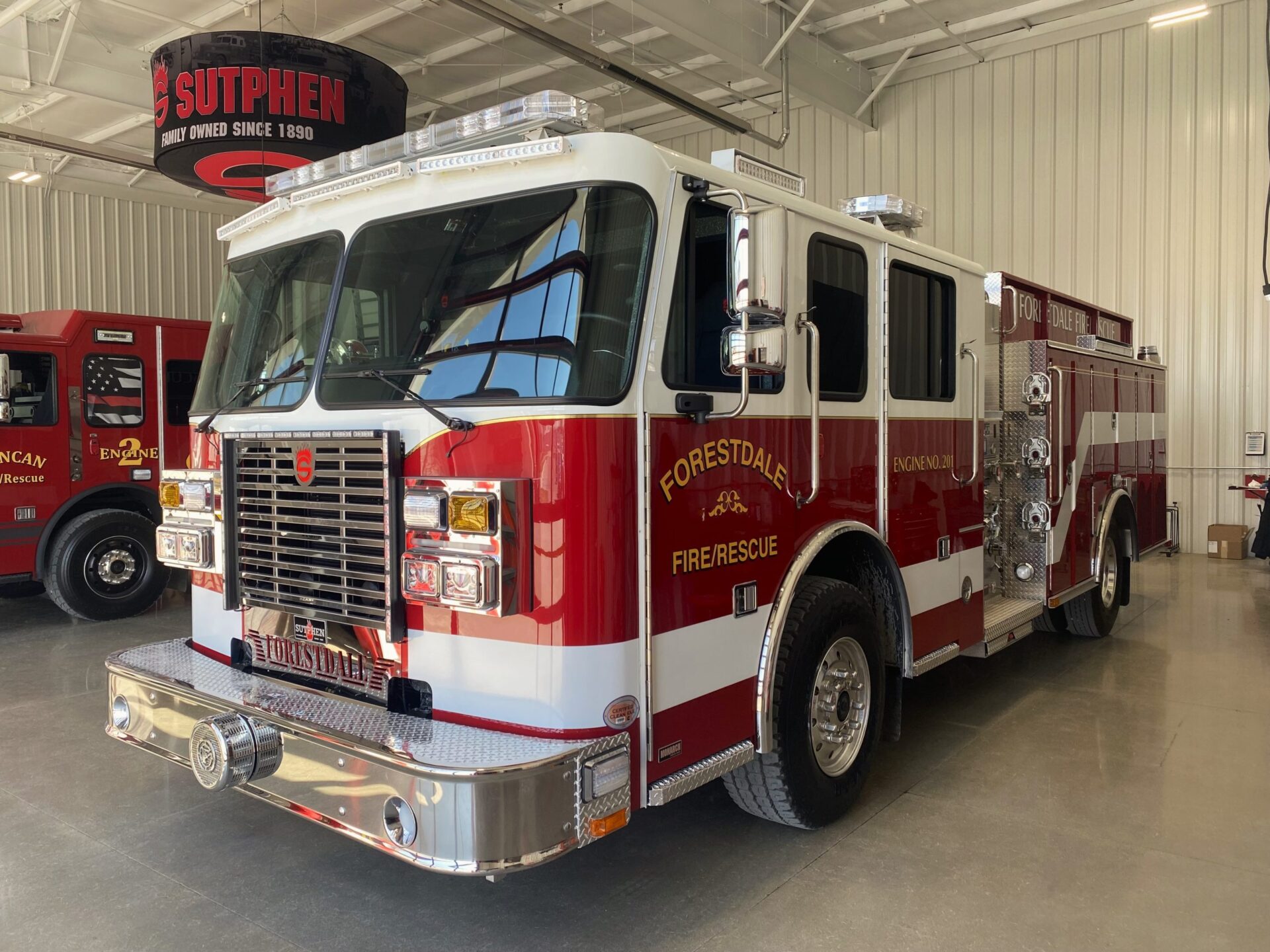

Custom Pumper – Forestdale Fire District, AL

Specs

Cab
Four-door, four- person
Front Axle and Suspension
20,000 lbs w/ (4) 56” leafs
Rear Axle and Suspension
24,000 lbs
Engine
Cummins L 9, 450HP
Alternator
Leece Neville, 320 AMPs
Transmission
Allison Gen 5, EVS3000
Water Pump
Cs-1250 gpm, single stage pump
Discharges
(2) 2 ½” Left, (2) 2 ½” Right, (1) 2 ½” Left Rear, (1) 3” Deck Gun
Crosslay
(2) 2” w/ 1 ½” Swivel
Water Tank
750-gallon
Construction
3/16” extruded aluminum
Doors
Rom roll-up compartment
Total Compartment Space
Over 220 cu. ft. of compartment space
Alco-Lite Ladder Package
PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
Body
G2 – Alum 40/51 Lad Chute
Bumper Extension
12” polished stainless steel bumper
Bumper Extension
Federal q2b siren, front bumper mount
Camera System
FRC, Inview Trueview, Single Camera (Wired)
Hiviz 72” Brow
Light
Whelen Freedom LED
Lightbar
Whelen 600 LED
Arrow
Whelen 600 LED
Quad tail lights
