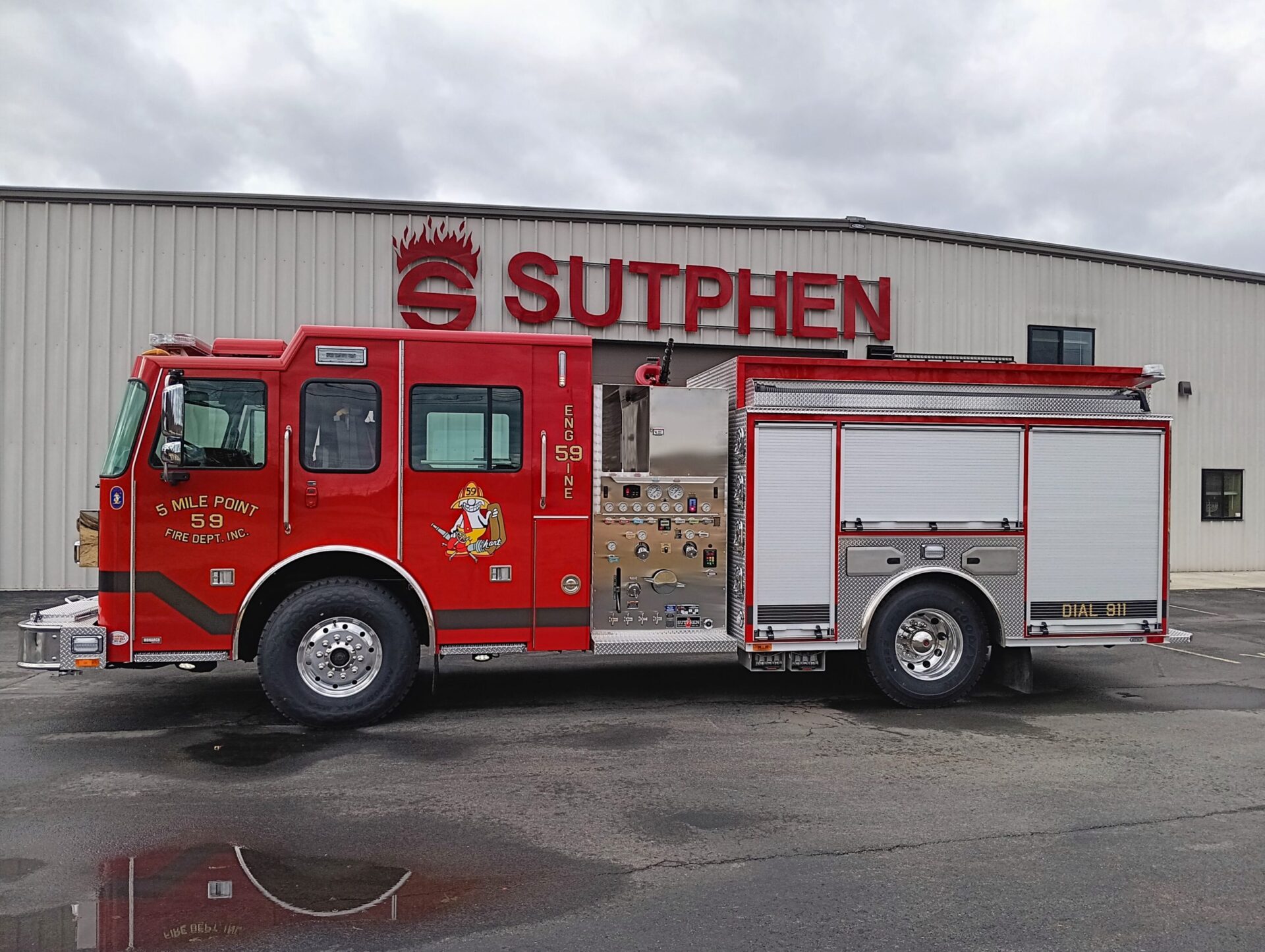

Custom Pumper – Five Mile Point Fire Company, NY

Truck Type:
Sutphen Heavy-Duty Custom Pumper
Dealer:
Sutphen
Location:
Kirkwood, NY
Department:
Five Mile Point Fire Company

Specs

Cab
Four-door, seven-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
23,000 lbs w/ (4) 56” leafs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins X 12, 525 HP
Alternator
Leece Neville, 270 AMP
Transmission
Allison Gen 5, EVS4000
Water Pump
Qmax-1500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper w/ 2” Plumbing, (1) 3” Deck Gun
Crosslays
(2) 2” w/ 1 ½” Swivel
Water Tank
1000-gallon
Construction
3/16” extruded aluminum
Doors
Amdor roll-up compartment
Total Compartment Space
Nearly 210 cu ft.
Duo-Safety Ladder Package
900A 28’ 2-Section & 775A 16’ Roof & 10’ Folding
Body
S1 – Aluminum 31/53 Right Low (Brackets)
Bumper Extension
18” polished stainless steel bumper
Camera System
Safety Vision SV-CLCD0-70 (Wired)
Siren
Federal q2b , grille mount
FRC Spectra LED
Brow light
Whelen Freedom IV
72” led light bar
Whelen L31 Beacons
Included
Whelen 36” Traffic
Advisor
FireTech Mini Brow
Light
Whelen 600 Quad
Cluster
TFT XFC-42 Crossfire
W/ safety flow w/ quad stack tip & stream shaper
