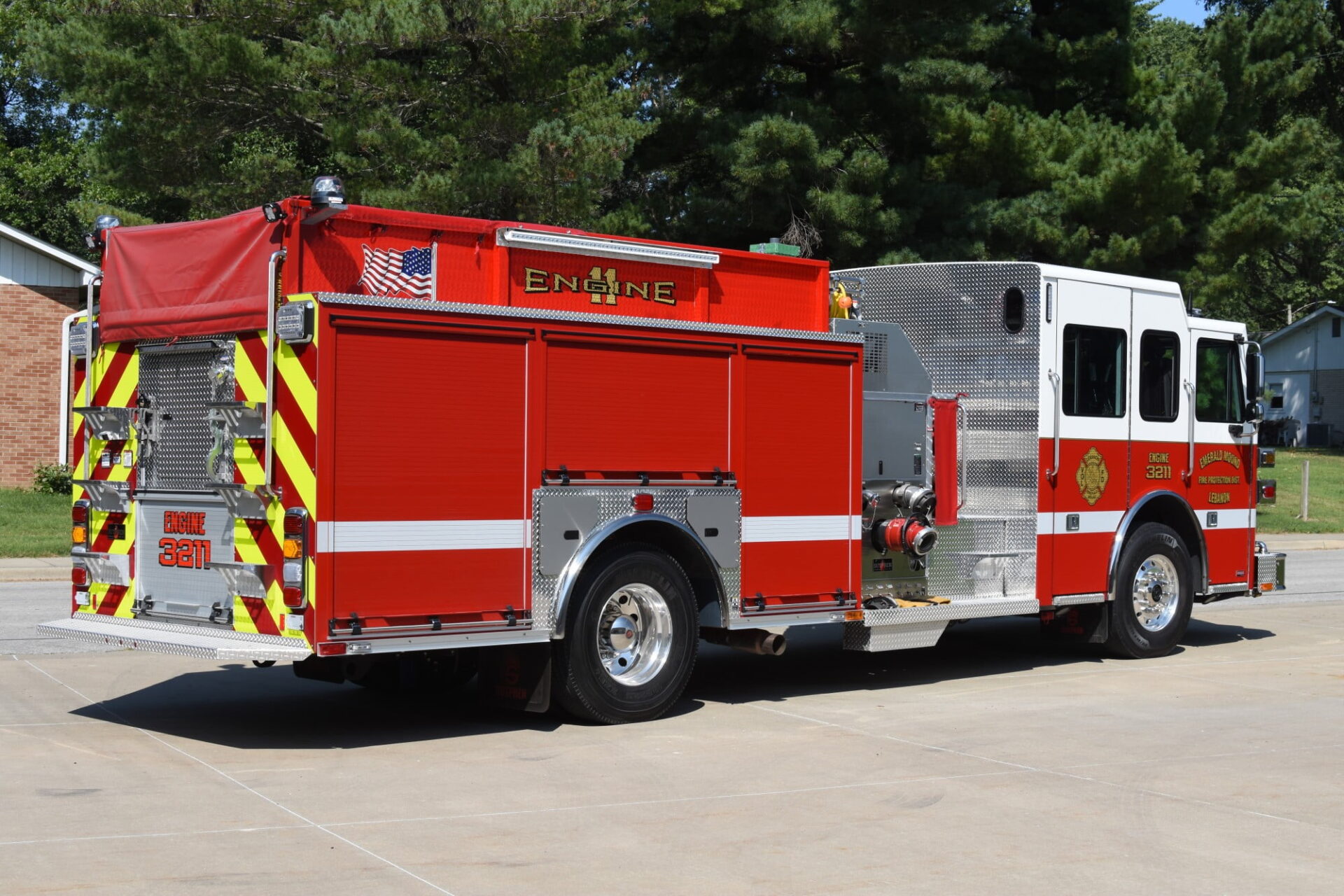

Custom Pumper – Emerald Mound – Lebanon Fire Protection District

Specs

Cab
Four-door, six-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
18,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins L 9, 400HP
Alternator
Leece Neville, 270 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Qmax-1500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right w/ 4” Outlet, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Speedlays
(2) 2” w/ 1 ½” Swivels
Water Tank
1000-gallon
Water Tank
30-gallon foam tank
Foam System
Foampro 2002, 5.0 GPM
Construction
3/16” extruded aluminum
Doors
Amdor roll-up compartment , painted
Total Compartment Space
Over 246 cu ft.
Alco-Lite Pel-24 Ladder Package
24’ 2-section & PRL-14, 14’ Roof & 10’ Folding
Body
G9 – Alum 40/51 Ladders Thru Tank
Bumper Extension
18” polished stainless steel, 10” tall,
Siren
Federal q2b , grille mount
Generator
6KW SmartPower
Power
Hannay electric cord reel, 150’ (1)
Siren
Federal signal allegiant led lightbar
HIVIZ 72” Brow
Light
FireTech Guardian Elite
Scene light
FireTech LED Work
Lights
