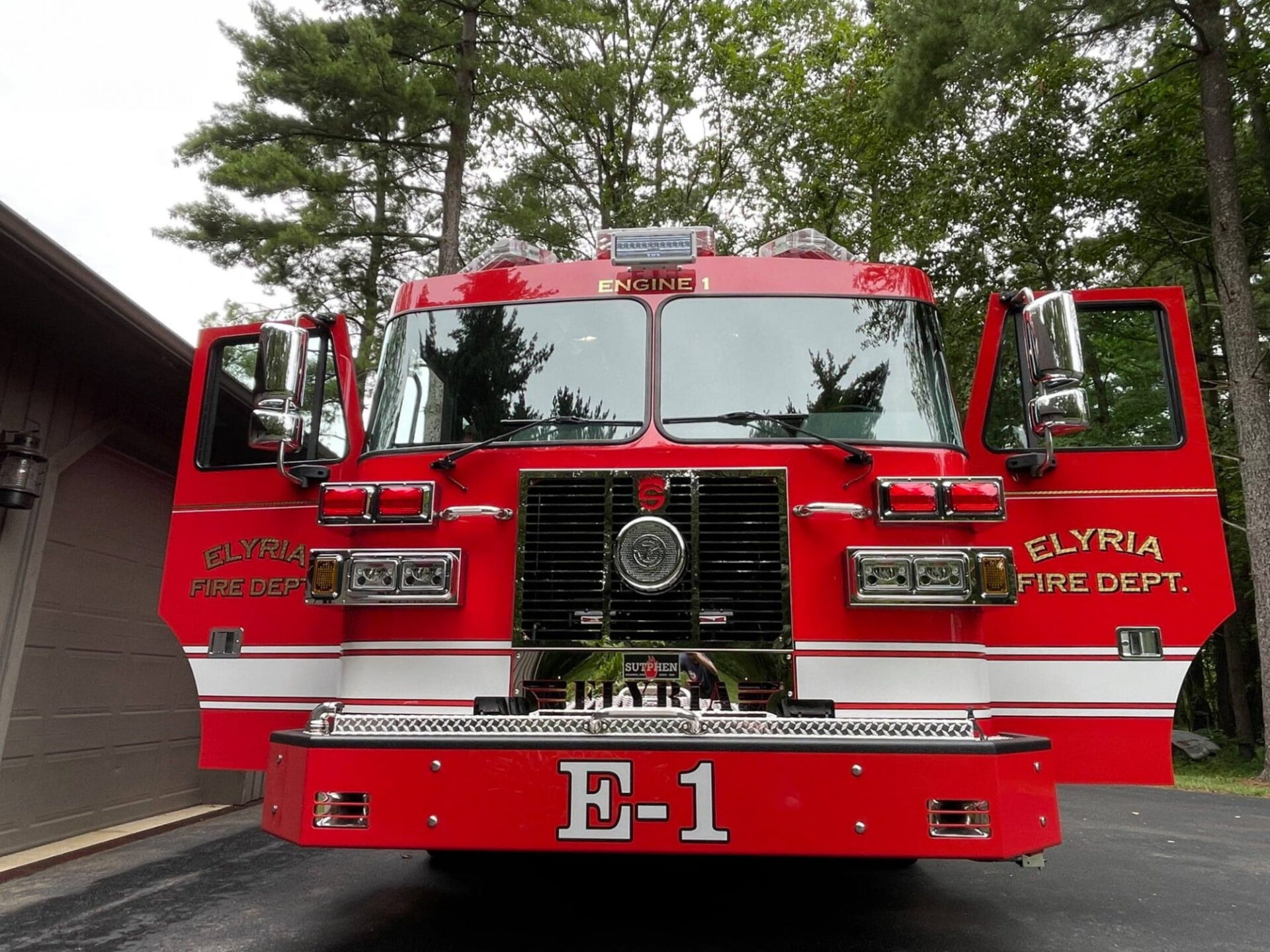

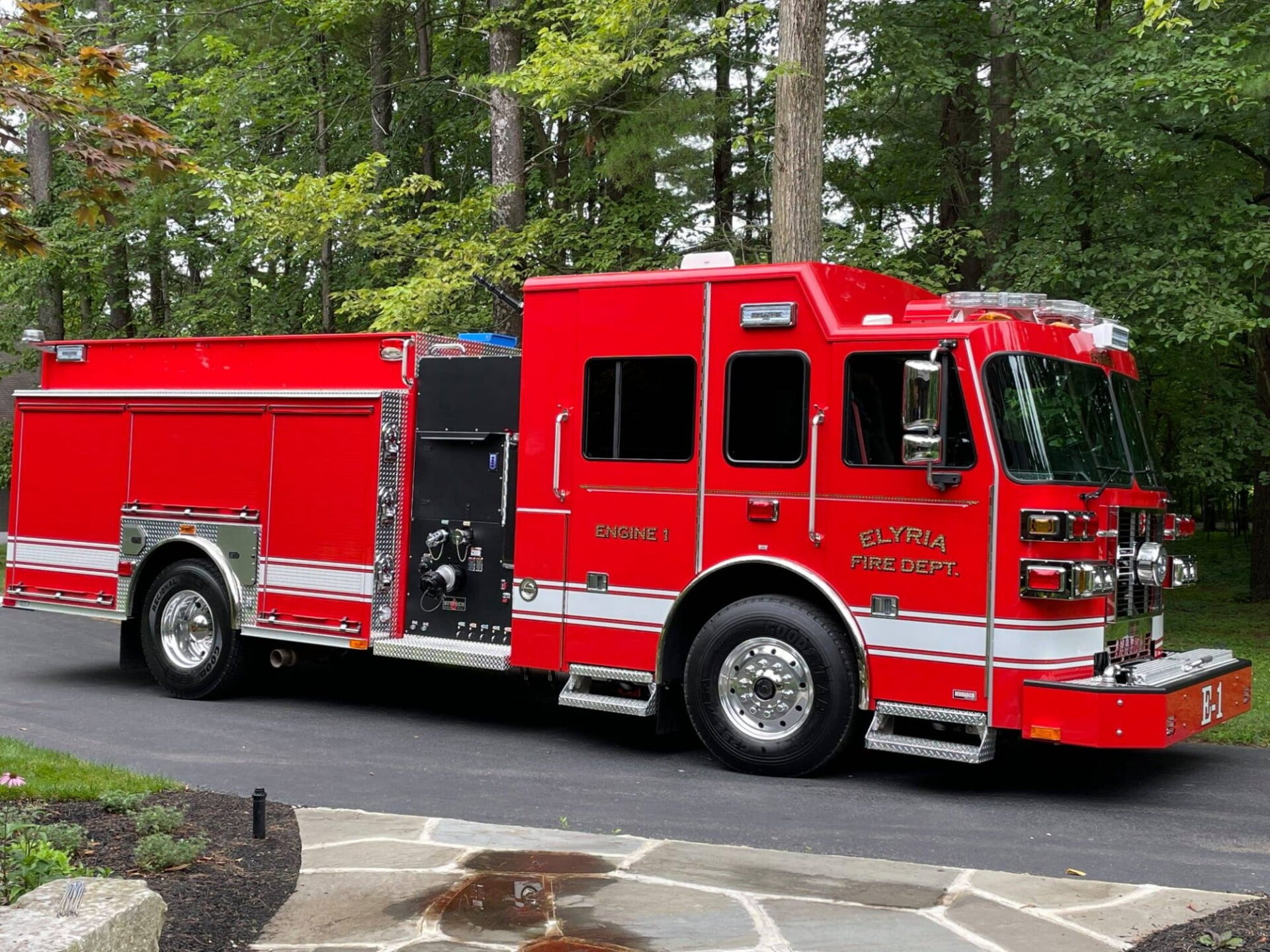

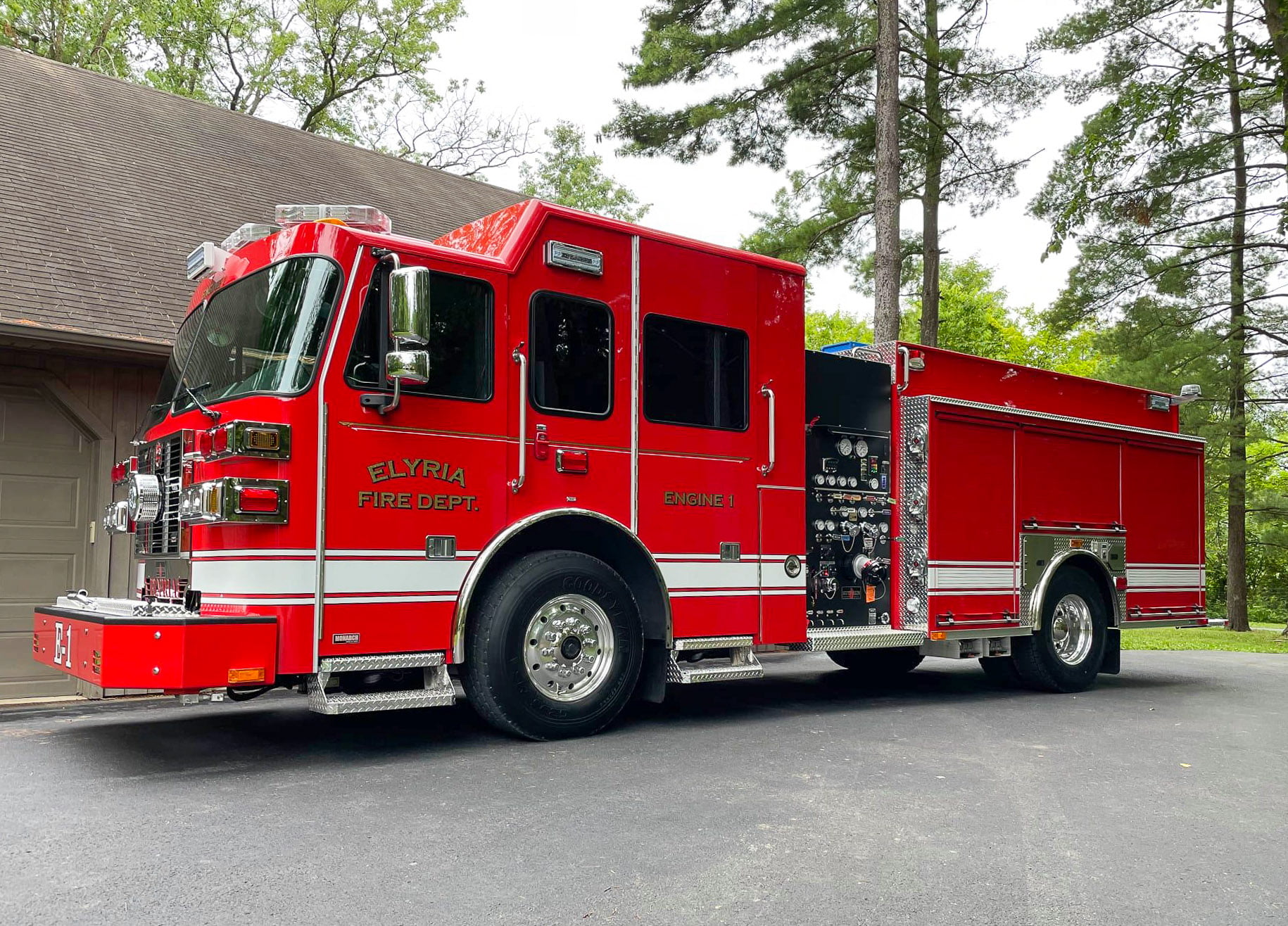

Custom Pumper – Elyria Fire Department, OH

Specs

Cab
Four-door, five-person
10” Double Frame
Rails (110k psi)
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins X 12 455HP
Alternator
Leece Neville 320 AMP
Transmission
Allison Gen 5, EVS 4000
Water Pump
Xs qmax-1500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Speedlay
(2) 2” w/ 1 ½” Swivels & Poly Lift-Out Trays
Water Tank
1000 gallon
Construction
3/16” extruded aluminum
Doors
Amdor roll-up compartment doors, painted
Total Compartment Space
Over 233 cu. ft.
Duo-safety Ladder package
900A 24’ 2-Section, 775A 14’ Roof, 585A 10’ Folding
Ladder Compliment
Ladder chute with backboard storage
Body
S2 – Aluminum 43/53 Ladder Chute
Bumper Extension
18” formed steel channel bumper, painted
Siren
Federal q2b , grille mount
Camera
FRC Inview Trueview Single Camera
FRC Spectra 12V
Led brow light
Three Whelen Freedom
24” led lightbars
FRC Spectra Scene
Light
Whelen M9V2 LEDs
Included
Whelen L31 Rear
Beacons
