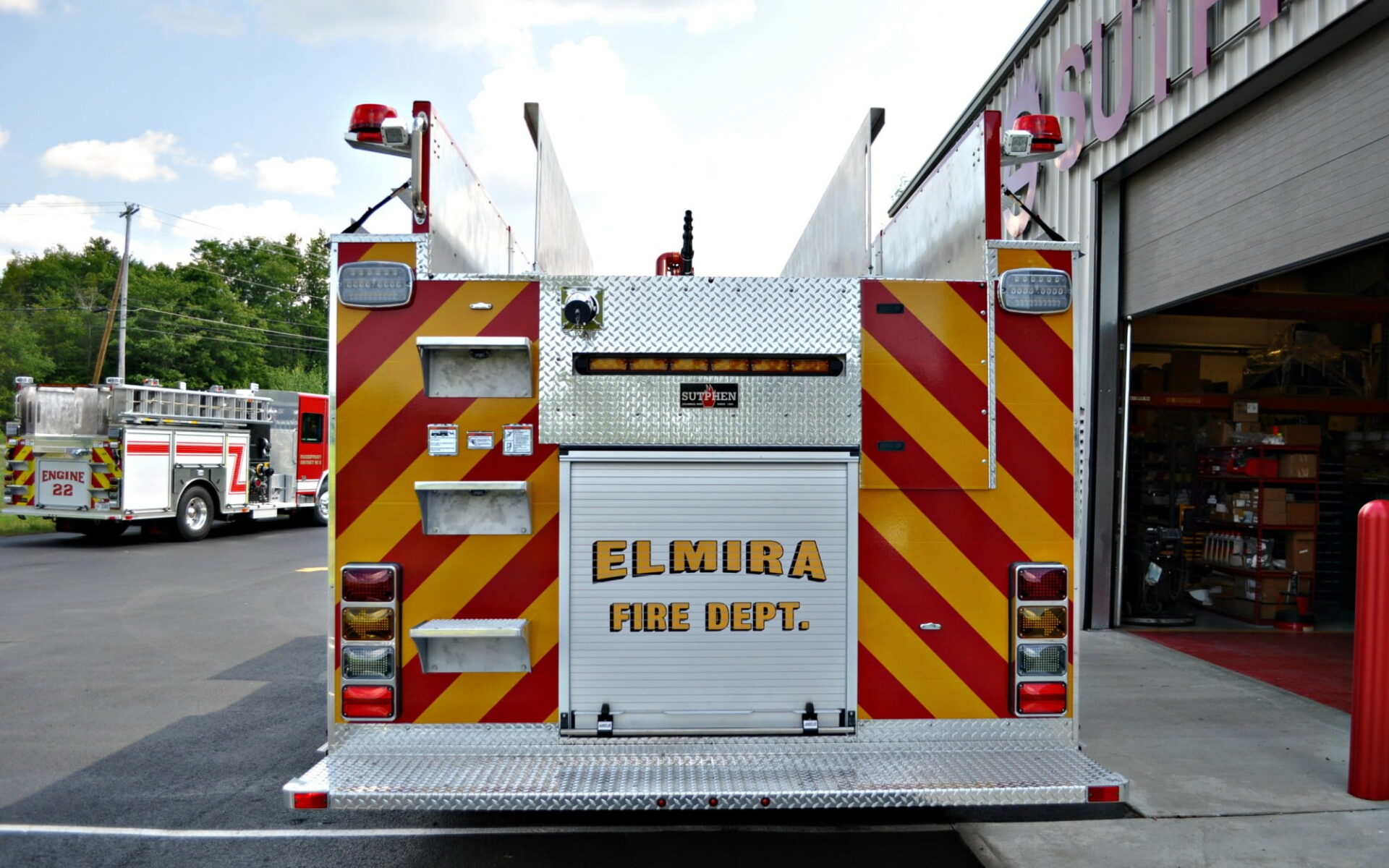

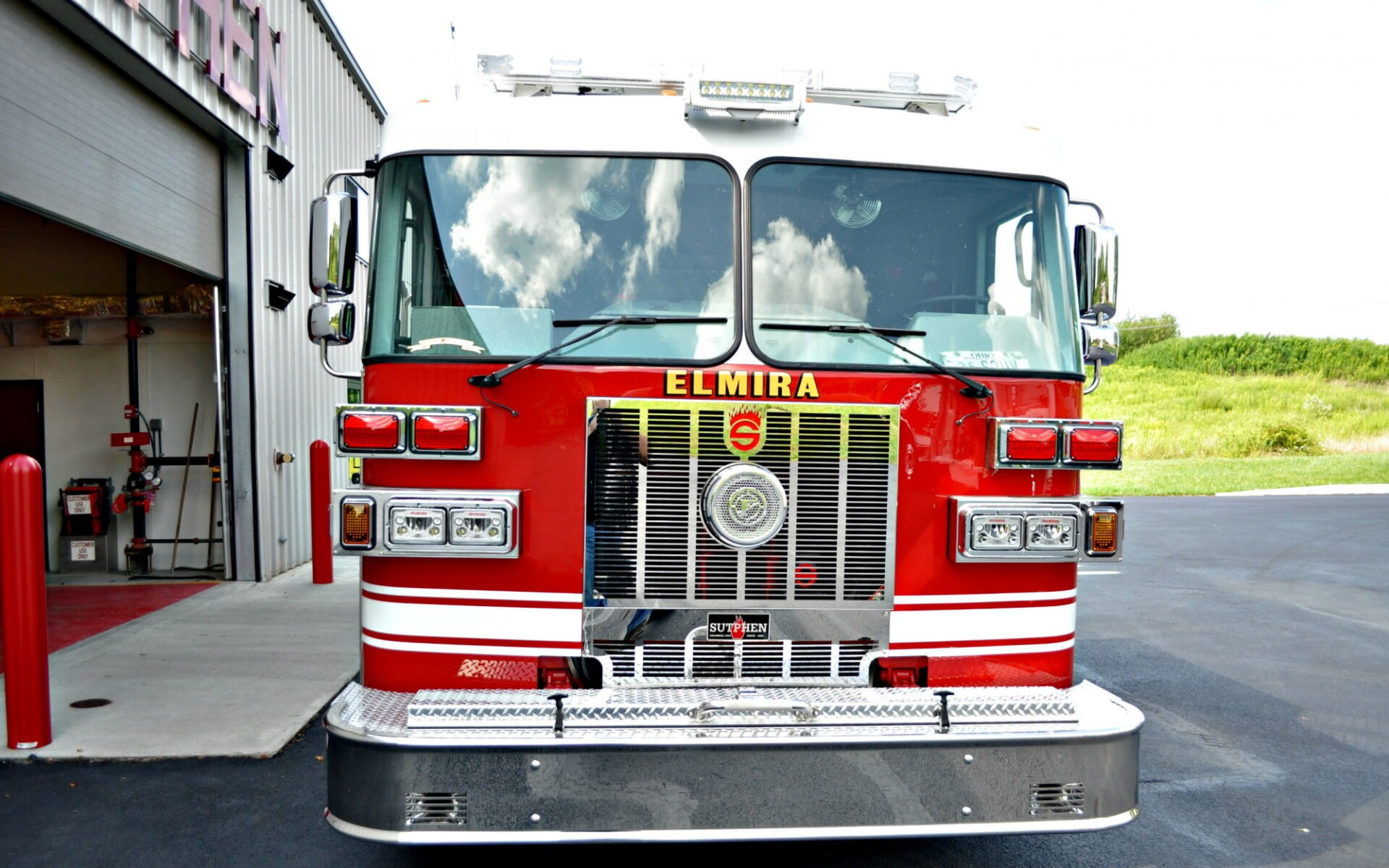

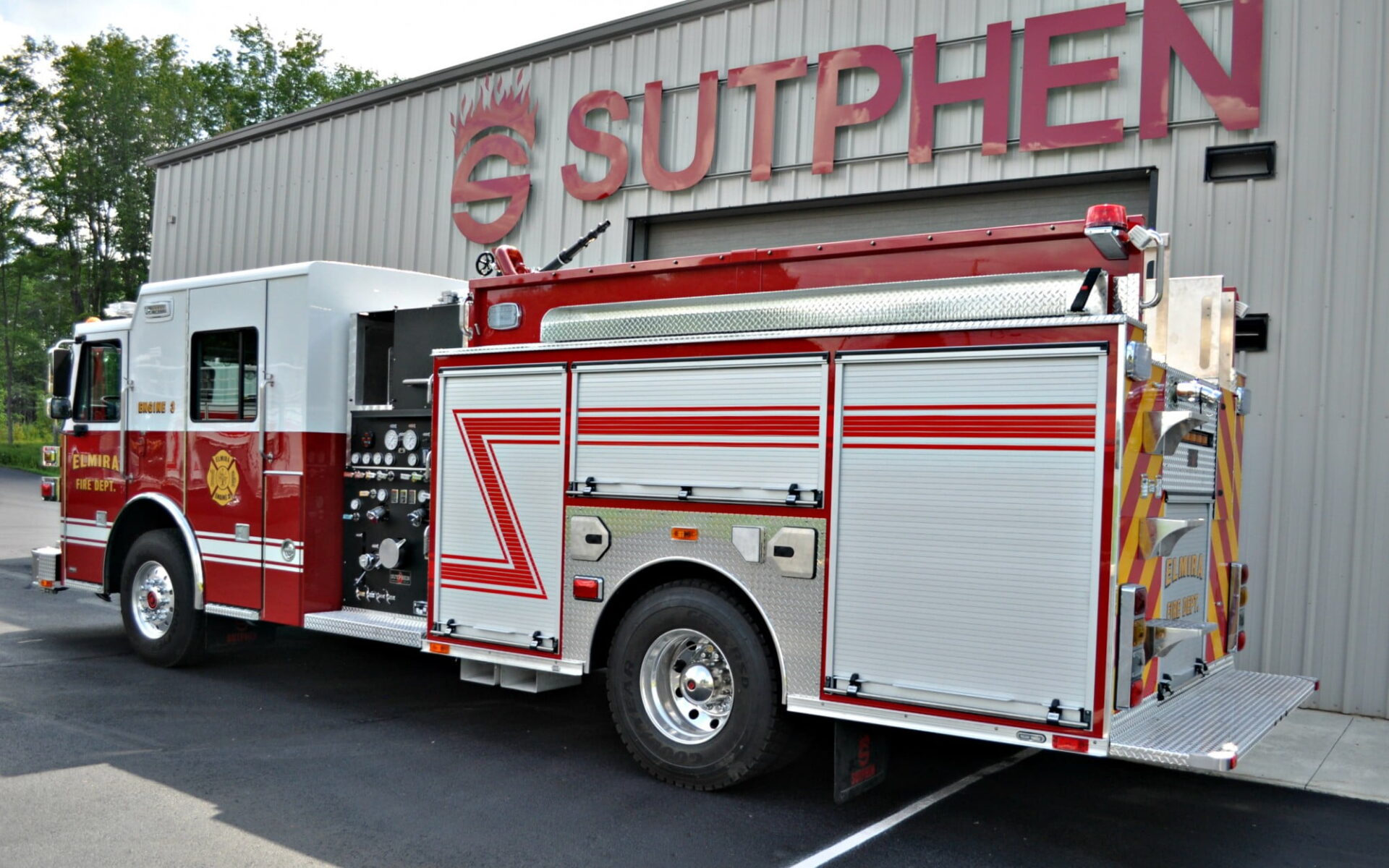

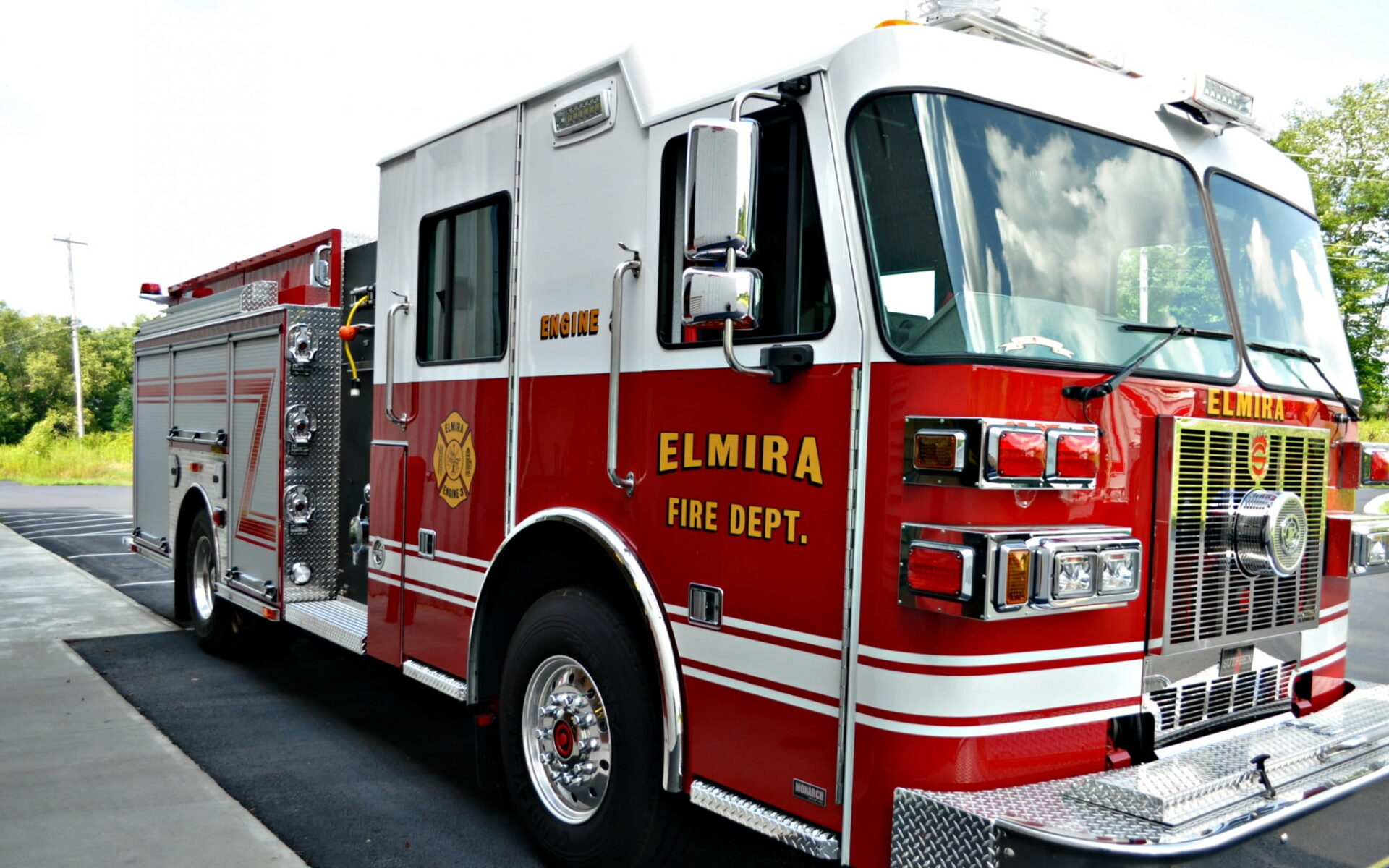

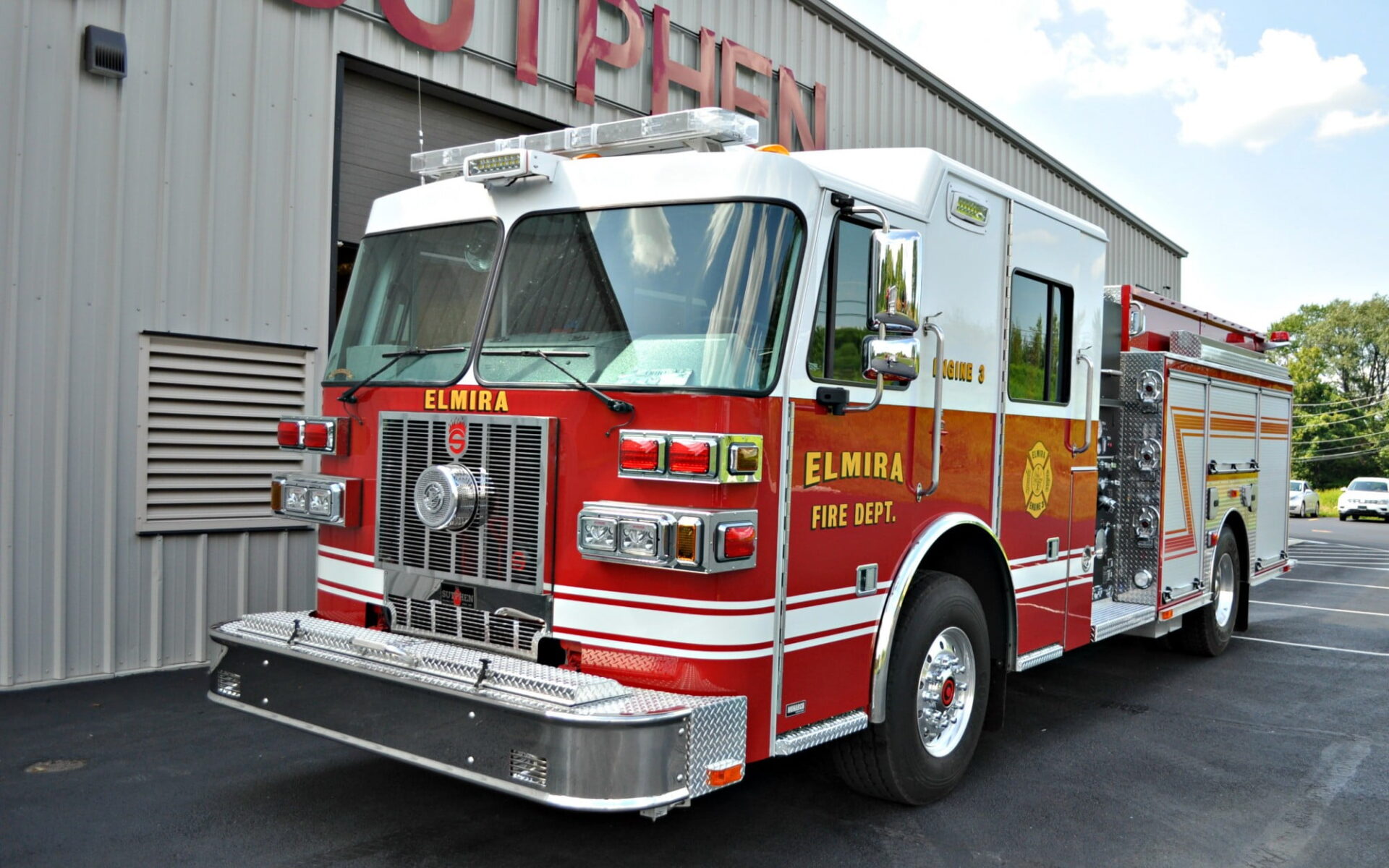

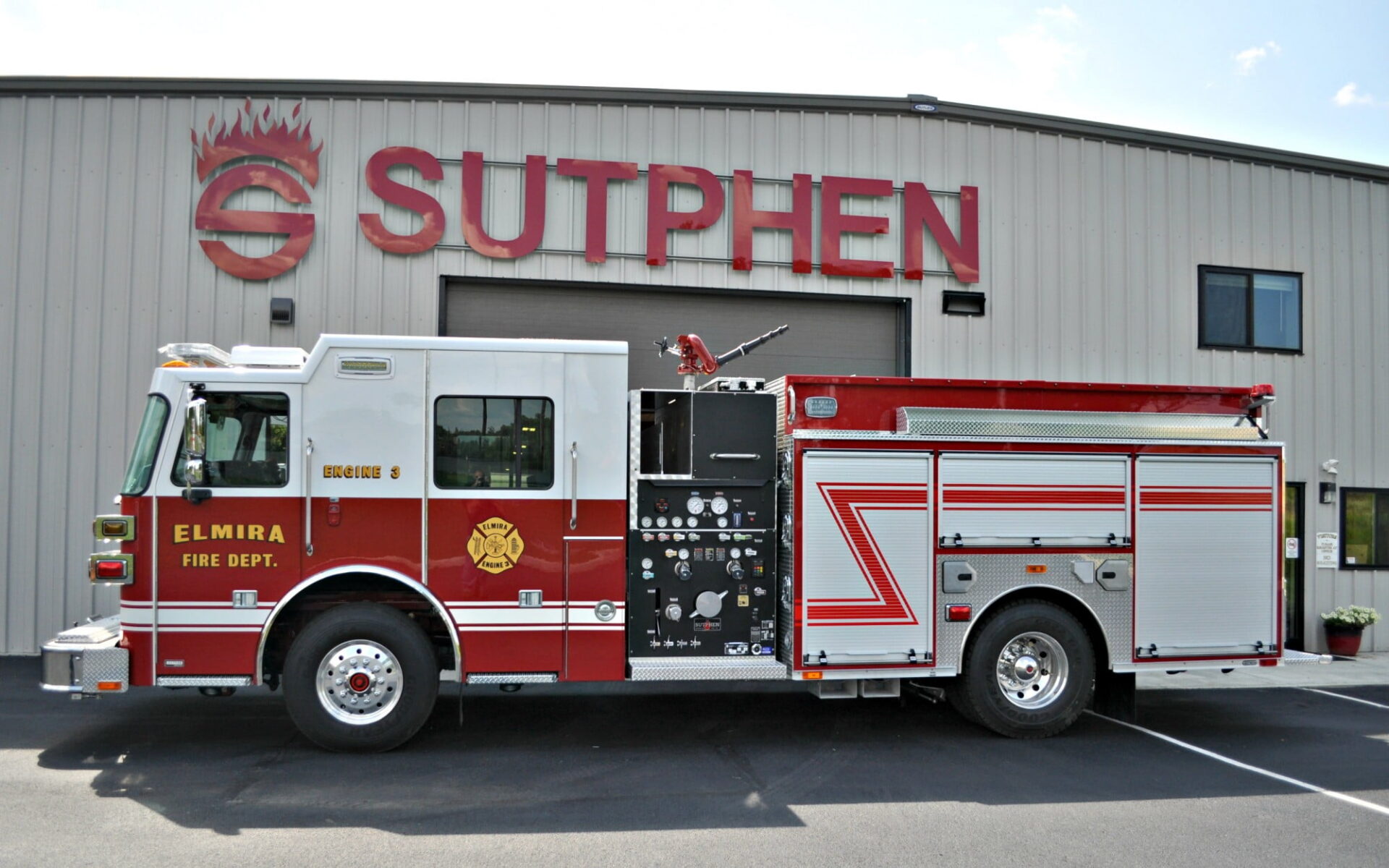

Custom Pumper – Elmira Fire Department, NY

Specs

Cab
Four-door, four-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins L 9, 400 HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS 3000
Water Pump
Qmax-1500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper Discharge, (1) 3” Deck Gun
Crosslay
(2) 2” w/ 1 ½” Swivel
Monitor
Akron 3423 Apollo
Water Tank
750-gallon
Construction
3/16” extruded aluminum
Doors
Amdor roll-up compartment
Total Compartment Space
222 cu. ft.
Ladder Compliment
Alco-lite ladder package (pel-24 24’ 2-section & prl-14 14’ roof & 10’ folding)
Ladder Compliment
Ladder chute with backboard storage
Body
S2-Alum 43/53 Ladder Chute
Bumper Extension
18” polished stainless steel
Siren
Federal q2b , grille mount
Power
Hannay electric cord reel, 150’ (1)
Generator
6KW Harrison HYD
Whelen Freedom IV
72” led lightbar
Whelen L31 Beacons
Included
Akron Scene Star
Included
Akron Scene Star
Recessed 12v
Recessed Traffic Advisor
Included
