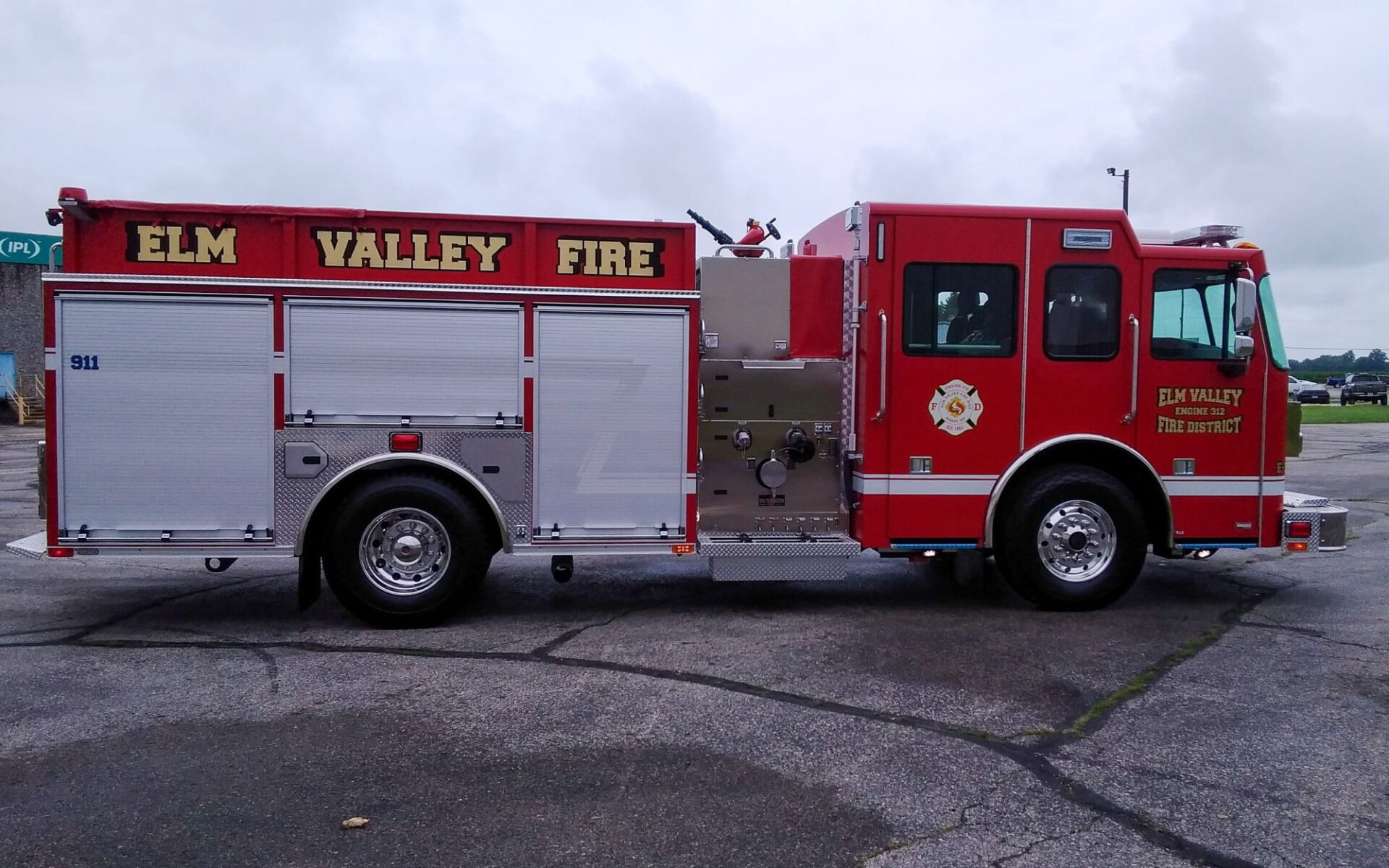

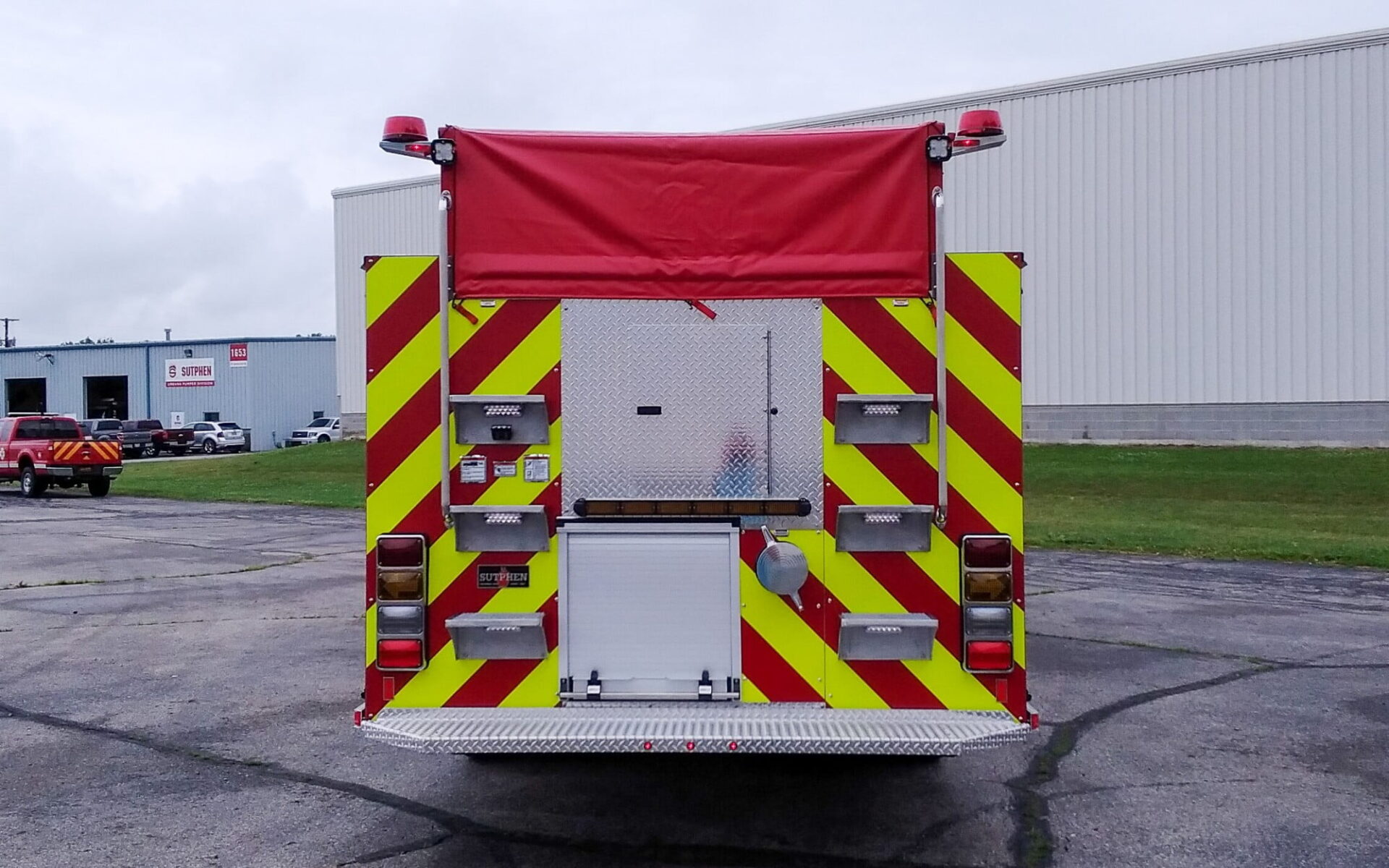

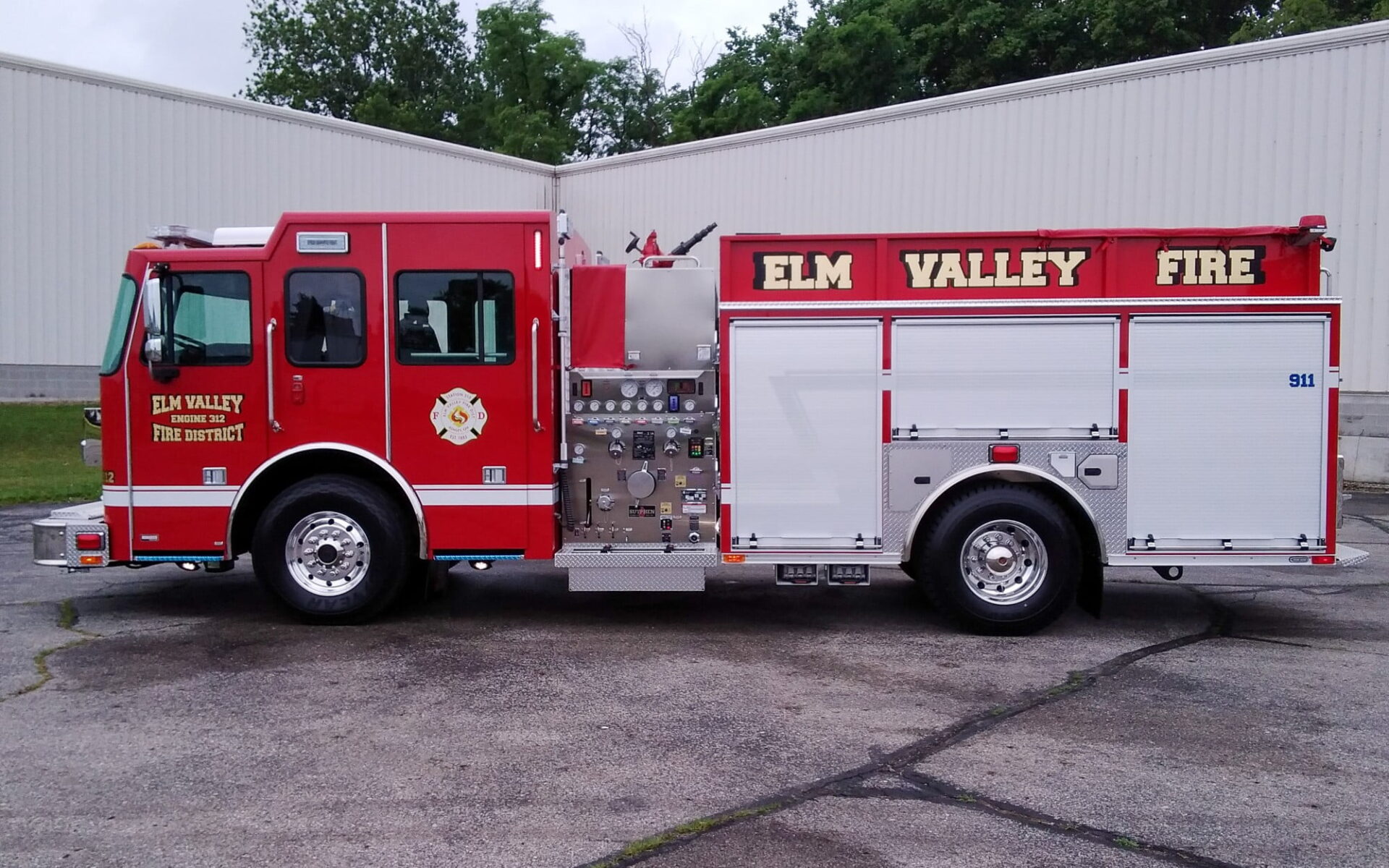

Custom Pumper – Elm Valley Joint Fire District, OH

Specs

Cab
Four-door, four-person
10” Frame Rails
(50k psi)
Front Axle and Suspension
19,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins L 9 380 HP
Alternator
Leece Neville 320 AMP
Transmission
Allison Gen 5, EVS 3000
Water Pump
Qmax-1500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/Left of Main Hosebed, (1) Front/Right of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Crosslay
(2) 2” w/ 1 ½” Swivel
Water Tank
1,000 gallon
Water Tank
20 gallon foam tank
Foam System
Hale Smartfoam 2.1A
Construction
3/16” extruded aluminum
Doors
Amdor roll-up compartment
Total Compartment Space
Over 245 cu. ft.
Alco-Lite Ladder Package
PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
Body
G9 – Aluminum 40/51 Ladders Through Tank
Bumper Extension
18” polished stainless-steel bumper
Siren
Federal q2b , grille mount
Camera
FRC Inview Trueview, Single Camera
(2) Triple Air
Bottle compartments
Whelen Freedom LED
Lightbar
Whelen LED Traffic
Advisor
FRC Spectra Brow
Light
FRC Spectra LED
Scene light
FRC Spectra Telescopic
Lights
Firetech LED Work
Lights
