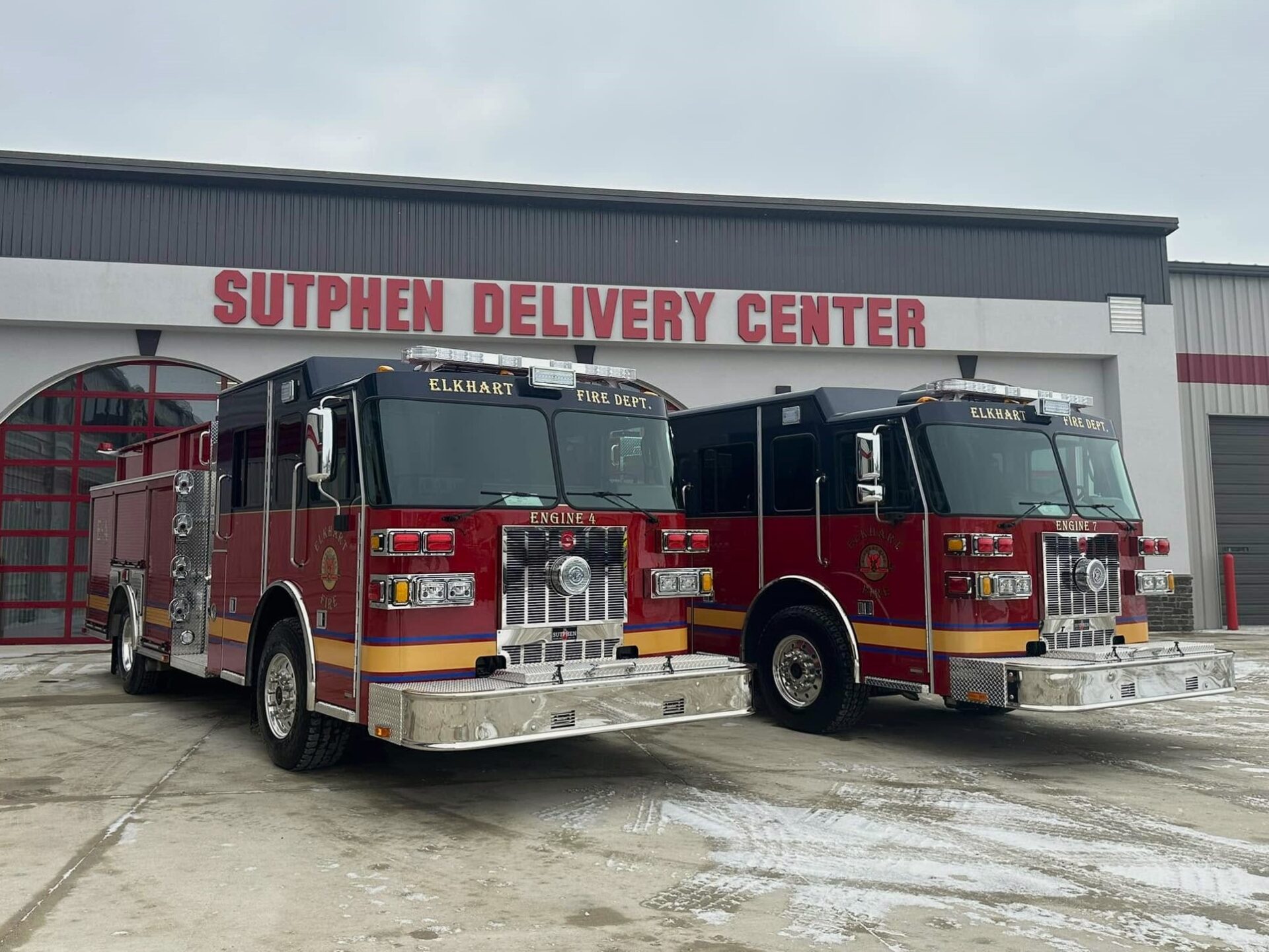

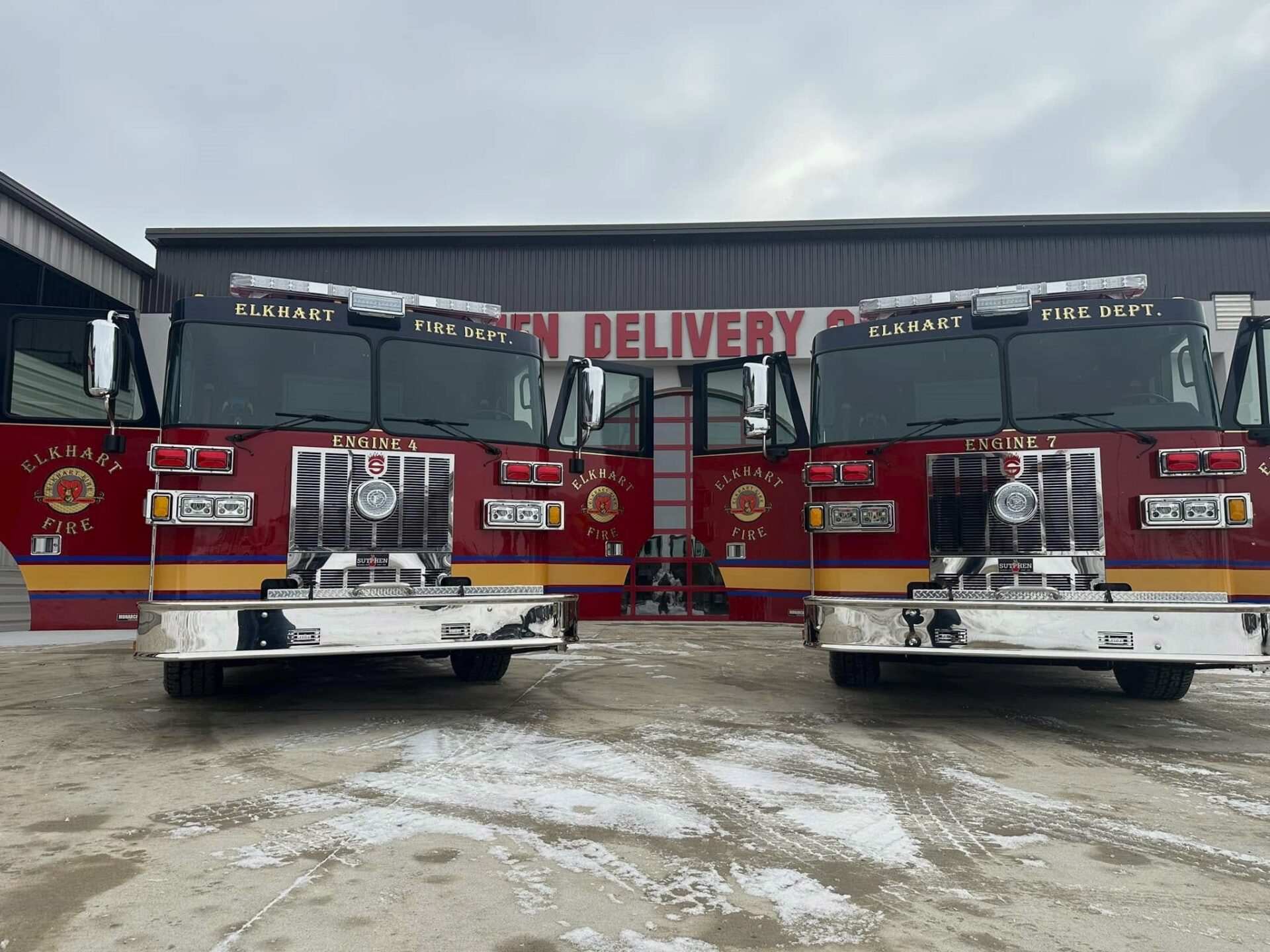

Custom Pumper – Elkhart Fire Department, IN

Specs

Cab
Four-door, six-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
20,000 lbs w/ (4) 56” leafs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville 320 AMP
Transmission
Allison Gen 6, EVS3000
Water Pump
Qmax-1500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/ Left of Main Hosebed, (1) 1 ½” Front Bumper w/ 2” Plumbing, 3” Deck Gun
Crosslays
(2) 1 ½” & (1) 2 ½” w/ Swivels
Water Tank
1000-gallon
Water Tank
30-gallon foam tank
Construction
3/16” extruded aluminum
Doors
Rom roll-up compartment
Total Compartment Space
Over 220 cu ft.
Alco-Lite Ladder Package
PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
Body
G2 – Alum 40/51 Lad Chute
Bumper Extension
24” polished stainless steel bumper
Camera System
FRC, Inview Trueview, Single Camera (Wired)
Siren
Federal q2b, grille mount
FRC Spectra Brow
Light
Whelen Freedom LED
Lightbar
FRC Spectra Telescopic
Lights
