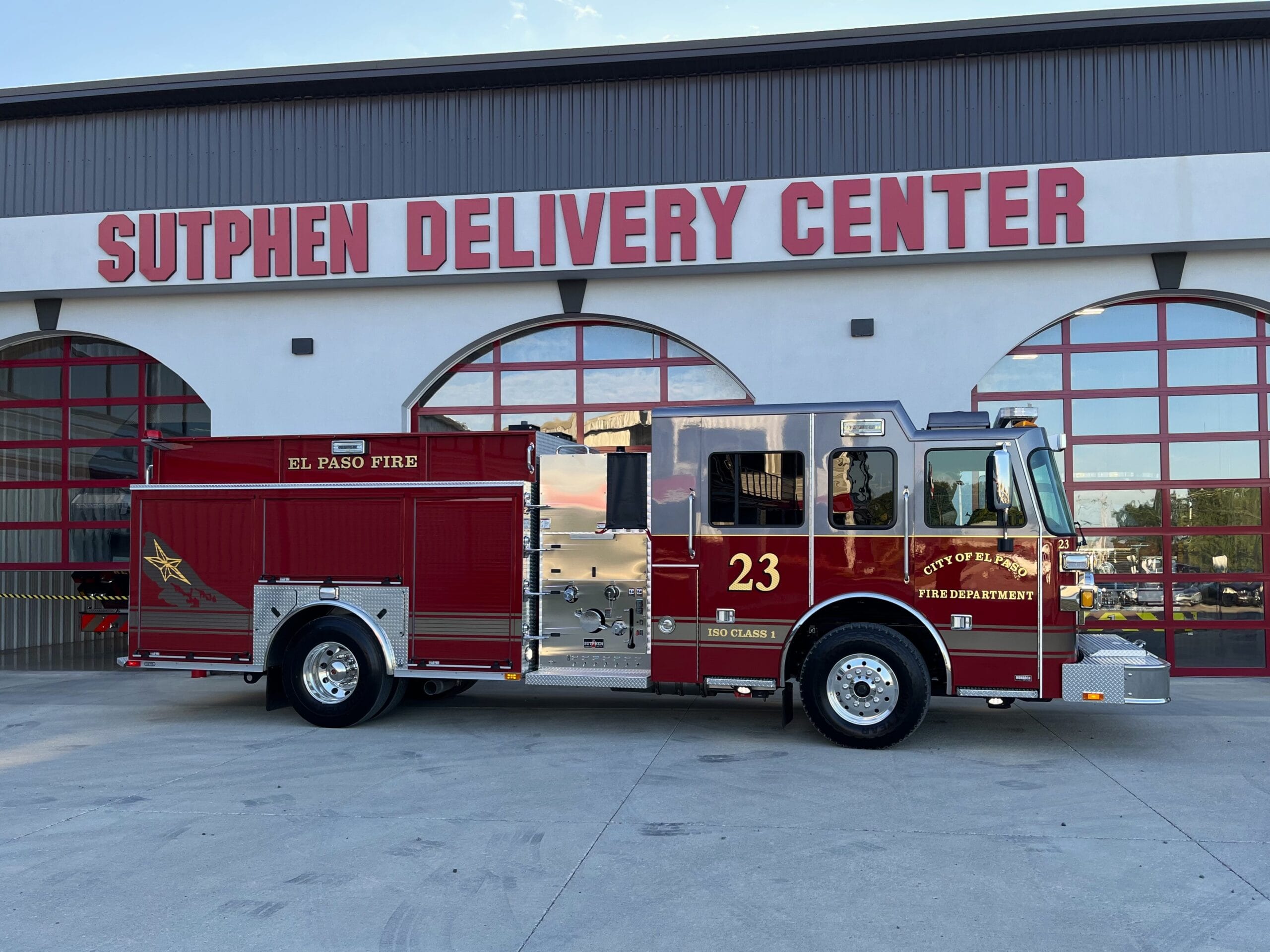

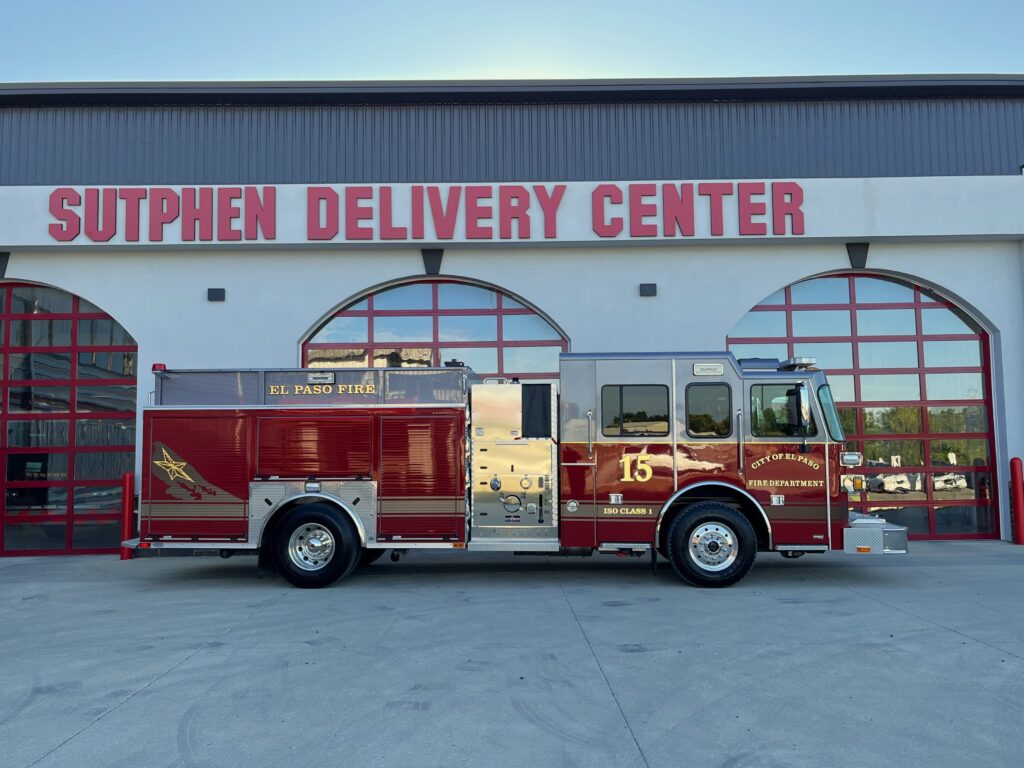

Custom Pumper – El Paso Fire Department, TX
Truck Type:
Dealer:
Location:
El Paso, TX
Department:
El Paso Fire DepartmentSpecs
Cab
Four-Door, Six-Person
10” Double Frame
Rails (50K PSI)
Front Axle and Suspension
20,000 lbs w/ (4) 56" Leafs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville, 420 AMP
Transmission
Allison Gen 6, EVS3000
Water Pump
QMAX-1500 GPM, Single Stage Pump
Discharges
( (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/ Left of Main Hosebed, (1) 1 ½” Front Bumper, 2” Plumbing, (1) 3” Deck Gun
Crosslays
(2) 1 ½” & (1) 2 ½” w/ Swivels
Water Tank
1,000-Gallon
Foam Tank
30-Gallon
Construction
3/16” Extruded Aluminum
Doors
Mixed ROM Roll-Up and Hinged Compartment
Total Compartment Space
220 cu. ft
Duo-Safety Ladder Package
PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
Body
G2 – Alum 40/51 Ladder Chute
Bumper Extension
24” Polished Stainless Steel
Siren
Federal Q2B, Grille Mount
FRC Spectra 20K 12V LED
Brow Light
Whelen Freedom IV
Lightbar
FRC Spectra 20K 12V LED
Scene Light
FRC Spectra 900 12V LED
Light
