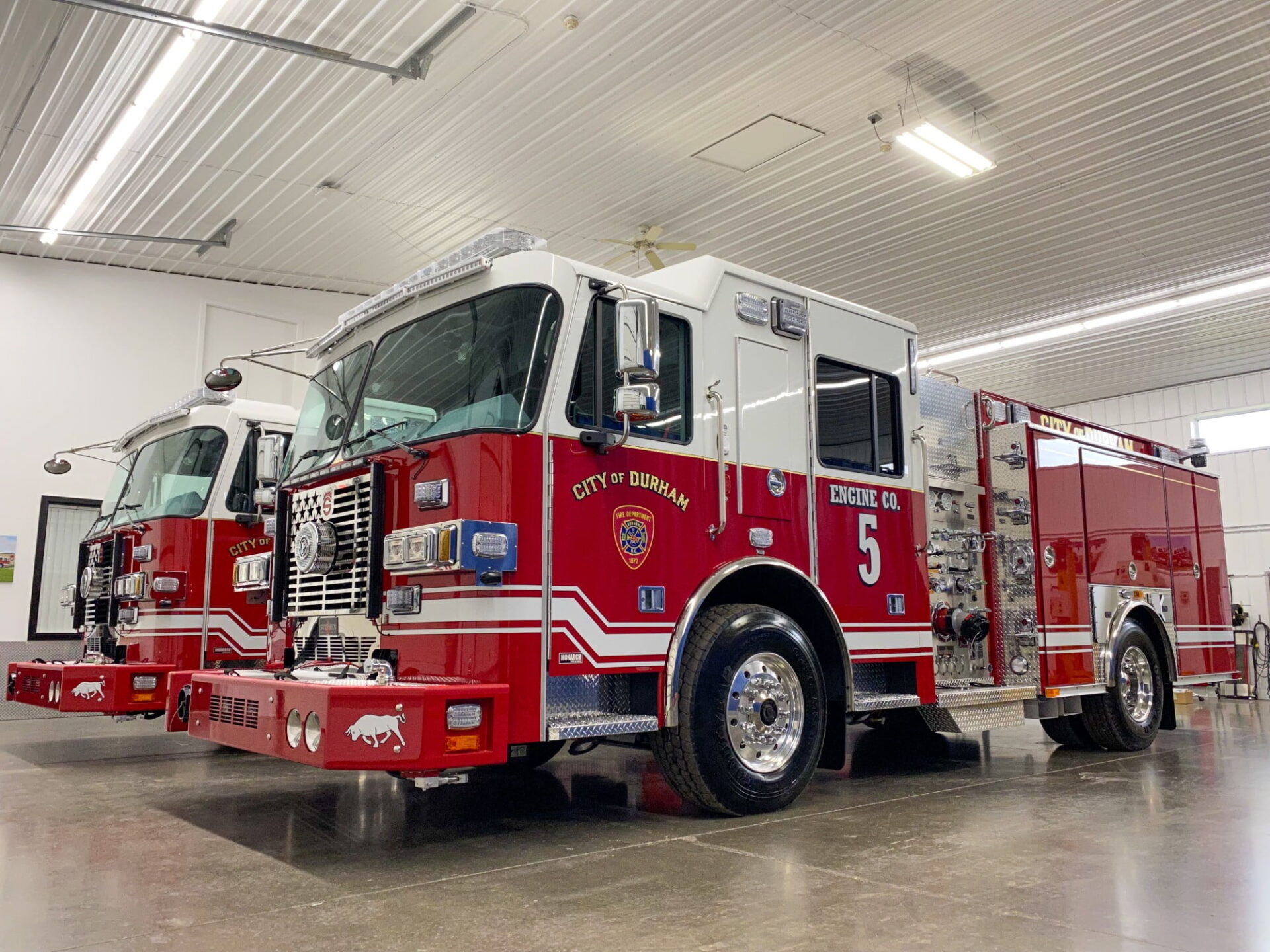

Custom Pumper – Durham Fire Department, NC
Truck Type:
Dealer:
Sutphen
Location:
Durham, NC
Department:
Durham Fire DepartmentSpecs
Cab
Four-door, five-person
10” Double Rails
(50k psi)
Front Axle and Suspension
18,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins L 9 450HP
Alternator
Leece Neville 420 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Qmax-1500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (3) 2 ½” Pipe to Left Rear, (2) 2 ½” Pipe Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Water Tank
500-gallon
Construction
3/16” extruded aluminum
Doors
Combination hinged and roll-up compartment
Total Compartment Space
Over 220 cu. ft.
Duo-Safety Ladder Package
900A 24’2 Section & 775A 14’ Roof & 10’ Folding
Body
PA-11 RES 31/53 Low RGT, Chrome Plated Brackets
18” Formed Steel
Channel, painted
Siren
Federal q2b , grille mount
Camera System
FRC Inview Trueview, Three Cameras
Idle Control System
Harrison, 2B1C, 275 AH w/ Integrated Battery
Intercom
David Clark – 5 Position
Whelen Freedom IV
72” led lightbar
Whelen TAL85 Traffic
Advisor
Whelen M9 Red
Led
FireTech 3-Piece 12V
Brow
FireTech Guardian 12V
Scene
