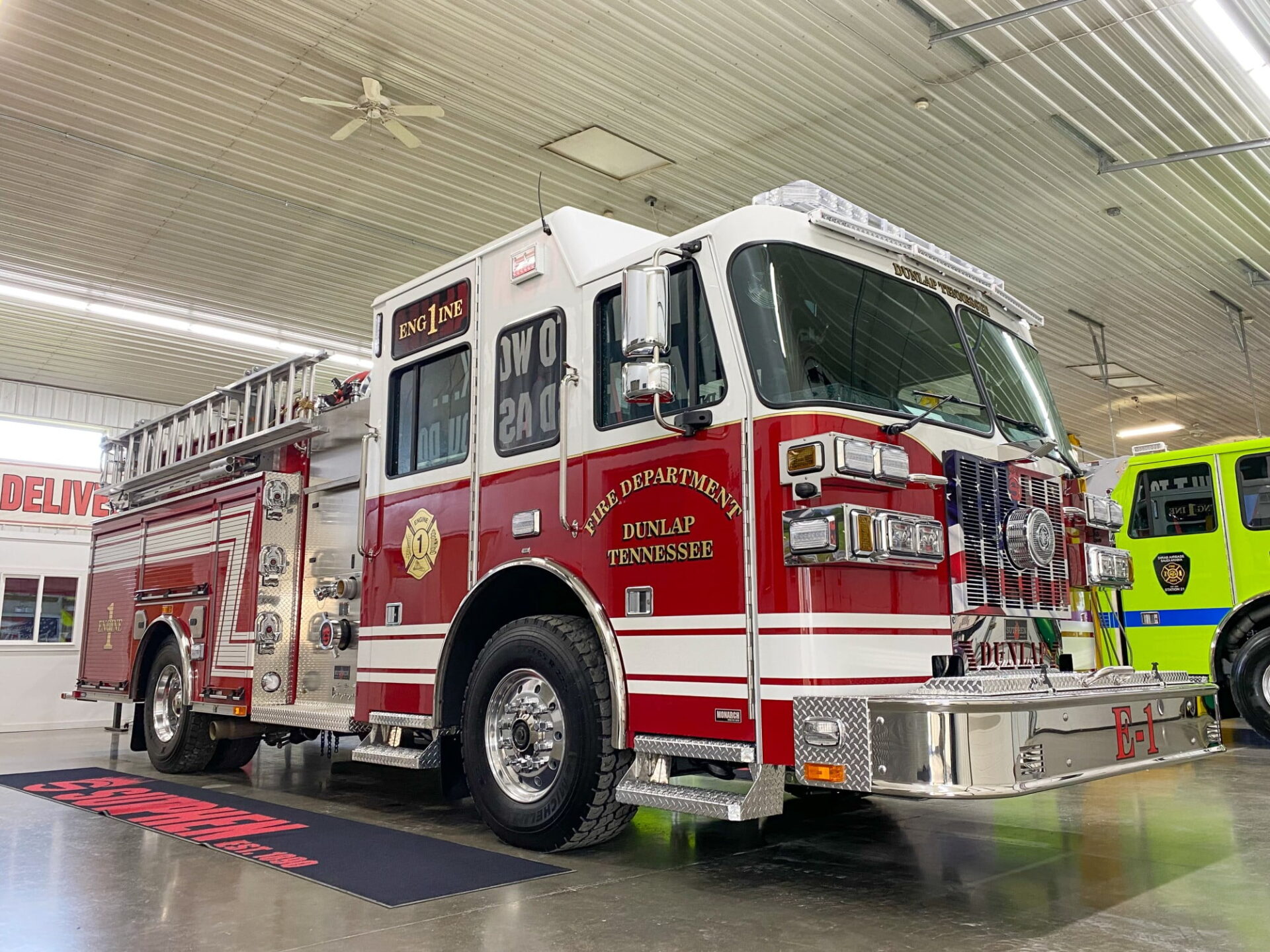

Custom Pumper – Dunlap Fire Department, TN

Specs

Cab
Four-door, six-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins L 9 450HP
Alternator
Leece Neville 420 AMP
Transmission
Allison Gen 5, EVS3000

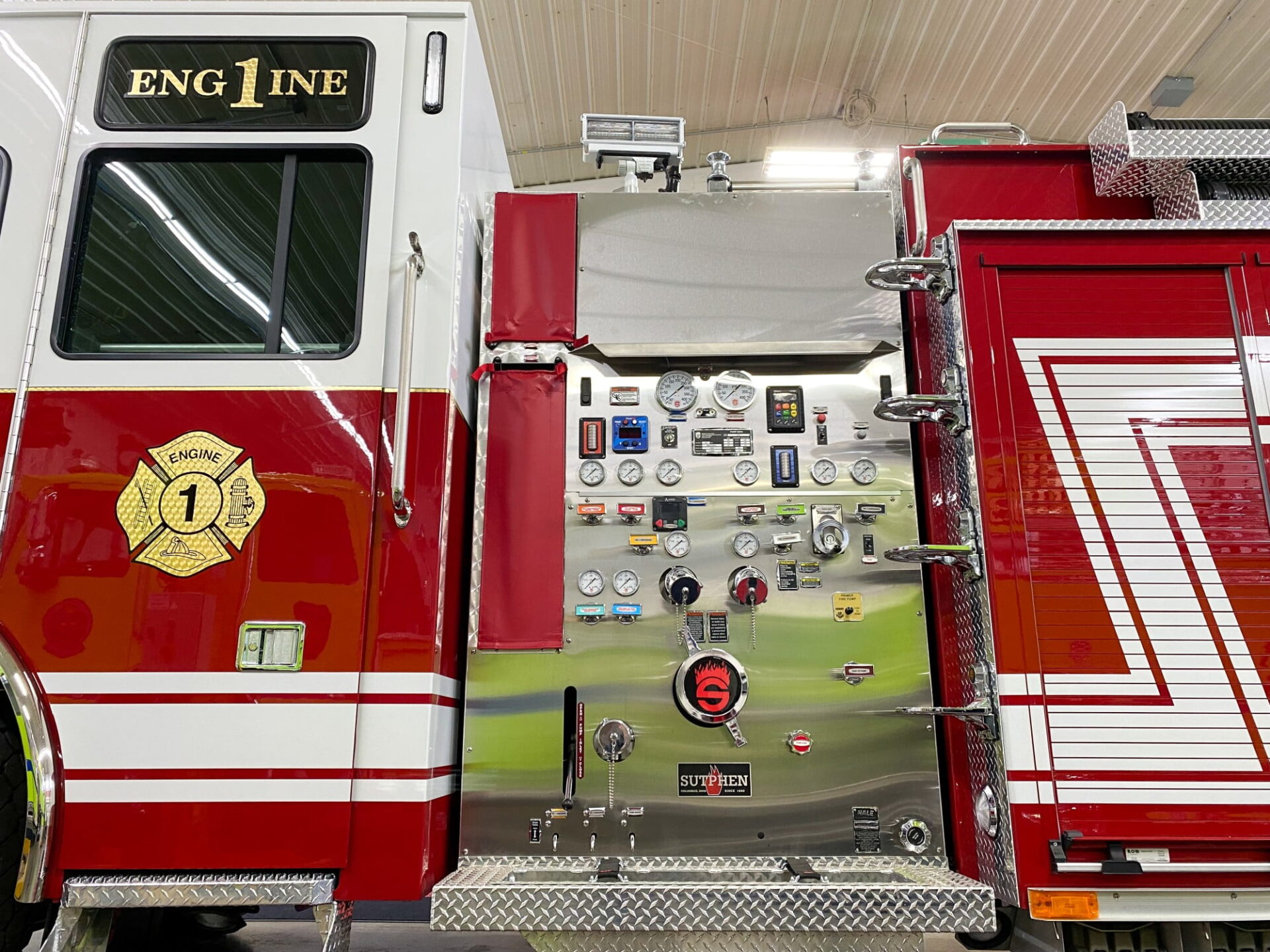

Water Pump
Xs qmax-2000 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
Crosslay
(1) 2 ½” Crosslay
Speedlay
(2) 2” with Swivels & Poly Lift-Out Trays
Water Tank
1,000-gallon
Water Tank
25-gallon foam tank
Foam System, FoamPro
2001, 2.6 gpm
Construction
3/16” extruded aluminum
Doors
Rom roll-up compartment

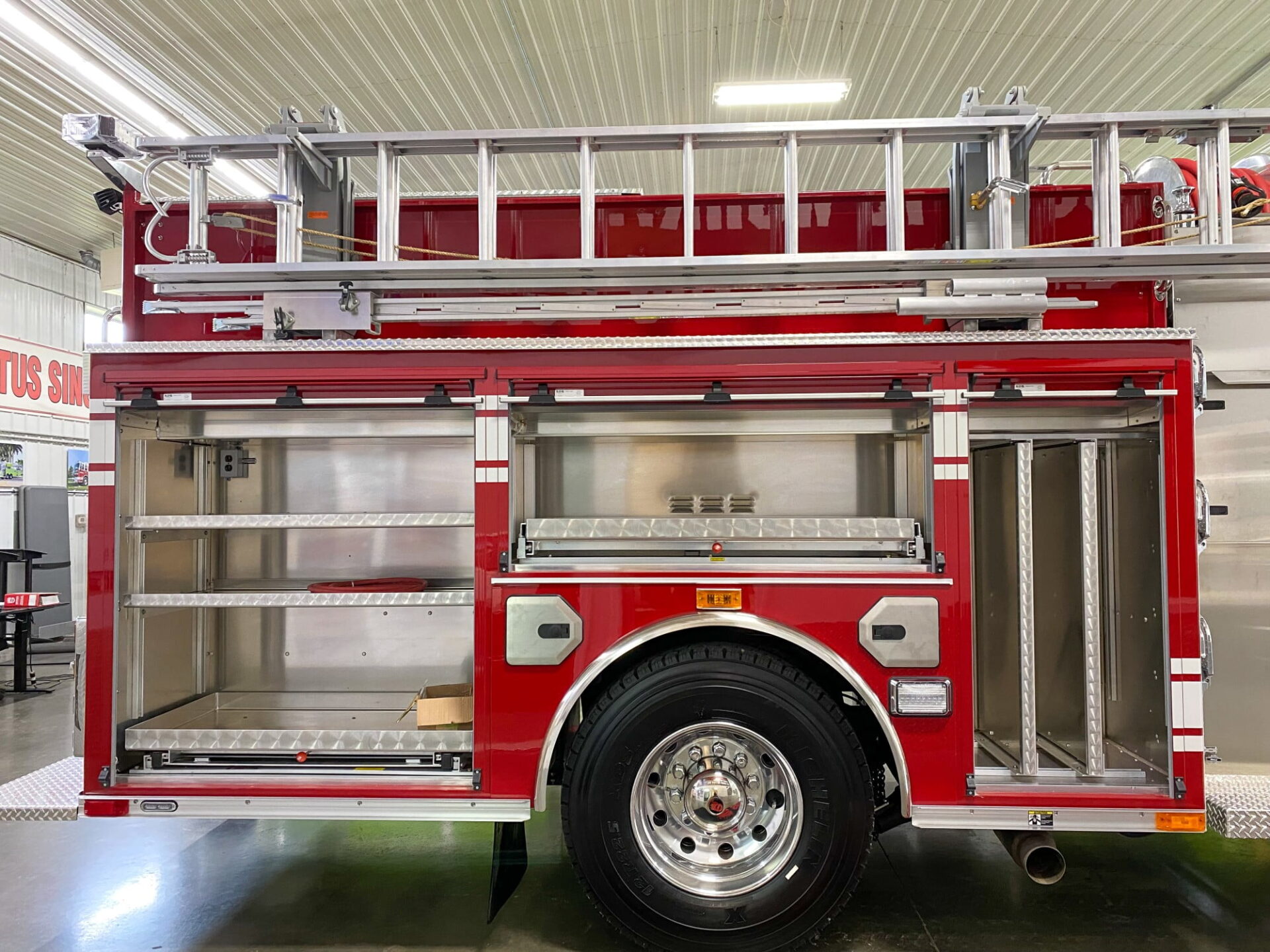

Total Compartment Space
Over 220 cu. ft.
Duo-Safety Ladder Package
900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding
Body
S4 – Aluminum 31/53 Electric Ladder Rack
Bumper Extension
18” polished stainless steel bumper
Siren
Federal q2b , grille mount
Camera System
Brigade, Three Camera
Wheel Chocks
Ziamatic quic-lift electric ladder rack
Whelen Freedom IV
72” led light bar
Whelen PFH2 Tele
Lights
Whelen MCFLED Rear
Beacons
Whelen PCPSM1 12V
Scene lights
FireTech 3-Piece 72”
Led brow light
MARS 888 Light
Included
