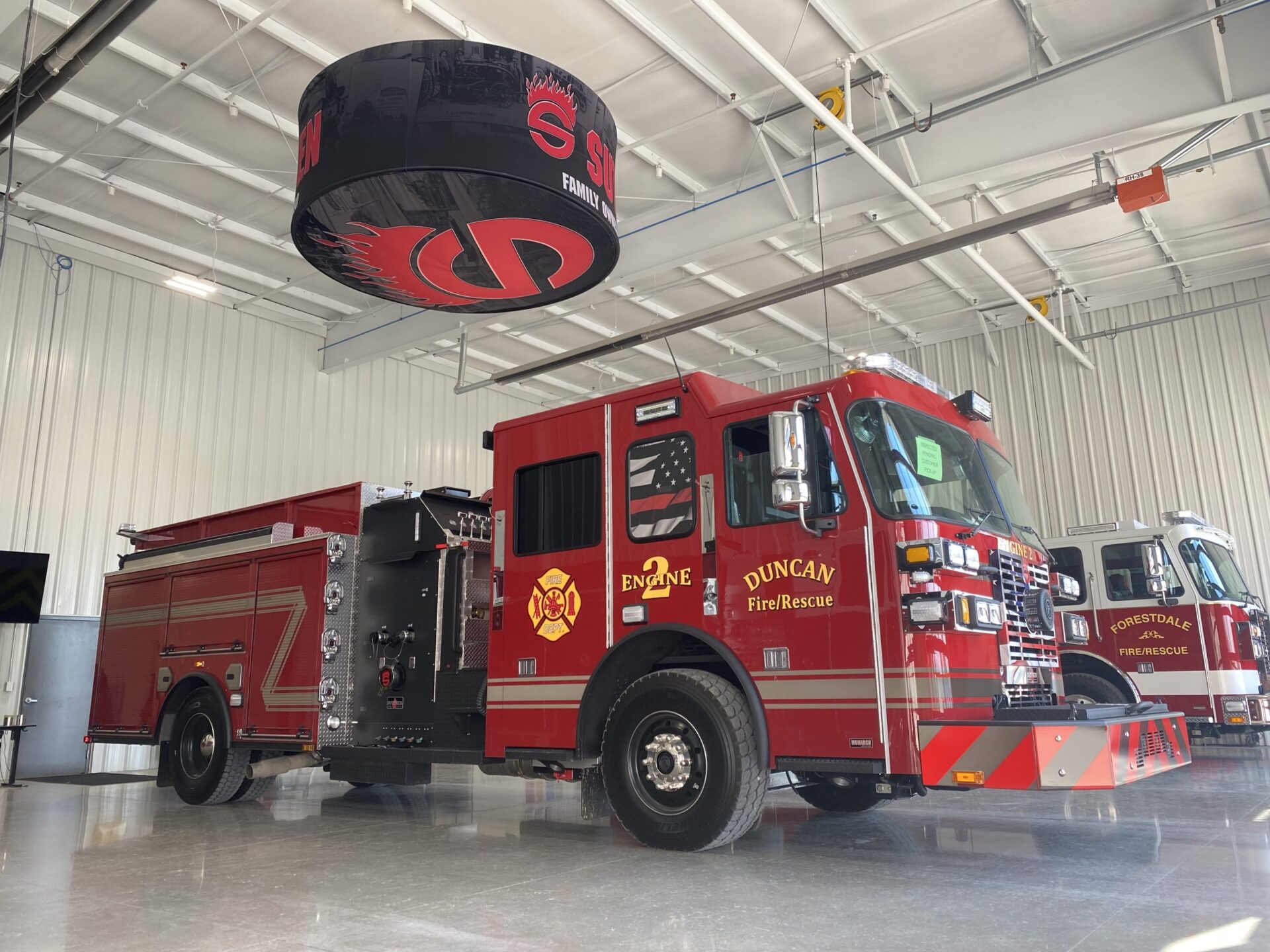

Custom Pumper – Duncan Fire Department, OK

Specs

Cab
Four-door, five-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
19,000 lbs w/ (3) 56” leafs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins L 9, 450 HP
Alternator
C.E. Niehoff, 360 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Csu-1500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (2) 2 ½” Right, (1) 2 ½” Front/Right of Main Hosebed, (1) 1 ½” Front Bumper w/ 2” Plumbing, (1) 3” Deck Gun
Speedlays
(2) 2” w/ 1 ½” Swivel
Water Tank
1000-gallon
Water Tank
30-gallon foam tank
Construction
3/16” extruded aluminum
Doors
Amdor roll-up compartment
Total Compartment Space
Over 240 cu ft.
Alco-Lite Ladder Package
PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
Body
G9 – Alum 40/51 Ladders Thru Tank
Bumper Extension
24” formed steel bumper
Camera System
Safety Vision SV-CLCD0-70 (Wired)
Siren
Federal q2b , grille mount
FRC Spectra Telescopic
Lights
Whelen Freedom LED
Lightbar/ opticom
FRC Spectra Brow
Light
FireTech Work Lights
Included
