Custom Pumper – Dearborn Fire Department, MI

Specs

Cab
Four-door, four-person
10” Single Frame
Rails, single axle (50k psi)
Front Axle and Suspension
18,000 lbs.
Rear Suspension 24,000
Lbs.
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville 320 AMP
Transmission
Allison Gen 5, EVS3000

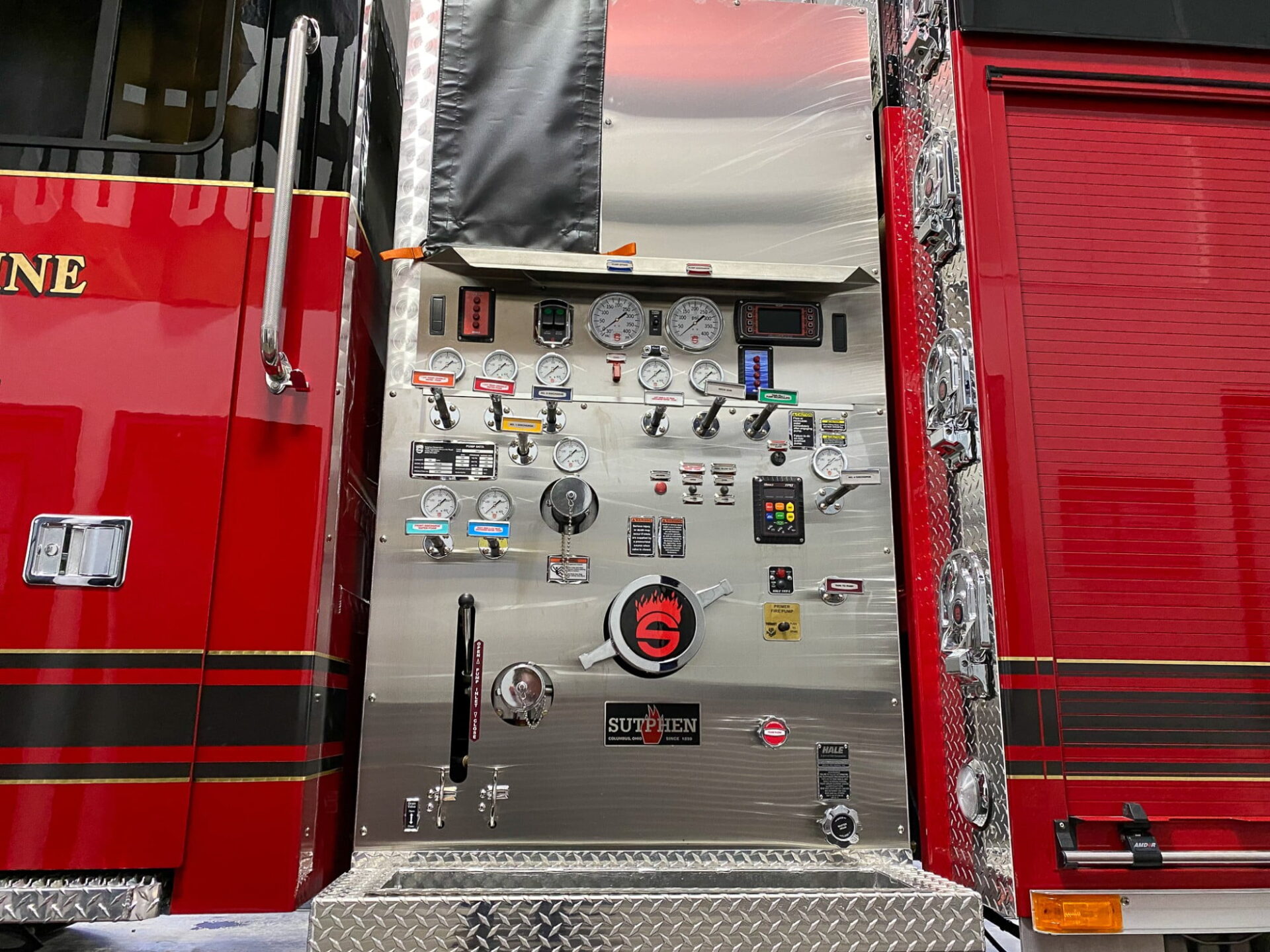

Water Pump
Qmax-1500 gpm, single stage pump
Discharges
(1) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right Rear, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 2 ½” Front Bumper, 3” Deck Gun
Crosslays
(2) 2” w/ 1 ½” Swivel
Water Tank
750-gallon
Water Tank
20-gallon foam tank
Foam System
Hale SmartFoam 2.1A
Construction
3/16” extruded aluminum
Doors
Amdor roll-up compartment
Total Compartment Space
299 cu. ft.
Alco-Lite Ladder Package
PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
Body
S9 – Aluminum 43/53 Ladders Through the Tank
Bumper Extension
24” formed steel channel bumper
Siren
Federal q2b , grille mount
Camera System
Safety Vision SV-CLCD0-70
Whelen Freedom IV
72” led light bar
Whelen PFH2 12V
Led brow light
Whelen M9V2 Combo
Led
FireTech Guardian Elite
Ft-gsem 12v led scene lights
Recessed Whelen Traffic
Advisor
