Custom Pumper – Danville Fire Department, NH

Location:
Danville, NH
Department:
Danville Fire Department

Specs

Cab
Four-door, five-person
10” Double Frame
Rails, domex (110k psi)
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville, 270 AMP
Transmission
Allison Gen 5, EVS 3000
Water Pump
Qmax-1500 single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Crosslays
(2) 1 ½” & (1) 2 ½” w/ Swivels
Water Tank
500-gallon
Water Tank
30-gallon foam tank
Foam System
Hale Smartfoam 2.1A
Construction
3/16” extruded aluminum
Doors
Rom roll up compartment

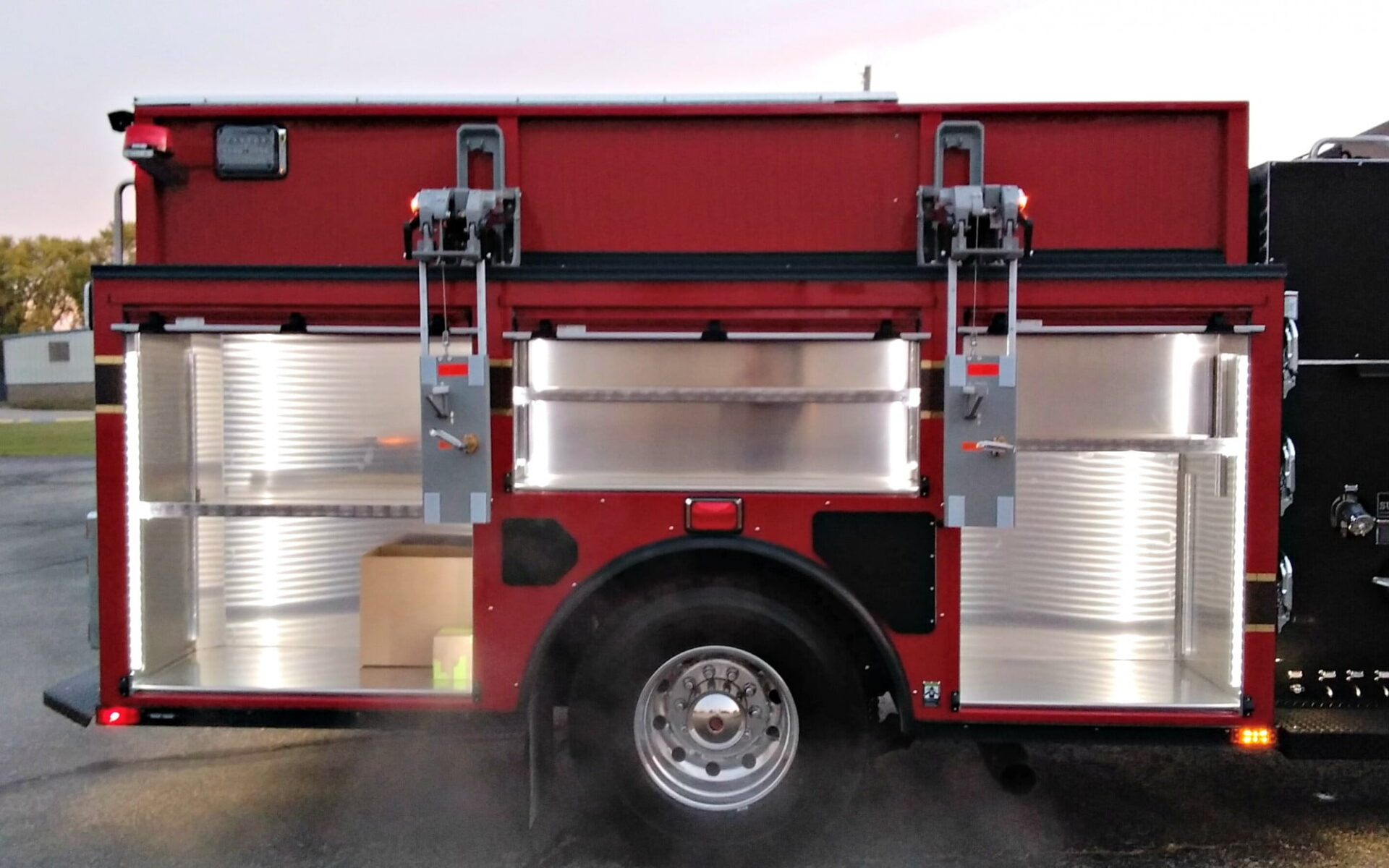

Total Compartment Space
Over 190 cu. ft.
Body
G7-Alum 40/51 Electric Ladder Rack
Bumper Extension
18” formed steel channel
Siren
Federal q2b , grille mount
Wheel Chocks
Ziamatic quic-lift electric ladder rack
Whelen PFH2 LED
Brow light
Whelen Freedom LED
Lightbar
Whelen 900 LED
Scene lights
Whelen PFH1 12V
Telescopic lights
Whelen PFH1 12V
Lights
Triple Air Bottle
Compartments (2)
