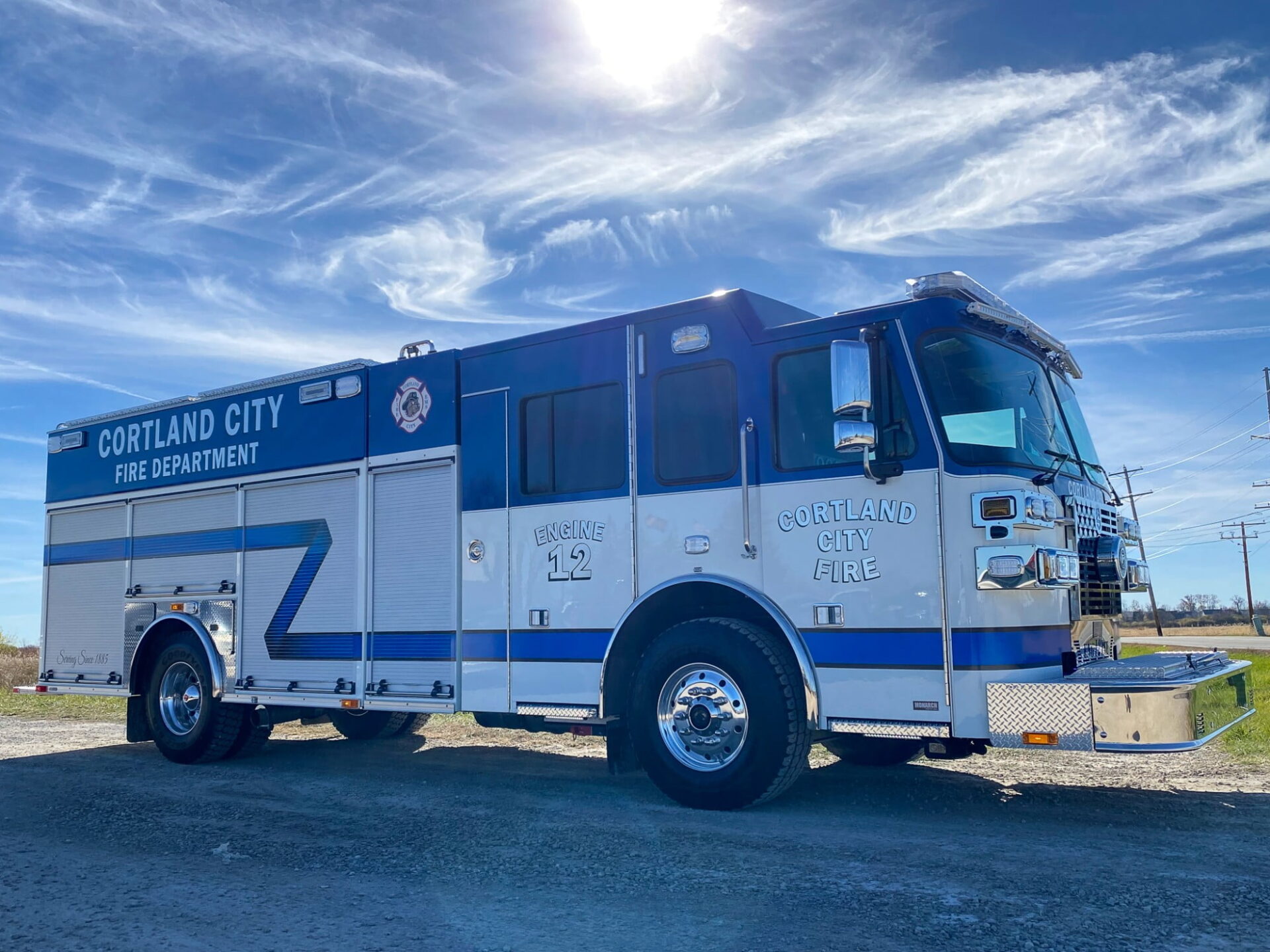

Custom Pumper – Cortland Fire Department, OH

Location:
Cortland, OH
Department:
Cortland Fire Department

Specs

Cab
Four-door, four-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
20,000 lbs.
Rear Axle and Suspension
27,000 lbs.
Engine
Cummins L 9, 450 HP
Alternator
Delco-Remy 430 AMP
Transmission
Allison Gen 5, EVS3000

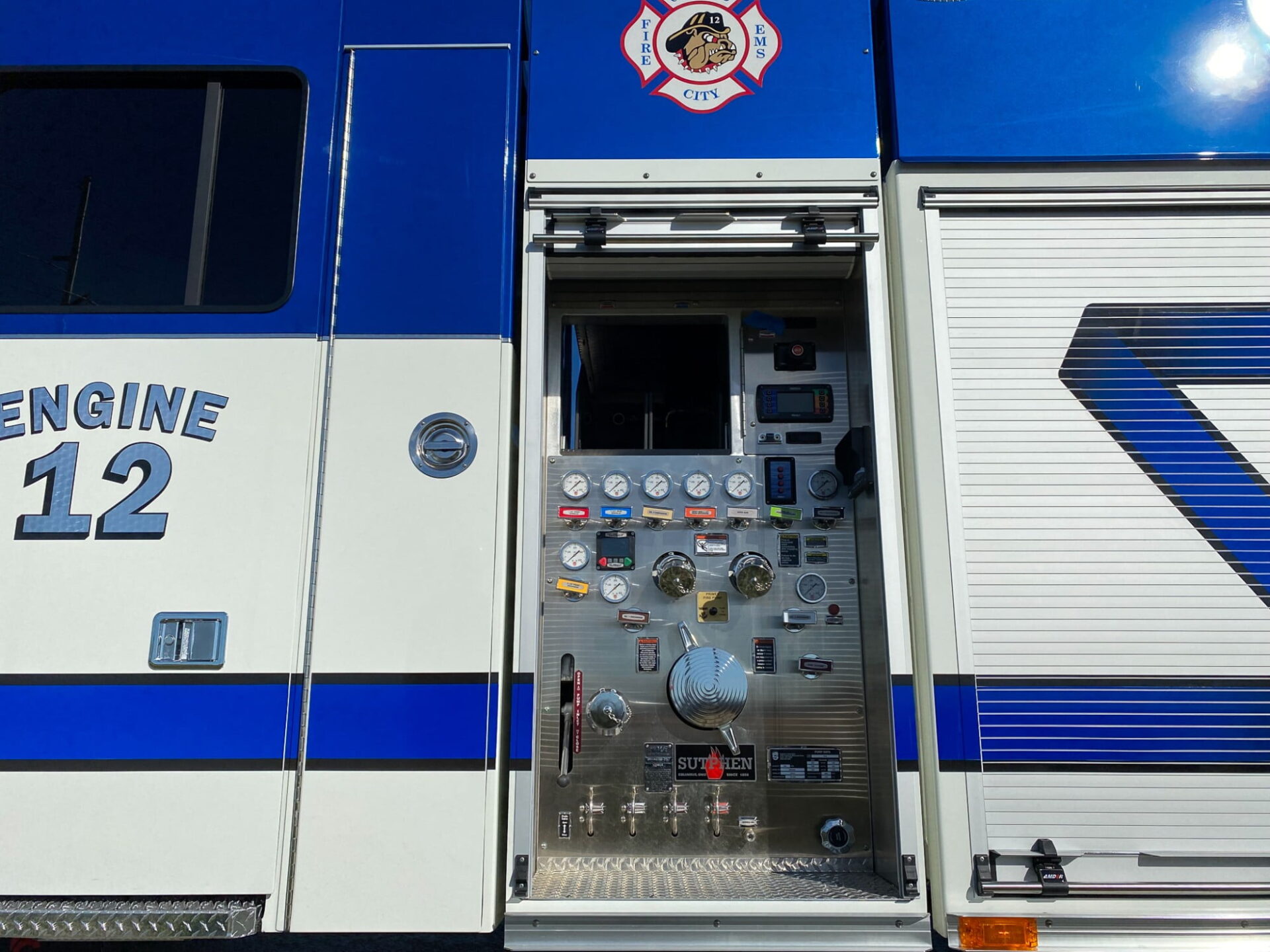

Water Pump
Qmax-2000 gpm single stage pump
Discharge
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 3” Right Rear, (1) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
Speedlays
(2) 2” w/ 1 ½” Swivels & Poly Lift-Out Trays
Water Tank
1,000-gallon
Construction
3/16” extruded aluminum
Doors
Amdor compartment

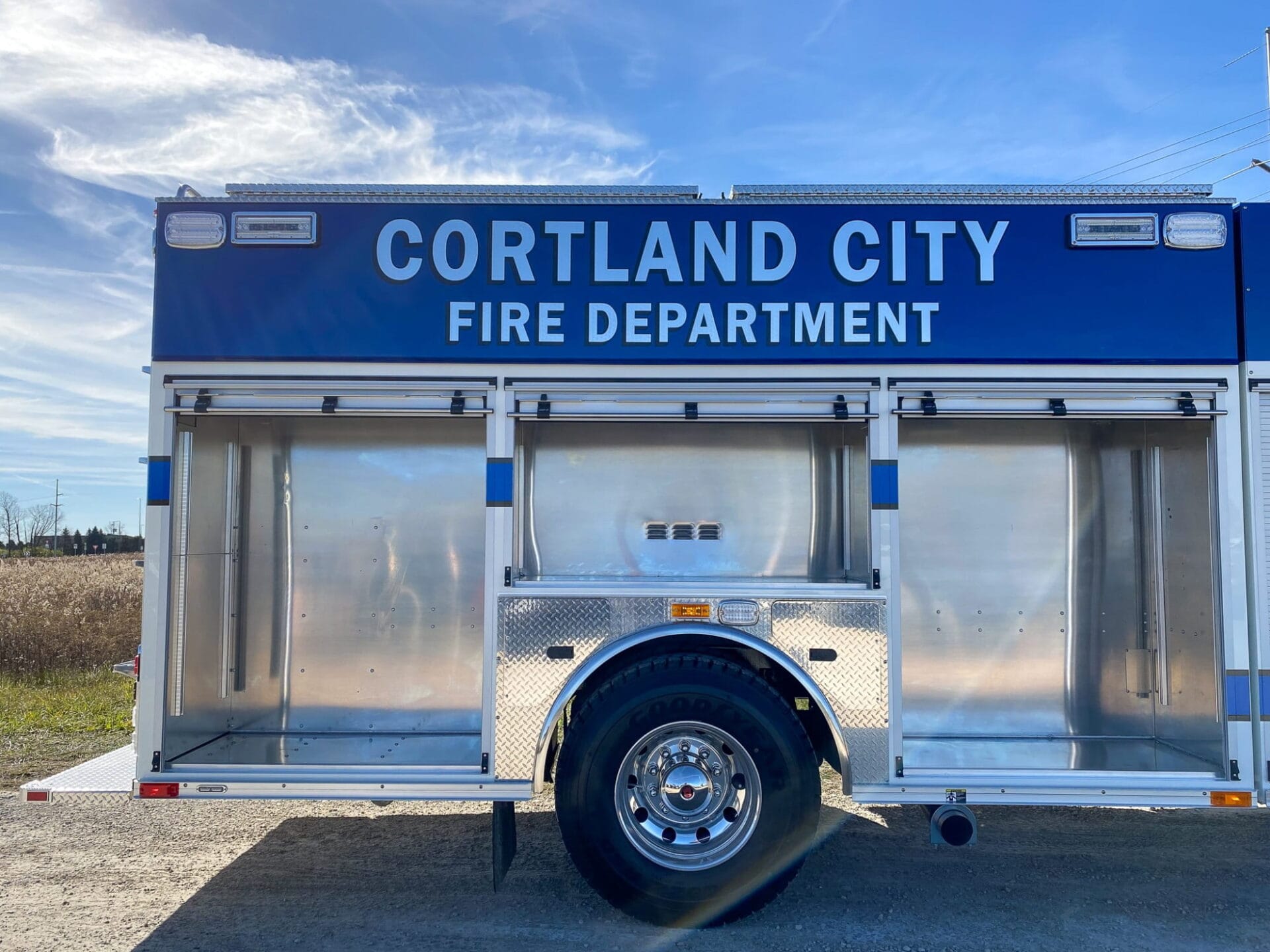

Total Compartment Space
Over 400 cu. ft.
Alco-Lite Ladder Compliment
PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
Body
S8 – Alum 56/53 Ladder through Tank & Double Hatch
Bumper Extension
24” polished stainless steel,
Siren
Federal q2b , grille mount
Camera System
FRC, Inview Trueview, Two Cameras
Whelen Freedom IV
72” lightbar
FireTech 72” 12V
Brow light
12V Spectra Scene
Light
Whelen M9 Warning
Light
Whelen M6 Warning
Light
Whelen TAL65 Traffic
Advisor
Whelen M9V2 Warning/Scene
Light
