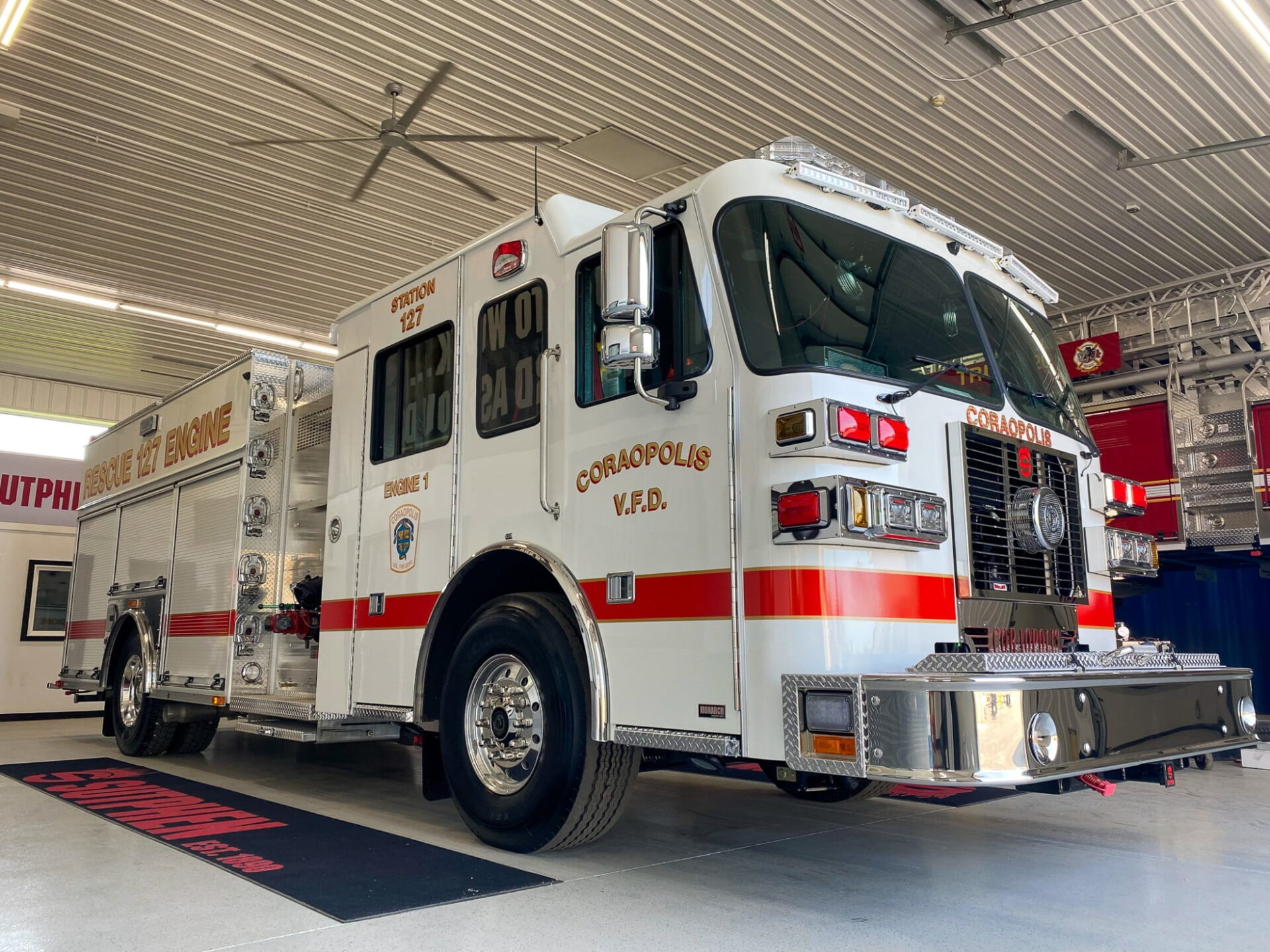

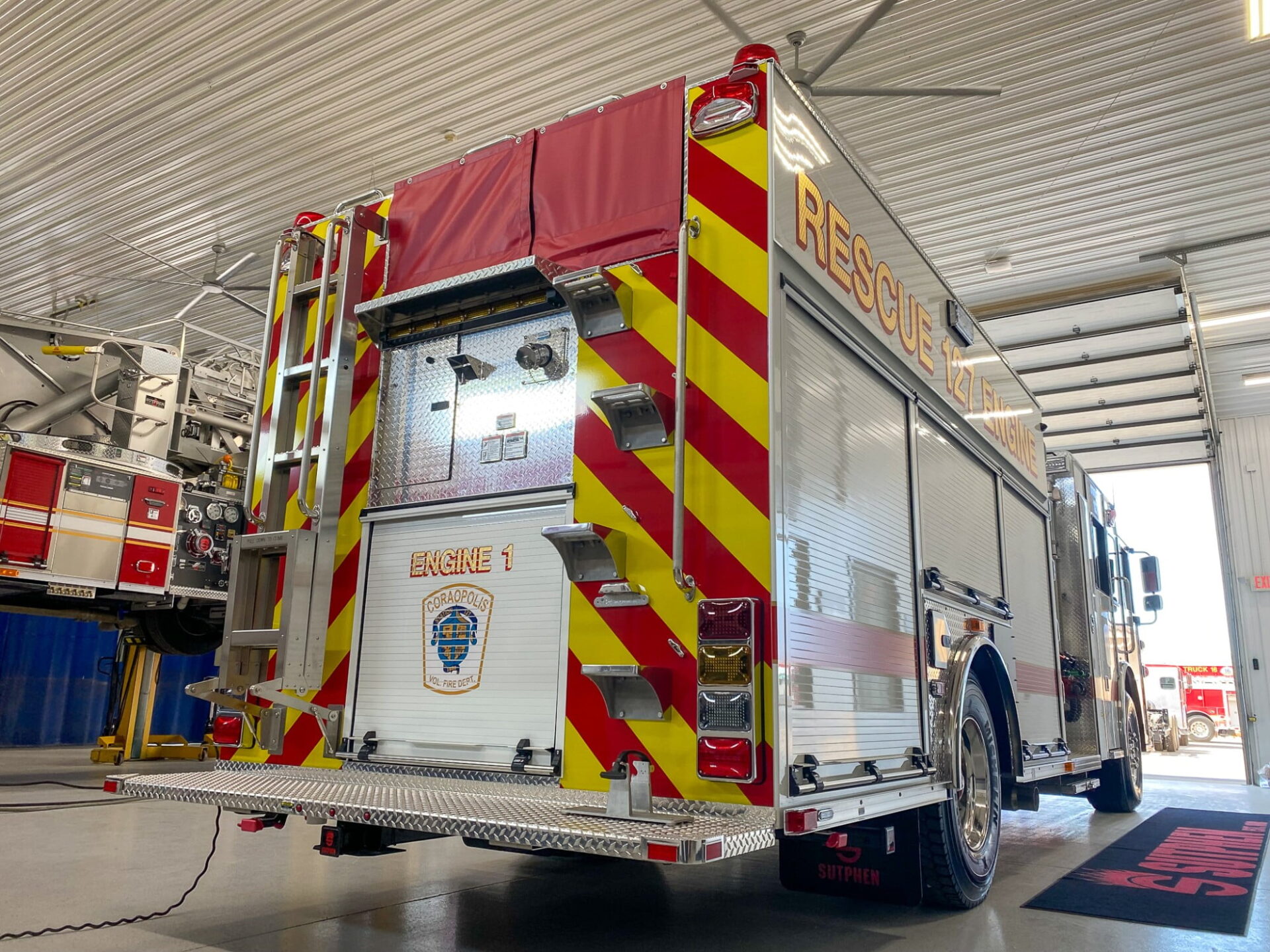

Custom Pumper – Coraopolis Fire Department, PA

Specs

Cab
Four-door, six-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
20,000 lbs.
Rear Axle and Suspension
27,000 lbs.
Engine
Cummins X 12, 500 HP
Alternator
Leece Neville 420 AMP
Transmission
Allison Gen 5, EVS4000
Water Pump
Qmax-1500 gpm single stage pump
Discharge
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Crosslay
(2) 2” w/ 1 ½” Swivel
Water Tank
500-gallon
Construction
3/16” extruded aluminum
Doors
Amdor roll up compartment
Total Compartment Space
Over 400 cu. ft.
Alco-Lite Ladder Compliment
PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
Body
S-8 Aluminum 56/53 Ladder through Tank & Double Hatch
Bumper Extension
18” polished stainless steel,
Siren
Federal q2b , grille mount
Camera System
FRC Inview, 360 Camera
Generator
Smart Power 6KW
Power
Hannay electric cord reel, 100’ (2)
Whelen Freedom IV
72” led lightbar
FireTech 3-Piece 72”
Led brow light
FRC Spectra Tele
Lights
Spectra 12V Scene
Light
Whelen M9V2 Lights
Included
