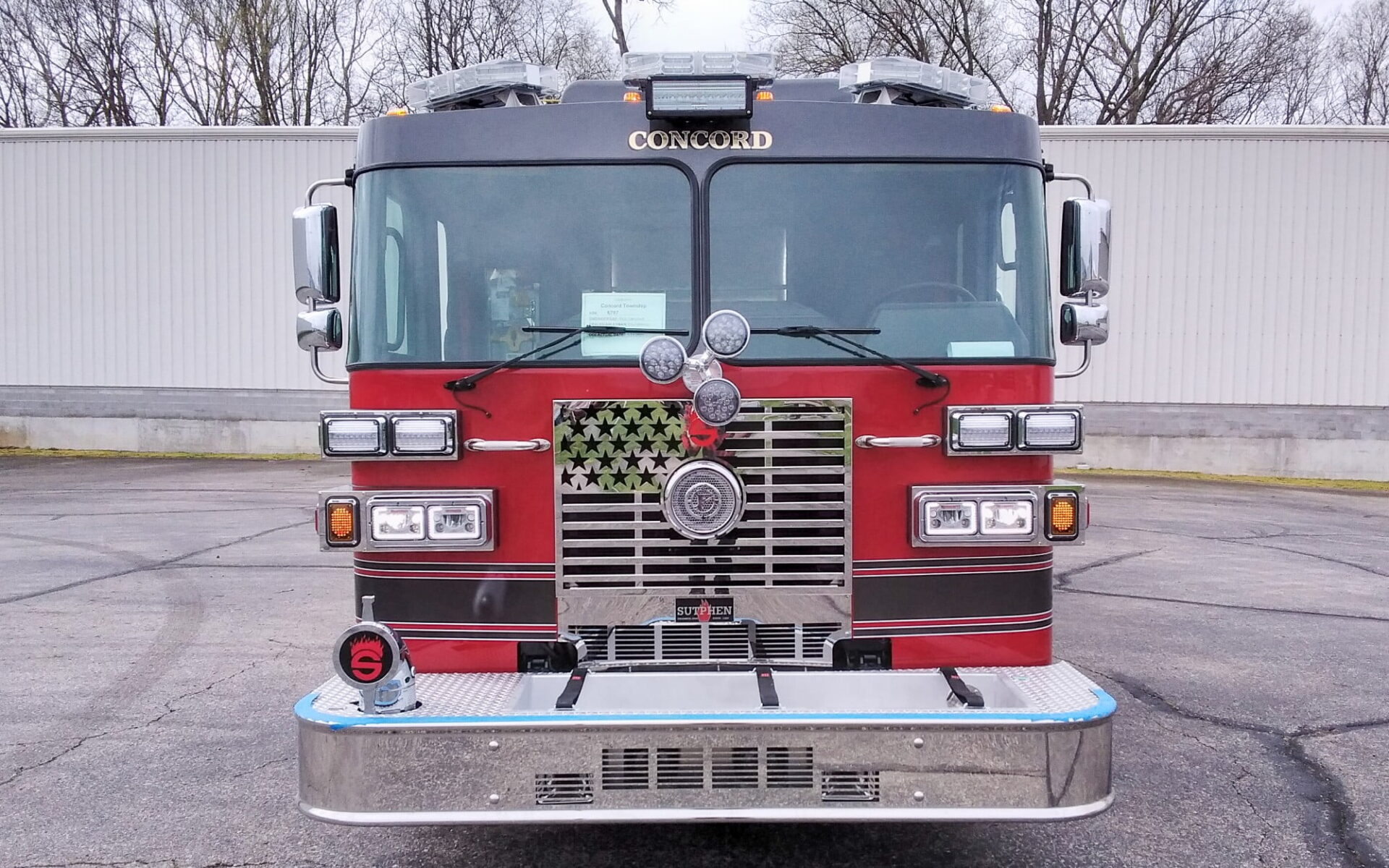

Custom Pumper – Concord Township, IN

Location:
Elkhart, IN
Department:
Concord Township

Specs

Cab
Four-door, four-person
10” Double Rails
Single axle (50k psi)
Front Suspension 20,000
Lbs.
Rear suspension 27,000lbs
.
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville 420 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Csu-1500 single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front Left of Main Hosebed, (1) 2 ½” Front Right of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Speedlay
(2) 2” w/ 1 ½” Swivel
Water Tank
1000-gallon
Construction
3/16” extruded aluminum
Doors
Rom roll-up compartment painted

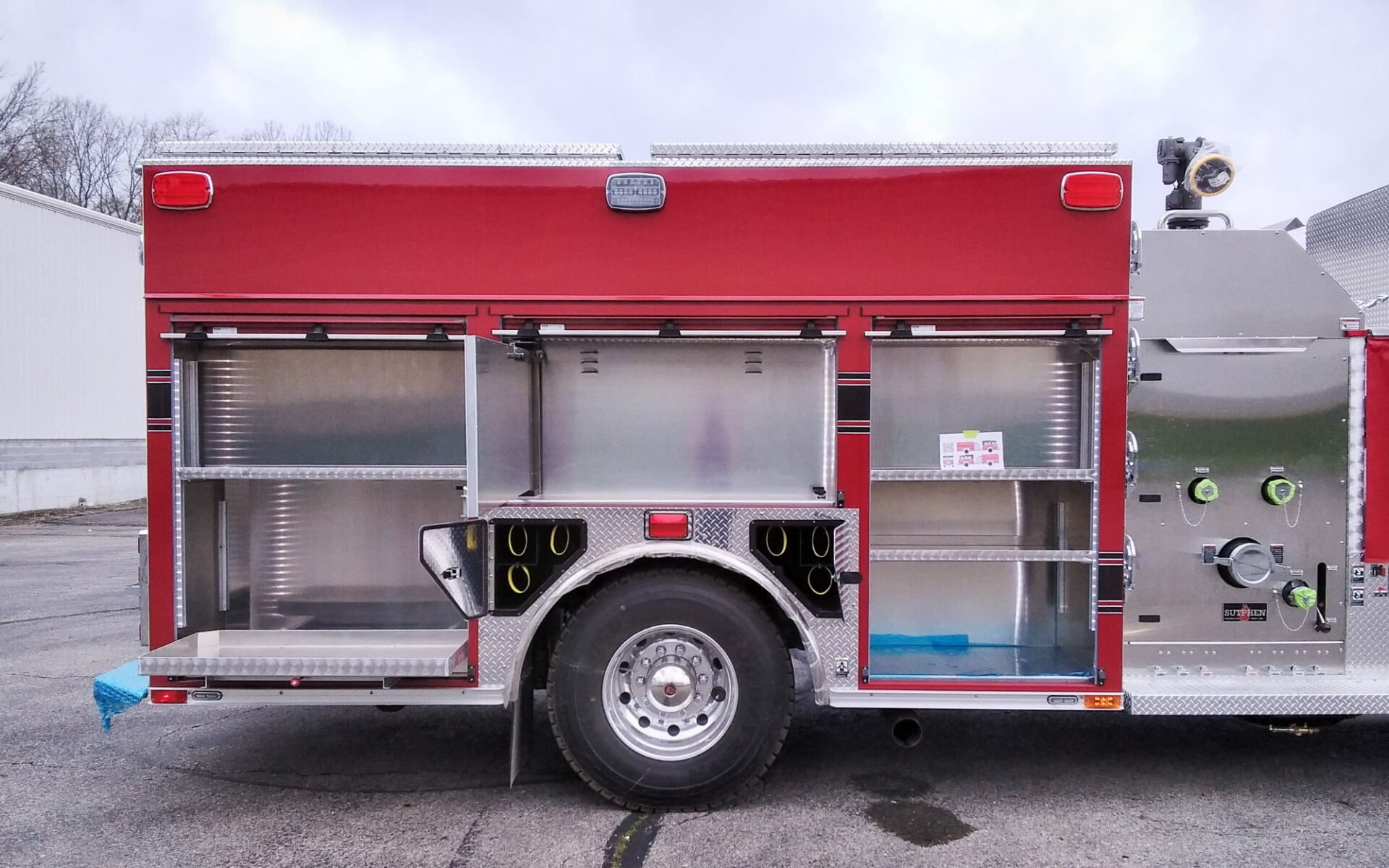

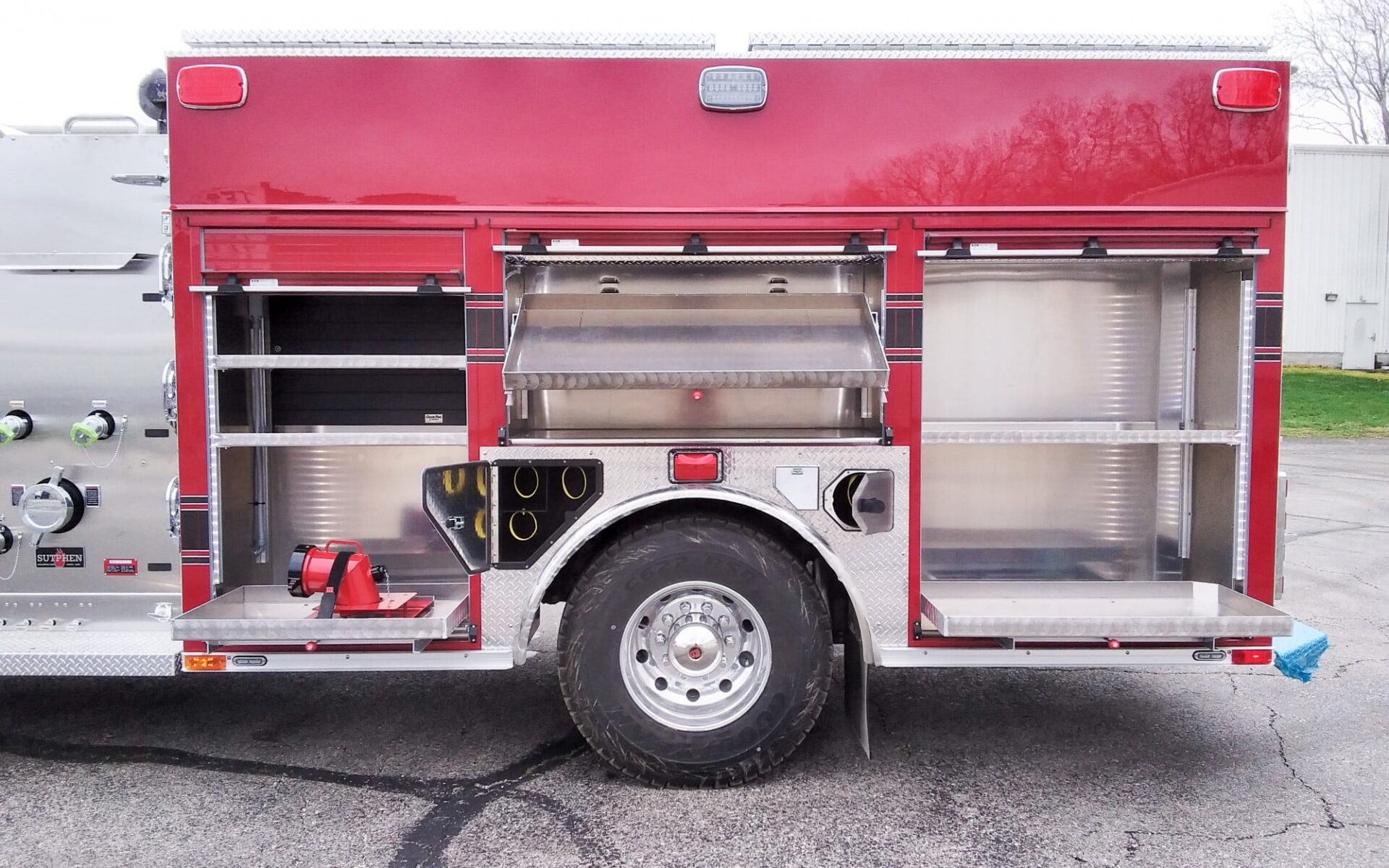

Total Compartment Space
270 cu. ft.
Ladder Compliment
Alco-lite (pel-24 24’ 2-section & prl-14 14’ roof & 10’ folding)
Body
G2 – Aluminum 40/51 Ladder Chute
Bumper Extension
24” polished stainless-steel bumper
Siren
Federal q2b , grille mount
Roto-Ray Warning Light
Included
Whelen Freedom IV
21” lightbars
Whelen Traffic Advisor
Led, tal65 36”
Whelen M9 Scene
Included
Whelen M9 Red
Led
FRC Spectra Brow
Light
