Custom Pumper – Commerce Fire Department, TX

Truck Type:

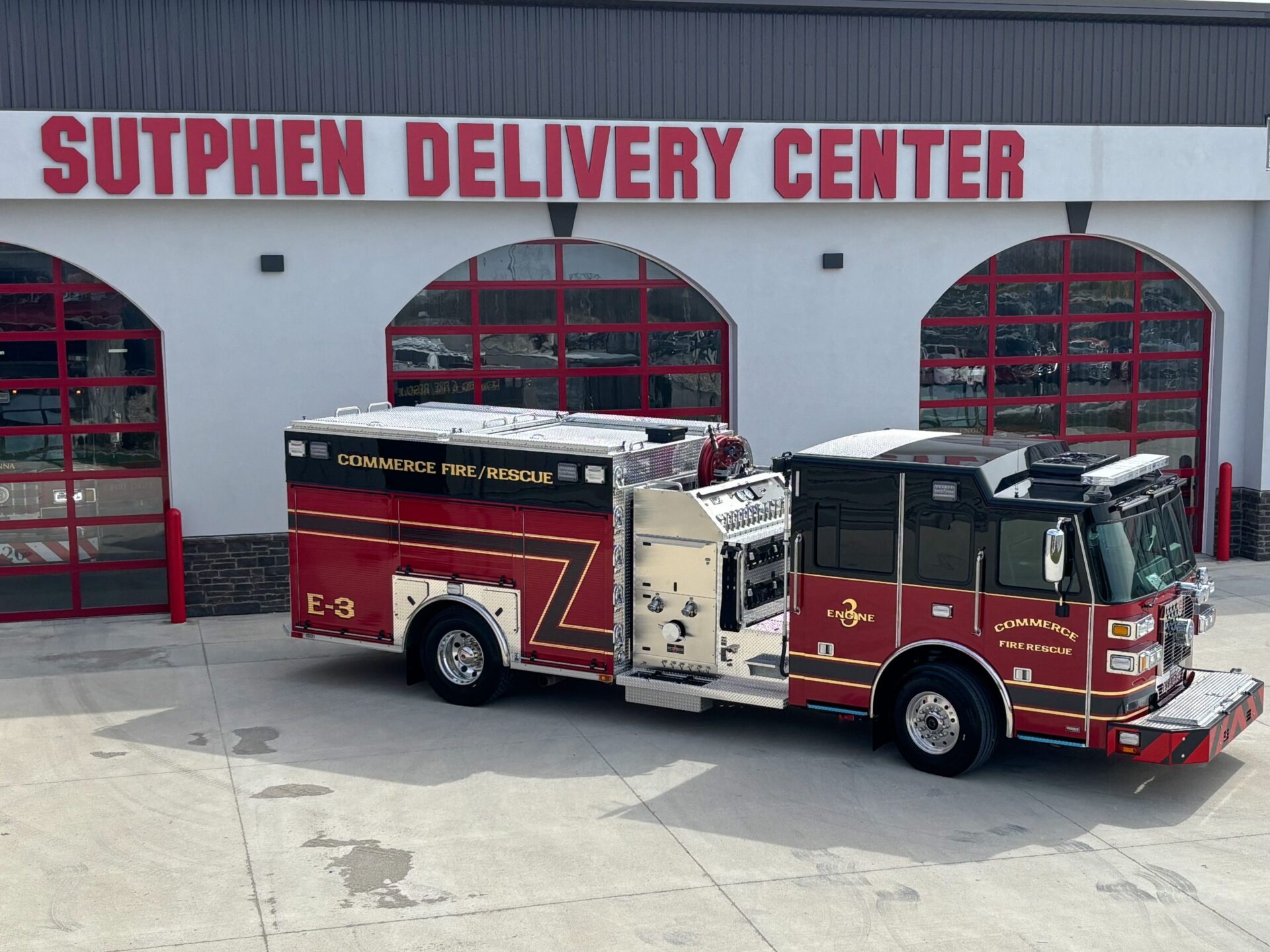

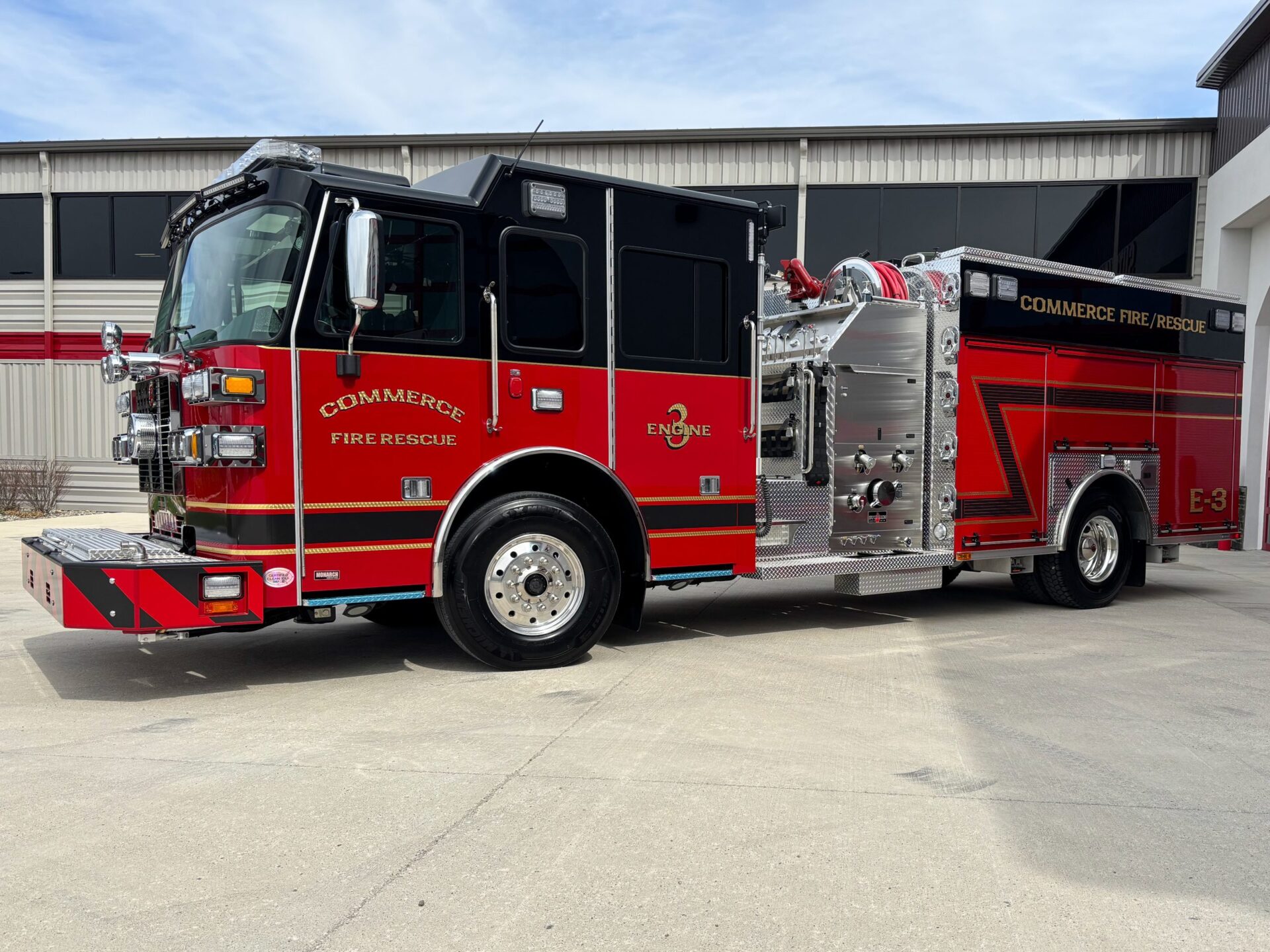

Sutphen Heavy-Duty Custom Pumper
Dealer:
Sutphen
Location:
Commerce, TX
Department:
Commerce Fire Department

Specs

Cab
Four-door, five-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins X 12, 500 HP
Alternator
Leece Neville, 420 AMP
Transmission
Allison Gen 6, EVS4000
Water Pump
Qflo-1250 gpm, single stage pump
Discharges
(2) 2 ½” Left, (2) 2 ½” Right, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, 2” Plumbing, (1) 3” Deck Gun
Speedlay
(2) 2” w/ 1 ½” Swivel
Water Tank
1,000-gallon
Construction
3/16” extruded aluminum
Doors
Amdor roll up compartment
Total Compartment Space
Over 245 cu. ft. of compartment space
Alco-Lite Ladder Package
24’ 2-Section, 14’ R & 10’ F
Body
G9 – Alum 40/51 Ladders Through Tank
Bumper Extension
24” formed steel channel, painted bumper
Siren
Federal q2b , grille mount
Intercom System
SetCom Wired
RotoRay Warning Light
Included
Whelen Freedom IV
72” led light bar 12 modules
FireTech Brow Light
Included
Whelen 900 Scene
Light
Whelen Traffic Advisor
Included
