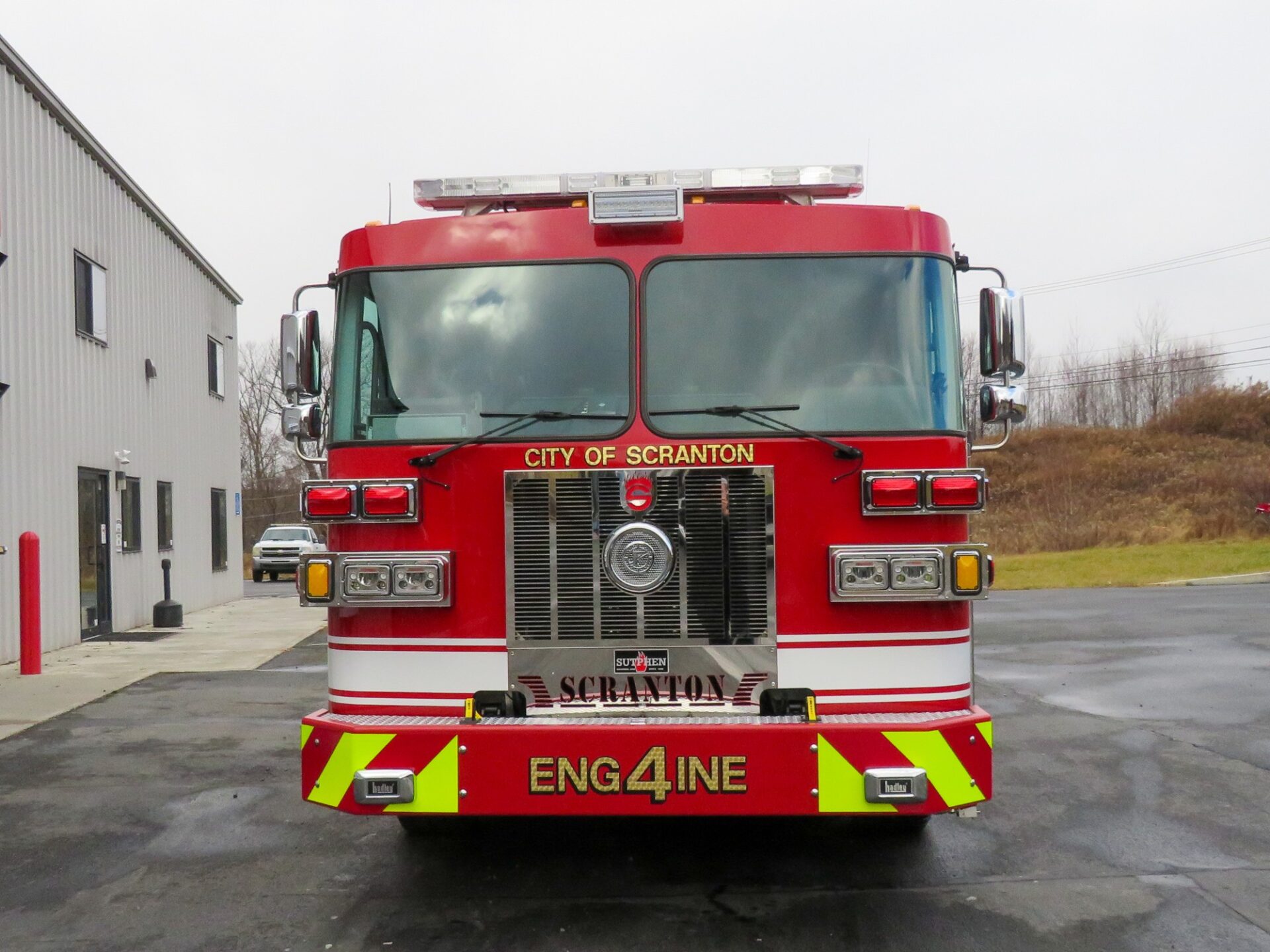

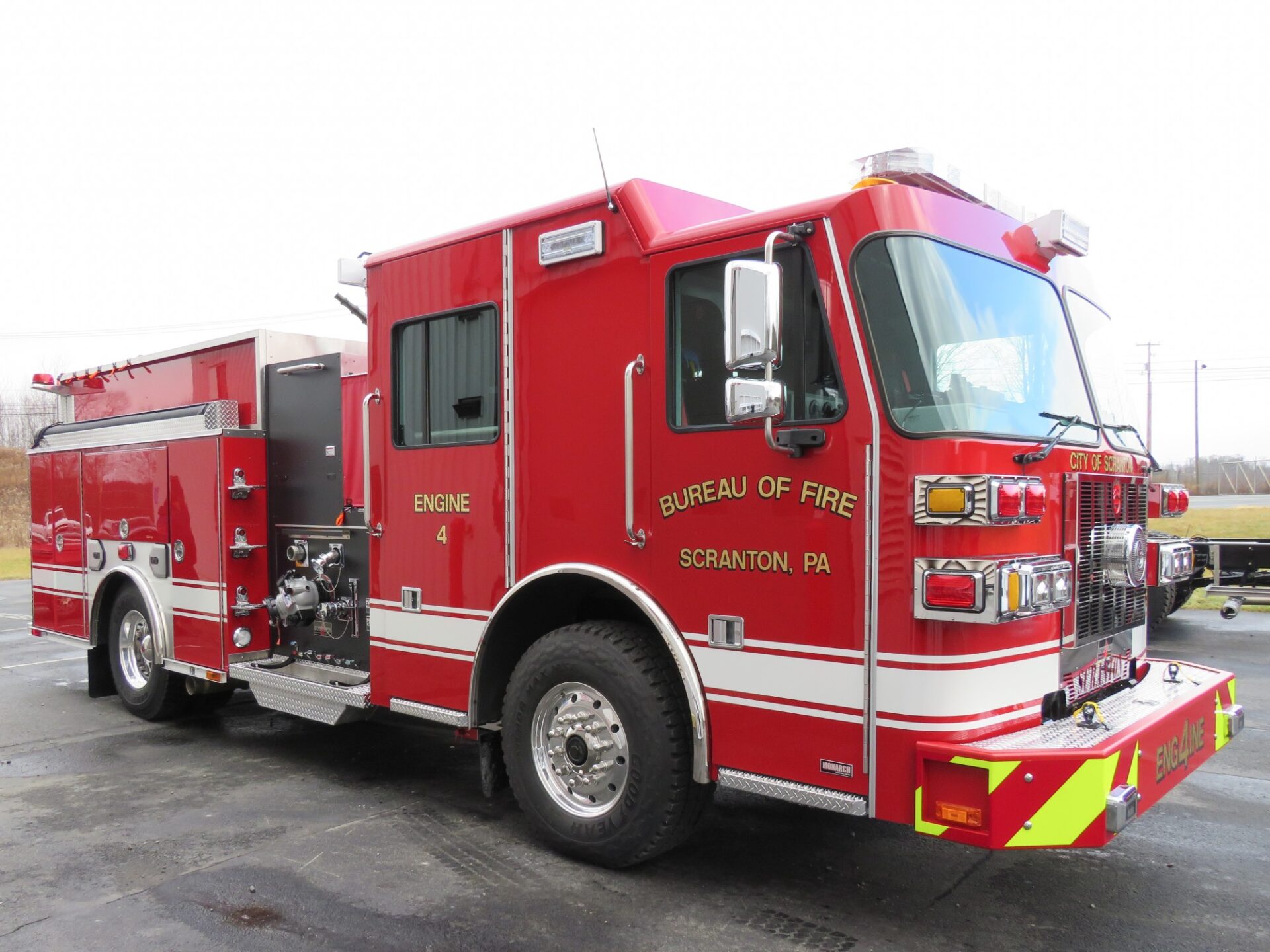

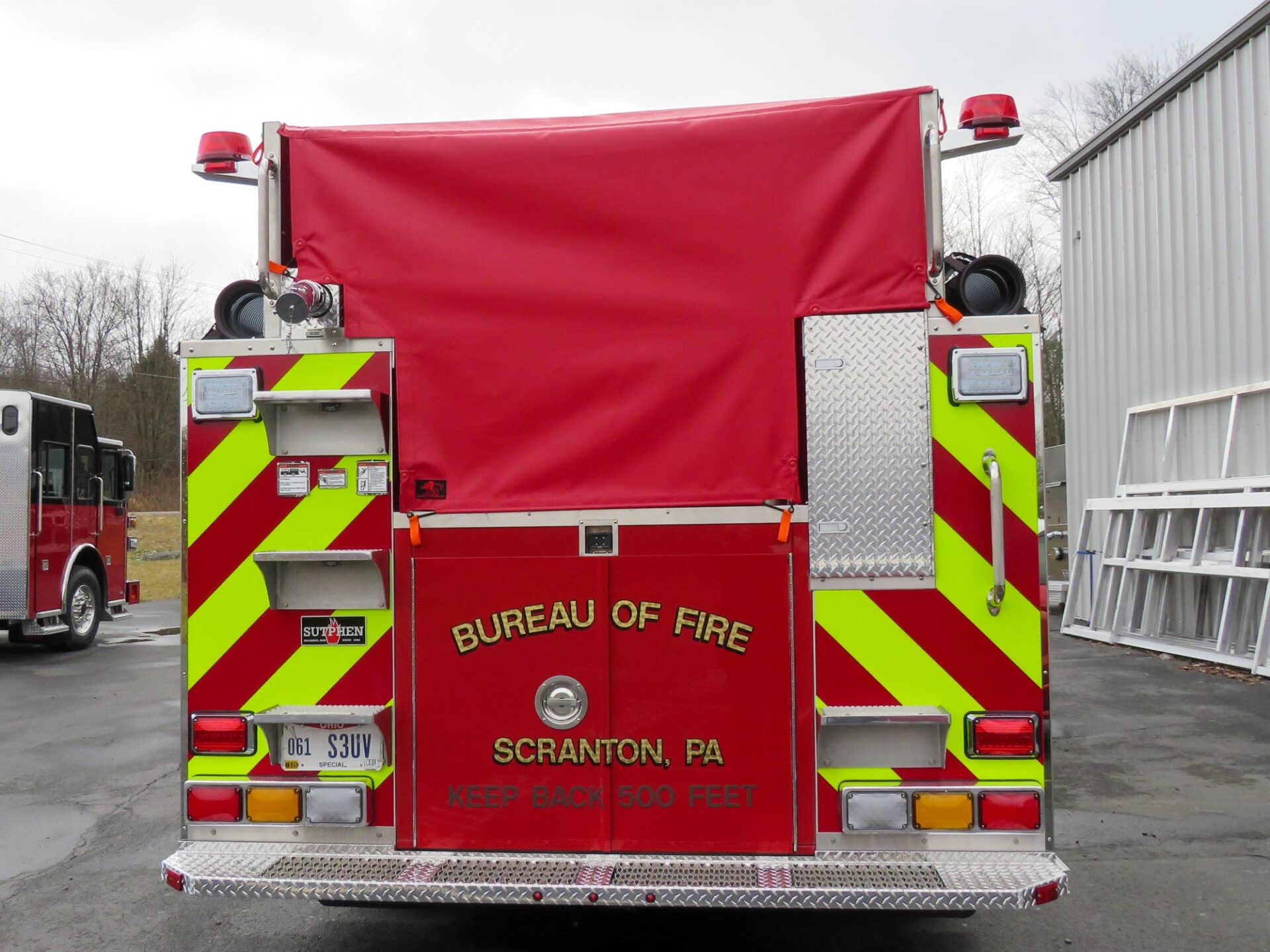

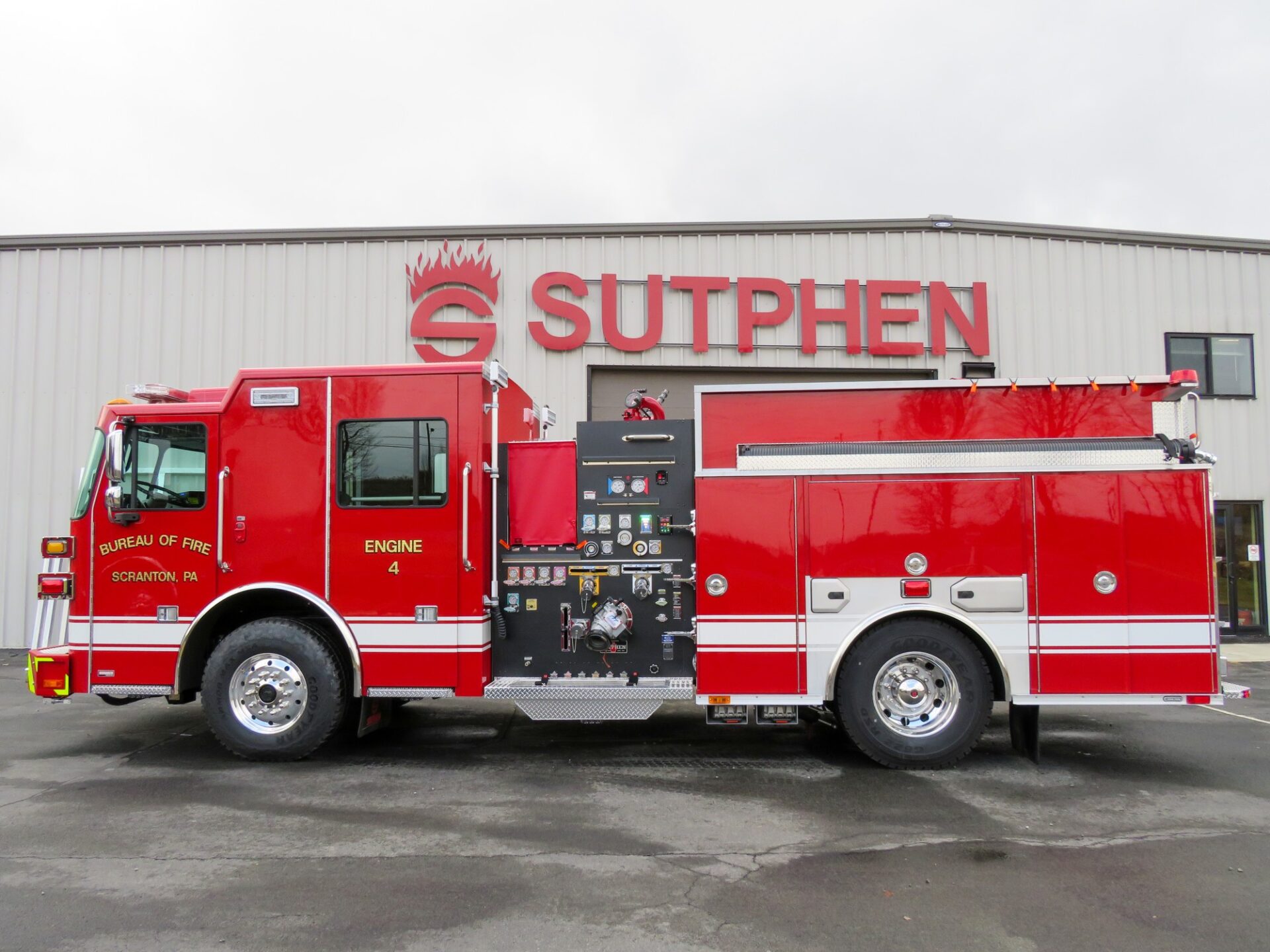

Custom Pumper – City of Scranton Fire Department, PA

Location:
City of Scranton, PA
Department:
City of Scranton Fire Department

Specs

Cab
Four-door, four-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
20,000 lbs.
Rear Axle and Suspension
27,000 lbs.
Engine
Cummins L 9, 450HP
Alternator
Leece Neville 320 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Qmax-1500 gpm, single stage pump
Discharge
(2) 2 ½” Left, (1) 2 ½” Right, (1) 3” Right, (1) 1 ½” Right, (1) 3” Pipe to Left Rear, (1) 2 ½” Front/Right of Main Hosebed, (1) 3” Deck Gun
Crosslays
(4) 2” Valve-Piping 1 ½” Swivel
Water Tank
750-gallon
Construction
Huckbolt #304 stainless steel
Doors
Hinged compartment
Total Compartment Space
170 cu. ft.
Duo-Safety Ladder Package
900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding
Body
PS-02 RES 30/47 Ladder Chute
Bumper Extension
12” formed steel channel,
Siren
Federal q2b , grille mount
Camera System
Brigade, Single Camera
FRC Spectra LED
Brow light
Whelen Freedom IV
72” led light bar
Opticom Mounted in
Lightbar
FRC Spectra Tele
Lights
FRC Spectra LED
Scene lights
