Custom Pumper – City of Oxford Fire Department, OH
Truck Type:
Dealer:
Location:
City of Oxford, OH
Department:
City of Oxford Fire DepartmentSpecs
Cab
Four-door, four-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins L 9 450HP
Alternator
Leece Neville 420 AMP
Transmission
Allison Gen 5, EVS3000

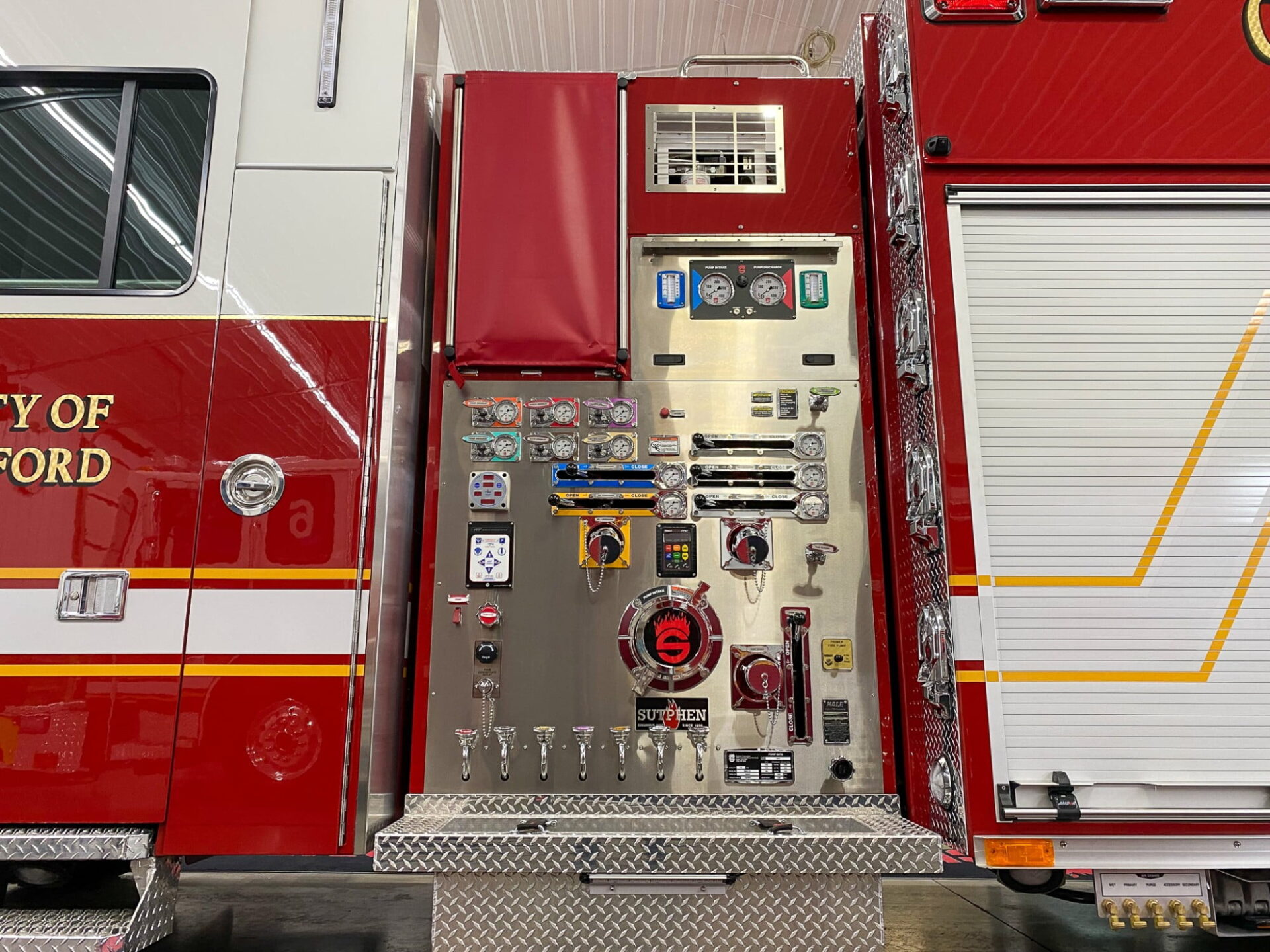

Water Pump
Qmax-1750 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/Left, (1) 2 ½”Front/ Right, (1) 2 ½” Front Bumper Swivel, (1) 3” Deck Gun
Water Tank
750-gallon
Water Tank
20-gallon foam tank
Construction
3/16” extruded aluminum
Doors
Amdor roll-up compartment
Total Compartment Space
Over 385 cu. ft.
Duo-Safety Ladder Package
28’ 2-Section, 16’ Roof & 10’ Folding
Body
PA-17 56/53 Chute & Double Hatch
Bumper Extension
30” polished stainless steel bumper
Siren
Federal q2b , grille mount
Camera System
FRC Inview
Power
Hannay electric cord reel, 150’ (1)
Generator
Smart Power 6KW
Whelen Freedom IV
72” led light bar
FR Spectra 12V
Brow
FR Spectra 12V
Scene
FR Spectra 900
12v
Gallery
