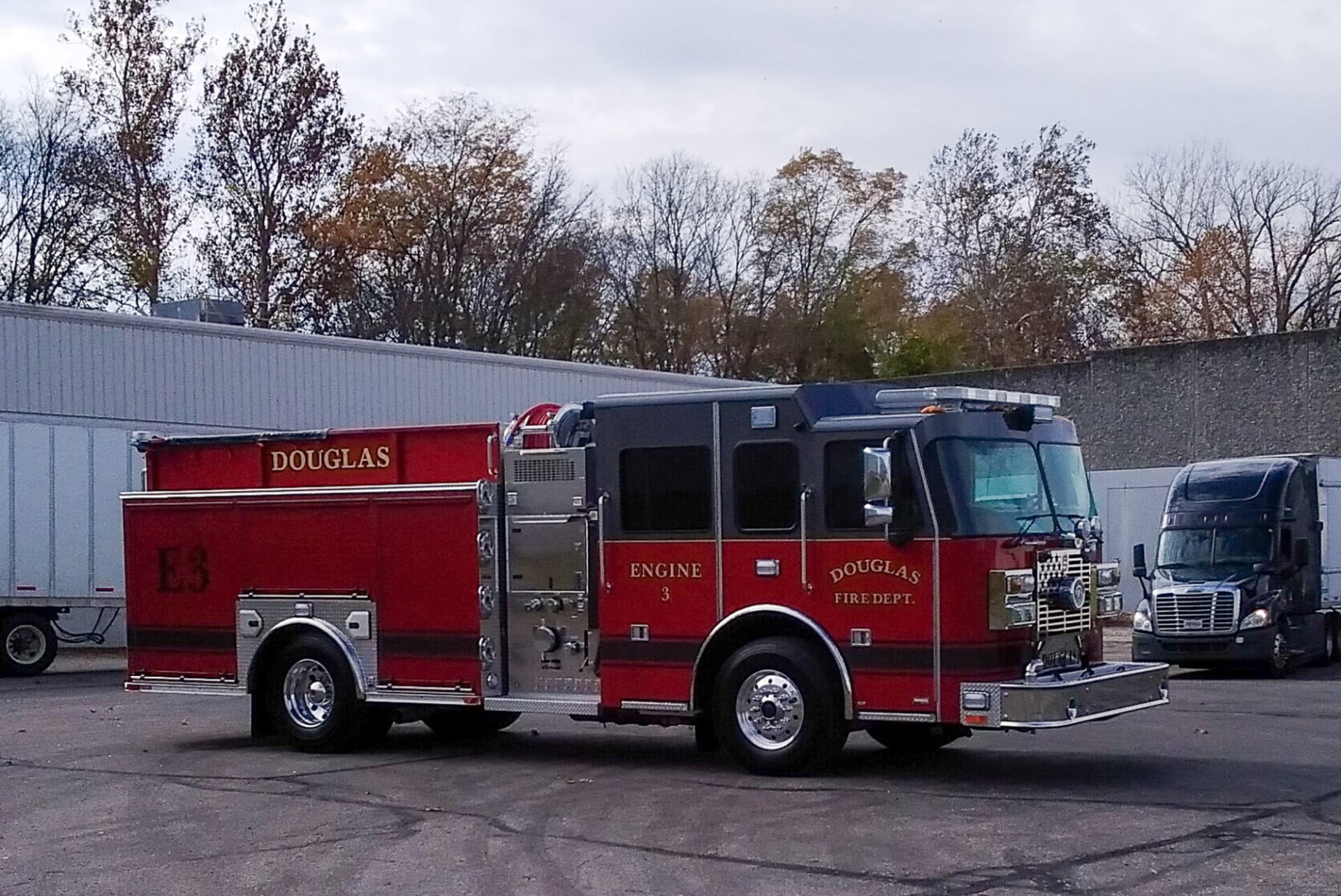

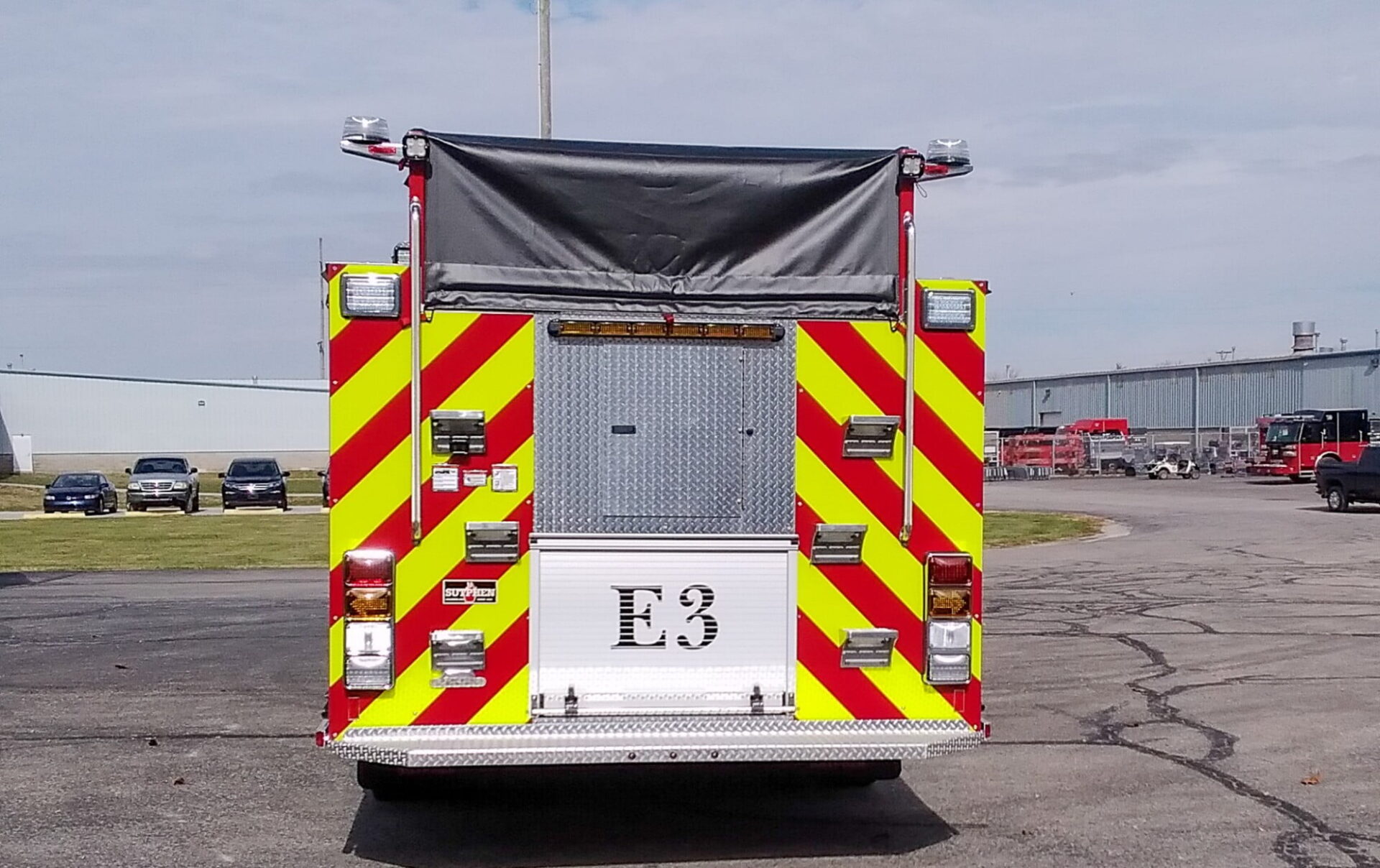

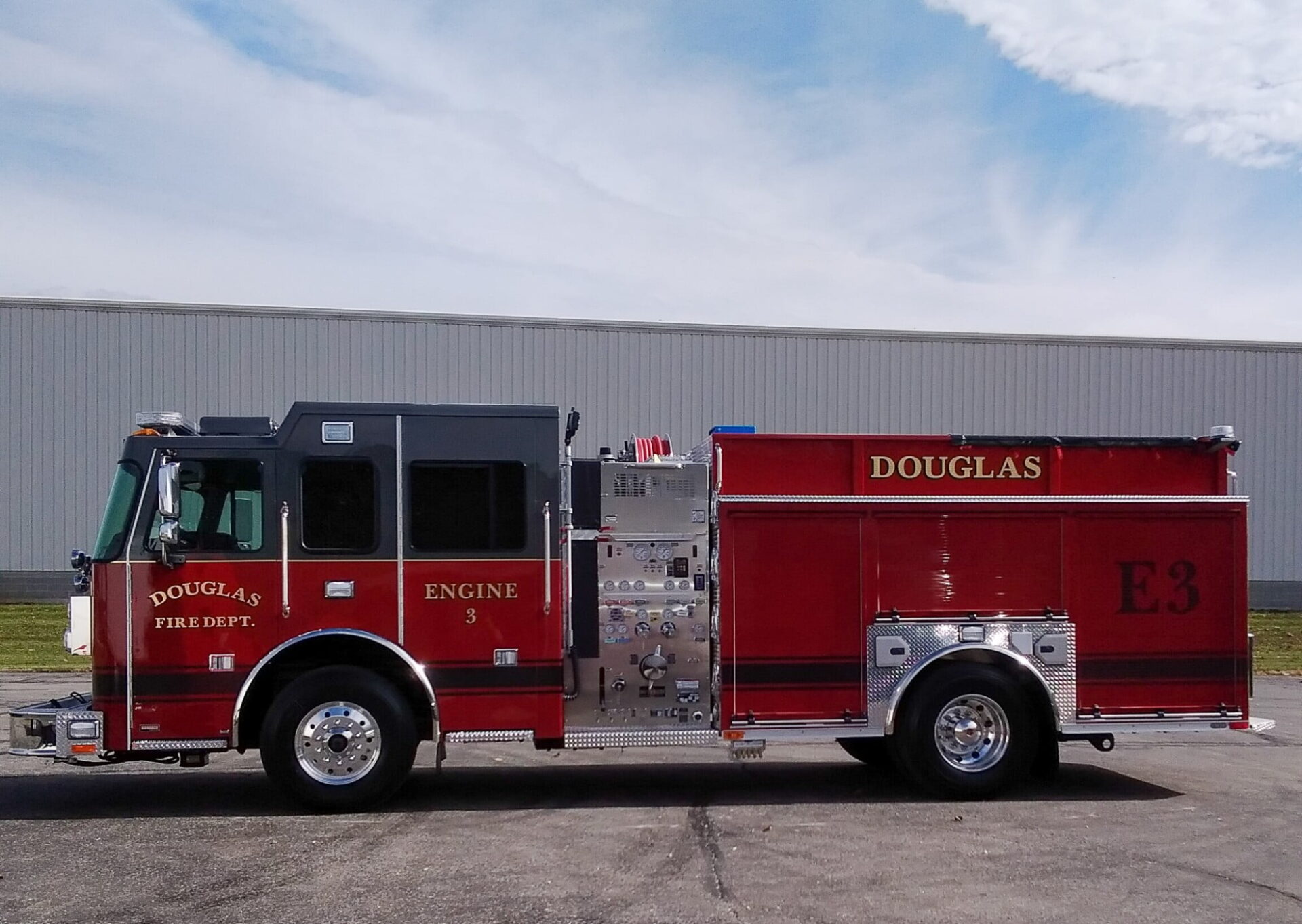

Custom Pumper – City of Douglas Fire Department, GA

Specs

Cab
Four-door, six-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
19,000 lbs.
Rear Axle and Suspension
27,000 lbs.
Engine
Cummins L 9, 450HP
Alternator
Leece Neville 320 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Qmax-1500 gpm, single stage pump
Discharge
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front Left of Main Hosebed, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
Crosslay
(1) 2 ½”
Speedlay
(2) 2” w/ Swivels & Poly Lift-Out Trays
Water Tank
1,000 -gallon
Construction
3/16” extruded aluminum
Doors
Amdor roll-up compartment
Total Compartment Space
246 cu. ft.
Alco Lite Ladder Package
PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
Body
G9 – Alum 40/51 Ladders through Tank
Bumper Extension
18” polished stainless steel bumper
Siren
Federal q2b , grille mount
Camera System
FRC, Inview Trueview, Two Cameras
Power
Hannay electric cord reel, 150’ (1)
Generator
6KW Smart Power
FRC Spectra Brow
Light
Whelen Freedom LED
Lightbar
FRC 900 LED
Scene lights
FRC Spectra Telescopic
Lights
FireTech LED Work
Lights
Whelen LED Traffic
Advisor
