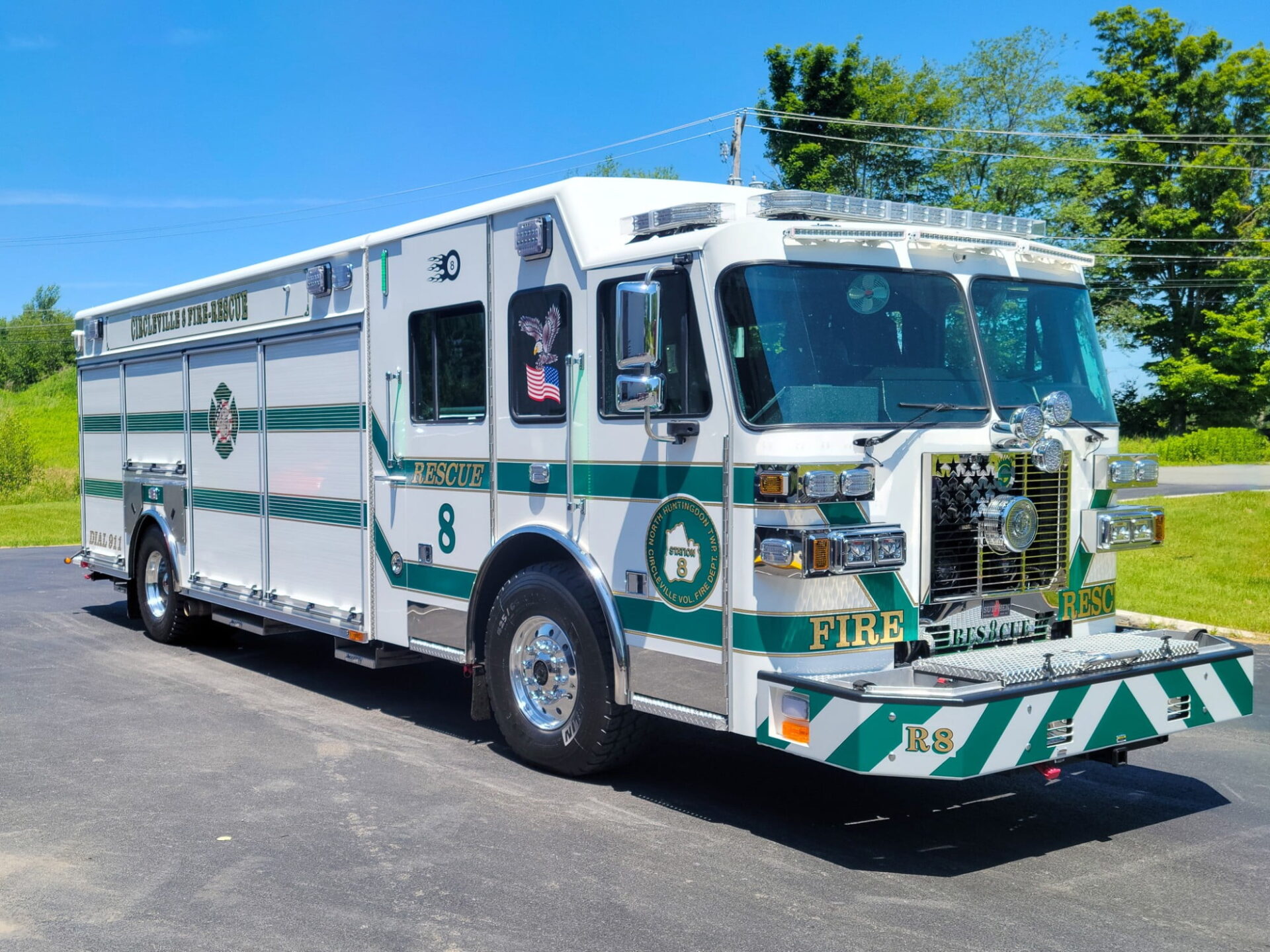

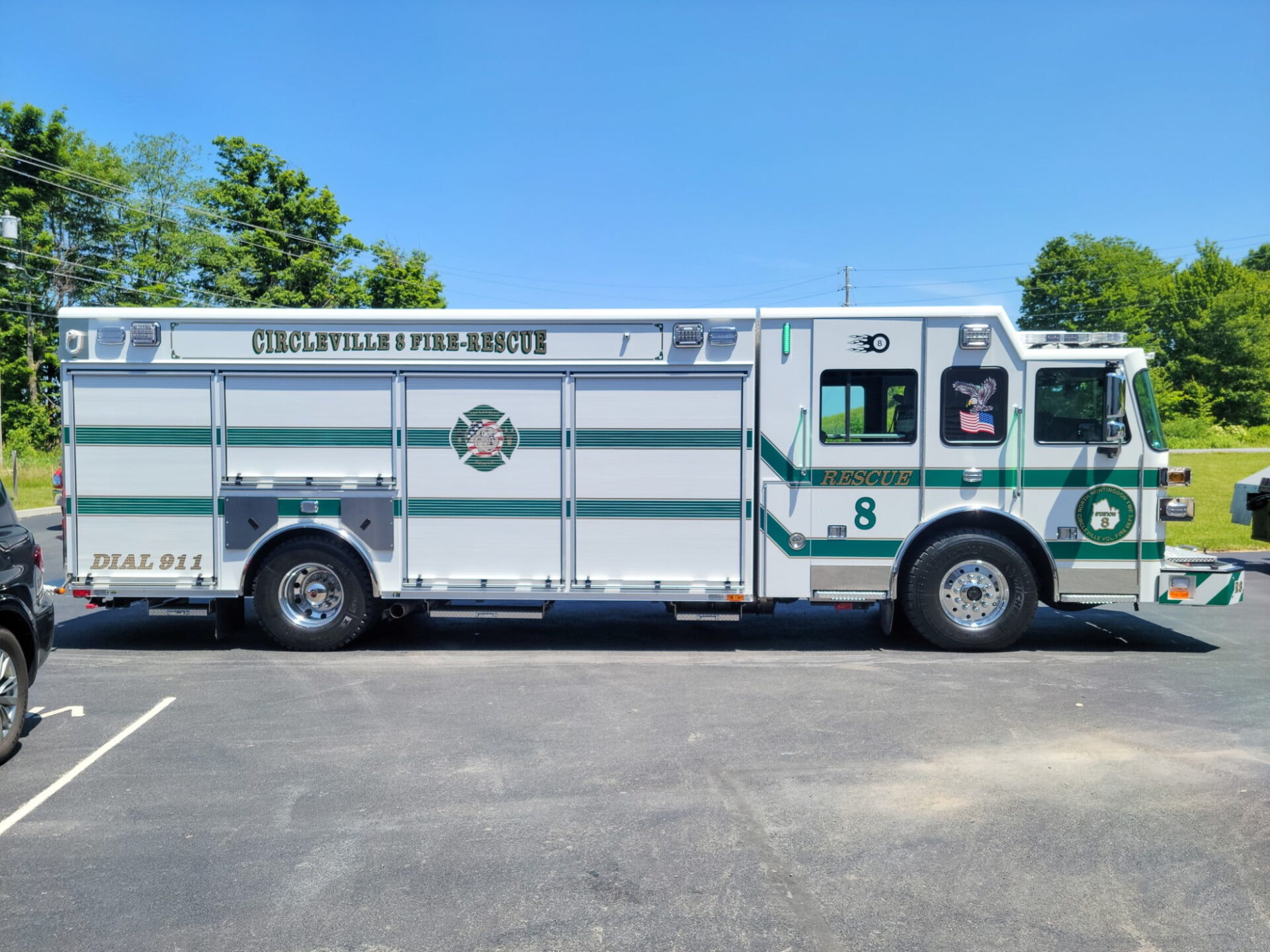

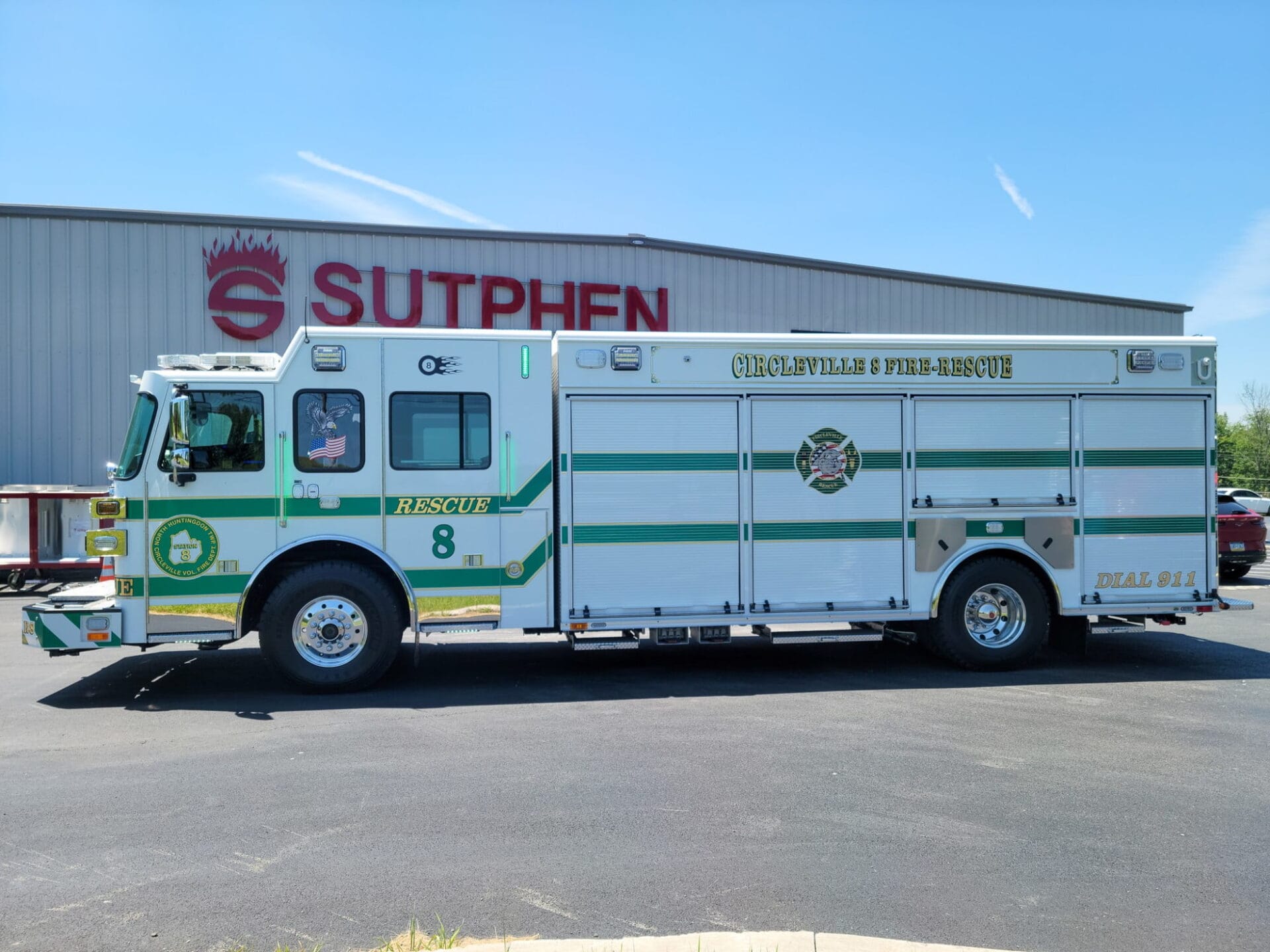

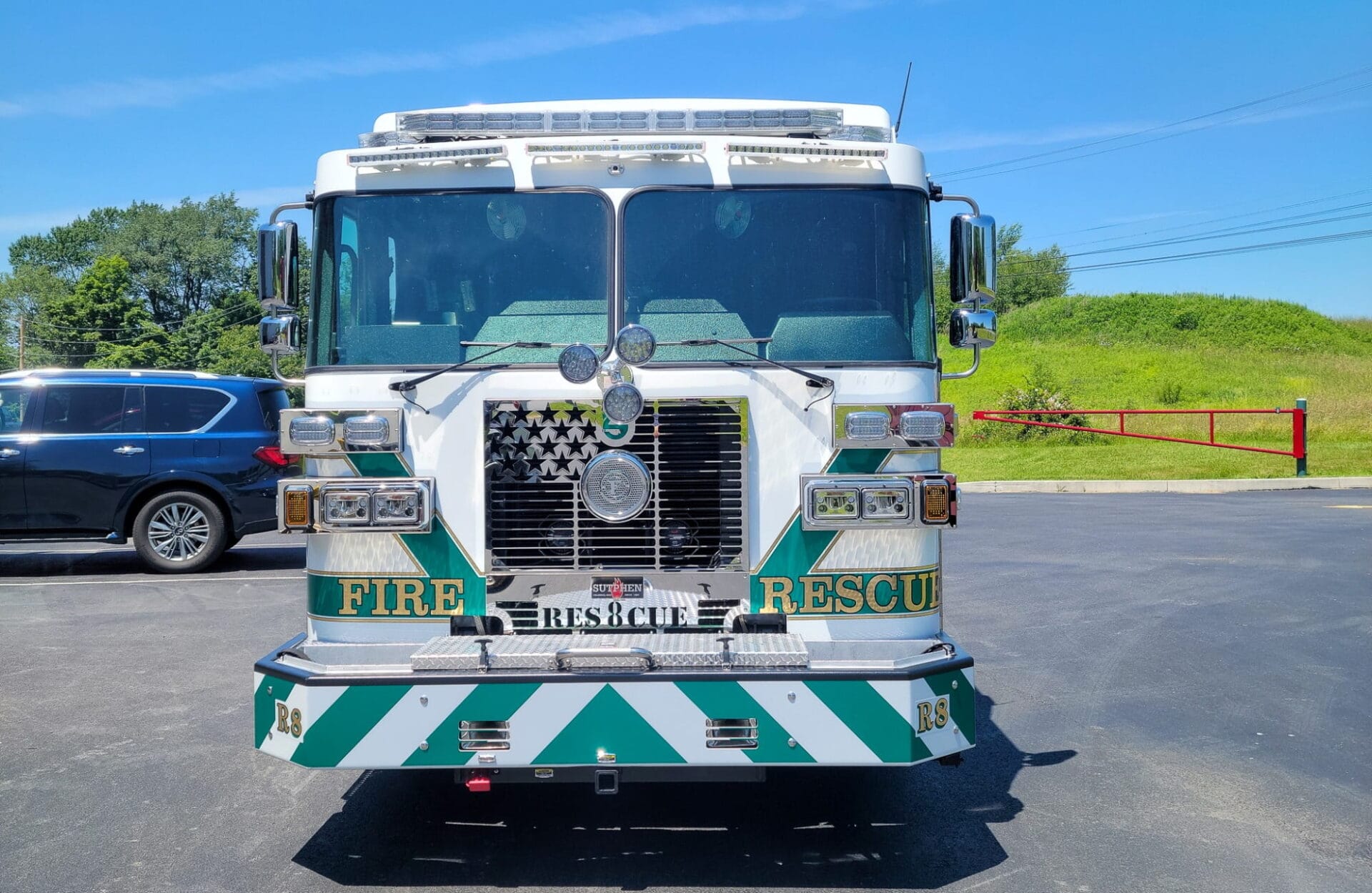

Custom Pumper – Circleville VFD, PA

Location:
North Huntingdon, PA
Department:
Circleville VFD

Specs

Cab
Four-door, eight-person
10” Double Domex
Frame rails (110k psi)
Front Axle and Suspension
23,000 lbs
Rear Axle and Suspension
31,000 lbs
Engine
Cummins X 15 600HP
Alternator
Leece Neville 420 AMP
Transmission
Allison Gen 5, EVS4000
Water Pump
Xs qmax-2000 gpm, single stage pump
Discharges
(1) 2 ½” Left, (2) 4” Right, (1) 2 ½” Right, (2) 2” Right Rear, (1) 3” Front/Left, (2) 1 ½” Front Bumper, (1) 3” Deck Gun, (4) Foam Discharges
Water Tank
750-gallon
Water Tank
50-gallon foam tank
Foam System
Hale Smartfoam 5.0
Construction
3/16” extruded aluminum
Doors
Amdor roll-up painted compartment
Total Compartment Space
Over 485 cu. ft.
Alco-Lite Ladder Package
Pel-24 24 2’ Section & PRL-14 14’ Roof & 10’ Folding
Body
PA-15 RES 56/53 Ladder Chute
Bumper Extension
24” formed steel bumper
Siren
Federal q2b , grille mount
Camera System
Brigade 360, Backeye 360 Camera System
Generator
Smart Power, 10KW TM HYD
Whelen Freedom 72”
Led lightbar
Whelen 21” Freedom
Lightbar
Whelen M6 Warning
Lights
Fire Tech Guardian
Elite scene lights
Fire Tech 3
Piece brow light
