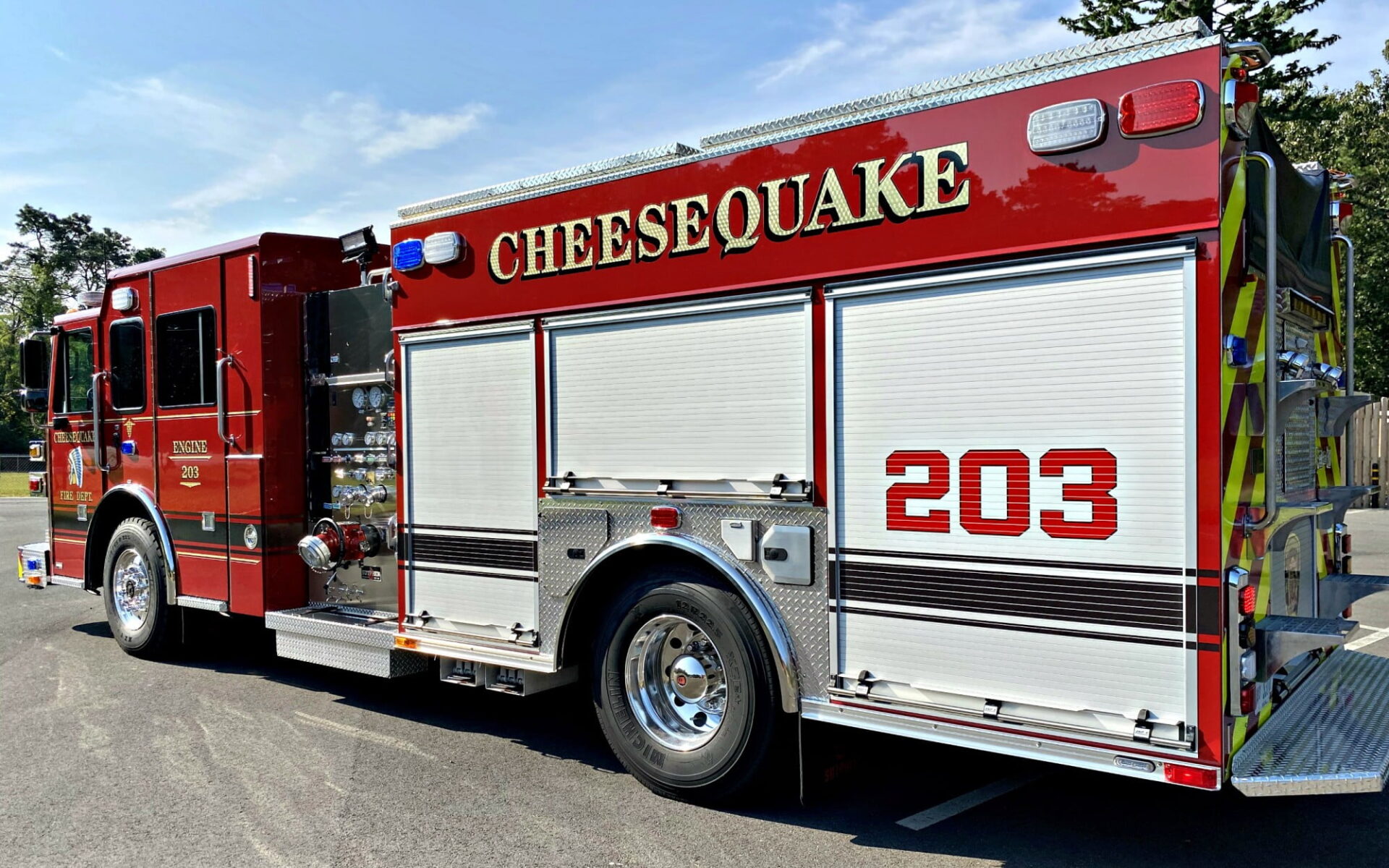

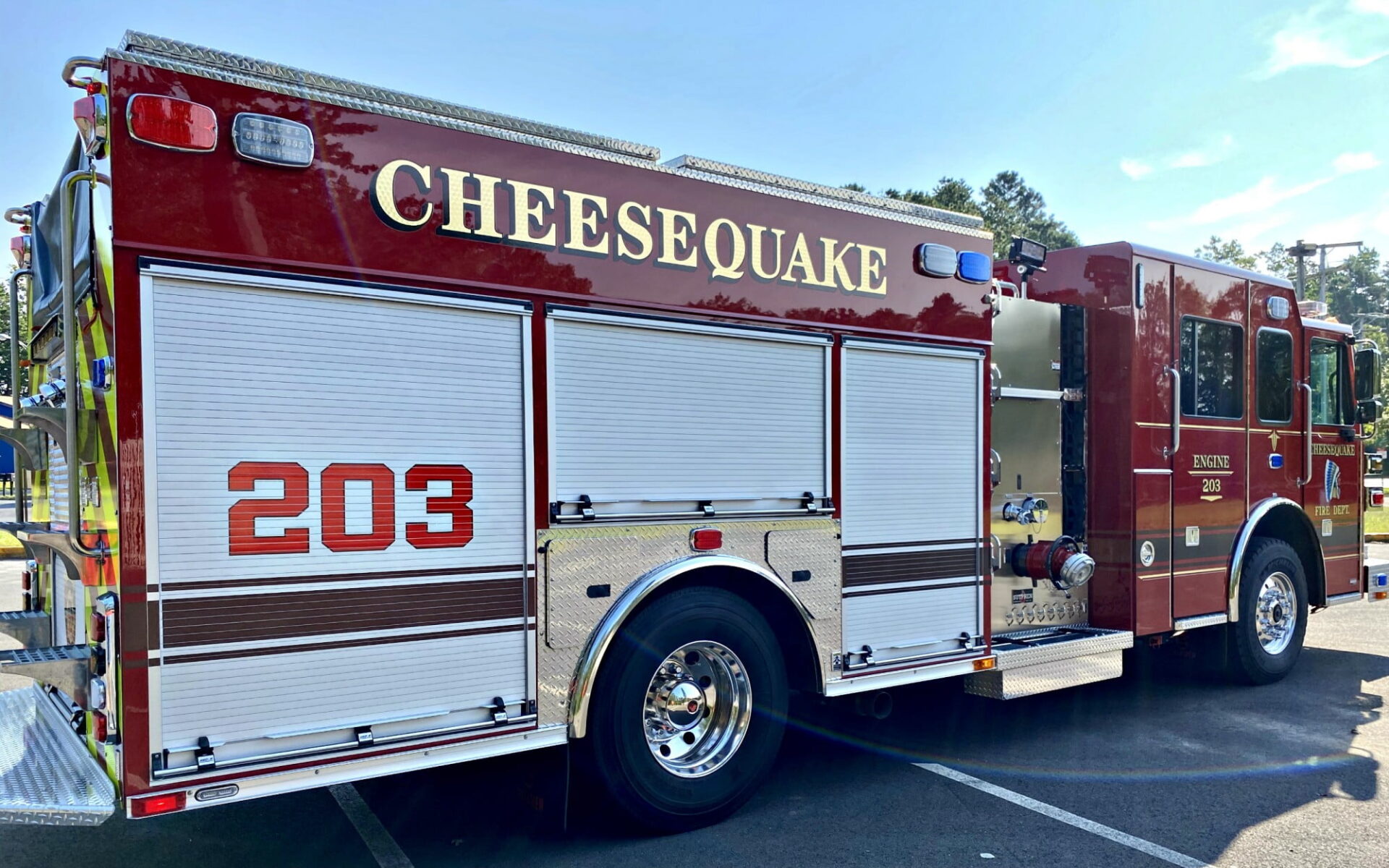

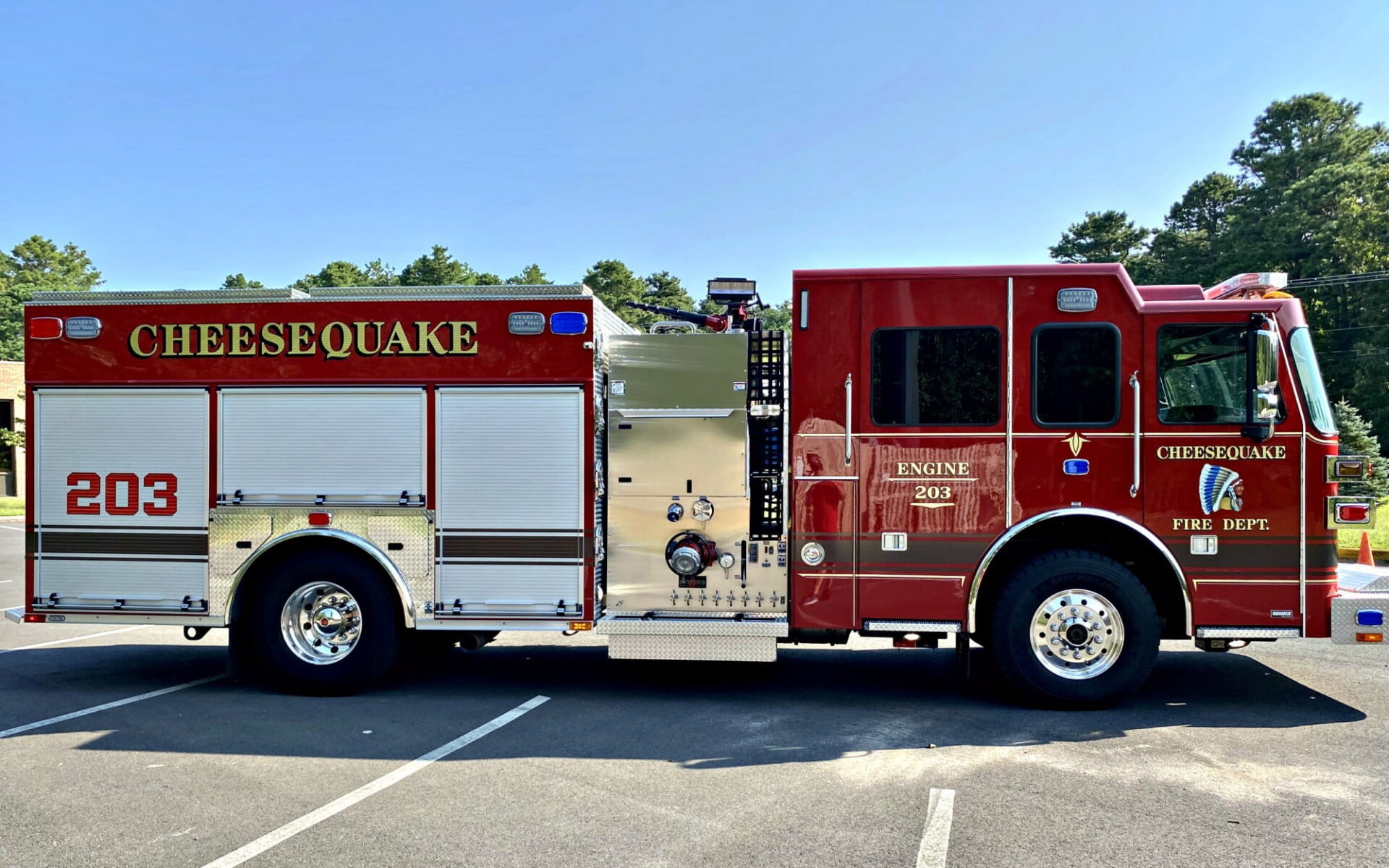

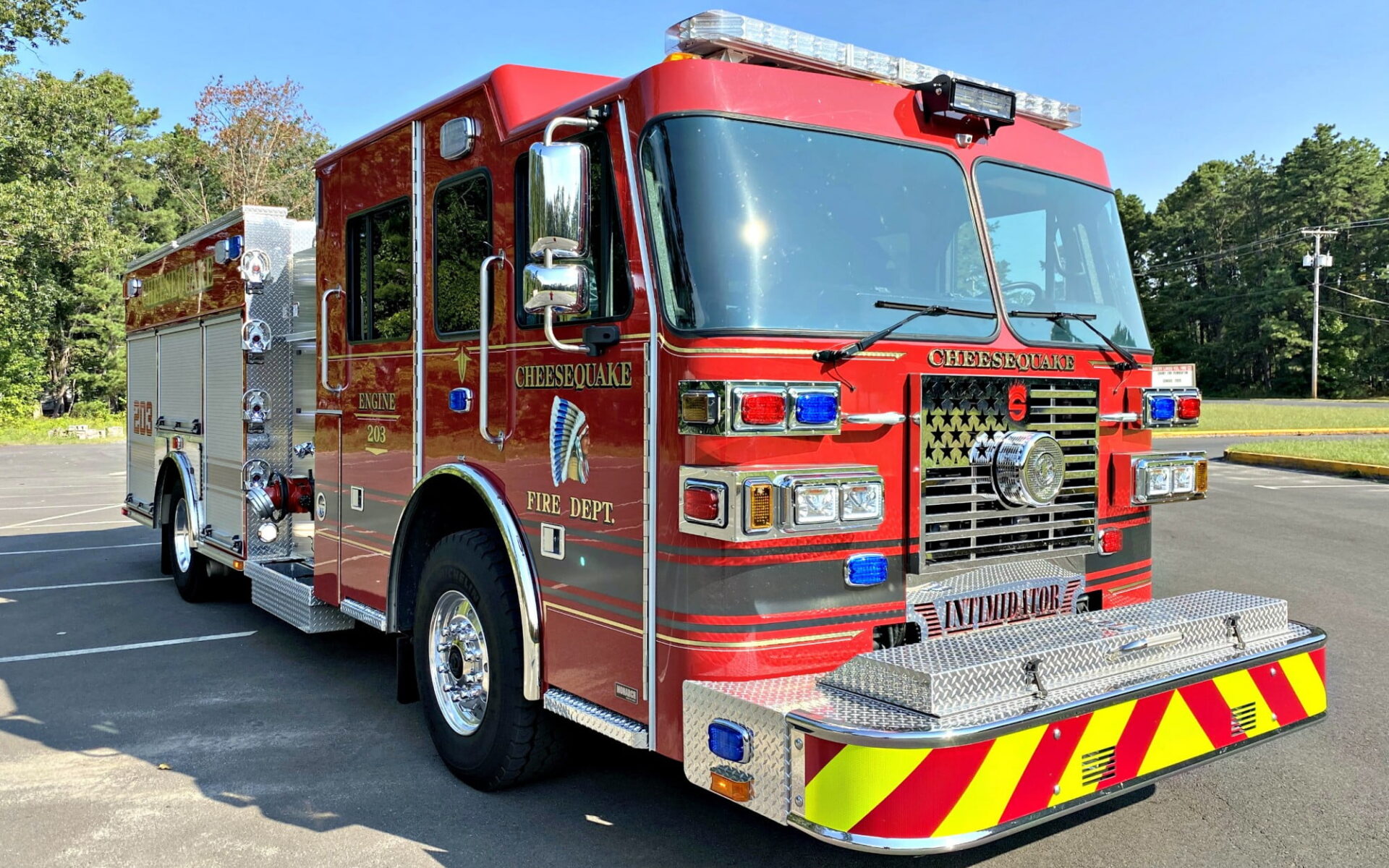

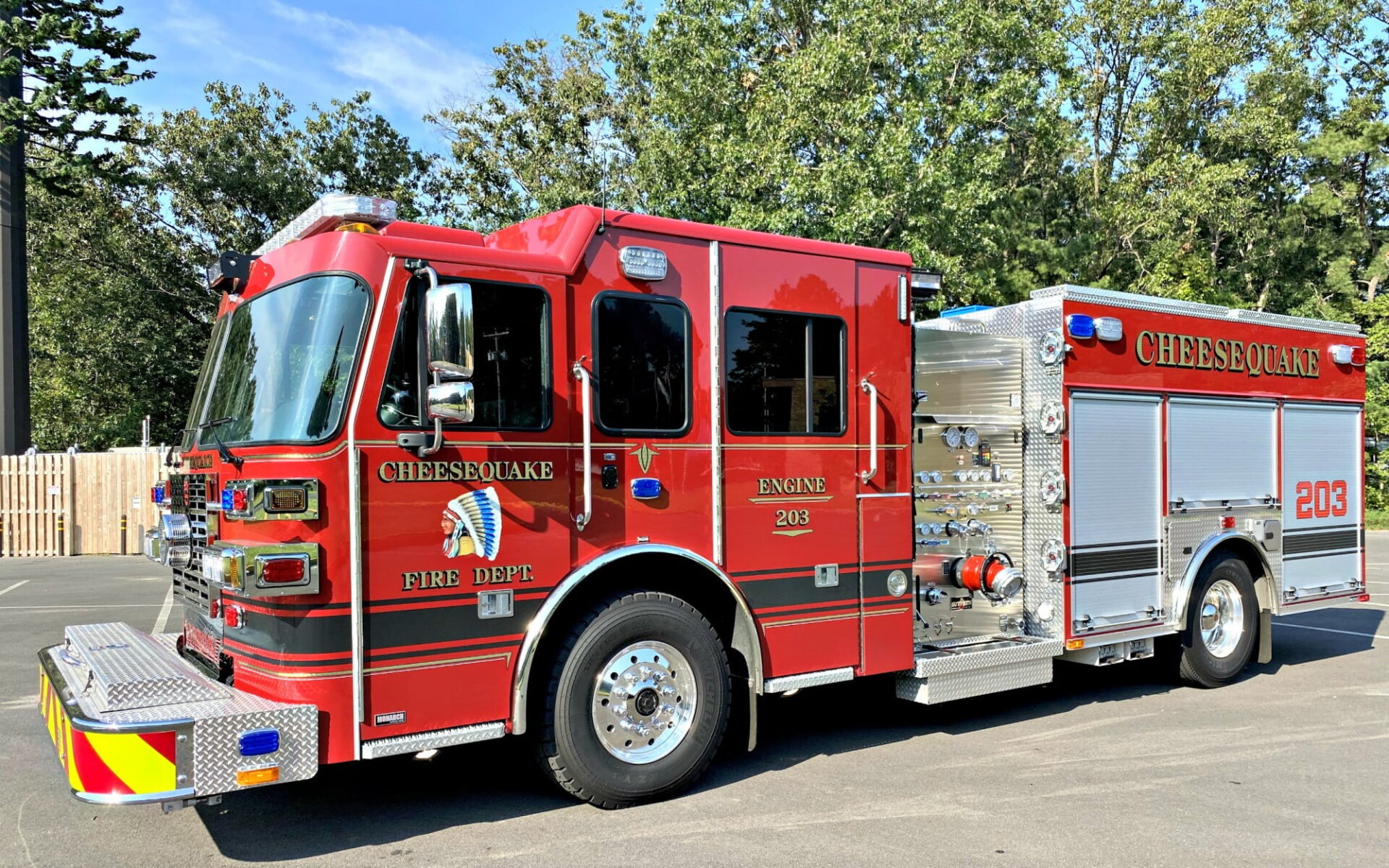

Custom Pumper – Cheesequake VFC, NJ

Specs

Cab
Four-door, six-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS 3000
Water Pump
Xs qmax-1500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Crosslays
(1) 2 ½”
Speedlays
(2) 2” w/ Swivels and Poly Lift-Out Trays
Water Tank
750-gallon
Water Tank
30-gallon foam tank
Construction
3/16” extruded aluminum
Doors
Amdor roll-up compartment
Total Compartment Space
294 cu. ft.
Ladder Compliment
Alco-lite ladders (pel-24 24’ 2-section & prl-14 14’ roof & 10’ folding)
Bumper Extension
24” polished stainless steel
Brigade Backeye 360
Camera system
Siren
Federal q2b , grille mount
Whelen PFH2 LED
Brow light
Whelen Freedom IV
81” led lightbar
Whelen M9 Scene
Lights
Triple Air Bottle
Compartments
Oil Dry Hopper
Included
SCBA Cylinders Compartment
(2 triple, 1 single)
