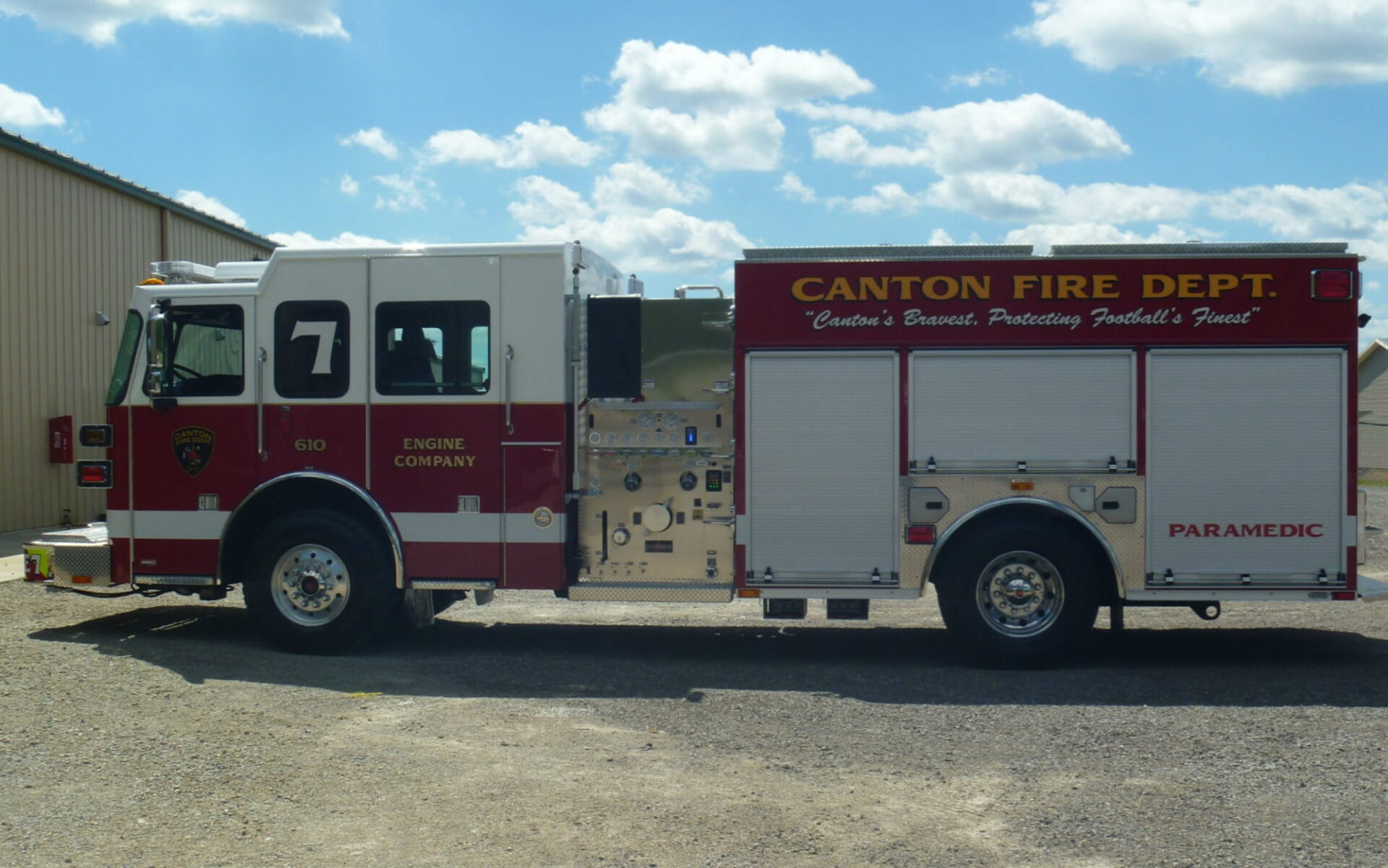

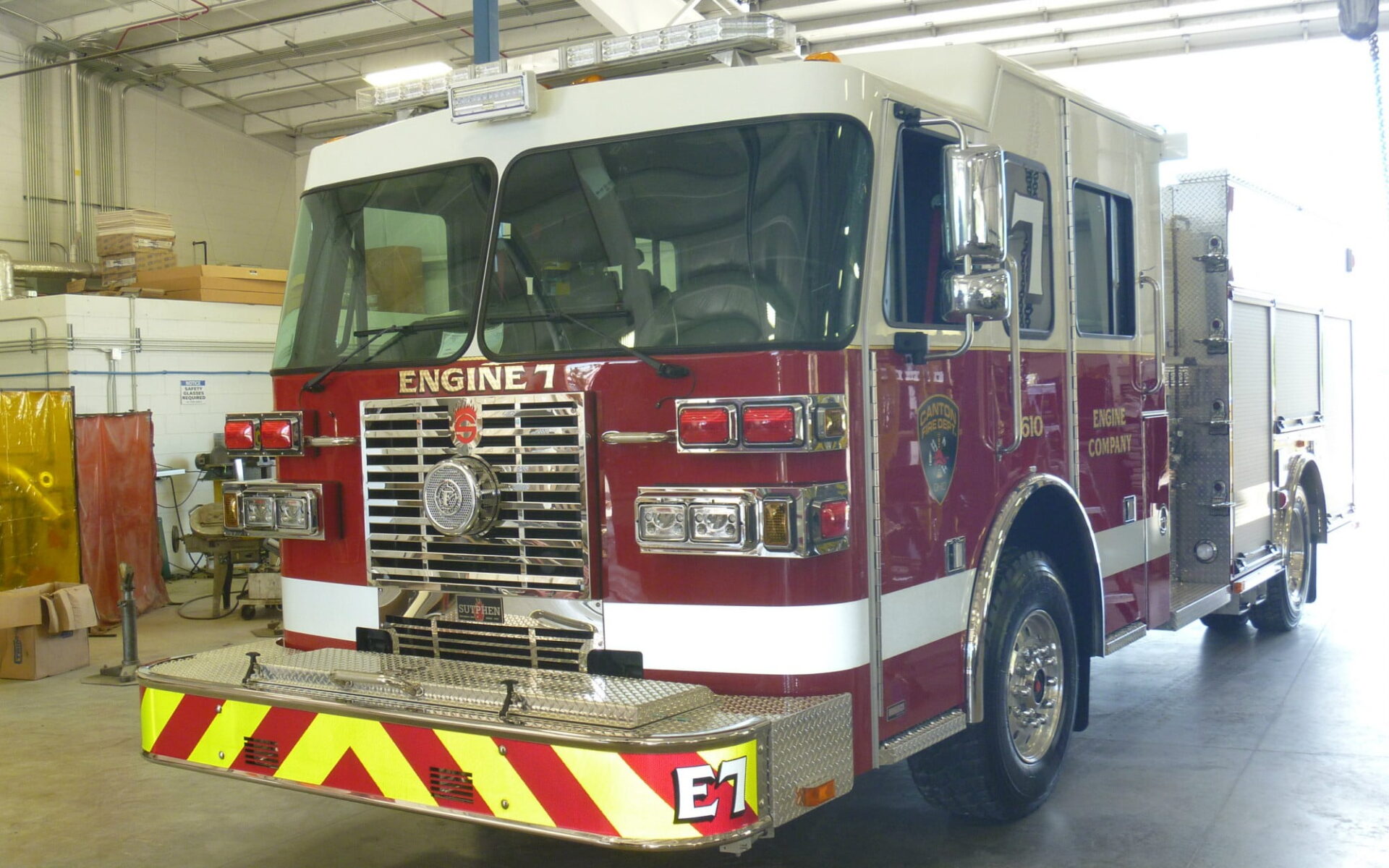

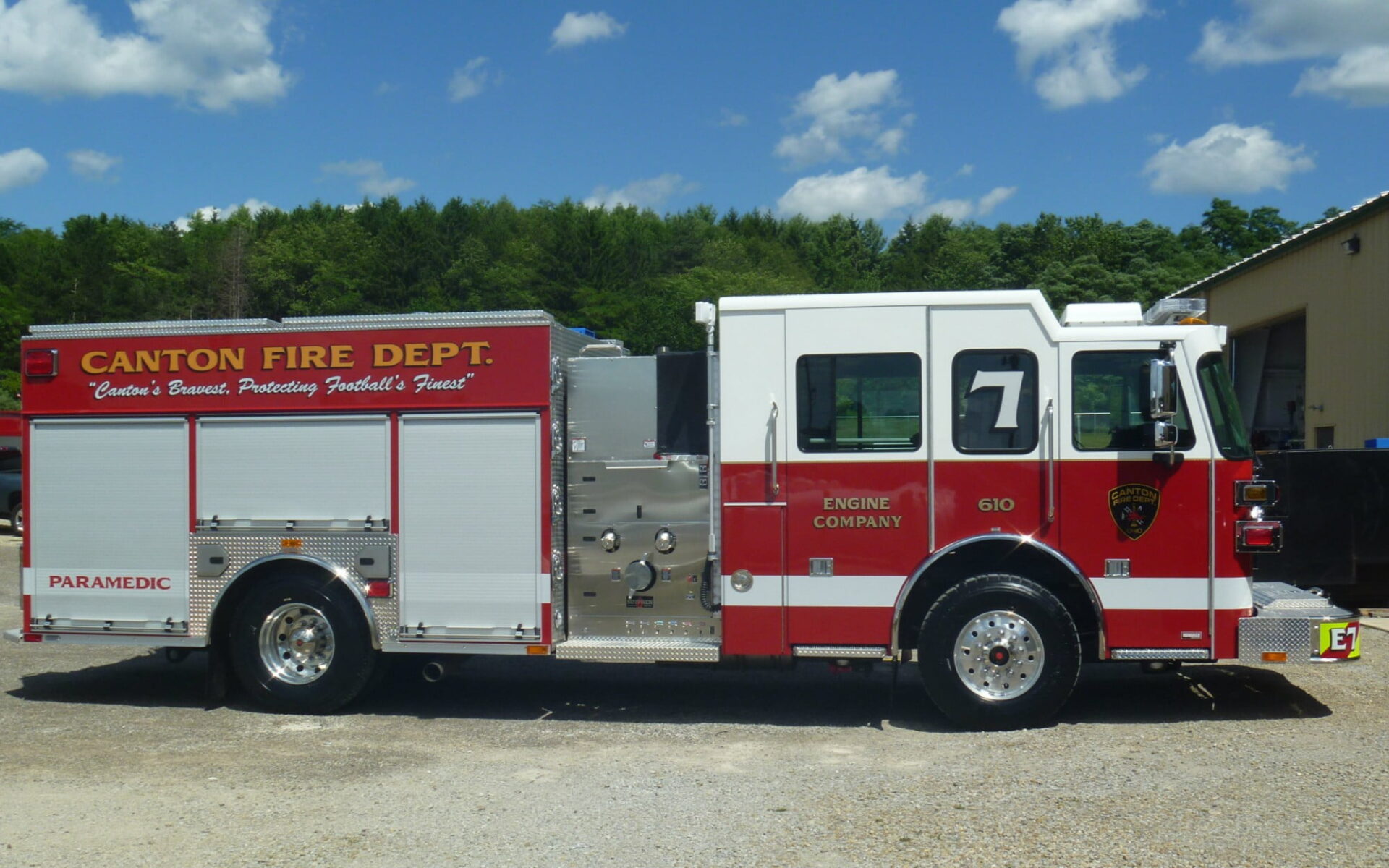

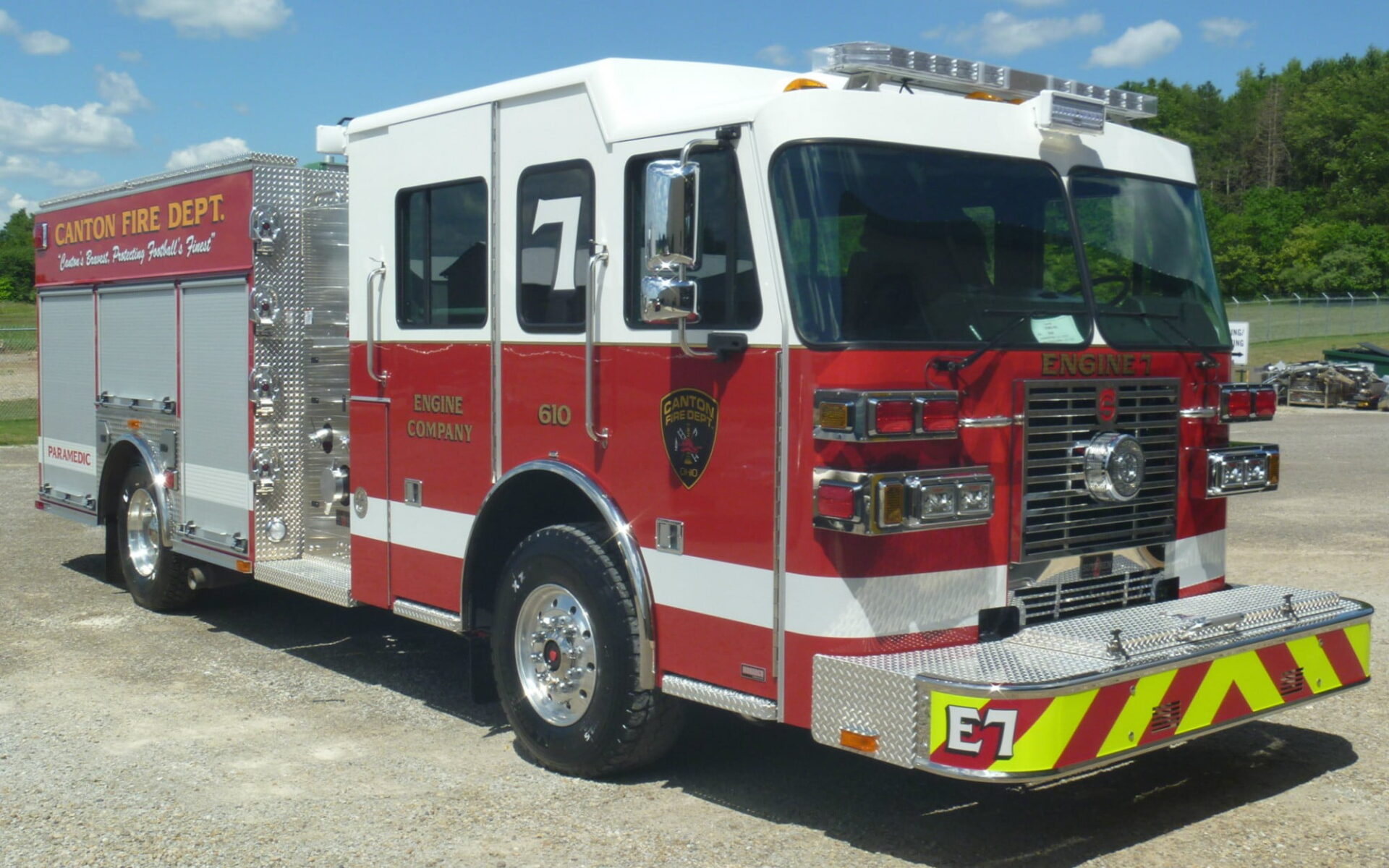

Custom Pumper – Canton, OH

Specs

Cab
Four-door, six-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Qmax-1,500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (2) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Crosslay
(2) 2” Valve-Piping w/ 1 ½” Swivel
Water Tank
1,000-gallon
Water Tank
30-gallon foam tank
Doors
Amdor roll-up compartment
Total Compartment Space
246 cu. ft. base compartment space
Ladder Compliment
Ladder package (24’ 2-section, 14’ roof and 10’ folding)
Body
G9-Alum 40/51

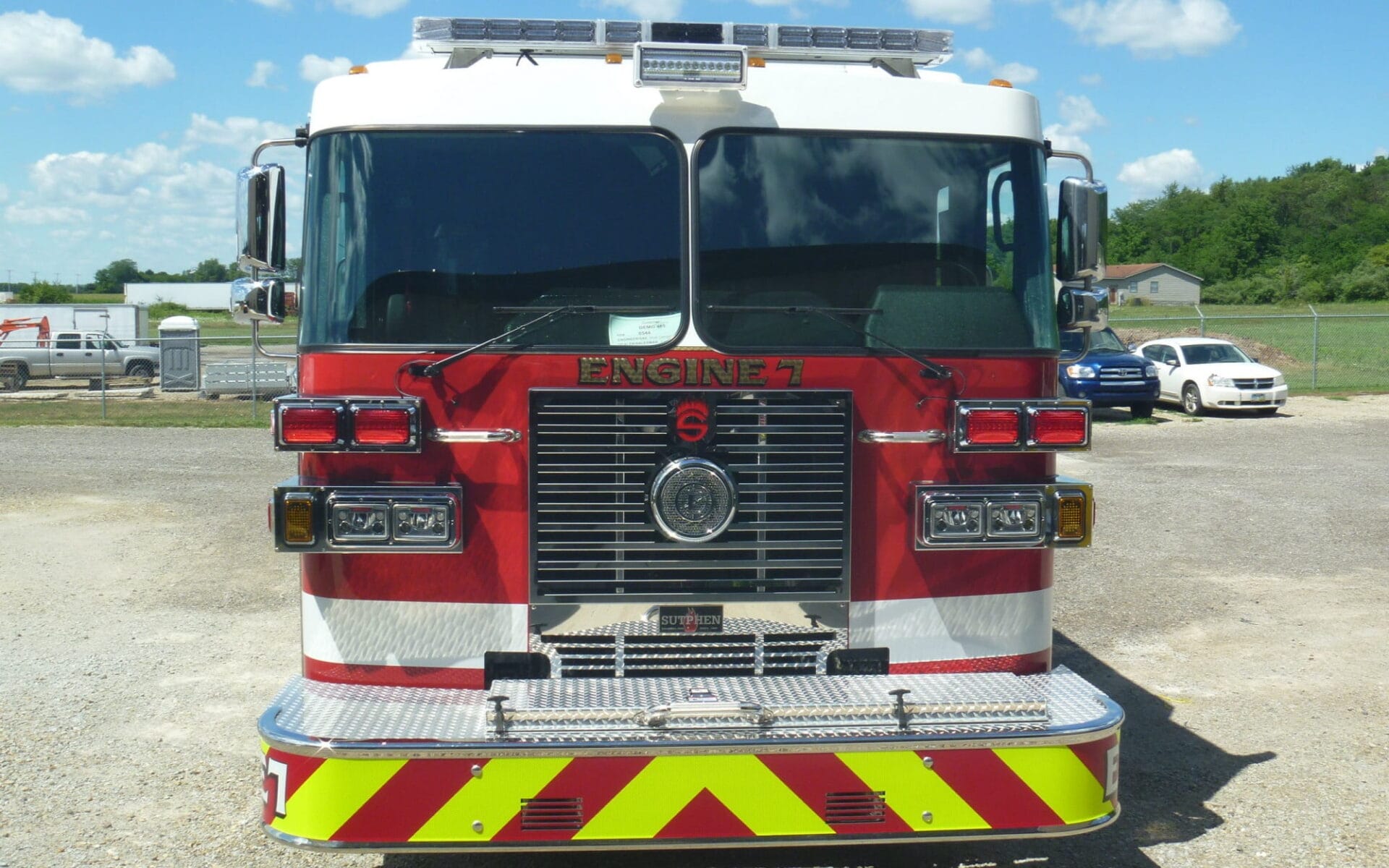

Bumper Extension
24” polished stainless steel bumper
Siren
Federal q2b , grille mount
Camera System
FRC, Inview Trueview
4 Bottle Compartments
Included
FRC Spectra LED
Brow light
Whelen Freedom IV
72” lightbar
FRC Spectra Telelights
Included
Whelen 900 Warning
Lights
Whelen Ion LED
Red lights
