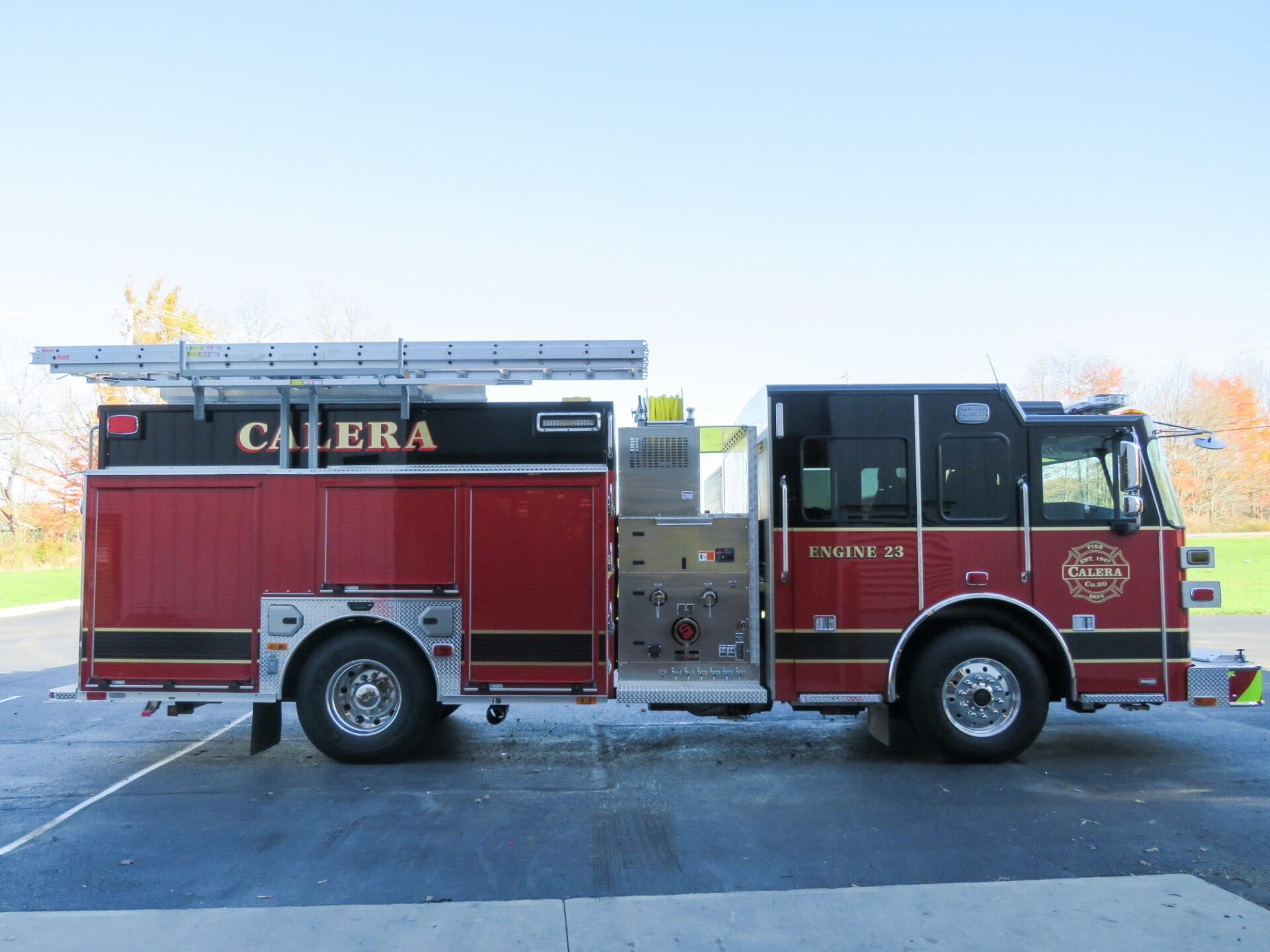

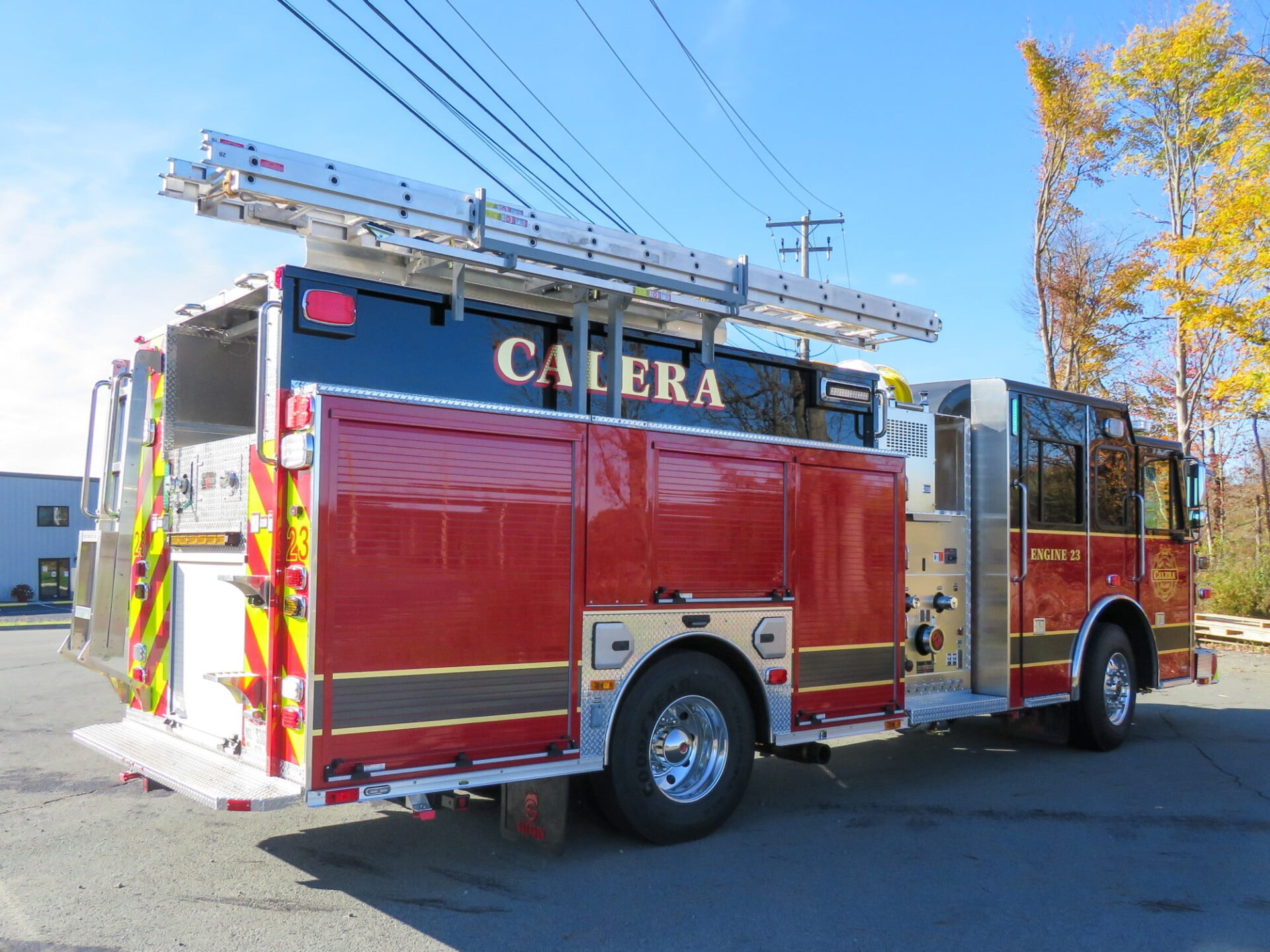

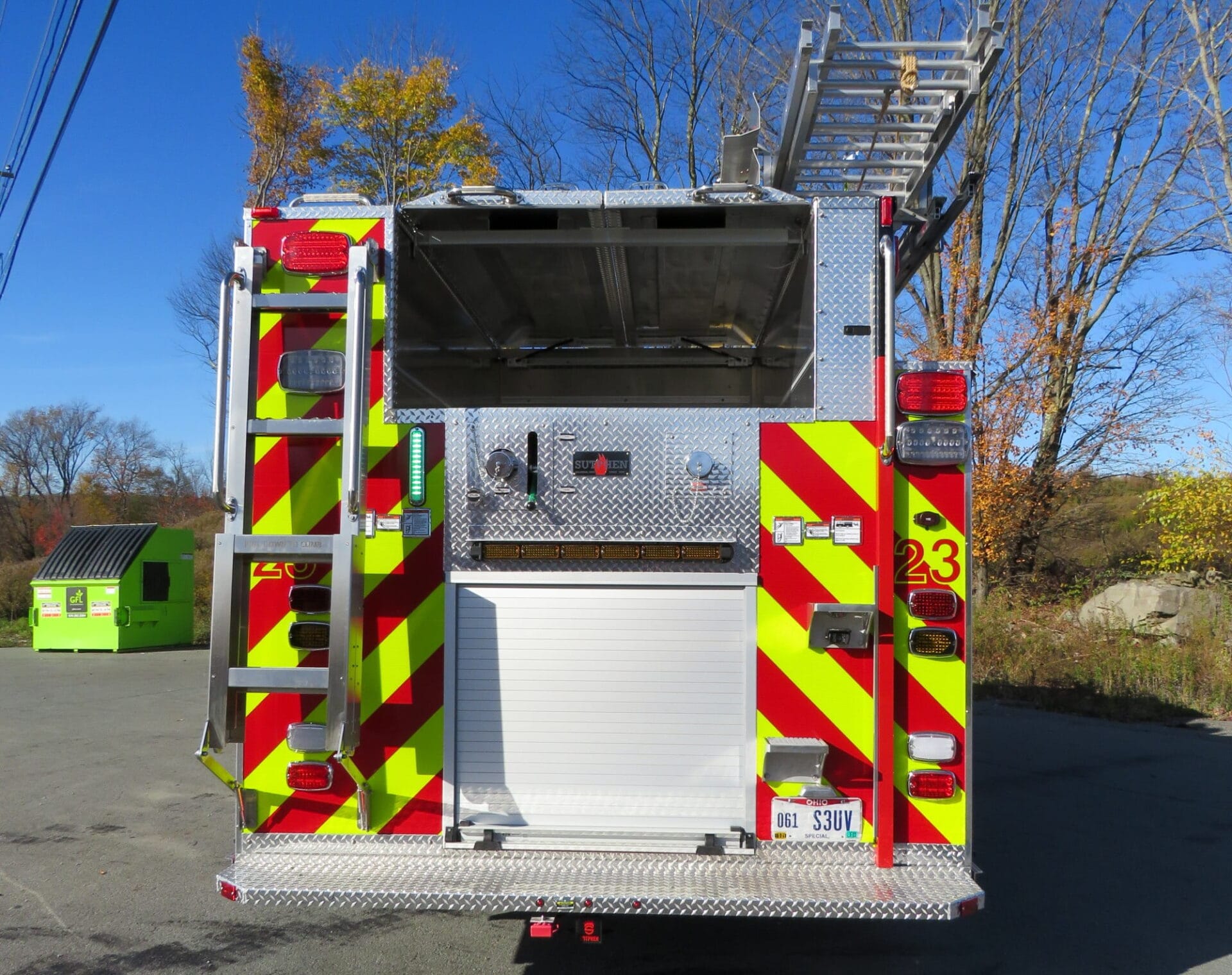

Custom Pumper – Calera Fire Department, AL

Specs

Cab
Four-door, six-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
20,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins L 9 450HP
Alternator
Leece Neville 320 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Qmax-1500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
Crosslay
(2) 2” Valve-Piping 1 ½” Swivel
Water Tank
1,000-gallon
Water Tank
30-gallon foam tank
Discharges
Foam system, akron 125 gpm 3126 by-pass with flush to a discharge line
Construction
3/16” extruded aluminum
Doors
Rom roll-up compartment
Total Compartment Space
301 cu. ft.
Duo-Safety Ladder Package
28’ 2-Section, 16’ Roof & 10’ Folding
Body
PA-13 RES 43/53, HYD Ladder Rack
Bumper Extension
18” polished stainless steel bumper
Siren
Federal q2b , grille mount
Camera System
FRC, Inview Trueview, Single Camera
Wheel Chocks
Ziamatic hydraullic ladder rack
Generator
Smart Power, 10KW
Power
Hannay electric cord reel, 150’ (1)
Whelen Freedom 8
Led lightbar
Whelen M9 LED
Lights
Whelen LED Traffic
Advisor
FireTech Recessed 18”
Scene light
FRC Spectra 12V
Led brow light
