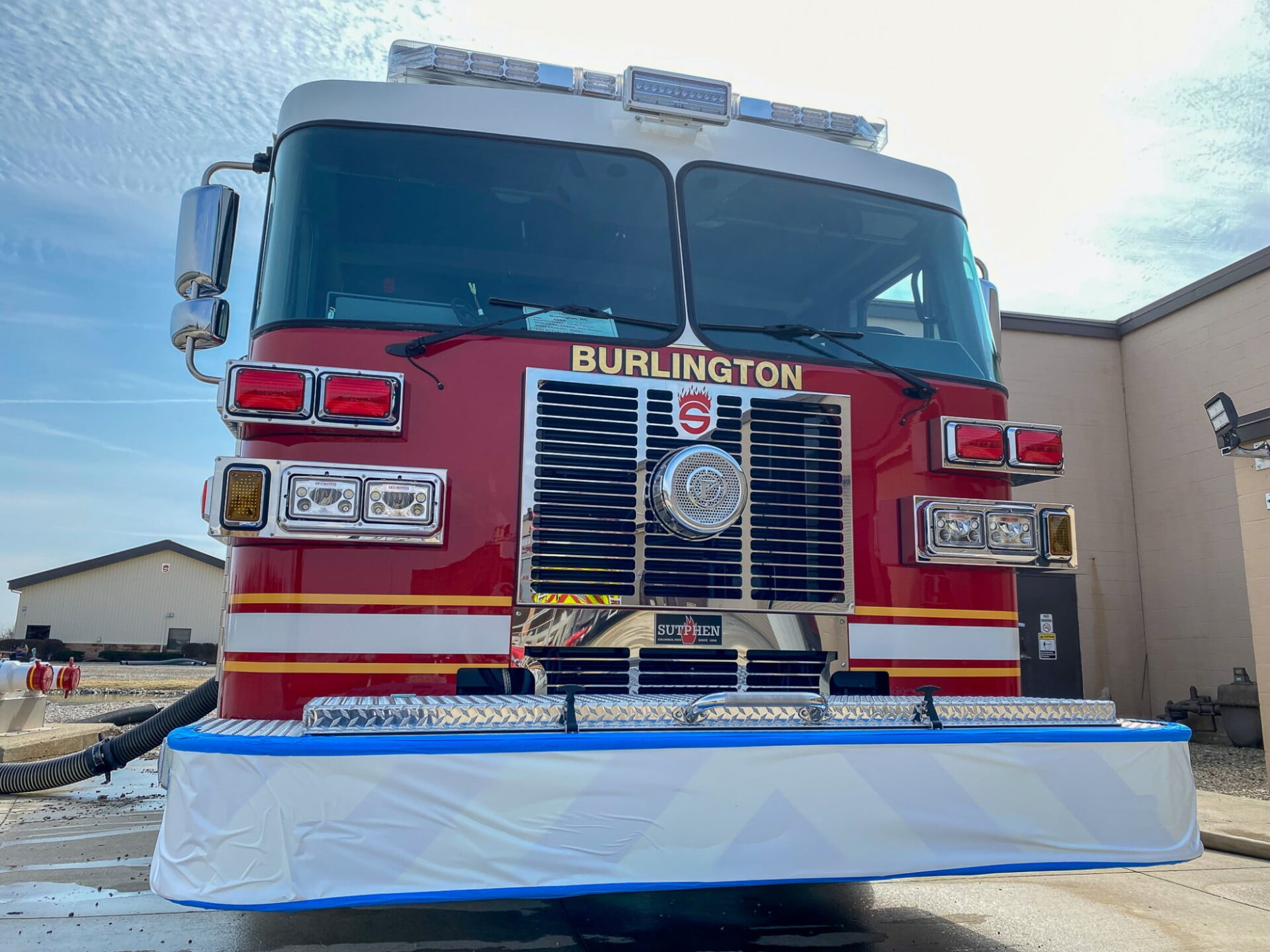

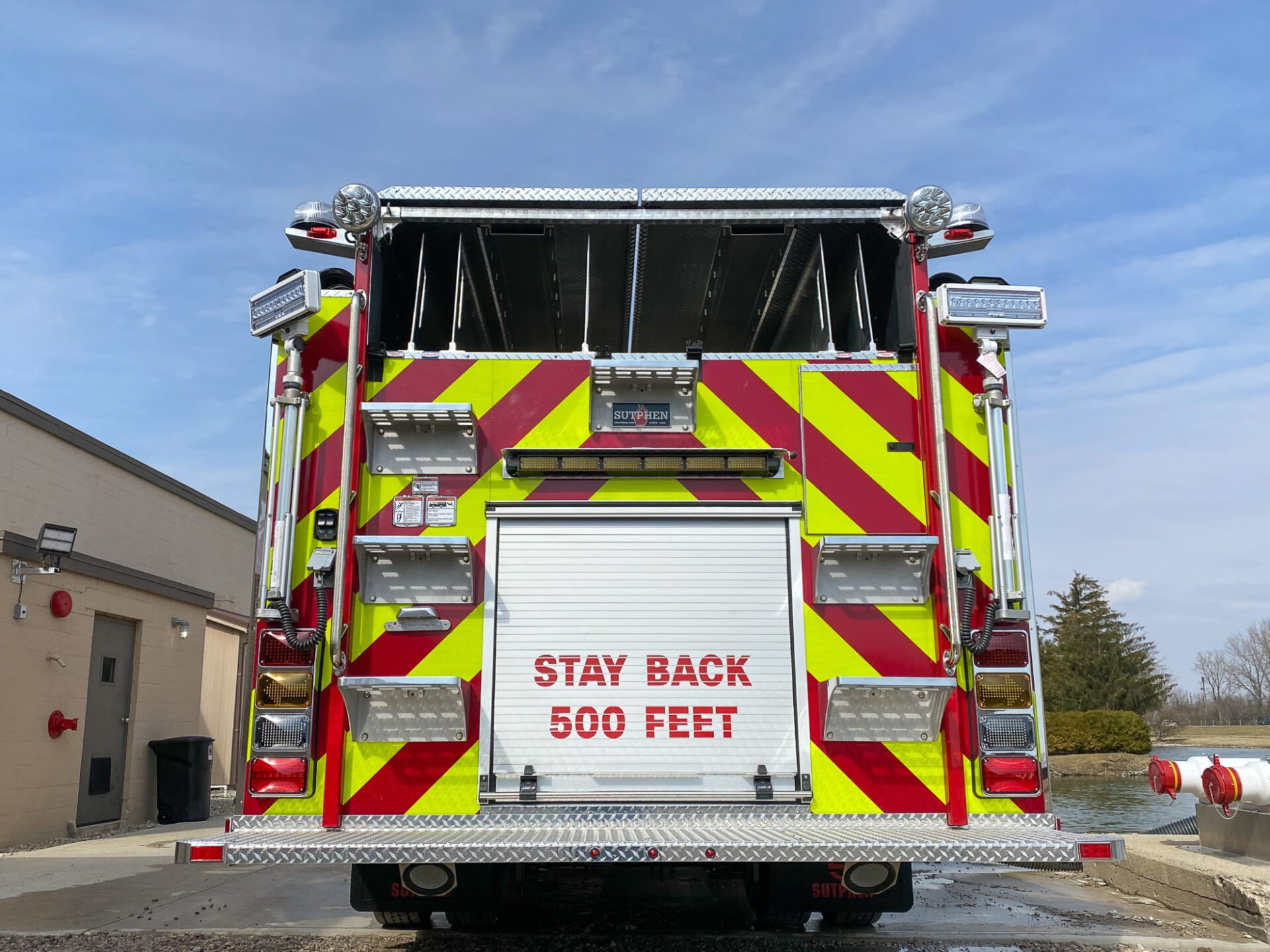

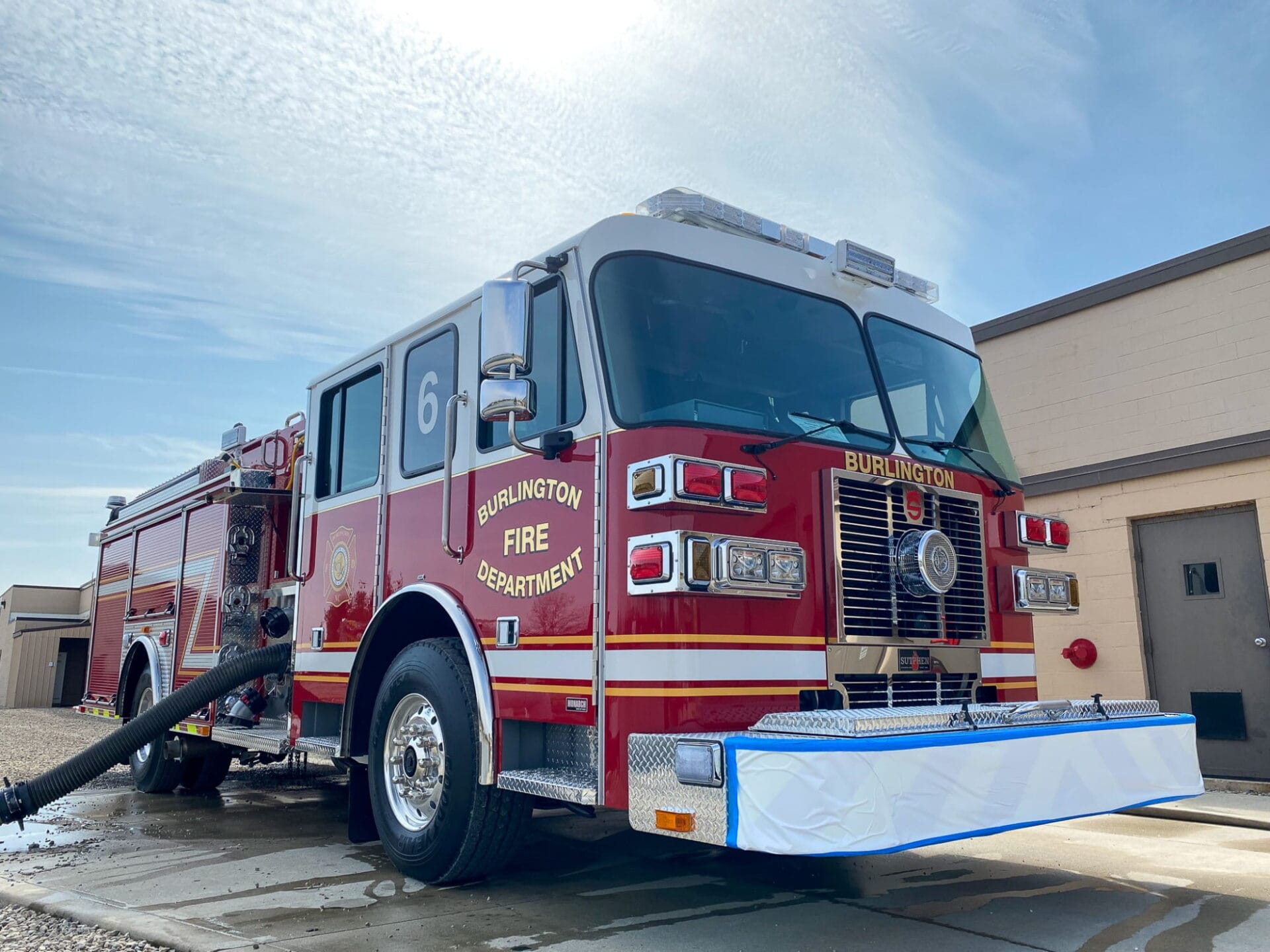

Custom Pumper – Burlington Fire Department, NC

Location:
Burlington, NC
Department:
Burlington Fire Department

Specs

Cab
Four-door, four-person
10” Double Frame
Rails (50k psi)
Front Axle and Suspension
19,000 lbs.
Rear Axle and Suspension
24,000 lbs.
Engine
Cummins X 12, 500 HP
Alternator
Leece Neville 420 AMP
Transmission
Allison Gen 5, EVS4000

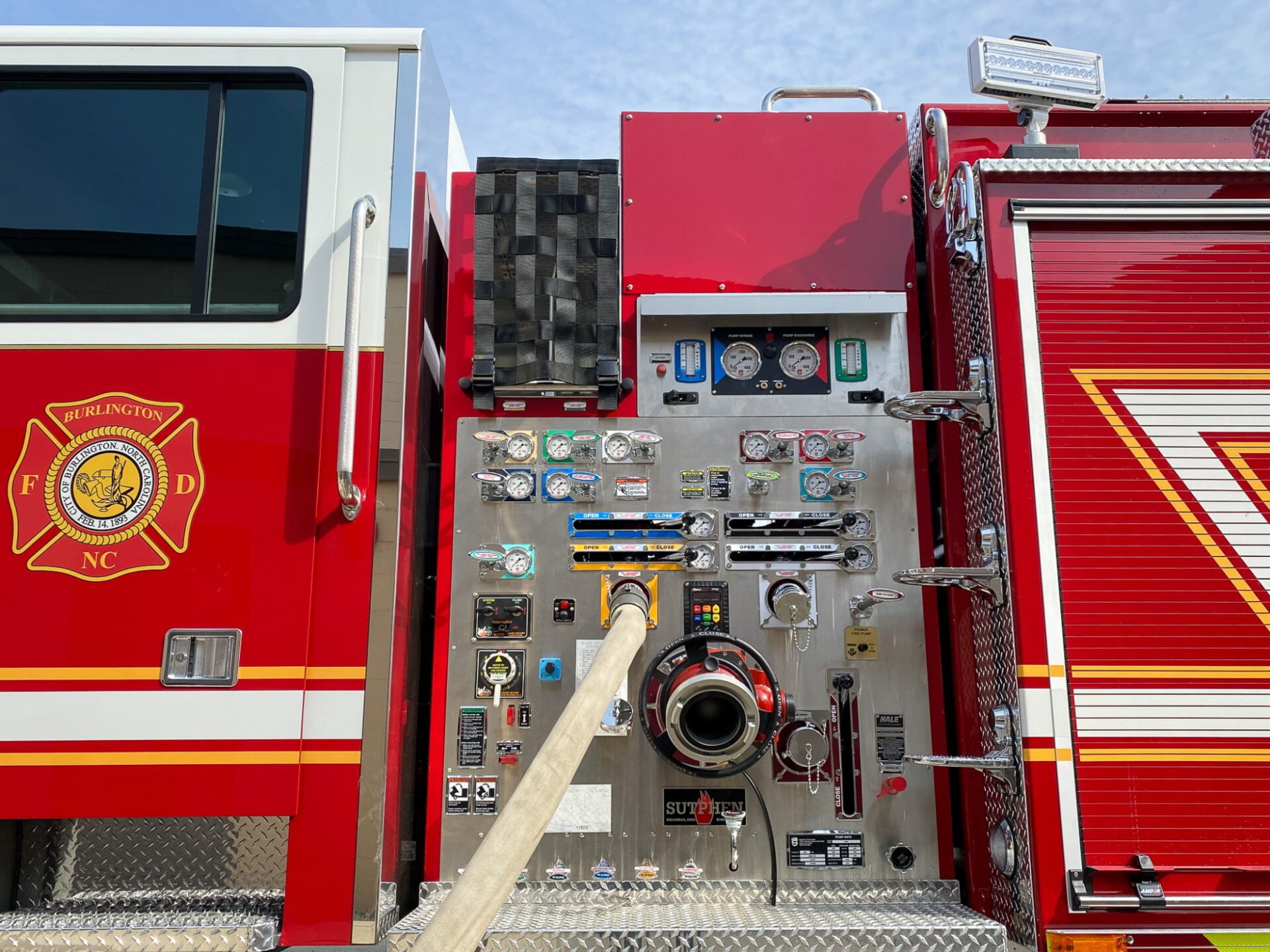

Water Pump
Qmax-1500 gpm
Discharge
(2) 2 ½” Left, (1) 3” Right, (2) 2 ½” Right, (1) 2” Front/Left of Main Hosebed, (1) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Front/Right of Main Hosebed, (1) 2” Right/Front Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
Crosslay
(2) 2” Valve-Piping 1 ½” Swivel
Water Tank
550-gallon
Water Tank
40-gallon foam tank
Foam System
Williams ATP 500 Foam System Class A & B Foam
Construction
3/16” extruded aluminum
Doors
Amdor compartment
Total Compartment Space
Over 230 cu. ft.
Body
PA-12 RED 43/53, Ladder Chute
Bumper Extension
24” polished stainless steel, bumper
Siren
Federal q2b , grille mount
Power
Hannay electric cord reel, 100’ (1)
Intercom System
Sigtronics 5-Position
Whelen Freedom IV
(12) led lightbar
FRC Spectra 12V
Led brow
FRC Spectra 12V
Led scene
FR Spectra 120V
Tripod (2)
