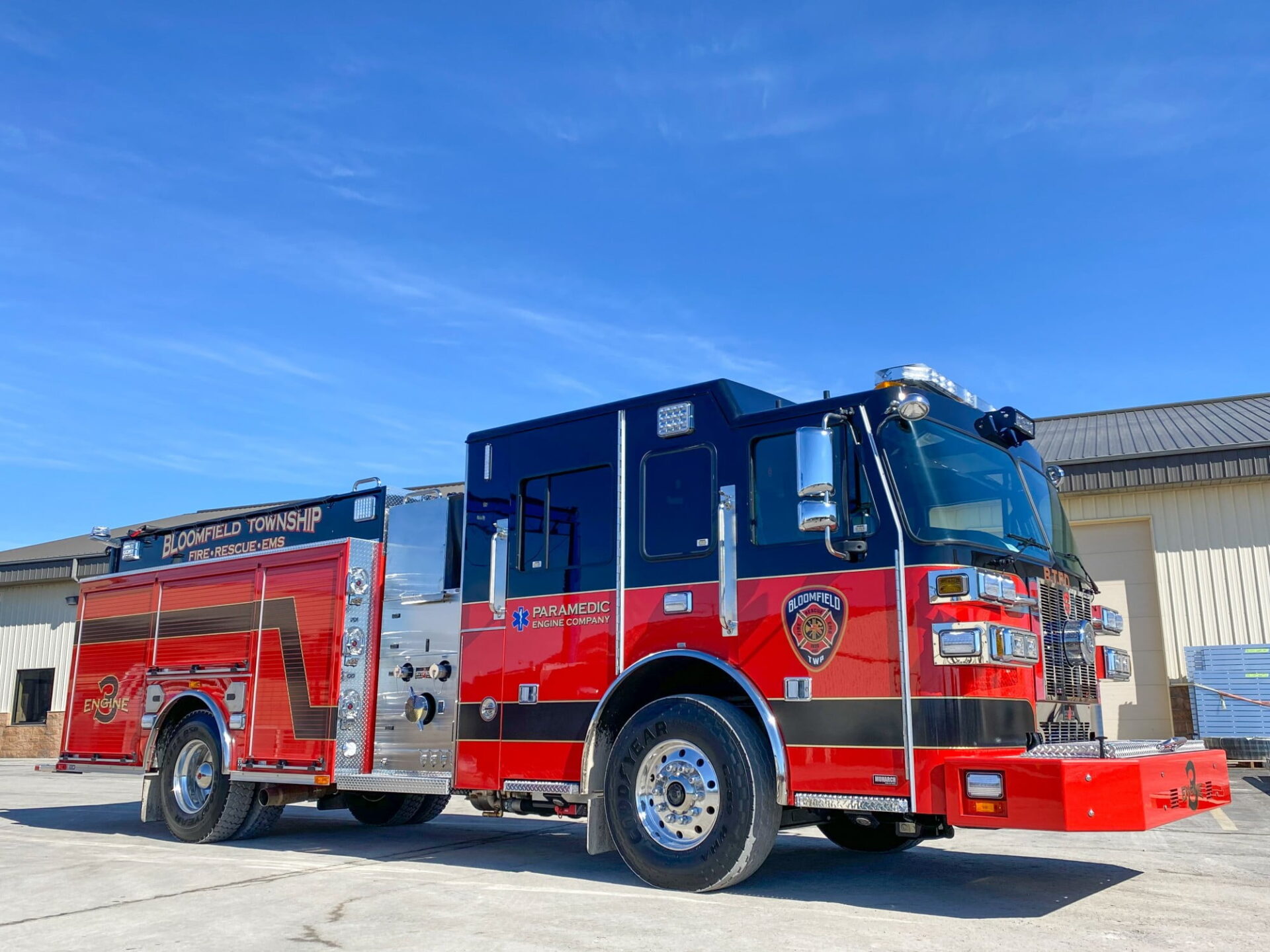

Custom Pumper – Bloomfield Township Fire Department, MI

Specs

Cab
Four-door, four-person cab
10” Double Rails
Single axle (50k psi)
Front Axle and Suspension
19,000 lbs.
Suspension Rear Firemaax
24,000 lbs.
Engine
Cummins L 9, 450 HP
Alternator
Leece Nieville 320 AMP
Transmission
Allison Gen 5, EVS3000

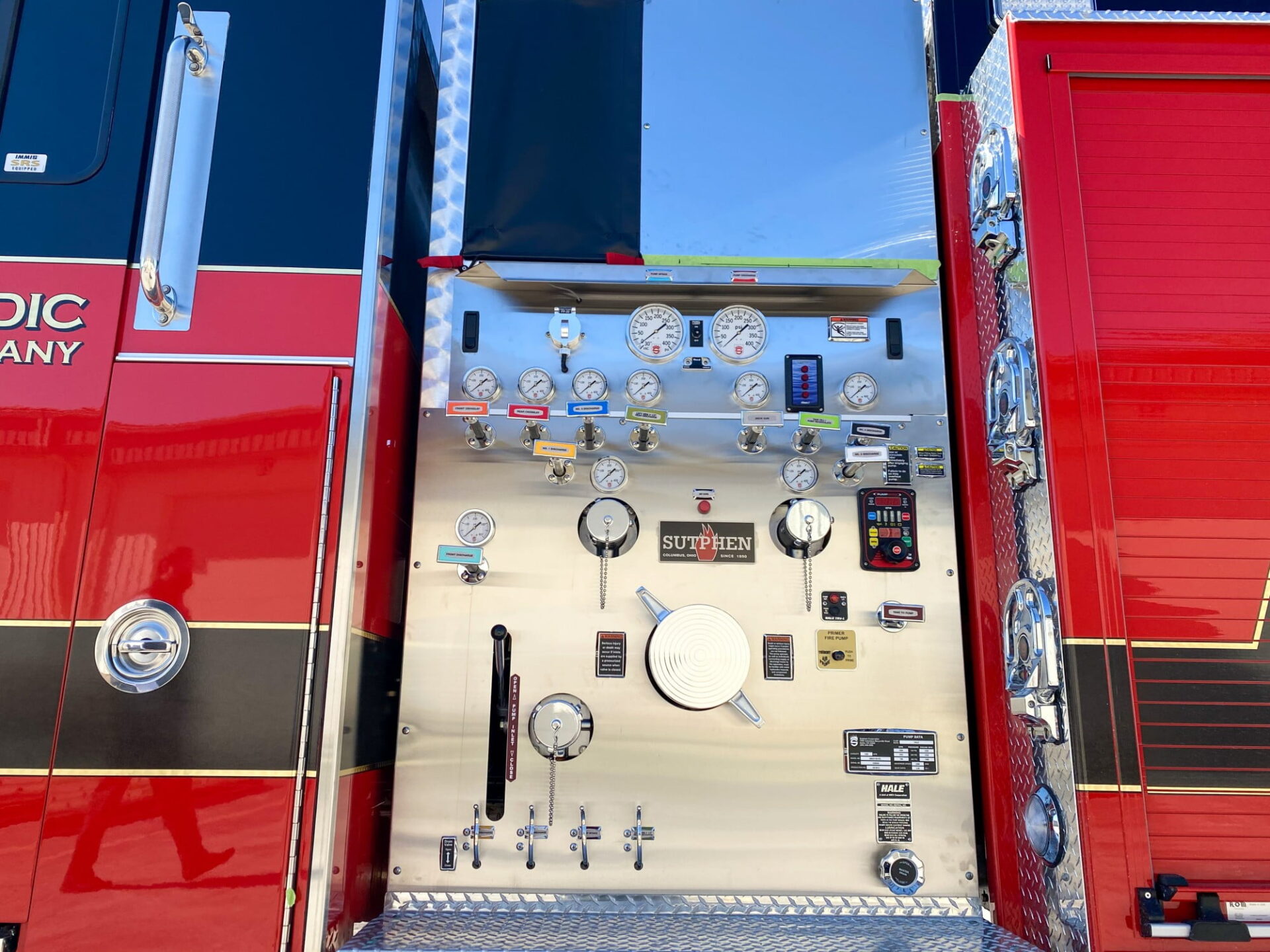

Water Pump
Qmax-1500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½”Right, ( (1) 2 ½” Front Bumper w/ 2 ½” Plumbing, (1) 2 ½” Left Rear, (1) 3” Deck Gun
Crosslays
(1) 2” with 1 ½” Swivel, and (1) 2 ½” with 2 ½” Swivel
Water Tank
750-gallon
Construction
3/16” extruded aluminum
Doors
Amdor roll up compartment

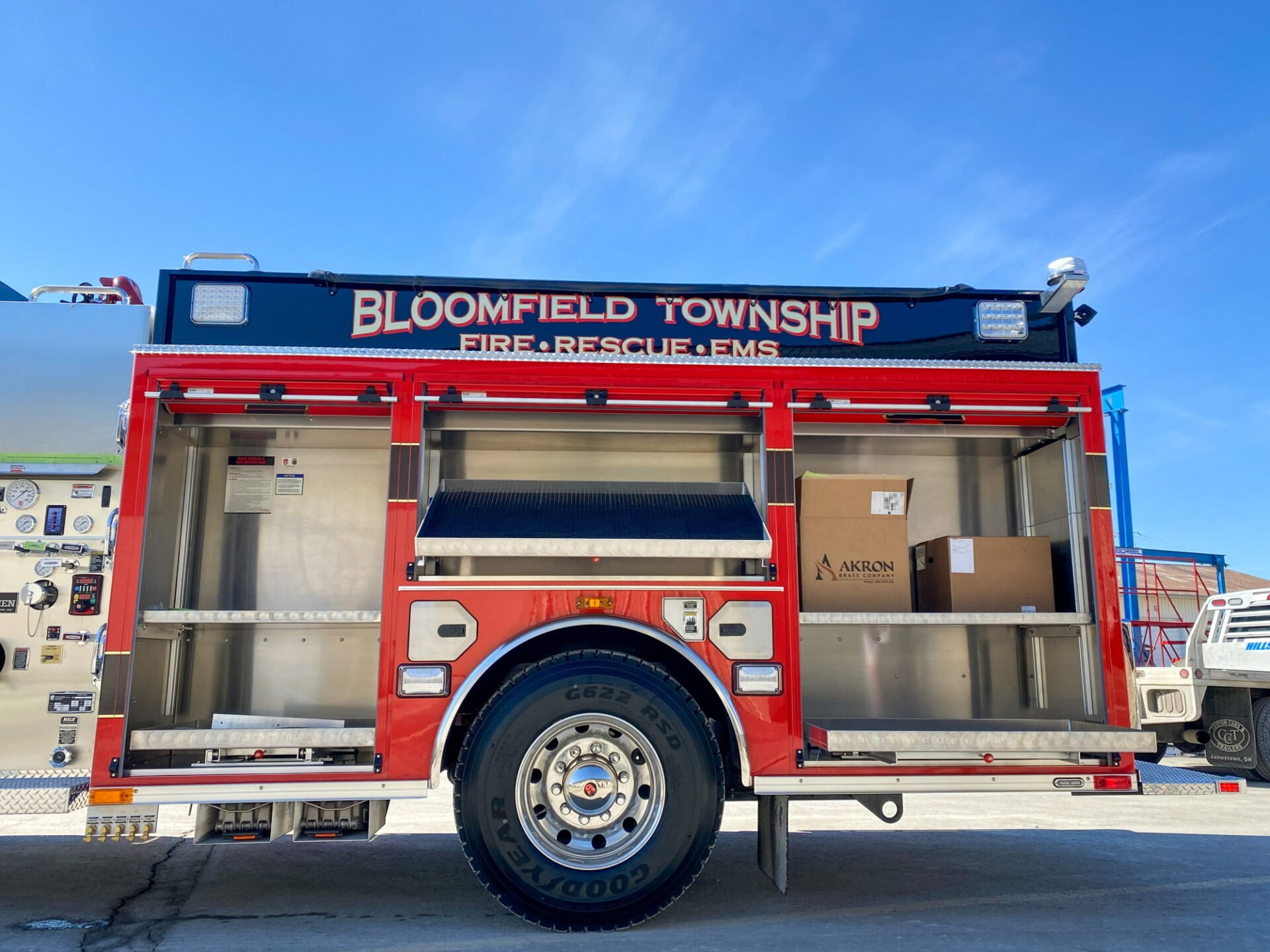

Total Compartment Space
233.3 cu. ft.
Ladder Compliment
Ladder chute with backboard storage
Body
S2
Bumper Extension
24” formed steel channel bumper, painted
Siren
Federal q2b , grille mount
Camera System
Safety Vision SV-CLCD0-70 (Wired)
Whelen PFH2 Brow
Light
Whelen Freedom LED
Lightbar
Whelen 600 RED
Leds
Whelen C9 12V
Scene lights
