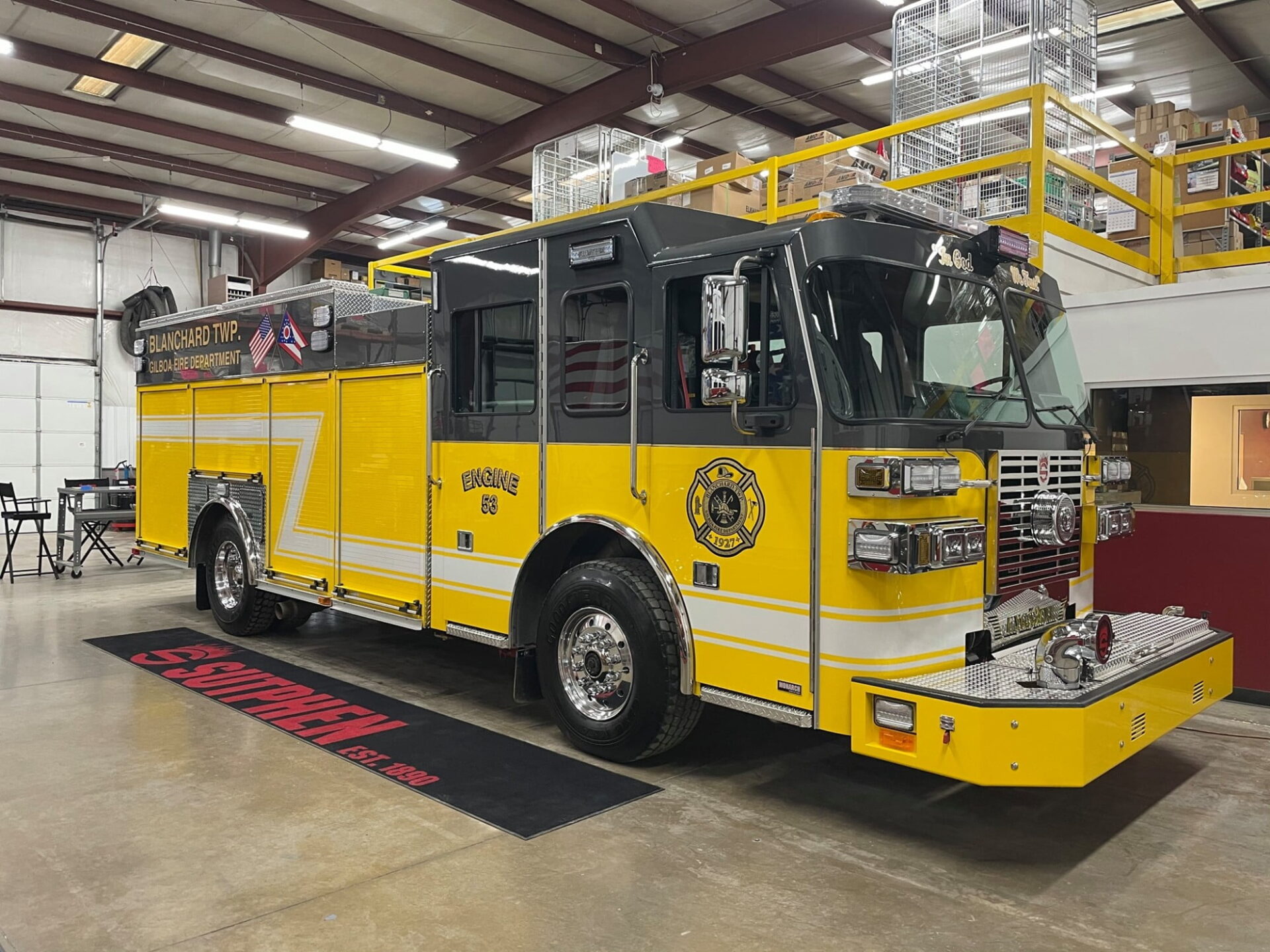

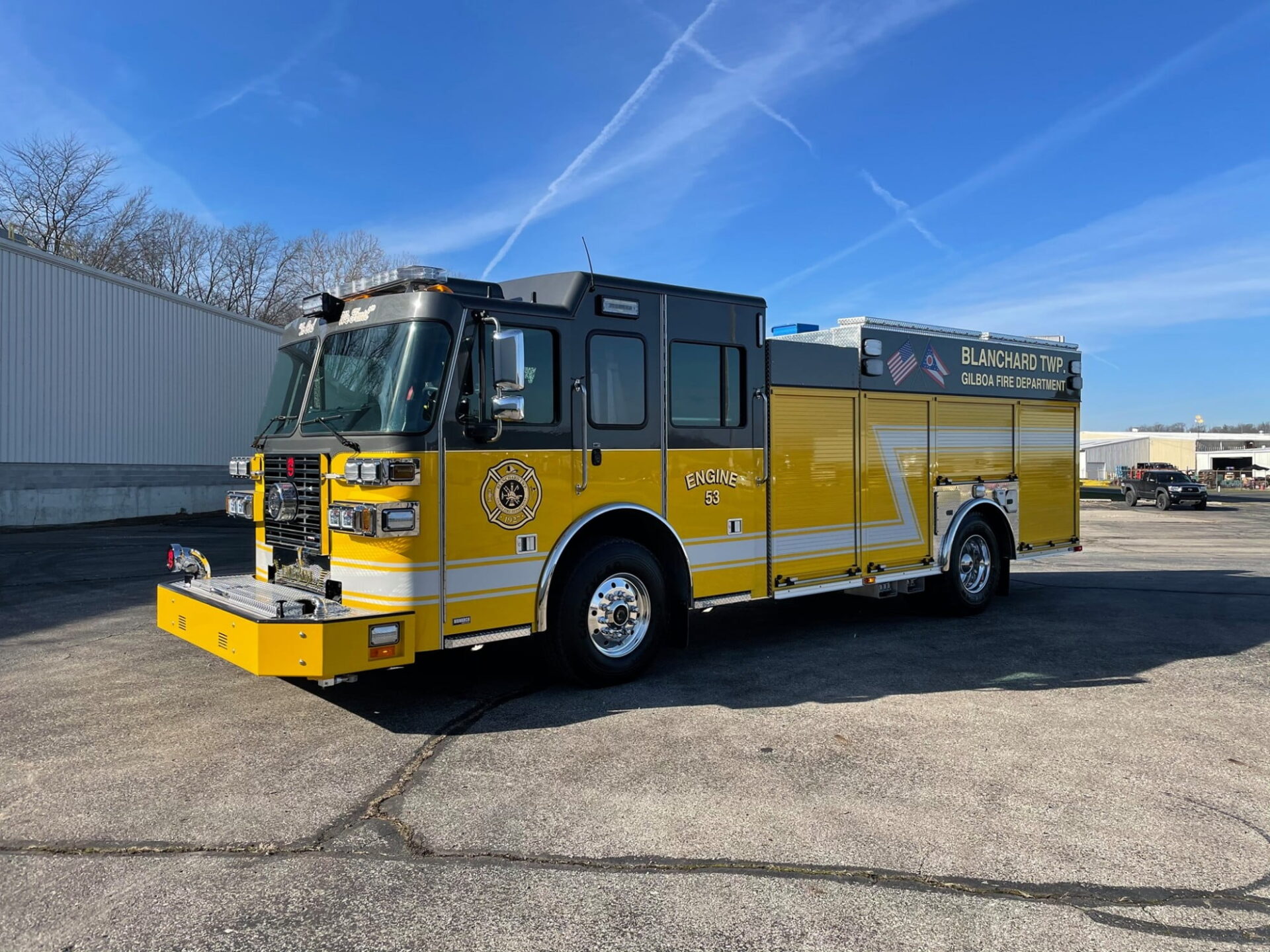

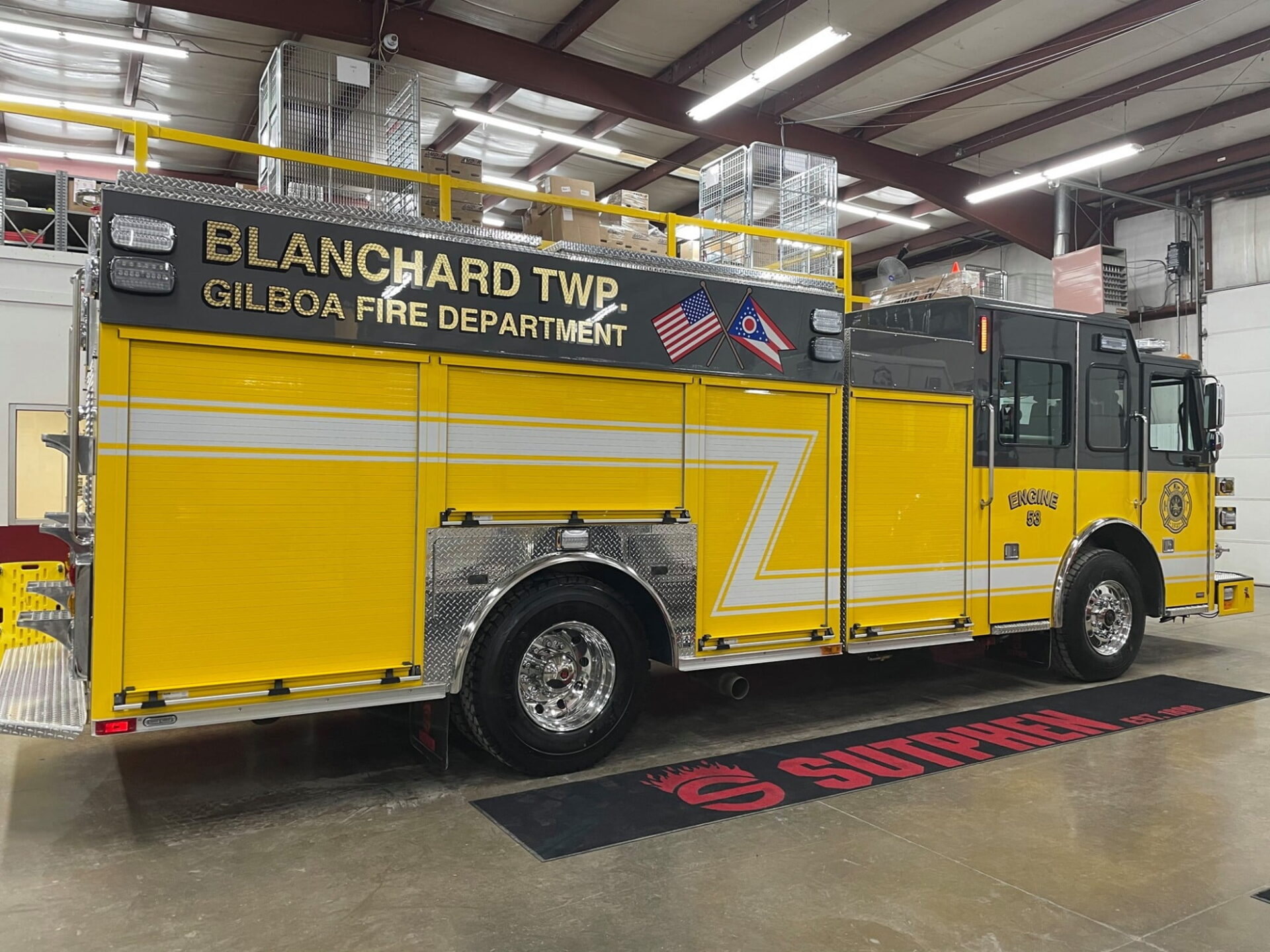

Custom Pumper – Blanchard Township Fire Department, OH

Specs

Cab
Four-door, six-person
10” Single Domex
Frame rails (110k psi)
Front Axle and Suspension
18,000 lbs
Rear Axle and Suspension
27,000 lbs
Engine
Cummins L 9, 380 HP
Alternator
Leece Neville, 320 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Xs qmax-1500 gpm, single stage pump
Discharges
(2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, 1 ½” Bumper, (1) 3" Deck Gun
Speedlay
(2) 2” w/ 1 ½” Swivel and Poly Lift-Out Trays
Water Tank
1000-gallon
Water Tank
20-gallon foam tank
Hale Smart Foam
2.1a foam system
Doors
Rom roll-up compartment

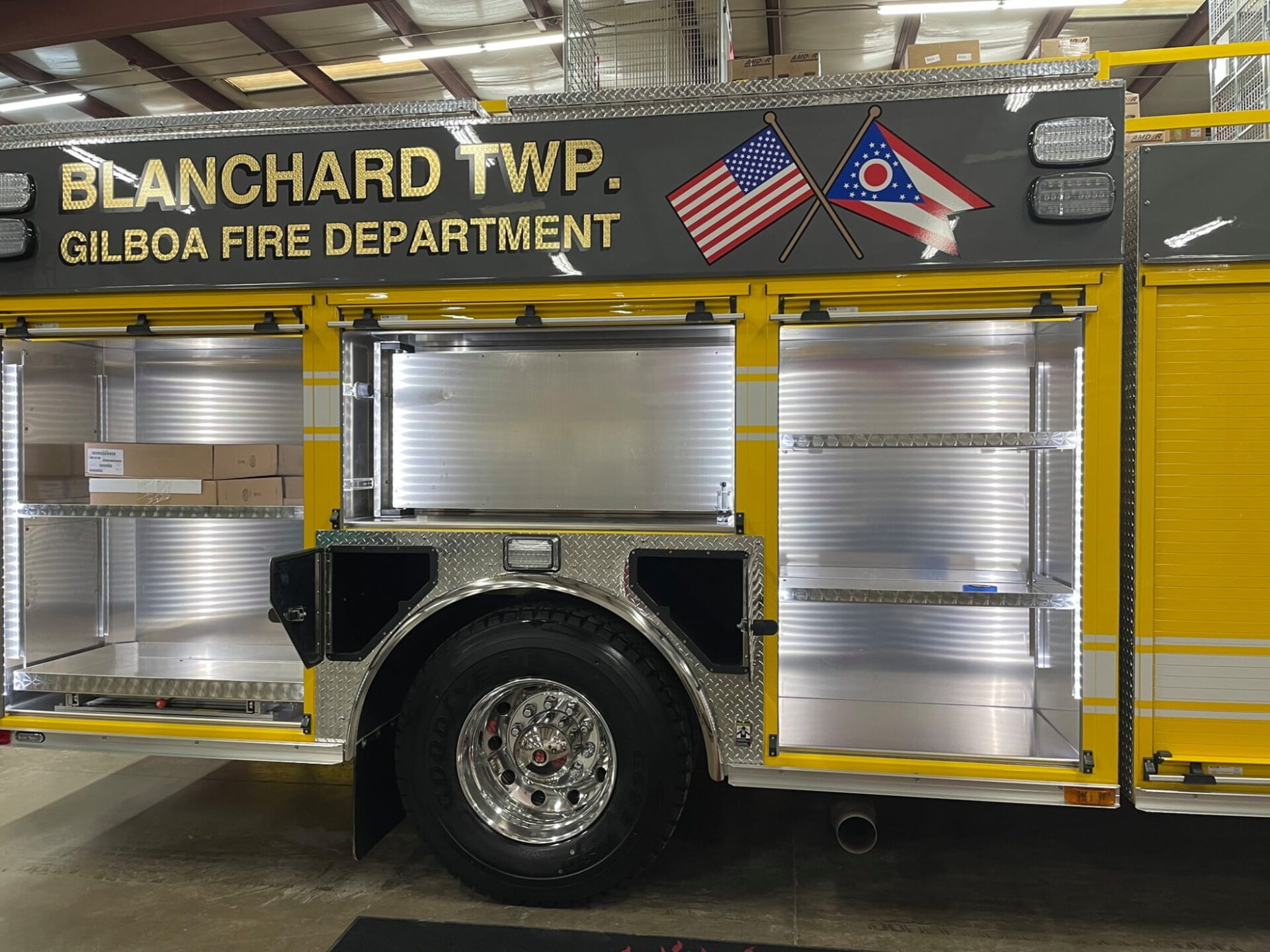

Total Compartment Space
294 cu. ft.
Ladder Compliment
Alco-lite ladder package (pel- 24 24’ 2-section & prl-14 14’ roof & 10’ folding)
Ladder Compliment
Ladder chute
Body
G9 – Alum 40/51 Ladders Thru Tank
Bumper Extension
24” formed steel channel
Siren
Federal q2b , grille mount
(2) Triple Air
Bottle compartments
FRC Spectra Brow
Light
FRC Spectra 20K
Lumen scene lights
Whelen Freedom 72”
Led lightbar
Whelen 600 Red
Led
Whelen 900 Scenes
Included
Whelen M9 Red
Led
