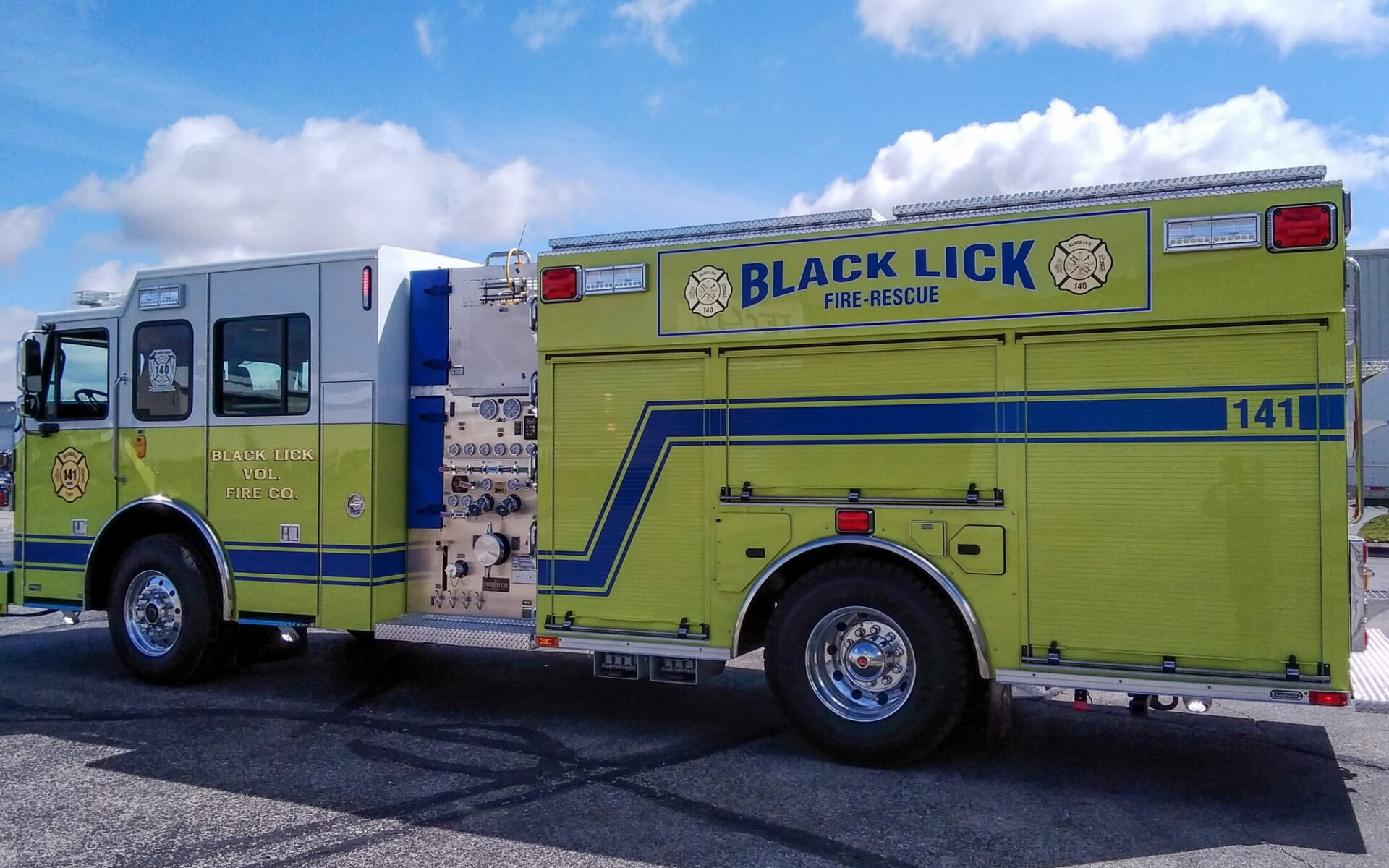

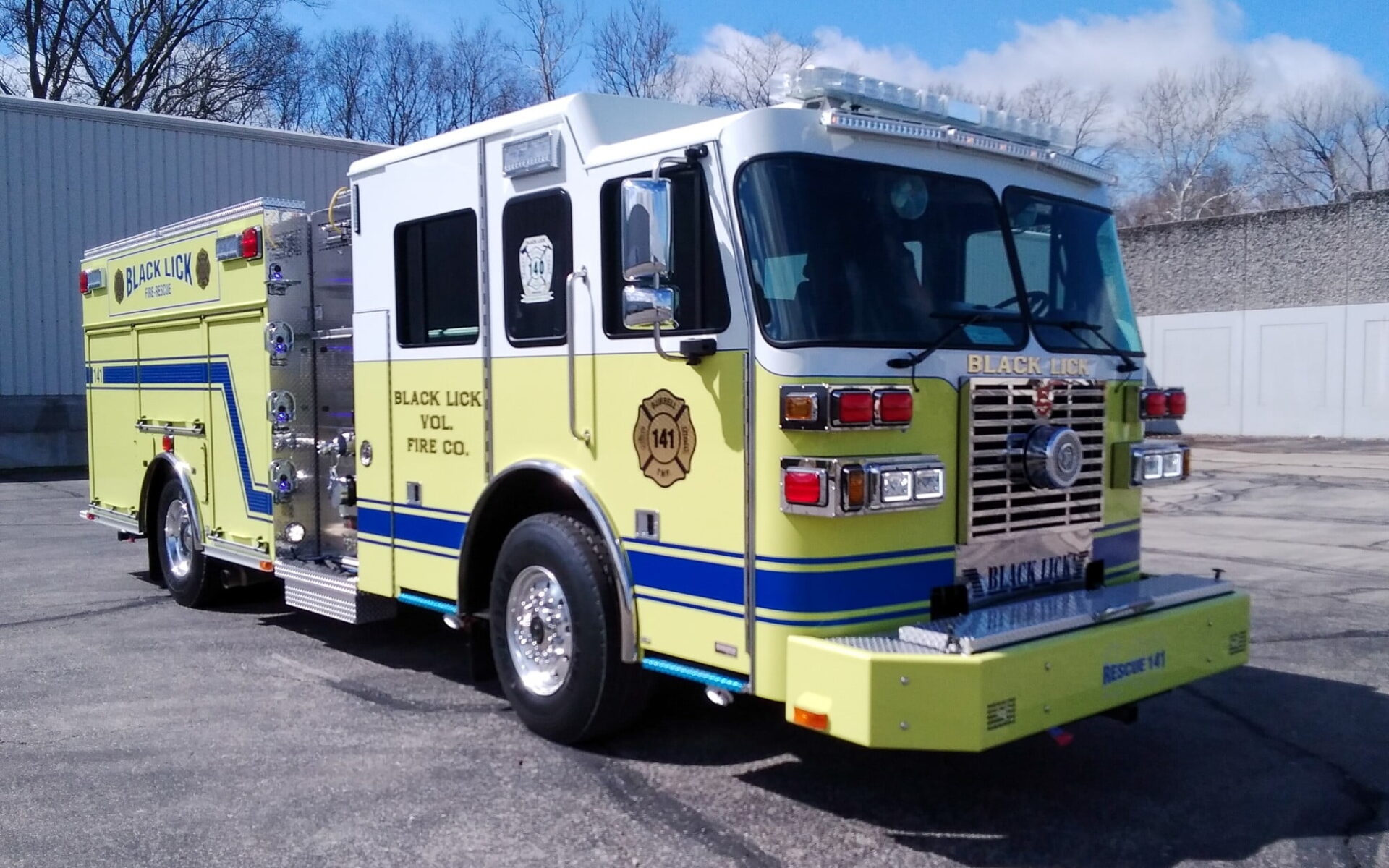

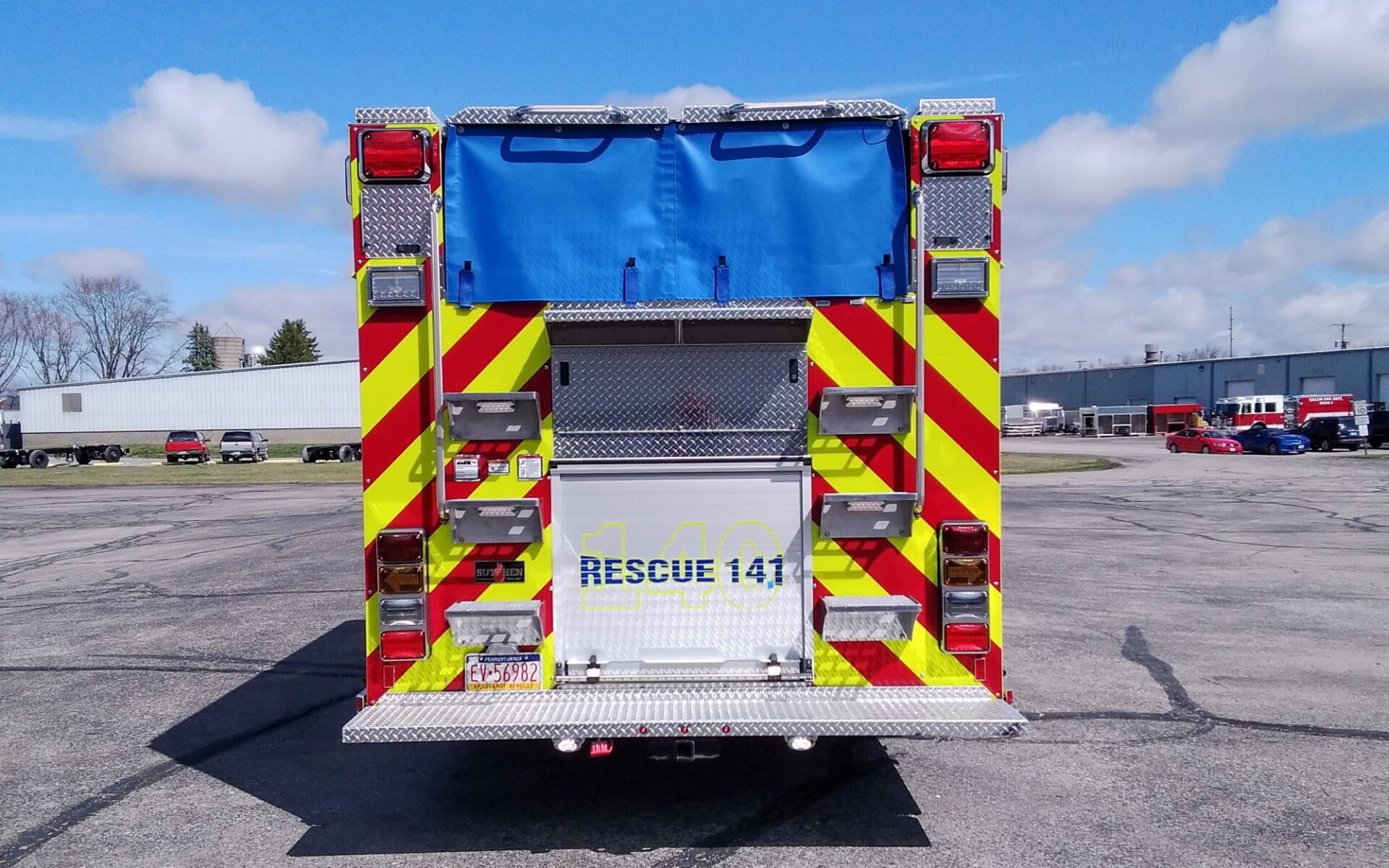

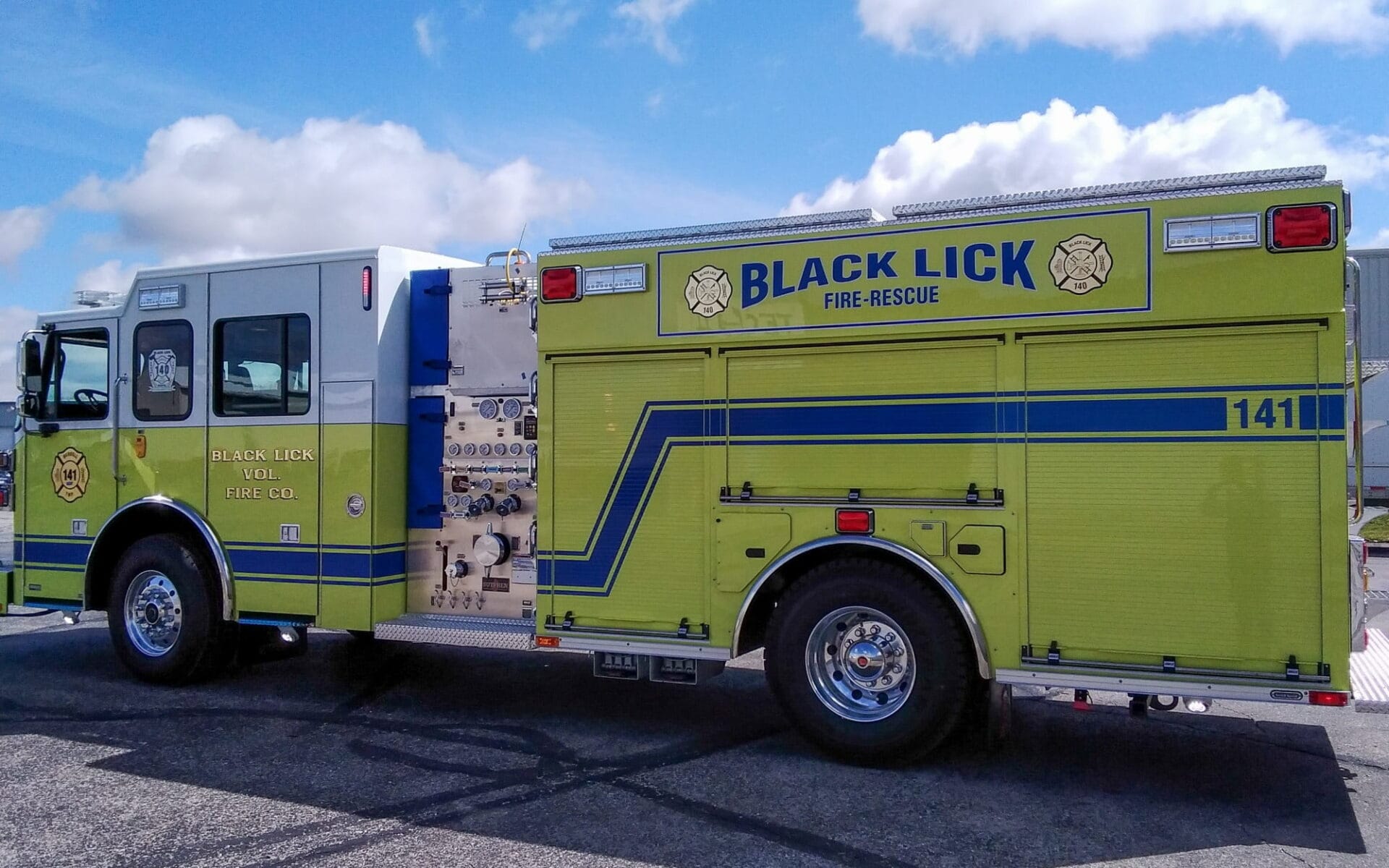

Custom Pumper – Black Lick Volunteer Fire Department, PA

Specs

Cab
Four-door, six-person
10” Double Rails
Single axle (50k psi)
Front Suspension 20,000
Lbs.
Rear suspension 27,000lbs
.
Engine
Cummins L 9, 450 HP
Alternator
Leece Neville 420 AMP
Transmission
Allison Gen 5, EVS3000
Water Pump
Xs qmax-1,500 gpm single stage pump
Discharges
(2) 2 ½” Left, (1) 3” w/ 4” Outlet Right, (1) 2 ½” Right, (1) 2 ½” Front Right of Main Hosebed, (1) 2 ½” Front Bumper Discharge with 2 ½” Plumbing
Crosslays
(1) 2 ½” with swivels
Speedlays
(2) 2” with swivels
Water Tank
1000-gallon
Construction
Aluminum 40/51
Doors
Amdor roll-up compartment painted
Total Compartment Space
306 cu. ft.
Body
Custom Pumper G9
Bumper Extension
18” formed steel channel bumper, painted
Siren
Federal q2b , grille mount
Whelen Freedom LED
Lightbar
HIVIZ 72” Brow
Light
Whelen 600 Red
Leds
Power
Harrison 8kw generator
Will Burst NS2.3-920-4

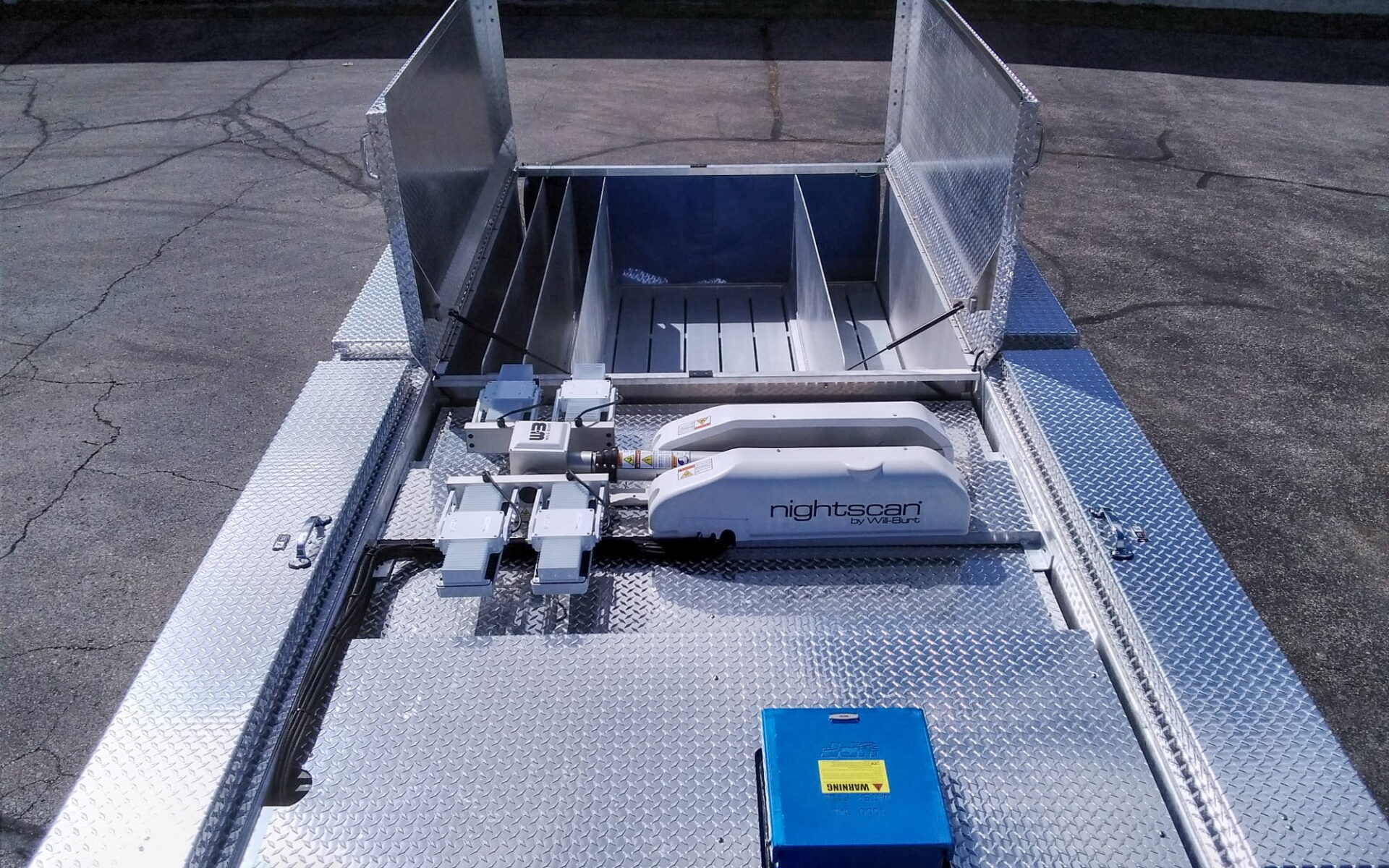

Light tower
Construction
Aluminum hose bed cover
